Small green circuit board with USB-A plug and mSATA slot, 72x35x10mm

Corn Electronics

Corn Electronics mSATA to USB 3.0 Adapter 30x50mm

SKU CH-ZC46-BZZNN

Connects a 30x50mm mSATA SSD to USB 3.0 for portable storage at up to 400MB/s with UASP

  • Repurpose old mSATA SSDs as portable USB storage
  • ASM1153E chip enables 512GB SSD support and stable power
  • USB 3.0 delivers 200MB/s reads; UASP boosts to 400MB/s
  • Driver-free hot-swap operation on Windows 8+ and Mac OS 8&9
  • Compact 72x35x10mm board fits 30x50mm drives with two screws

mSATA 30×50mm to USB 3.0 Adapter

This adapter converts an mSATA SSD measuring 30mm by 50mm into a USB 3.0 external drive. It targets users who have removed such drives after a laptop upgrade and want to reuse them for extra portable storage on a desktop or notebook.

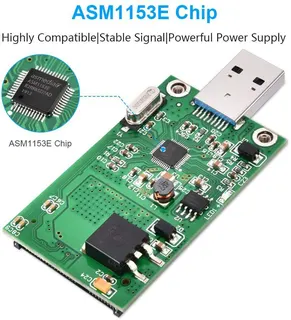

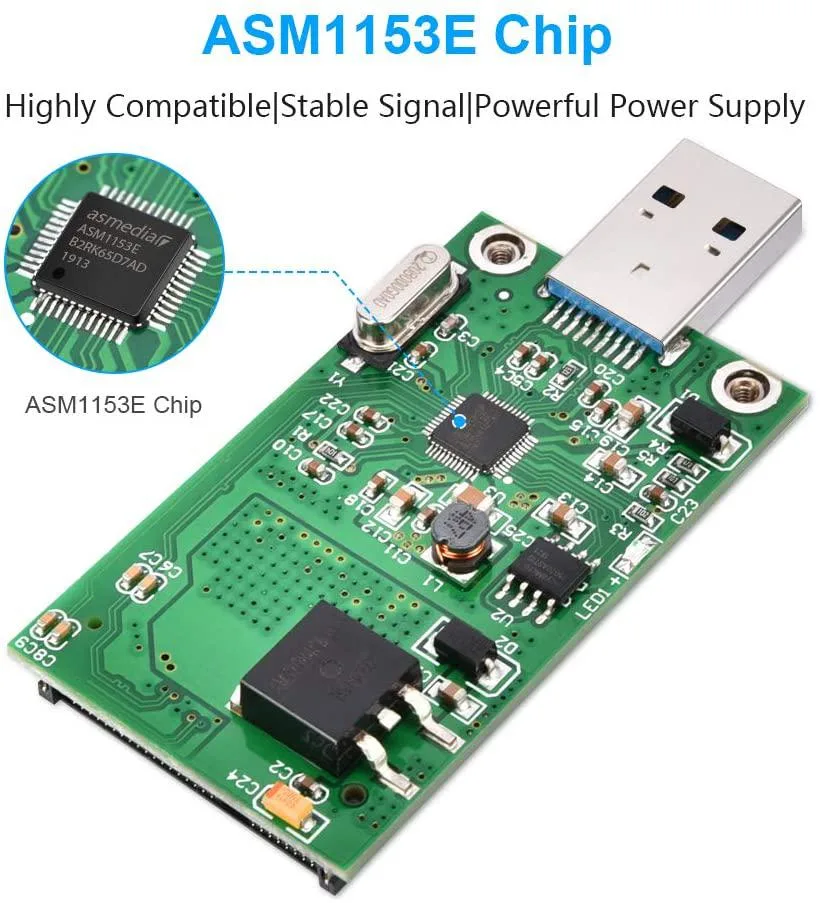

ASM1153E Chip and UASP Support

The ASM1153E controller provides broad platform compatibility and stable signalling for drives up to 512GB. USB 3.0 delivers read and write speeds around 200MB/s, while UASP mode on supported Windows 8 or Mac OS 8 and 9 systems can raise throughput to roughly 400MB/s depending on the SSD used.

1.5A Current Limit and Formatting Requirement

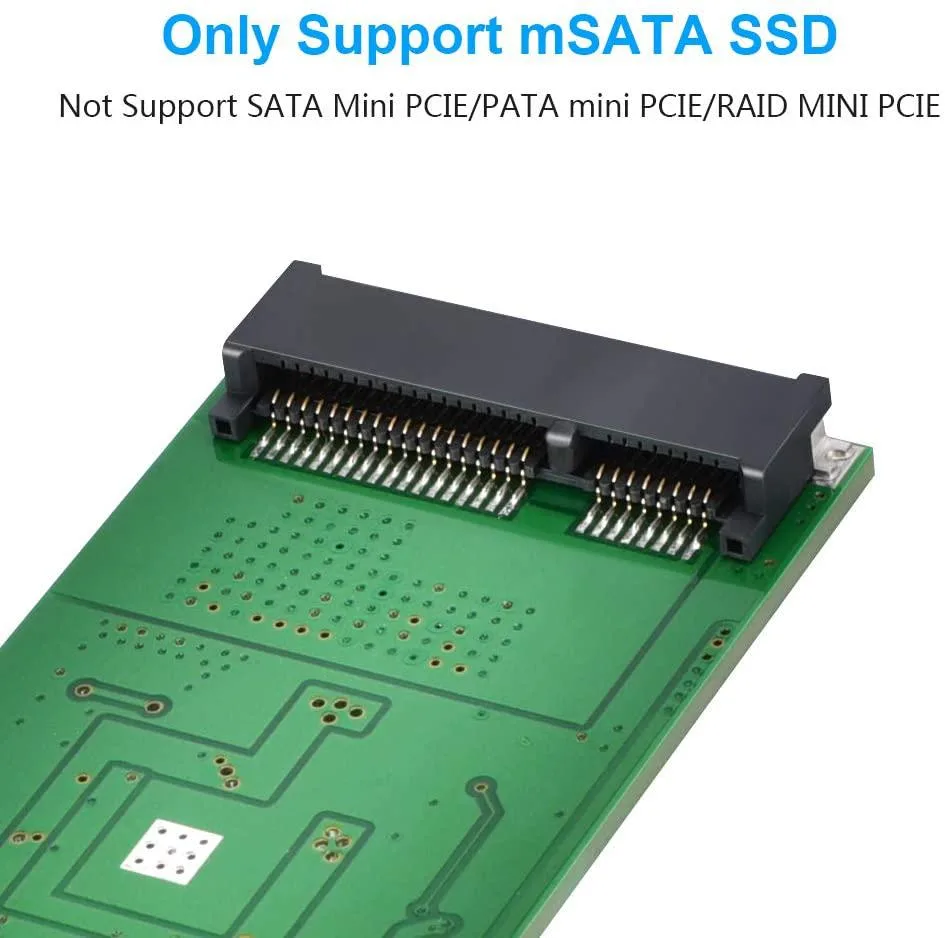

Only mSATA SSDs drawing less than 1.5A are supported; SATA Mini PCIe, PATA Mini PCIe and RAID Mini PCIe drives will not work. A new drive must be formatted before the computer will recognise it, and the package includes two mounting screws for securing the SSD to the 72mm by 35mm by 10mm board.

Highlights

  • Repurpose old mSATA SSDs as portable USB storage
  • ASM1153E chip enables 512GB SSD support and stable power
  • USB 3.0 delivers 200MB/s reads; UASP boosts to 400MB/s
  • Driver-free hot-swap operation on Windows 8+ and Mac OS 8&9
  • Compact 72x35x10mm board fits 30x50mm drives with two screws

Specifications

No published specifications for this item yet.

Questions about this item

Does the mSATA SSD need formatting before first use with this adapter?

Yes, a new mSATA SSD must be formatted before the adapter can recognise it.

What maximum SSD current does the ASM1153E chip allow?

The adapter only supports mSATA SSDs drawing less than 1.5 A.

How hot can the adapter get during continuous operation?

It is rated for a working temperature range of 0 °C to 70 °C.
