White PCIe 5.0 riser cable 200mm with 90 degree right angle connector

Corn Electronics

Corn Electronics PCIe 5.0 Riser Cable 200mm White 90 Degree

SKU CH-X5MK-PCKDF

PCIe 5.0 x16 riser cable with 200 mm white 90-degree connector, 30 AWG silver-plated copper, 78 W power delivery and adjustable 97-128 mm mounting holes

Length 200mm

  • 150mm
  • 200mm

Struck-through versions exist but are not stocked here.

Color White

  • PCIe 5.0 bandwidth up to 64 GB/s for RTX 50-series and RX 9000-series GPUs
  • 78 W power delivery via 40-pin connector with 10 dedicated 12 V pins
  • EMI-shielded 30 AWG silver-plated copper for clean signal integrity
  • 90° right-angle design enables vertical GPU mounting in tight cases
  • Adjustable screw-hole spacing 97–128 mm fits common chassis layouts

PCIe 5.0 Riser Cable for Vertical GPU Mount

This 200 mm white riser cable carries a PCIe 5.0 x16 signal with a 90 degree right-angle connector for vertical graphics-card mounting. It is built for enthusiasts assembling high-end systems that demand the full 64 GB/s theoretical bandwidth of the PCIe 5.0 interface.

Installation and Common Issues

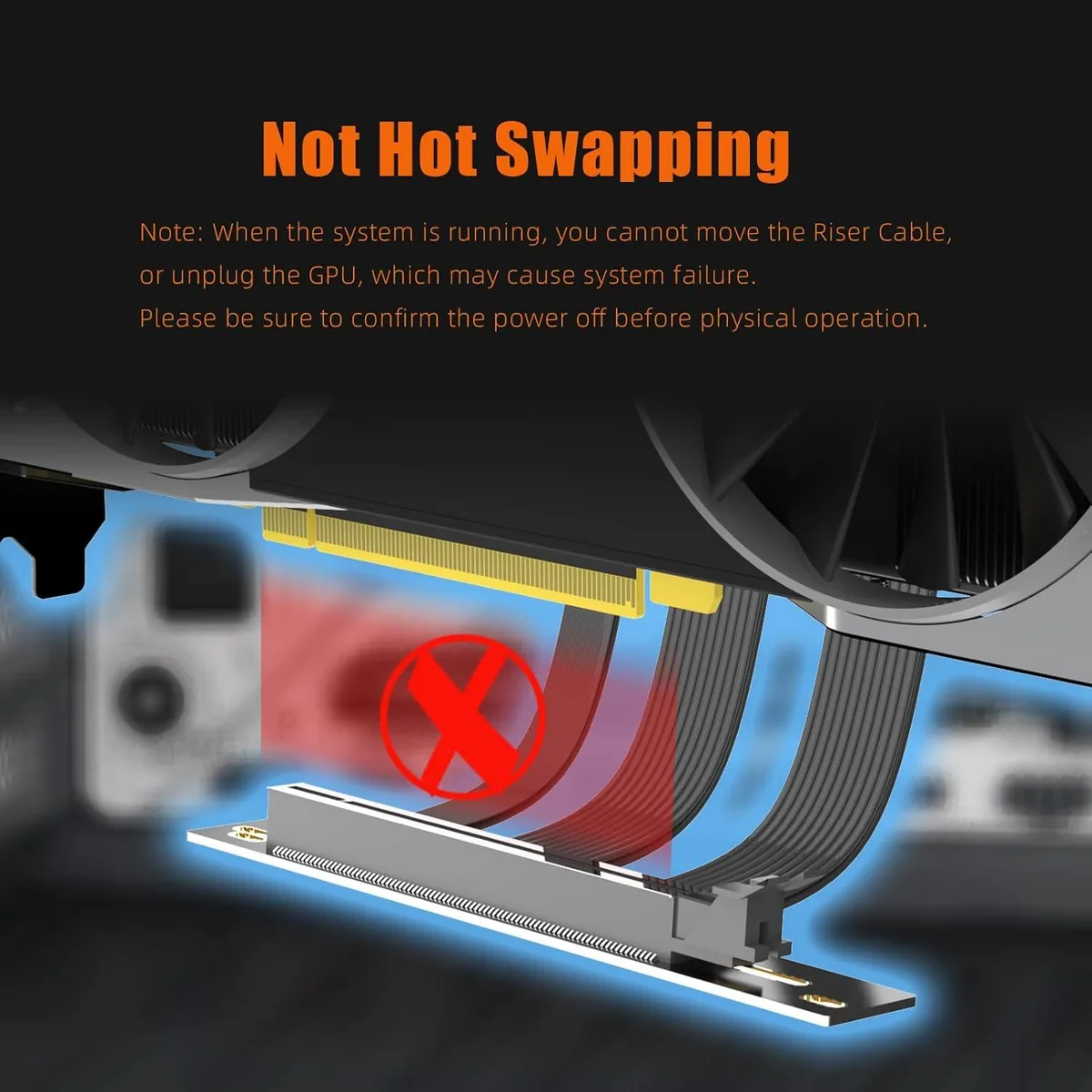

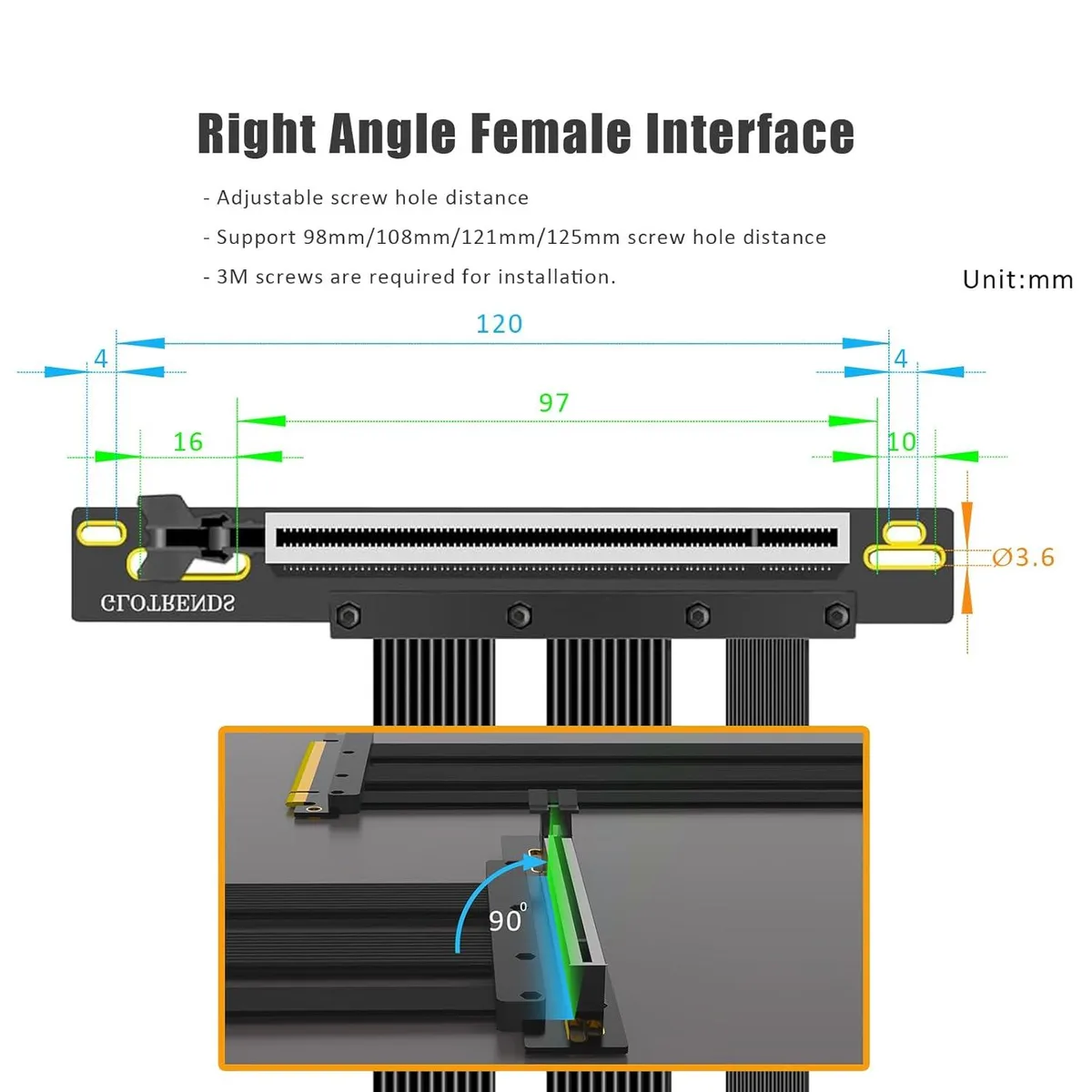

The cable fits screw-hole spacings from 97 mm to 128 mm, covering common 98, 108, 121 and 125 mm patterns. No driver installation is required, but hot-swapping is not supported. Avoid touching the gold fingers; fingerprints or contaminants can reduce signal quality at these speeds.

Compatibility Check Before Ordering

Your CPU must be Intel 13th Gen or newer, or AMD Ryzen 8700 or newer, paired with a Z790 or newer motherboard. A direct CPU-connected PCIe 5.0 x16 slot is required for optimal performance. The graphics card must be GeForce RTX 50 Series or AMD Radeon RX 9000 Series. The system also needs 32 GB dual-channel DDR5 6000 Hz or faster memory. The 40-pin connector delivers up to 78 W through ten 12 V pins and six 3.3 V pins. Builders who need a longer cable, a different angle, or support for older CPUs, motherboards or GPUs cannot use this product.

Highlights

  • PCIe 5.0 bandwidth up to 64 GB/s for RTX 50-series and RX 9000-series GPUs
  • 78 W power delivery via 40-pin connector with 10 dedicated 12 V pins
  • EMI-shielded 30 AWG silver-plated copper for clean signal integrity
  • 90° right-angle design enables vertical GPU mounting in tight cases
  • Adjustable screw-hole spacing 97–128 mm fits common chassis layouts

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the riser cable is delivering PCIe 5.0 speeds after installation?

With a supported CPU and GPU in a direct CPU-connected x16 slot, the cable is rated for ~50 GB/s test speed against the 64 GB/s theoretical maximum.

What comes in the box and what must I source separately?

The package includes the 200 mm white 90-degree riser cable with a 40-pin connector and adjustable screw holes from 97 to 128 mm. You must provide a compatible motherboard, CPU, GPU, and 32 GB DDR5 memory.

Which PCIe generation should I choose for an RTX 4090 build?

The cable is backward compatible with PCIe 4.0 and 3.0, so it will work with an RTX 4090; full 5.0 bandwidth requires an RTX 50 series or RX 9000 series GPU on a Z790 or newer board with a 13th Gen Intel or Ryzen 8700+ CPU.
