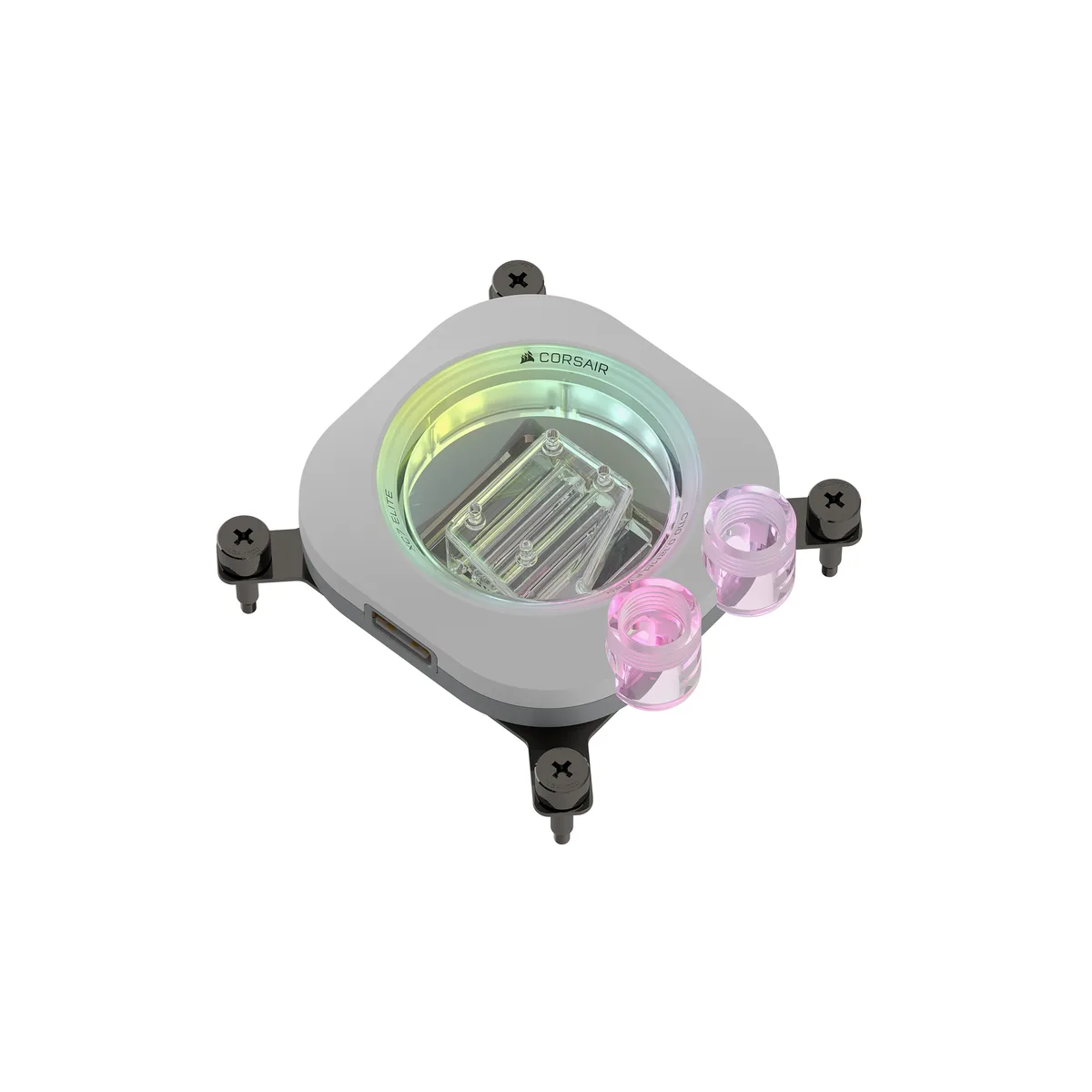

White CPU water block with transparent flow chamber and RGB lighting

Corsair

Corsair iCUE LINK XC7 RGB ELITE WHITE CX-9010022-WW CPU Water Block White diy cooling

SKU CH-AQDR-RTANW MPN CX-9010022-WW

A white CPU water block with over 120 nickel-plated copper micro-fins, a transparent flow chamber, 24 RGB LEDs, built-in temperature sensor and pre-applied XTM70 paste for Intel LGA 1700

  • TypeCPU Block
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700
  • ColorWhite
  • LED ColorRGB
  • SpecificationProduct Type: CPU Water Block Cold Plate Fins: 120+ Cold Pla
  • FeaturesHexa-Flow Cooling engine: Hexa-Flow cooling engine mitigates
  • Even cooling across all cores with Hexa-Flow engine
  • 120+ micro-fins on nickel-plated copper cold plate
  • 24 addressable RGB LEDs inside transparent flow chamber
  • Built-in sensor monitors cold-plate temperature up to 60 °C
  • Pre-applied XTM70 paste and captive screws simplify fitting

iCUE LINK XC7 RGB ELITE White CPU Water Block

This white CPU water block fits Intel LGA 1700 and AMD AM5 or AM4 sockets. It uses a nickel-plated copper cold plate with over 120 micro-cooling fins and a Hexa-Flow cooling engine to distribute coolant evenly across multi-chip CPUs. A transparent flow chamber shows the fluid path while 24 addressable RGB LEDs provide lighting. Pre-applied XTM70 thermal paste and captive mounting screws simplify installation. The block connects through a single iCUE LINK cable for software control.

Suits custom-loop builders using copper

The block is compatible only with other copper or brass parts and CORSAIR XL or equivalent coolants. It requires a CORSAIR iCUE LINK controller for software integration and RGB synchronisation. Maximum coolant temperature is rated at 60 °C. Builders who need a self-contained cooler, lack a separate iCUE LINK controller, or plan to mix aluminium radiators should choose a different solution.

G1/4" BSPP port thread defines loop compatibility

Every inlet and outlet uses a standard G1/4" BSPP thread, so the block accepts any matching fitting from the custom-loop market. This single specification determines whether your existing tubing, fittings and radiators can connect directly without adapters. Verify that your loop uses G1/4" BSPP before purchasing.

Highlights

  • Even cooling across all cores with Hexa-Flow engine
  • 120+ micro-fins on nickel-plated copper cold plate
  • 24 addressable RGB LEDs inside transparent flow chamber
  • Built-in sensor monitors cold-plate temperature up to 60 °C
  • Pre-applied XTM70 paste and captive screws simplify fitting

Specifications

BrandCORSAIR
SeriesiCUE LINK XC7 RGB ELITE WHITE
ModelCX-9010022-WW
TypeCPU Block
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700
ColorWhite
LED ColorRGB
SpecificationProduct Type: CPU Water Block
Cold Plate Fins: 120+
Cold Plate Material: Nickel-Plated Copper
Fluid Chamber Material: Nylon
Socket Compatability: Intel 1700 | AMD AM5 | AMD AM4
Compatible Materials: Only mix with other copper / brass products
Compatible Coolants: CORSAIR XL or equivalent
Port Thread: G1/4" BSPP
Max Operating Temperature: 60°C coolant temperature
Thermal Material: Pre-applied XTM70 thermal paste
Required Controller For iCUE Support: CORSAIR iCUE LINK
FeaturesHexa-Flow Cooling engine: Hexa-Flow cooling engine mitigates laminar flow and ensures that all CPU cores are more evenly cooled, delivering exceptional cooling performance on cutting-edge multi-chip package CPUs.
Ultra-Fine Copper Cold Plate: With a nickel-plated copper cold plate and over 120 high-efficiency micro-cooling fins, your CPU stays cool for maximum overclocking.
Effortless Connectivity and Intelligent Design: Take your build to the next level with the patent-pending iCUE LINK ecosystem, letting you daisy-chain all your components together using universal connectors, all p
Package ContentsXC7 ELITE CPU Water Block
Intel LGA 1700 bracket with pre-installed mounting screws
AMD AM5/AM4 bracket with pre-installed mounting screws
Backplate
Shipping weight0.51 kg
Package size351 × 185 × 53 mm

Questions about this item

Do I need a Corsair iCUE LINK controller to use the 24 RGB LEDs and temperature sensor on this water block?

Yes, the block requires a Corsair iCUE LINK controller for full iCUE software integration, RGB lighting control and cold-plate temperature monitoring.

Can I keep my existing copper or brass radiators and fittings when installing this nickel-plated copper cold plate?

Yes, the manufacturer states the block is compatible only with other copper or brass components, so existing copper/brass loops are safe to reuse.

How do I verify the block is cooling correctly after installation?

In iCUE software the built-in cold-plate temperature sensor reports real-time coolant temperature; it should stay below the 60 °C maximum operating limit under load.
