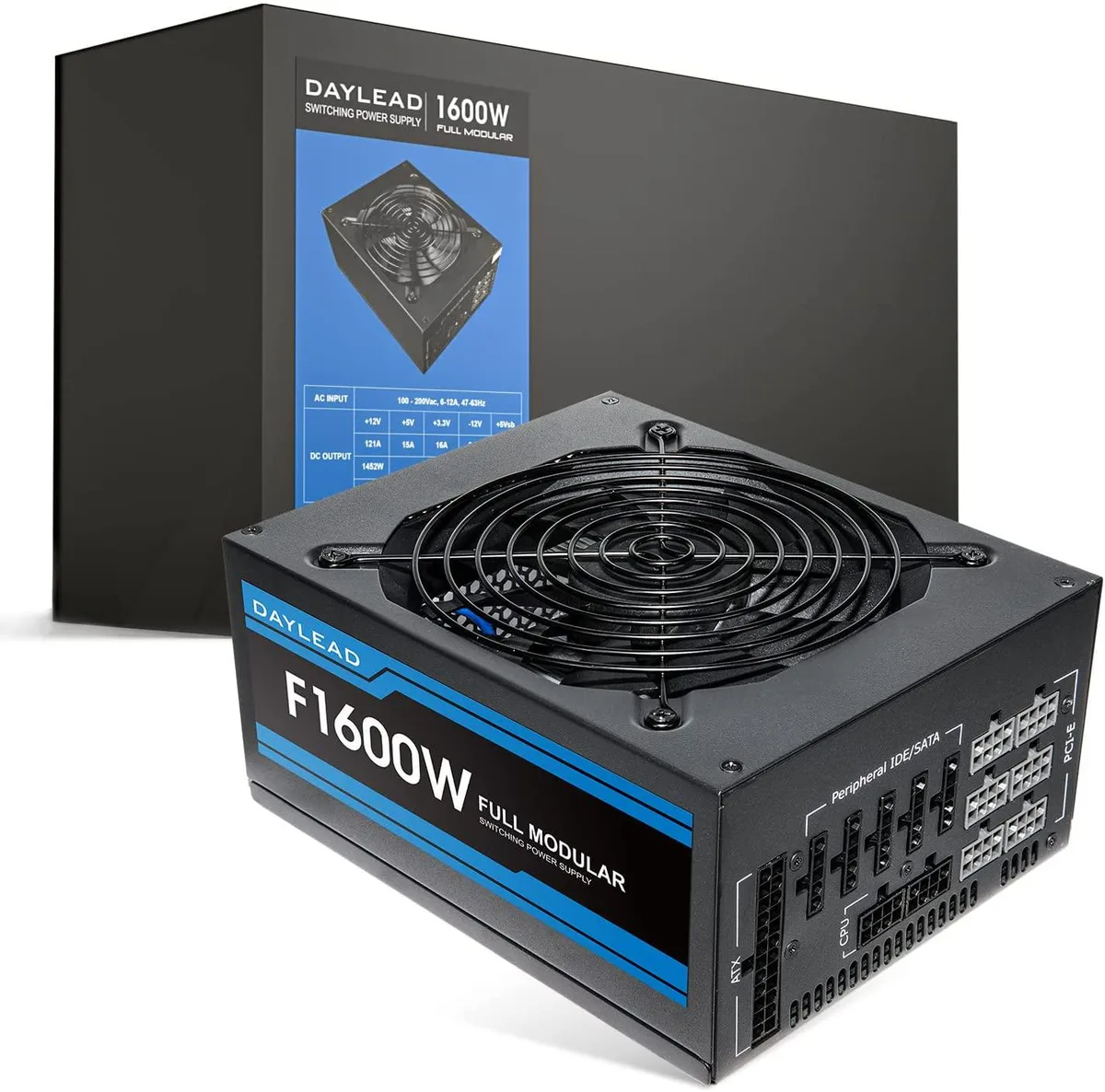

Daylead 1600W AT power supply, fully modular, 110V, 140mm fan, cables included

Daylead

Daylead 1600W AT Power Supply Full Modular 110V

SKU CH-SXK6-94GWW

A 1600W fully modular AT power supply rated for 110V with 87% efficiency, six 6+2-pin PCIe cables and a 140mm double ball-bearing fan

  • TypeAT
  • Fully modular design simplifies builds with only necessary cables connected
  • 1600W output at 110V delivers stable power for high-demand mining rigs
  • 87% typical efficiency reduces wasted energy and excess heat
  • 140mm double ball bearing fan with 11 blades provides high airflow cooling
  • Includes 24-pin jumper bridge for motherboard-free mining operation

High-wattage AT power supply for mining rigs

This 1600W AT power supply is built for high-density mining rigs and dual-CPU server boards that draw sustained heavy current. The fully modular cable set lets builders connect only the leads they need, keeping airflow paths clear inside crowded chassis. It ships with a 24-pin bridge tool so the unit can start without a motherboard 24-pin header, a common requirement in dedicated mining frames.

110 V input design with 87 % typical efficiency

The unit is specified for 110 V nominal input while accepting a 100-240 V range, and delivers 87 % efficiency under typical loads. At semi-load the supplier rates efficiency at 85 % or higher, reducing waste heat when the rig is not at peak draw. Six 6+2-pin PCIe connectors are provided, each rated for a maximum of 250 W, so cable limits match high-power GPU or ASIC loads.

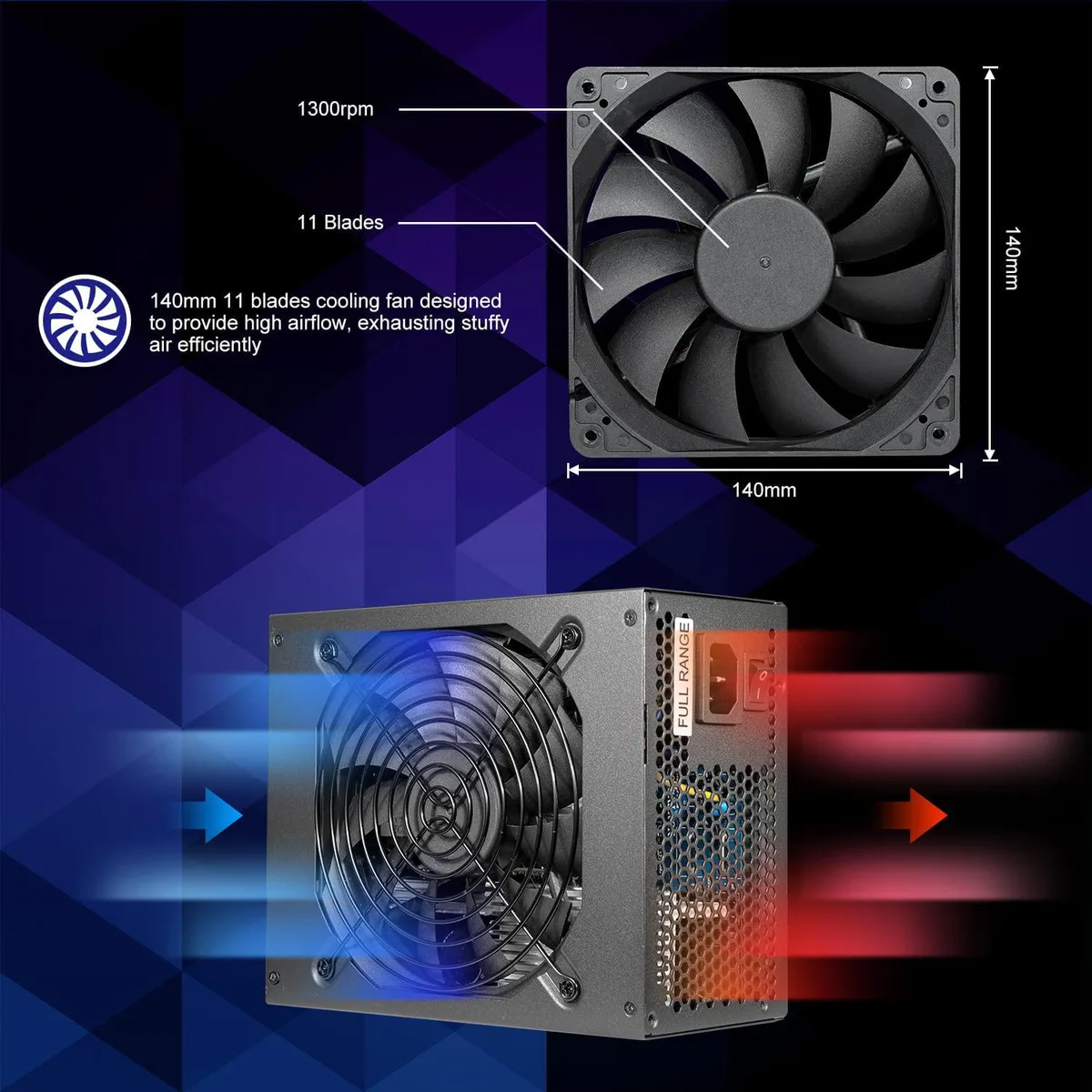

140 mm double ball-bearing fan for continuous

A 140 mm double ball-bearing fan with eleven blades moves high-volume air through the chassis to sustain cooling during 24/7 operation. The supplier notes the fan runs audibly loud because the airflow is sized for full 1600 W thermal load rather than quiet idle. This acoustic profile suits dedicated mining rooms or server closets where noise is secondary to thermal stability.

Highlights

  • Fully modular design simplifies builds with only necessary cables connected
  • 1600W output at 110V delivers stable power for high-demand mining rigs
  • 87% typical efficiency reduces wasted energy and excess heat
  • 140mm double ball bearing fan with 11 blades provides high airflow cooling
  • Includes 24-pin jumper bridge for motherboard-free mining operation

Specifications

TypeAT

Questions about this item

What does the 1600W rating deliver in a real mining rig?

The unit is rated for 1600W output at 110V input and maintains 87% efficiency under typical load, so it supplies stable power to multiple ASIC miners or dual-CPU servers without wasting excess energy as heat.

How does the AT form factor and modular cabling limit or enable connections?

The AT-type design uses fully modular cables — one 24-pin ATX, two 4+4-pin CPU, six 6+2-pin PCIe (each capped at 250W), three SATA and one Molex — letting you attach only the leads your miner or server requires.

What physical space and mounting does the 140mm fan unit need?

A 140mm double ball-bearing fan with 11 blades handles airflow, and the package includes four mounting screws plus a strap for two-way installation in standard cases or the matching MC02 mining chassis.
