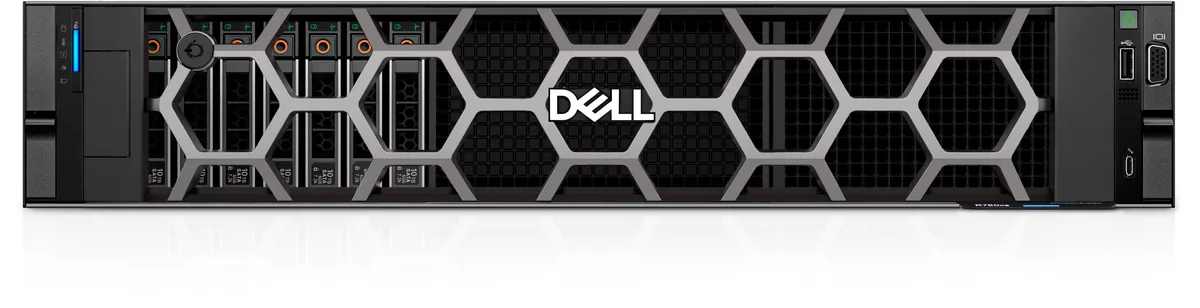

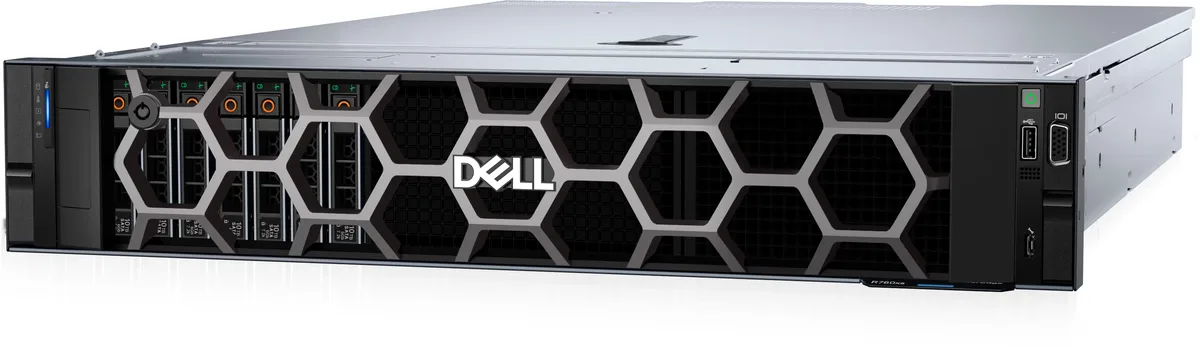

Silver 2U rack server front with twelve 3.5-inch drive bays

DELL

DELL ne_r760xs_tm_vi_vp_sb_os PowerEdge R760xs 2U rack server 2×Xeon Silver 4410T 10-core 16GB DDR5 2TB SATA

SKU CH-S17P-NZ46T MPN ne_r760xs_tm_vi_vp_sb_os

2U rack server with dual 10-core Xeon Silver 4410T processors, 16GB DDR5 memory, 2TB SATA storage and 12 3.5-inch drive bays for virtualization workloads

  • WorkloadVirtualization, Medium density VM / VDI and SDS Node
  • TypeRack
  • Rack Height2U
  • SecurityCryptographically signed firmware Data at Rest Encryption (S
  • CPU TypeIntel Xeon Silver
  • CPU Speed4410T (2.70 GHz)
  • Dual 10-core Xeon Silver 4410T processors deliver 20 threads for virtualization workloads
  • 16GB DDR5 memory scales to 1.5TB across 16 slots for growing VM density
  • 12-bay 3.5" chassis supports SAS, SATA and NVMe drives for flexible storage tiers
  • Single 800W 100-240Vac power supply simplifies rack power planning
  • Windows Server 2022 Standard pre-installed with 36-month next-business-day support

Dual-socket Xeon Silver 4410T server

The PowerEdge R760xs is a 2U rack system built for medium-density virtual machines, VDI and software-defined storage. Two Intel Xeon Silver 4410T processors provide 10 cores each at 2.7 GHz with 20 threads per CPU. Sixteen gigabytes of DDR5 memory are installed across 16 slots, supporting up to 1.5 TB total. A 2 TB SATA hard drive ships with Windows Server 2022 Standard.

Storage limited to SATA

The 3.5-inch chassis accepts up to 12 SATA or SAS drives, while the front bays also allow up to 8 NVMe drives if configured. Rear bays add two 2.5-inch slots. The installed 2 TB drive uses the SATA 6 Gbps interface, so sequential throughput is bounded by that link. No SSD is included, and the single 800 W power supply must cover all drives, GPUs and CPUs.

Cryptographic firmware signing

Security features include cryptographically signed firmware, Secure Boot, Secure Erase, hardware integrity verification and a silicon root of trust. A TPM 2.0 module is fitted with FIPS and CC-TCG certification. The chassis supports up to two single-wide GPUs for acceleration workloads. System Lockdown requires an iDRAC9 Enterprise or Datacenter licence, which is not included.

Highlights

  • Dual 10-core Xeon Silver 4410T processors deliver 20 threads for virtualization workloads
  • 16GB DDR5 memory scales to 1.5TB across 16 slots for growing VM density
  • 12-bay 3.5" chassis supports SAS, SATA and NVMe drives for flexible storage tiers
  • Single 800W 100-240Vac power supply simplifies rack power planning
  • Windows Server 2022 Standard pre-installed with 36-month next-business-day support

Specifications

BrandDELL
SeriesPowerEdge R760xs
Modelne_r760xs_tm_vi_vp_sb_os
WorkloadVirtualization, Medium density VM / VDI and SDS Node
TypeRack
Rack Height2U
SecurityCryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
CPU TypeIntel Xeon Silver
CPU Speed4410T (2.70 GHz)
Number of CPU Cores10-Core Processor
Cache Memory26.25MB Cache
CPU Features10-core, 20-thread, 16GT/s
# of Processors Installed2
MAX Processors2
Installed Memory Size16GB
Memory TypeDDR5
Max Memory Capacity1.5TB
Number of Memory Slots16
Hard Drive (Installed)2TB
HDD InterfaceSATA
SSD (Installed)No
GPU TypeSupport 2 x Single-Wide GPUs

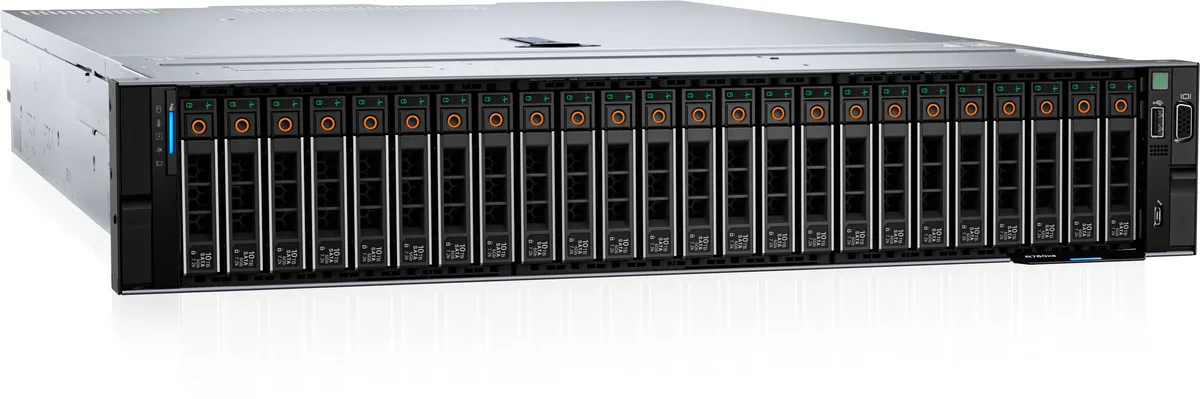

Expansion BaysFront: 12 x 3.5" or 16 x 2.5" plus up to 8x NVMe drives
Rear: 2 x 2.5"
Operating SystemWindows Server 2022 Standard
Power CharacteristicsSingle 800W (100-240Vac)
Dimensions3.41" x 18.97" x 28.4"
Shipping weight22.68 kg
Package size762 × 635 × 254 mm

Questions about this item

Should I choose the 16GB DDR5 configuration or plan for the 1.5TB maximum?

The system ships with 16GB DDR5 across 16 slots. For virtualization or VDI workloads, populate additional slots up to 1.5TB to match VM density.

What does the 2.70 GHz Xeon Silver 4410T deliver in a 2U rack server?

Two 10-core 4410T processors give 20 cores and 40 threads at 2.70 GHz with 26.25MB cache, suited for medium-density VM and SDS tasks.

How does the SATA 6Gbps interface limit the installed 2TB drive?

The 2TB SATA drive runs at 6Gbps. The chassis supports 12 x 3.5" SAS/SATA bays plus 8 NVMe slots for faster tiers.
