DELL NSA-2600 8-Port 1GbE Rack Server

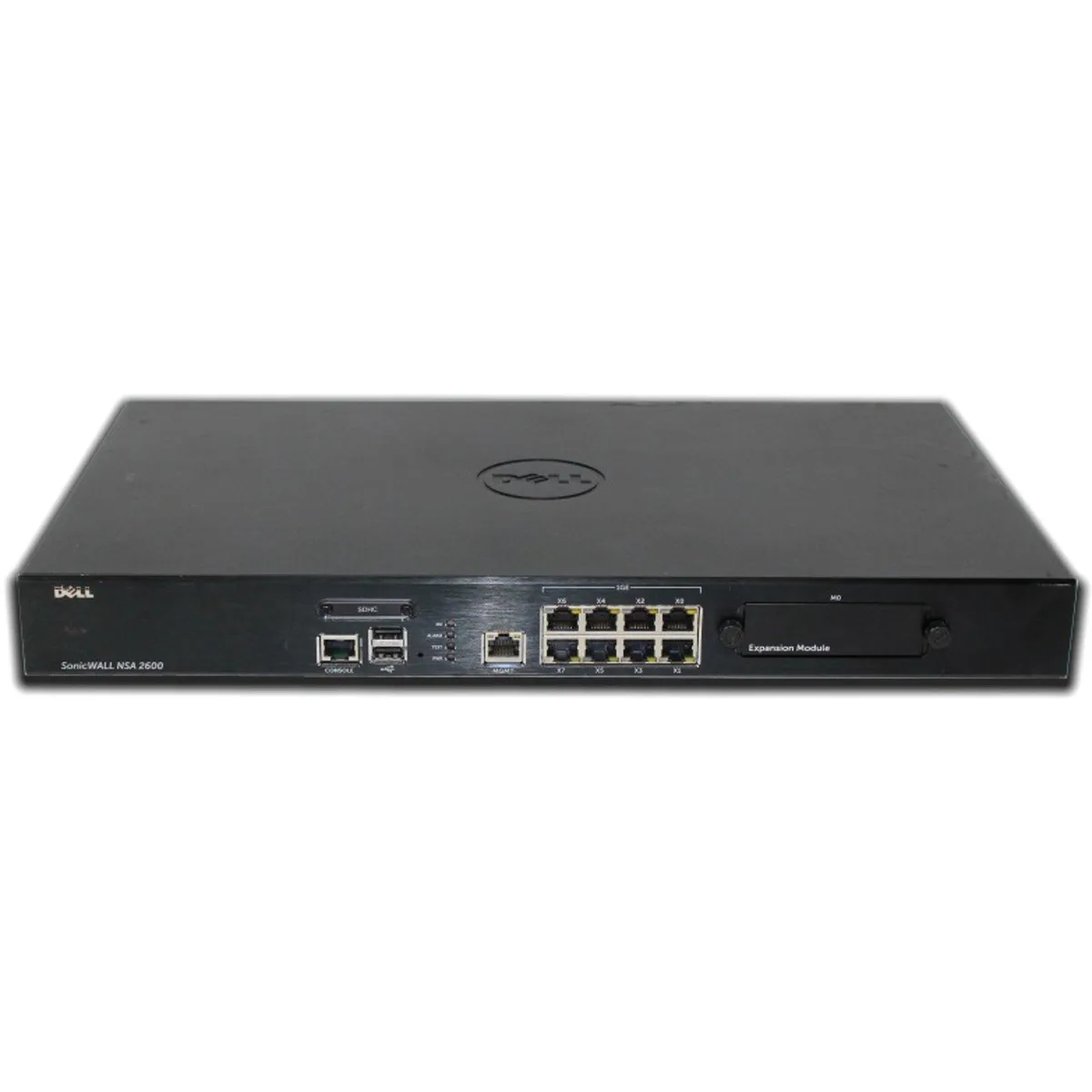

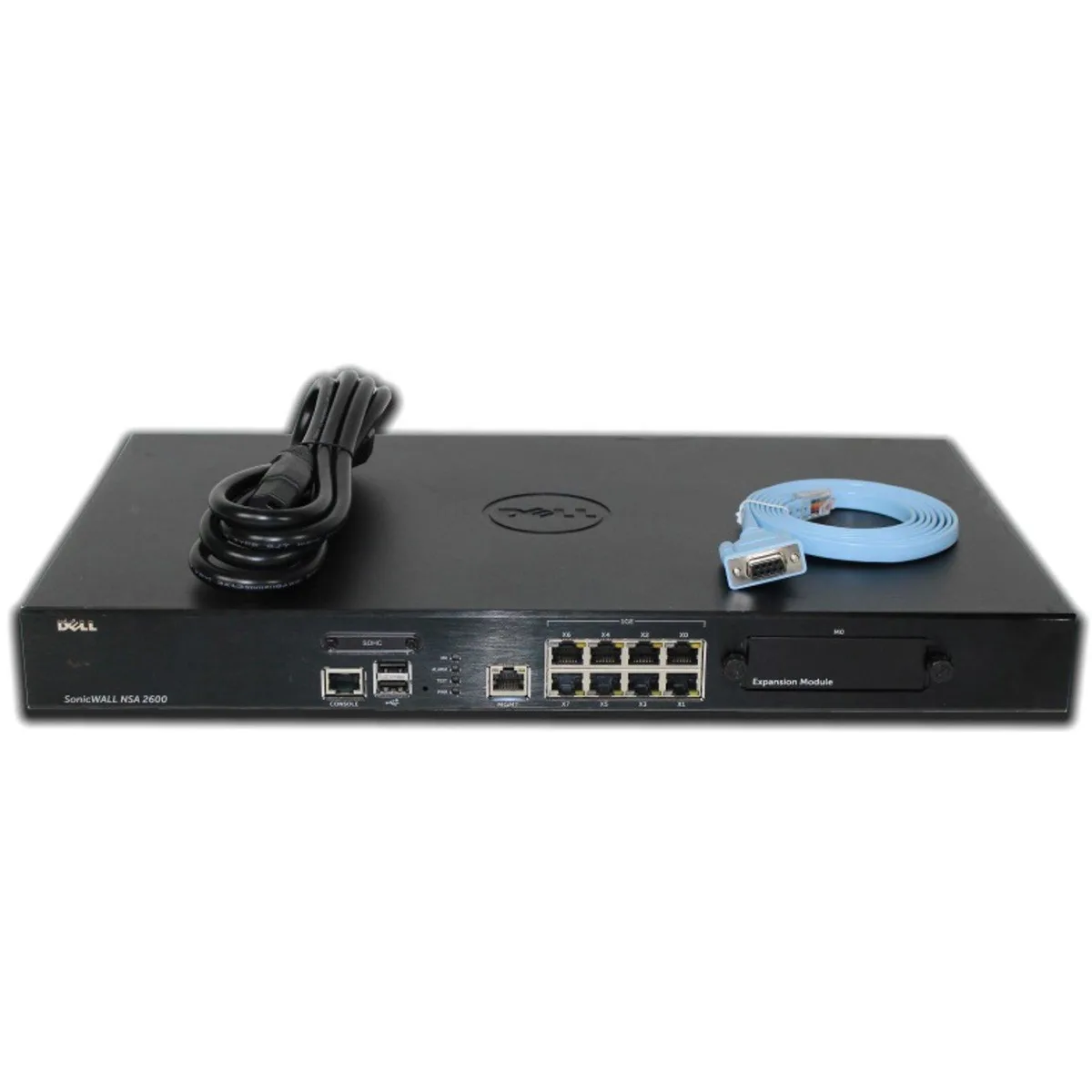

A 1U rack firewall with eight 10/100/1000 BASE-T ports, dual USB, management and console RJ-45 ports, and an expansion module bay running SonicOS 6.2.9
- TypeRack
- Compact 1U rack form factor fits dense server rooms
- Eight 10/100/1000 BASE-T ports handle wired traffic
- Dedicated RJ-45 management and console ports simplify admin
- Expansion module bay ready for future uplink needs
- SonicOS 6.2.9 firmware updated and components tested
Purpose-Built Network Security Appliance
The DELL NSA-2600 is a 1U rack-mounted firewall designed for small to mid-sized organisations that need unified threat management at the network edge. It runs SonicOS 6.2.9 and provides eight 10/100/1000 BASE-T ports for LAN segmentation and direct device connectivity. The compact 1.75" x 10.25" x 17" chassis fits standard server racks without consuming excess vertical space. Buyers who need integrated wireless controller features or a higher port count should evaluate larger models.
Interface Throughput and Expansion Constraints
All eight onboard ports negotiate at 10, 100 or 1000 Mbps, so aggregate throughput is bounded by Gigabit Ethernet line rates. Uplink capacity is not fixed; a separate network module must be installed in the single expansion bay to provide fibre or higher-speed copper uplinks. The management plane uses a dedicated RJ-45 management port and a RJ-45 console port for out-of-band access. Environments that require redundant power supplies or built-in 10 GbE uplinks cannot be served by this chassis.
Deciding Specification: Expansion Module Bay
The presence of one empty expansion module bay is the single detail that determines whether this appliance fits a given deployment. Without a compatible module the unit has no uplink path beyond the eight Gigabit ports, which limits WAN connectivity to copper speeds. The bay accepts SonicWall network modules sold separately, so the buyer must source the correct module for their ISP handoff or core switch link. If a dedicated uplink slot is not required, a fixed-port firewall may be simpler.
Highlights
- Compact 1U rack form factor fits dense server rooms
- Eight 10/100/1000 BASE-T ports handle wired traffic
- Dedicated RJ-45 management and console ports simplify admin
- Expansion module bay ready for future uplink needs
- SonicOS 6.2.9 firmware updated and components tested
Specifications
| Brand | DELL |
|---|---|
| Model | NSA-2600 |
| Type | Rack |
Questions about this item
Which capacity or version of the NSA-2600 should I choose?
This unit is the NSA-2600 8-port 1GbE model in a 1U chassis measuring 1.75" x 10.25" x 17". It ships with SonicOS 6.2.9, dual USB ports, a management port, a console port and one expansion-module bay; no other capacity variants are offered for this SKU.
What does the eight-port 1GbE spec mean once the appliance is racked?
You get eight RJ-45 ports that auto-negotiate at 10, 100 or 1000 Mbps for LAN or DMZ segments. Uplink speed depends on the optional network module you install in the expansion bay, so total throughput scales with that module choice.
What interface or standard do the ports use and what does it cap in practice?
The eight front ports are 10/100/1000 BASE-T copper, capping each link at 1 Gbps full-duplex. The management and console ports share the same electrical standard, while the expansion bay accepts a separate network module for higher-speed uplinks.
