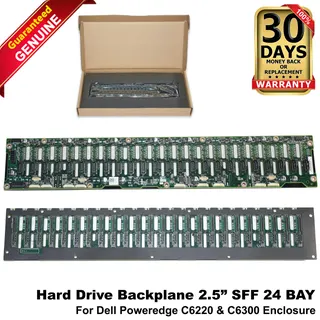

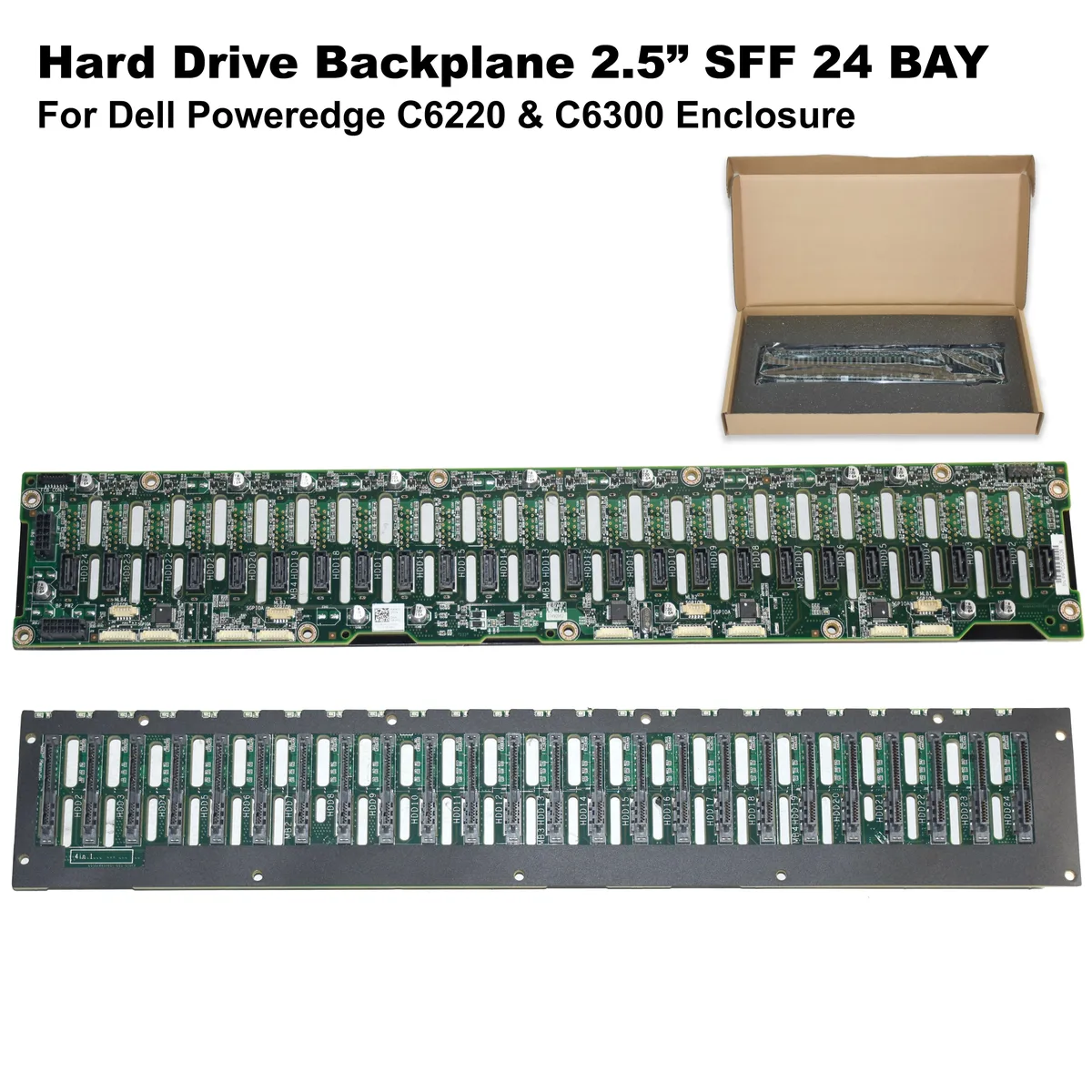

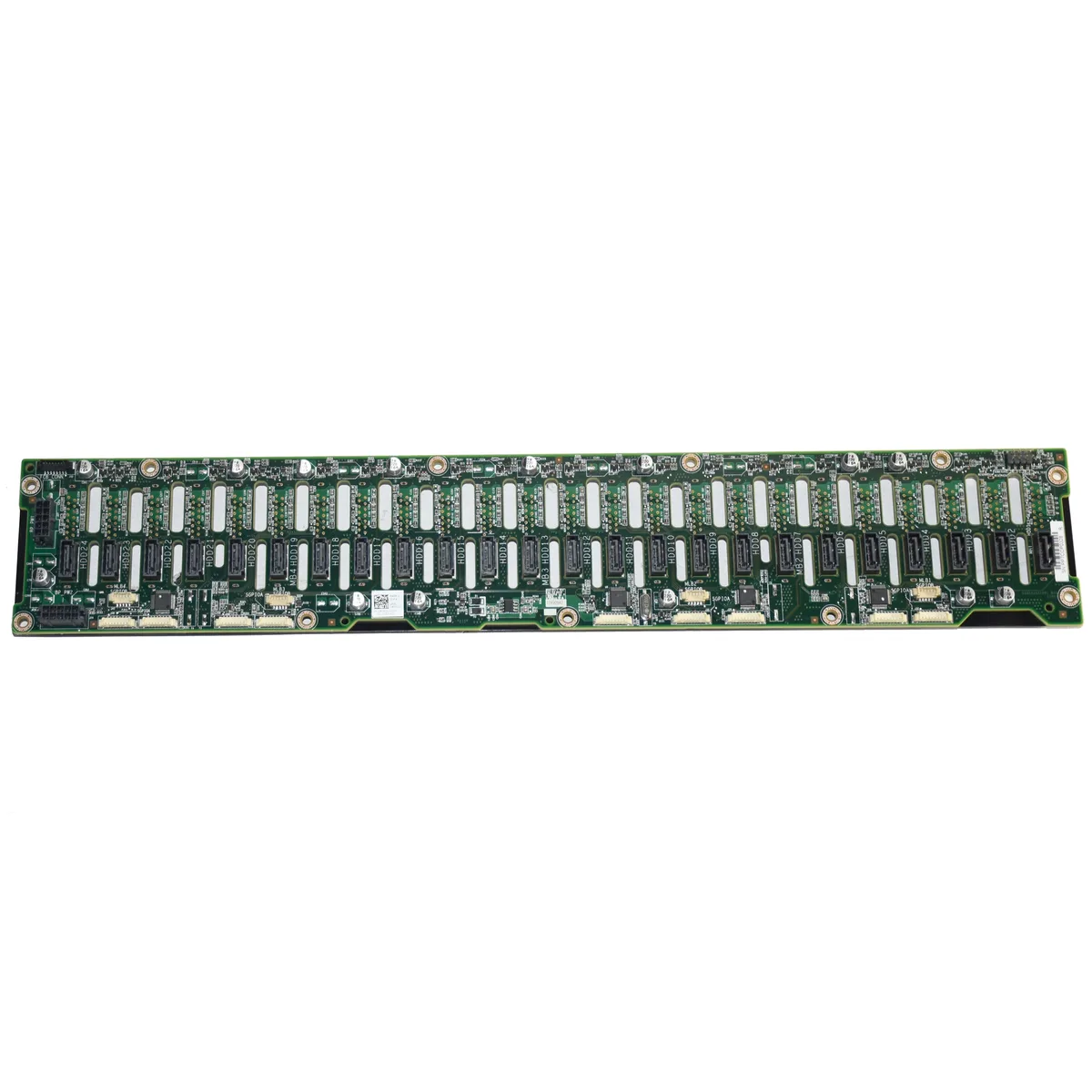

Green rectangular circuit board with twenty-four vertical drive connectors and Mini-SAS ports

DELL

DELL PowerEdge C6220 C6300 24-Bay 2.5" SFF Backplane 8VM0J

SKU CH-153M-82MGZ

A 24-bay 2.5" SFF SAS/SATA backplane for Dell PowerEdge C6220 and C6300 servers with hot-swap support and Mini-SAS connectors

  • Compatible ManufacturerFor Dell
  • Compatible ModelsFor Dell PowerEdge C6220, C6220 II, C6300
  • Dimensions10.5" x 4.3" x 1.2"
  • Weight1.8 lbs
  • 24-bay density expands server storage with twenty-four 2.5" SFF drive slots
  • Hot-swap design enables drive replacement without server shutdown
  • Compatible with PowerEdge C6220, C6220 II and C6300 enclosures
  • Dual SAS/SATA interface supports 6Gbps SAS and 3Gbps SATA drives
  • Tool-free trays and Mini-SAS HD connectors simplify installation and cabling

24-Bay SFF Backplane for PowerEdge C6220 and C6300

This genuine Dell backplane fits the PowerEdge C6220, C6220 II and C6300 server enclosures. It accepts twenty-four 2.5-inch SFF SAS or SATA hard drives and solid-state drives. The board connects to RAID controllers through SFF-8087 Mini-SAS connectors. It is built for data-centre, cloud and high-performance-computing deployments that need dense, hot-swappable storage.

Sustained load behaviour with hot-swap operation

Under continuous operation the backplane maintains drive connectivity for all twenty-four bays without interrupting the server. Hot-swap capability lets administrators replace failed SAS or SATA drives while the system stays online. Per-bay diagnostic LEDs report drive health so issues are spotted before they affect the array. The dual-interface design supports both SAS 6Gbps and SATA 3Gbps drives simultaneously.

Thermals noise and power in normal use

Optimised airflow channels direct cooling air across every drive slot, keeping temperatures stable during extended workloads. The passive board adds no fan noise of its own and draws negligible power beyond the attached drives. Tool-free drive trays latch securely, reducing vibration that can degrade performance. Dimensions are 10.5 by 4.3 by 1.2 inches and weight is 1.8 lbs.

Highlights

  • 24-bay density expands server storage with twenty-four 2.5" SFF drive slots
  • Hot-swap design enables drive replacement without server shutdown
  • Compatible with PowerEdge C6220, C6220 II and C6300 enclosures
  • Dual SAS/SATA interface supports 6Gbps SAS and 3Gbps SATA drives
  • Tool-free trays and Mini-SAS HD connectors simplify installation and cabling

Specifications

BrandDell
Part Number8VM0J
Compatible ManufacturerFor Dell
Compatible ModelsFor Dell PowerEdge C6220, C6220 II, C6300
Dimensions10.5" x 4.3" x 1.2"
Weight1.8 lbs

Questions about this item

Does the 24-bay backplane generate extra heat when running SAS drives continuously?

The backplane is a passive component with no active cooling of its own; it relies on the server enclosure fans to move air across the 24 drive bays and the Mini-SAS HD connectors.

What RAID controller cable do I need to connect this 8VM0J backplane?

You need a controller or HBA with SFF-8087 Mini-SAS ports and matching Mini-SAS cables to link the backplane to the RAID card.

Will the 2.5" SFF trays from my older PowerEdge C6220 fit this replacement backplane?

Yes, the backplane is designed for the same 2.5" SFF SAS/SATA trays used in the PowerEdge C6220, C6220 II and C6300 enclosures.
