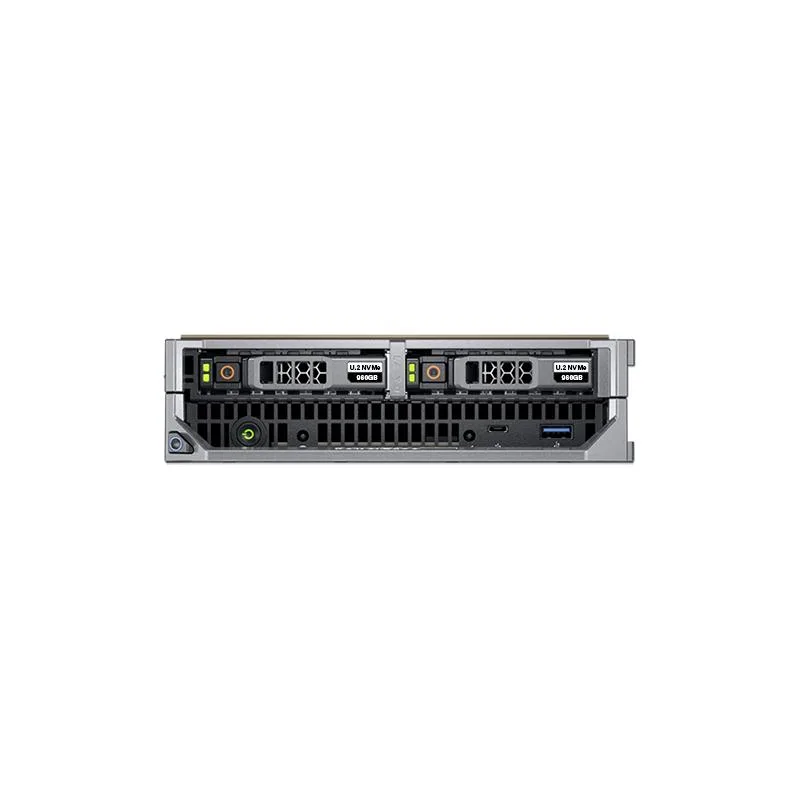

Half-height blade server, matte silver finish, front drive bays visible

DELL

DELL PowerEdge M640 Blade Server 2x Xeon 8260 24C 32GB 2x 1.92TB H330 57810S-K iDRAC9 Enterprise

SKU CH-X46S-BP8HE

Half-height blade server with dual 24-core Xeon 8260 CPUs, 32 GB DDR4, dual 1.92 TB SSDs, H330 RAID controller, 10 Gb dual-port networking and iDRAC9 Enterprise remote management

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor

Installed Memory Size 32GB

SSD (Installed) 2 x 1.92TB SATA SSD

  • Dual Xeon 8260 processors provide 24 cores each at 2.4 GHz base with 3.9 GHz turbo for demanding workloads
  • 32 GB DDR4 2933 MHz registered ECC memory installed across 16 slots supporting up to 1.5 TB total capacity
  • Two 1.92 TB SATA SSDs on PERC H330 controller with RAID 0 1 5 10 50 for fast redundant storage
  • Broadcom 57810S-K dual-port 10 Gb blade network daughter card enables high-speed connectivity in MX or M1000e chassis
  • iDRAC9 Enterprise delivers comprehensive remote management with advanced automation for simplified administration

Dense blade compute for virtualization and HPC

The PowerEdge M640 is a half-height blade that fits PowerEdge MX and M1000e chassis. Two Xeon Platinum 8260 processors give 24 cores each at 2.4 GHz with 3.9 GHz turbo, delivering 56 cores total per server. Installed memory is 32 GB DDR4 across 16 slots with a 2 TB ceiling. This configuration targets dense virtualization, private cloud and high-performance computing workloads.

Storage and network add density

The PERC H330 controller manages two 1.92 TB SATA SSDs with RAID 0, 1, 5, 10 and 50 options. A Broadcom 57810S-K daughter card adds dual-port 10 Gb networking without consuming a PCIe slot. The Matrox G200 GPU provides basic 8 MB video output for console access. No operating system is included, so licensing and imaging remain the buyer's responsibility.

Chassis-dependent installation

Mounting requires a compatible MX or M1000e enclosure; front bezel and ready rails are not supplied. iDRAC9 Enterprise enables remote power, console and firmware management over a dedicated network port. Common issues include forgetting to populate all 16 DIMM slots for balanced memory channels and overlooking the need for chassis-level power and cooling capacity.

Highlights

  • Dual Xeon 8260 processors provide 24 cores each at 2.4 GHz base with 3.9 GHz turbo for demanding workloads
  • 32 GB DDR4 2933 MHz registered ECC memory installed across 16 slots supporting up to 1.5 TB total capacity
  • Two 1.92 TB SATA SSDs on PERC H330 controller with RAID 0 1 5 10 50 for fast redundant storage
  • Broadcom 57810S-K dual-port 10 Gb blade network daughter card enables high-speed connectivity in MX or M1000e chassis
  • iDRAC9 Enterprise delivers comprehensive remote management with advanced automation for simplified administration

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 1.92TB SATA SSD
Raid LevelRAID 0/1/5/10/50
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What memory upgrades will the M640 blade need later?

Sixteen DDR4 slots support up to 1.5 TB total, so you can add 2933 MHz registered ECC modules as workloads grow.

Which component limits sustained throughput first?

The PERC H330 controller caps RAID 0/1/5/10/50 at 12 Gb/s SAS/SATA, so storage bandwidth saturates before the dual 10 Gb network ports.

How much heat and power does the blade produce running all day?

Two Xeon Platinum 8260 CPUs at 2.4 GHz base with 24 cores each drive the main thermal load; the half-height blade relies on chassis fans for cooling.
