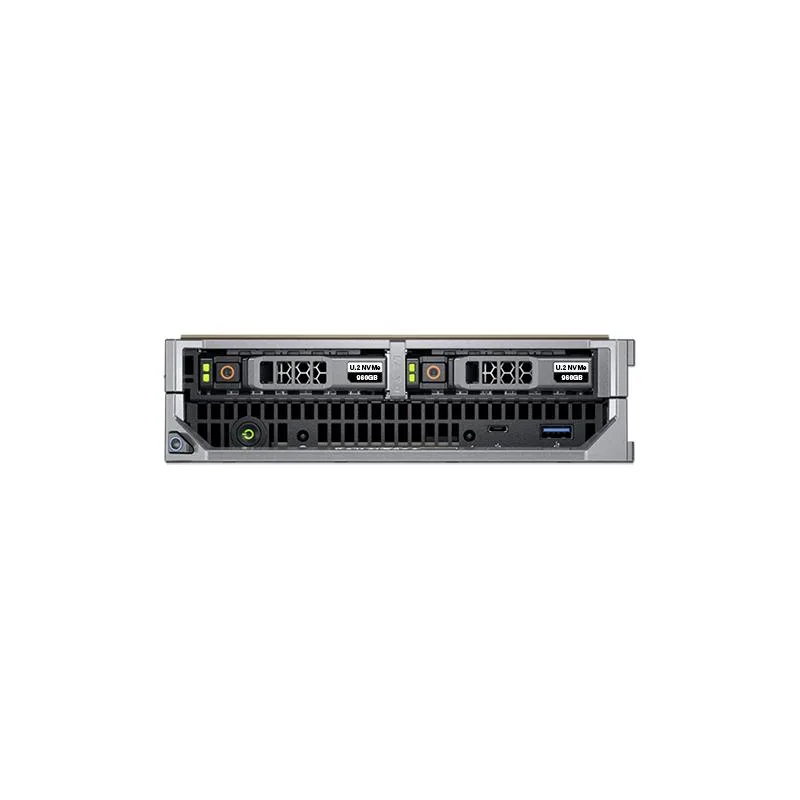

Half-height blade server with dual Xeon processors and two 2.5-inch drive trays

DELL

DELL PowerEdge M640 Blade Server 2x Xeon Gold 6230 2.1GHz 20C 16GB DDR4 H330 57810S-K iDRAC9 Enterprise

SKU CH-9ZKZ-HB142

A half-height blade server with dual Xeon Gold 6230 2.1GHz 20-core CPUs, 16GB DDR4, PERC H330 storage controller, dual 10Gb Ethernet and iDRAC9 Enterprise management

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores20-Core Processor

Installed Memory Size 16GB

SSD (Installed) No

  • Dual Xeon Gold 6230 CPUs deliver 40 cores at 2.1 GHz base
  • Turbo up to 3.9 GHz handles burst workloads on both processors
  • 16 GB DDR4 2666 MHz ECC memory installed across 16 slots
  • PERC H330 controller supports RAID 0 1 5 10 50 for data protection
  • Broadcom 57810S-K dual 10 Gb Ethernet plus iDRAC9 Enterprise remote management

PowerEdge M640 blade server

The Dell PowerEdge M640 is a half-height blade server built for dense data-centre deployments. It ships with two Intel Xeon Gold 6230 processors, each running at 2.1 GHz with a 3.9 GHz turbo frequency and 20 cores. Sixteen gigabytes of DDR4 2666 MHz registered ECC memory are installed across 16 slots, supporting up to 1.5 TB total capacity.

Sustained multi-core throughput

Dual 20-core CPUs provide 40 threads for continuous virtualization, private cloud or high-performance computing workloads. The 12 Gb/s PERC H330 controller manages RAID 0, 1, 5, 10 and 50 across two 2.5-inch SAS or SATA drive bays. Dual 10 Gb Ethernet ports on the Broadcom 57810S-K daughter card maintain bandwidth during prolonged traffic spikes.

Chassis integration and remote management

The blade fits PowerEdge MX and M1000e enclosures without front bezel or ready rails. iDRAC9 Enterprise enables full out-of-band control, firmware updates and hardware monitoring from any location. Matrox G200 graphics with 8 MB video memory supply basic console output. Buyers needing internal NVMe storage or more than two drive bays should consider other form factors.

Highlights

  • Dual Xeon Gold 6230 CPUs deliver 40 cores at 2.1 GHz base
  • Turbo up to 3.9 GHz handles burst workloads on both processors
  • 16 GB DDR4 2666 MHz ECC memory installed across 16 slots
  • PERC H330 controller supports RAID 0 1 5 10 50 for data protection
  • Broadcom 57810S-K dual 10 Gb Ethernet plus iDRAC9 Enterprise remote management

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores20-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power do the two Xeon Gold 6230 20-core CPUs generate when running all day?

Each Xeon Gold 6230 is a 20-core processor with a 2.1 GHz base speed and 3.9 GHz turbo. With two installed, the blade draws its maximum power and cooling from the M1000e or MX chassis fans and power supplies.

What chassis and interconnects must I already own for this blade to operate?

The half-height M640 blade requires a Dell PowerEdge M1000e or MX series chassis. It uses the installed Broadcom 57810S-K 10Gb dual-port network daughter card for fabric connectivity.

Can I keep using my existing DDR4 RDIMMs and 2.5" SAS or SATA drives with this server?

Yes. The blade has 16 DDR4 slots supporting registered ECC modules up to 1.5 TB total. It includes two 2.5" caddies for SAS or SATA drives managed by the PERC H330 controller.
