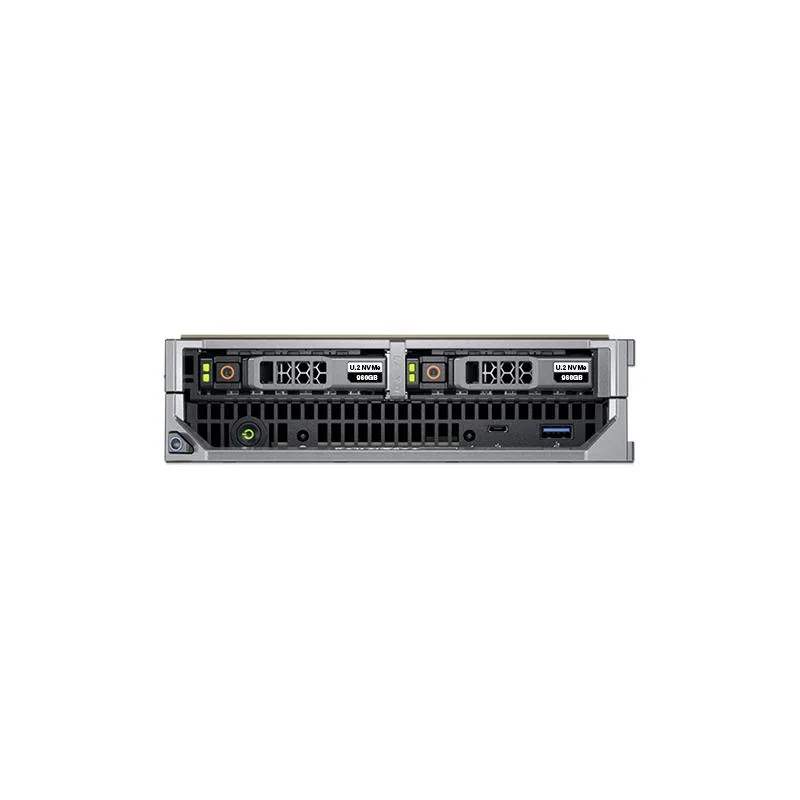

Silver rectangular half-height blade server with front drive caddies and network daughter card

DELL

DELL PowerEdge M640 Blade 2x Xeon Gold 6230 2.1GHz 20C 128GB DDR4 H330 2.5" 57810S-K iDRAC9 Enterprise

SKU CH-719H-8X6S5

Half-height blade server with dual 20-core Xeon Gold 6230 CPUs, 128GB DDR4, PERC H330 controller, dual 10Gb Ethernet and iDRAC9 Enterprise

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores20-Core Processor

Installed Memory Size 128GB

SSD (Installed) No

  • Dual Xeon Gold 6230 CPUs deliver 40 total cores for heavy workloads
  • 128GB DDR4 2666MHz ECC memory supports large virtualisation environments
  • PERC H330 controller provides RAID 0, 1, 5, 10, 50 for data protection
  • Broadcom 57810S-K dual-port 10Gb Ethernet enables high-speed network connectivity
  • iDRAC9 Enterprise allows full remote server management and automation

Blade server for dense compute

The Dell PowerEdge M640 is a half-height blade server built for high-density data-centre deployments. It arrives with two Intel Xeon Gold 6230 processors running at 2.1 GHz with a 3.9 GHz turbo, providing 20 cores each for a total of 40 cores. The system includes 128 GB of DDR4 registered ECC memory across 16 slots and supports up to 1.5 TB. Integrated iDRAC9 Enterprise enables remote management and automation.

Fits MX and M1000e chassis

This blade slides into a Dell PowerEdge MX or M1000e enclosure, sharing power, cooling and fabric with other modules. The on-board PERC H330 controller supports RAID 0, 1, 5, 10 and 50 across two 2.5-inch SAS or SATA drive bays. A Broadcom 57810S-K dual-port 10 Gb network daughter card provides high-speed connectivity. No front bezel or ready rails are included, and no operating system is pre-installed.

Sustained multi-threaded throughput

Dual 20-core Xeon Gold 6230 CPUs maintain 2.1 GHz base frequency under continuous load, with turbo headroom to 3.9 GHz for burst phases. The 2666 MHz DDR4 memory subsystem feeds all 40 threads with ECC protection for data integrity. Dual 10 Gb Ethernet ports sustain network throughput for virtualisation, private cloud and HPC workloads without saturating the fabric. iDRAC9 Enterprise monitors thermal and power telemetry around the clock.

Highlights

  • Dual Xeon Gold 6230 CPUs deliver 40 total cores for heavy workloads
  • 128GB DDR4 2666MHz ECC memory supports large virtualisation environments
  • PERC H330 controller provides RAID 0, 1, 5, 10, 50 for data protection
  • Broadcom 57810S-K dual-port 10Gb Ethernet enables high-speed network connectivity
  • iDRAC9 Enterprise allows full remote server management and automation

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores20-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many processor cores can the M640 blade scale to before hitting its socket limit?

The blade supports up to two processors and a maximum of 56 cores in total, so the socket limit is reached at 56 cores.

What thermal and power behaviour should I expect when the blade runs continuously inside a chassis?

The blade is designed for half-height density in PowerEdge MX or M1000e chassis, sharing the chassis cooling and power infrastructure for sustained operation.

Which chassis and management licence must I already have for this blade to function?

The blade requires a PowerEdge MX or M1000e chassis and ships with an iDRAC9 Enterprise licence for remote management.
