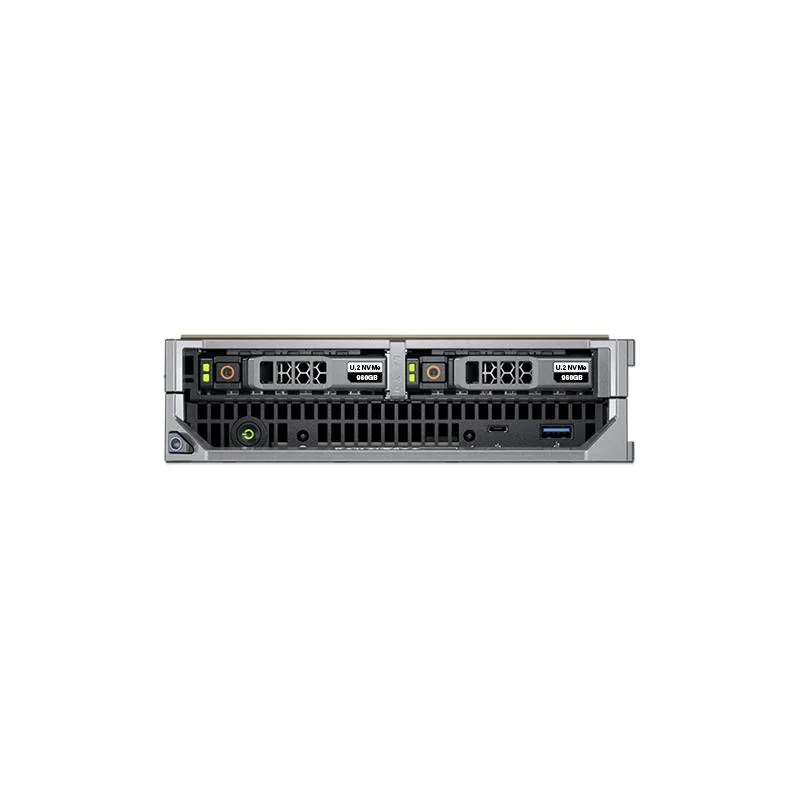

Half-height blade server, matte black metal finish, front drive bays visible

DELL

DELL PowerEdge M640 Blade 2x Xeon Gold 6230 20C 128GB DDR4 2x 960GB H330 57810S-K iDRAC9 Enterprise

SKU CH-FWDP-Y0CR1

A half-height blade server with dual 20-core Xeon Gold 6230 processors, 128GB DDR4 memory, dual 960GB SATA SSDs on a PERC H330 controller, 10Gb dual-port networking and iDRAC9 Enterprise management

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores20-Core Processor

Installed Memory Size 128GB

SSD (Installed) 2 x 960GB SATA SSD

  • Dual Xeon Gold 6230 CPUs deliver 40 cores at 2.1 GHz base
  • 128 GB DDR4 2666 MHz ECC memory supports virtualization density
  • PERC H330 controller enables RAID 0, 1, 5, 10, 50 on SATA and SAS
  • Two 960 GB SATA SSDs provide fast read performance for boot and data
  • iDRAC9 Enterprise gives full remote management with automation

Blade Server for Virtualisation and HPC

The Dell EMC PowerEdge M640 is a half-height blade server built for modern data centres. It runs dual Intel Xeon Gold 6230 processors, each offering 20 cores at 2.1 GHz with a 3.9 GHz turbo frequency. The system ships with 128 GB of DDR4 2666 MHz registered ECC memory across eight modules. It targets virtualisation, private cloud and high-performance computing workloads.

PERC H330 Controller and 10Gb Networking

Storage is handled by a Dell PERC H330 mini mono controller supporting RAID 0, 1, 5, 10 and 50 across two 2.5-inch drive bays. Two 960 GB SATA 6 Gb/s enterprise SSDs are installed. Networking uses a Broadcom 57810S-K dual-port 10 Gb blade daughter card. The blade fits PowerEdge MX and M1000e chassis; front bezel and ready rails are not included.

Memory and Processor Ceilings

The platform supports a maximum of 1.5 TB of DDR4 memory across 16 slots and up to 56 cores per server when fully populated. Current configuration uses both processor sockets, so no further CPU upgrades are possible. iDRAC 9 Enterprise provides remote management. No operating system is pre-installed.

Highlights

  • Dual Xeon Gold 6230 CPUs deliver 40 cores at 2.1 GHz base
  • 128 GB DDR4 2666 MHz ECC memory supports virtualization density
  • PERC H330 controller enables RAID 0, 1, 5, 10, 50 on SATA and SAS
  • Two 960 GB SATA SSDs provide fast read performance for boot and data
  • iDRAC9 Enterprise gives full remote management with automation

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores20-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 960GB SATA SSD
Raid LevelRAID 0/1/5/10/50
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What bandwidth does the 57810S-K 10Gb dual-port blade network daughter card provide?

The 57810S-K daughter card delivers two 10Gb Ethernet ports for blade-to-switch connectivity inside the chassis.

Which chassis slots accept this half-height blade and what front bezel is required?

The M640 half-height blade fits PowerEdge MX and M1000e chassis slots; no front bezel is included with the blade.

How is the PERC H330 storage controller installed and which cabling step is often missed?

The H330 mini mono plugs into the dedicated storage mezzanine slot; the SAS cables from the controller to the 2.5″ drive backplane must be seated before the blade is locked in.
