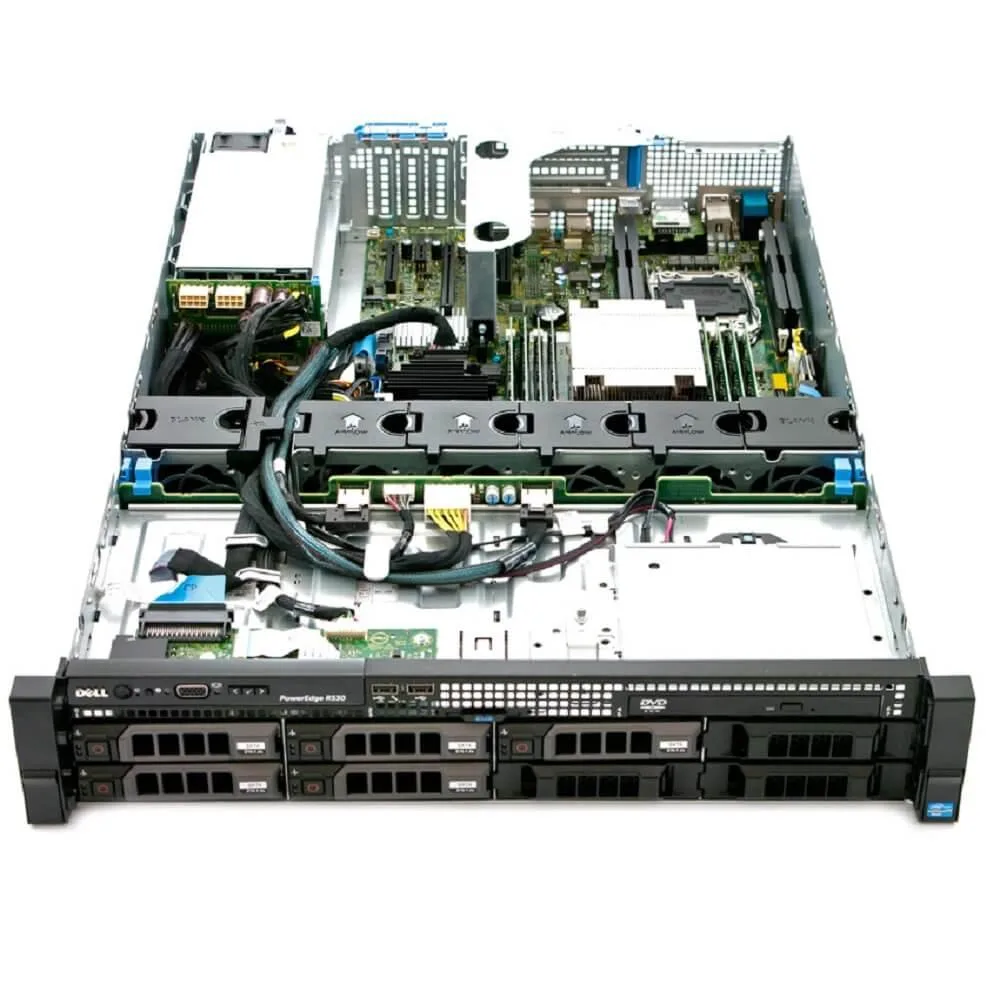

Black 2U rack server with eight front 3.5-inch drive bays

DELL

DELL PowerEdge R530 2U rack server 2x E5-2630 v3 2.4GHz 16GB DDR4 3x 4TB SAS H330

SKU CH-3829-8KN3V MPN E5-2630

2U rack server with dual Xeon E5-2630 v3 processors, 16GB DDR4, three 4TB SAS drives and H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD 3 x 4TB SAS

CPU Model E5-2630 V3

  • Dual Xeon processors deliver 32 virtual cores for parallel workloads
  • 16 GB DDR4 memory supports up to 384 GB across 12 DIMM slots
  • Three 4 TB SAS drives provide 12 TB capacity on a 12 Gbps RAID controller
  • Eight 3.5-inch hot-plug bays allow up to 80 TB of storage
  • Redundant 750 W power supplies keep the server running during a failure

Dell PowerEdge R530 2U rack server

This 2U rack server ships with dual Intel Xeon E5-2630 v3 eight-core processors running at 2.4GHz, 16GB of DDR4 memory and three 4TB 7.2K SAS drives on a PERC H330 RAID controller. It includes redundant 750W power supplies, a DVD-ROM drive and iDRAC8 remote management in a chassis that supports up to eight 3.5-inch hot-plug bays.

Suits buyers who need dense SAS storage in 2U

The platform provides twelve DIMM slots and a maximum memory capacity of 384GB, five PCIe slots (three at 3.0 and two at 2.0) and four 1GbE ports on a daughter card. Builders who need more storage bays than eight, GPU compute density or single-thread frequencies above 2.4GHz should look at something else.

Three 4TB SAS drives on H330 RAID

The installed drives deliver 12TB of raw capacity with RAID 0, 1, 5, 10, 50 and 60 support, and the controller handles SAS or SATA media. The backplane accepts up to 80TB total, so the decision point is whether the initial three-drive set and H330 feature set match the workload.

Highlights

  • Dual Xeon processors deliver 32 virtual cores for parallel workloads
  • 16 GB DDR4 memory supports up to 384 GB across 12 DIMM slots
  • Three 4 TB SAS drives provide 12 TB capacity on a 12 Gbps RAID controller
  • Eight 3.5-inch hot-plug bays allow up to 80 TB of storage
  • Redundant 750 W power supplies keep the server running during a failure

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R530
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features12 DIMM slots, 6 per processor. (4GB/8GB/16GB/32GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability).
Number of Memory Slots12
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity80TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsSupport for up to 5 x PCIe: 3 x PCIe 3.0 and 2 x PCIe 2.0.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What RAID levels does the H330 controller support on this server?

The H330 controller supports RAID 0, 1, 5, 10, 50 and 60 across the installed drives.

How many 3.5-inch drive bays are available in the 2U chassis?

The chassis provides up to 8 hot-plug bays for 3.5-inch SAS or SATA drives.

How are the redundant power supplies installed and what is the common oversight?

Slide each 750 W supply into its bay until it clicks; the step often missed is connecting both units to separate PDUs for true redundancy.
