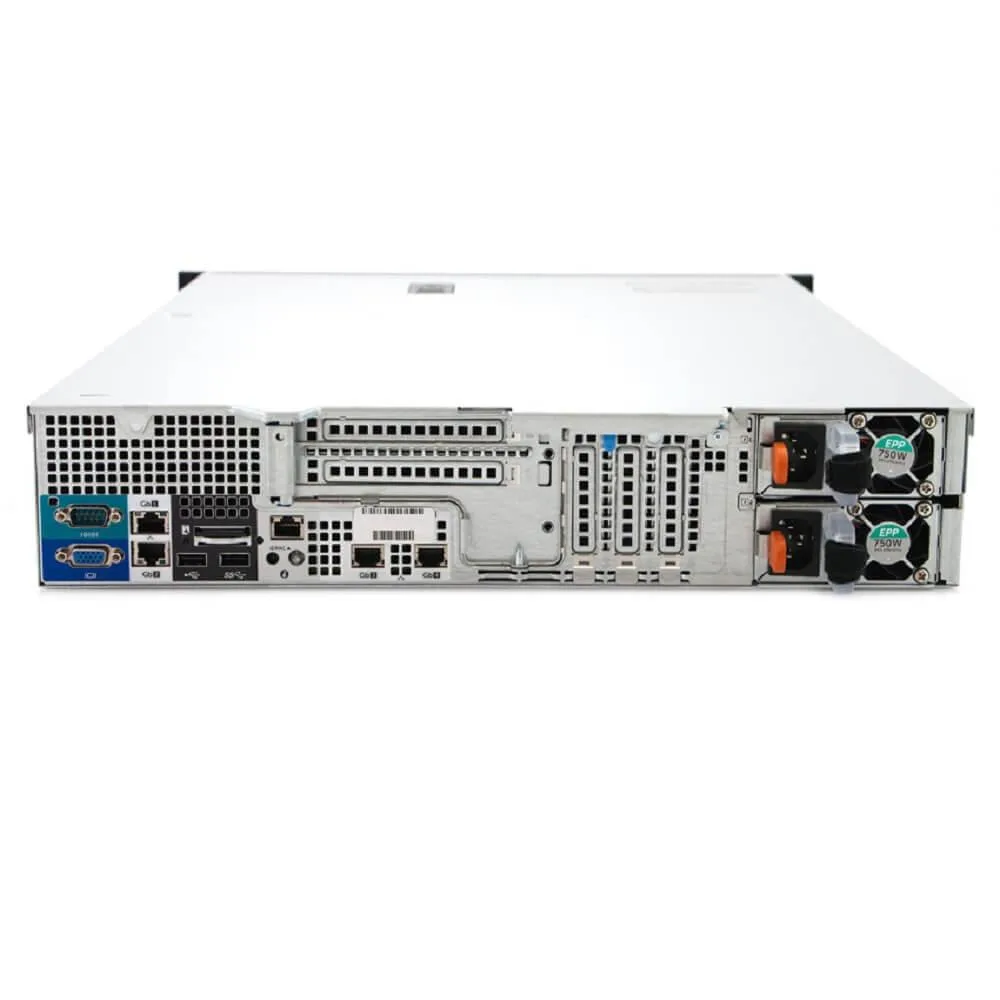

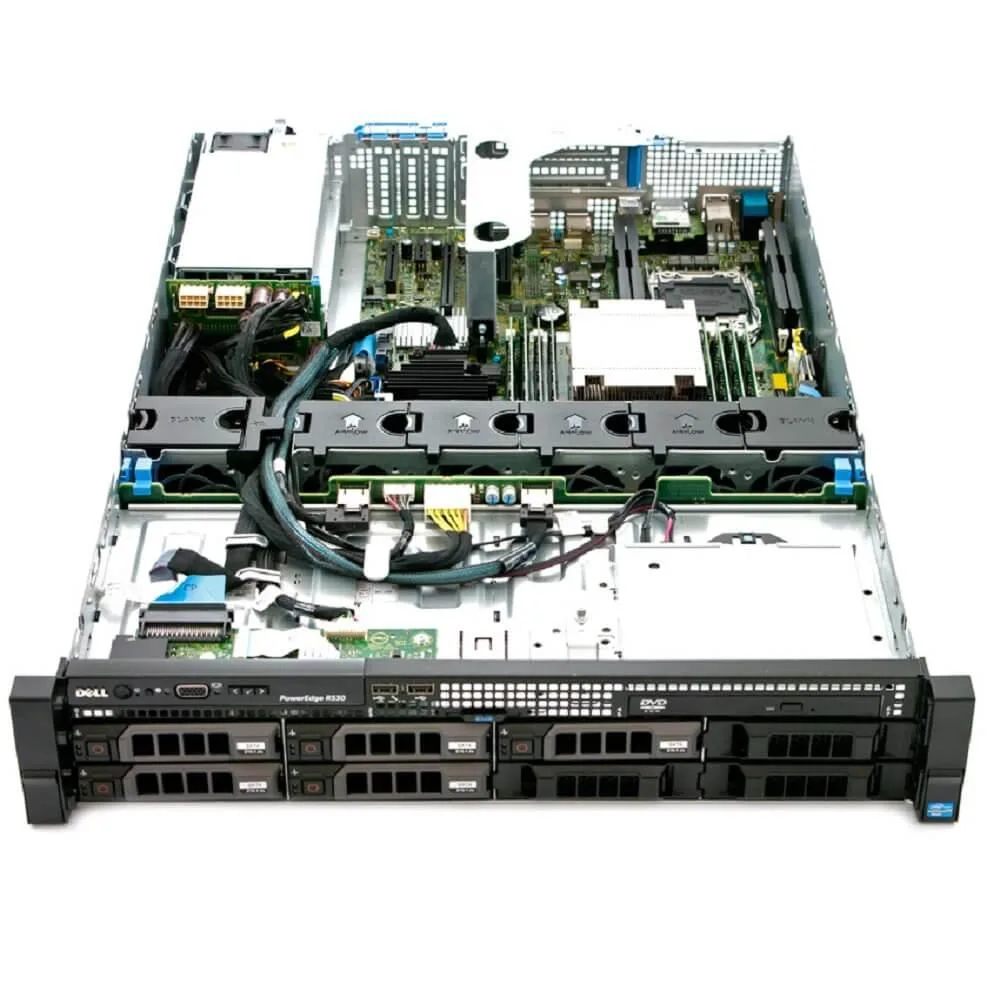

Silver 2U rack server with eight front drive bays

DELL

DELL PowerEdge R530 rack server 2x E5-2630 V3 2.4GHz 96GB 2x 300GB SAS H330

SKU CH-100N-YRG97 MPN E5-2630

A 2U rack server with dual eight-core Xeon CPUs, 96 GB DDR4, two 300 GB 15K SAS drives and an H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 96GB

HDD 2 x 300GB 15K

CPU Model E5-2630 V3

  • Dual Xeon E5-2630 v3 CPUs deliver 32 virtual cores for parallel workloads
  • 96 GB DDR4 memory fills all 12 DIMM slots for large datasets
  • Two 300 GB 15K SAS drives provide fast hot-plug storage
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Redundant 750 W power supplies keep the 2U rack server running

Dual Xeon Rack Server for Virtualisation Hosts

The Dell PowerEdge R530 fits in 2U of rack space and ships with two eight-core Xeon E5-2630 V3 processors running at 2.4 GHz. Ninety-six gigabytes of DDR4 memory fill all twelve DIMM slots, and the Perc H330 controller manages two 300 GB 15 K SAS drives in a choice of RAID levels. Four 1 GbE ports and iDRAC8 remote management come as standard.

Sustained Load Behaviour

Redundant 750 W hot-swap power supplies keep the system running if one unit fails, while the 2U chassis provides airflow for continuous operation. The H330 controller supports RAID 0, 1, 5, 10, 50 and 60, so rebuilds and parity calculations proceed without taking the array offline. Memory runs at up to 2400 MT/s depending on the installed CPUs, giving predictable throughput for long-running workloads.

Pre-Installation Checks

Verify that your rack can accept a 2U unit measuring 25.4 inches deep and 17.1 inches wide, and that the 62 lb weight is within the rack's load rating. Confirm the PDU delivers the correct voltage for dual 750 W supplies and that SAS cabling matches the eight 3.5 inch hot-plug bays. The board offers three PCIe 3.0 and two PCIe 2.0 slots; ensure any add-in cards fit those generations and the available bracket space.

Highlights

  • Dual Xeon E5-2630 v3 CPUs deliver 32 virtual cores for parallel workloads
  • 96 GB DDR4 memory fills all 12 DIMM slots for large datasets
  • Two 300 GB 15K SAS drives provide fast hot-plug storage
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Redundant 750 W power supplies keep the 2U rack server running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R530
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size96GB
Memory TypeDDR4
Max Memory Capacity96GB
Memory Features12 DIMM slots, 6 per processor. (4GB/8GB/16GB/32GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability).
Number of Memory Slots12
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity80TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsSupport for up to 5 x PCIe: 3 x PCIe 3.0 and 2 x PCIe 2.0.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power draw should I expect from the dual 750 W redundant supplies running 24/7?

The server includes two 750 W hot-swap power supplies for redundancy; actual draw depends on workload but each supply can deliver up to 750 W.

Which rails and cables must I already have to mount and power this 2U rack unit?

The unit ships with a power cable; a compatible rail kit for a 2U rack is required but not included.

Can the H330 controller and 3.5" bays use my existing 6 Gbps SAS drives alongside the installed 15K disks?

Yes, the H330 supports 6 Gbps SAS and SATA, and the eight 3.5" hot-plug bays accept both drive types.
