Silver 1U rack server front with ten 2.5-inch drive bays

DELL

DELL PowerEdge R630 10-bay E5-2603 v3 24GB DDR4 H330 rack server

SKU CH-XVZN-Q6NDG

A 1U rack server with ten 2.5-inch hot-plug bays, a single Xeon E5-2603 v3 six-core 1.6GHz processor, 24GB DDR4 memory and a PERC H330 RAID controller supporting RAID 0, 1, 5, 10, 50 and 60

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 24GB

HDD None

  • 10 hot-plug 2.5" drive bays for dense local storage
  • Single Xeon E5-2603 v3 six-core 1.6 GHz processor installed
  • 24 GB DDR4 memory across 24 DIMM slots
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750 W redundant hot-swap power supplies

1U rack server with 10 drive bays

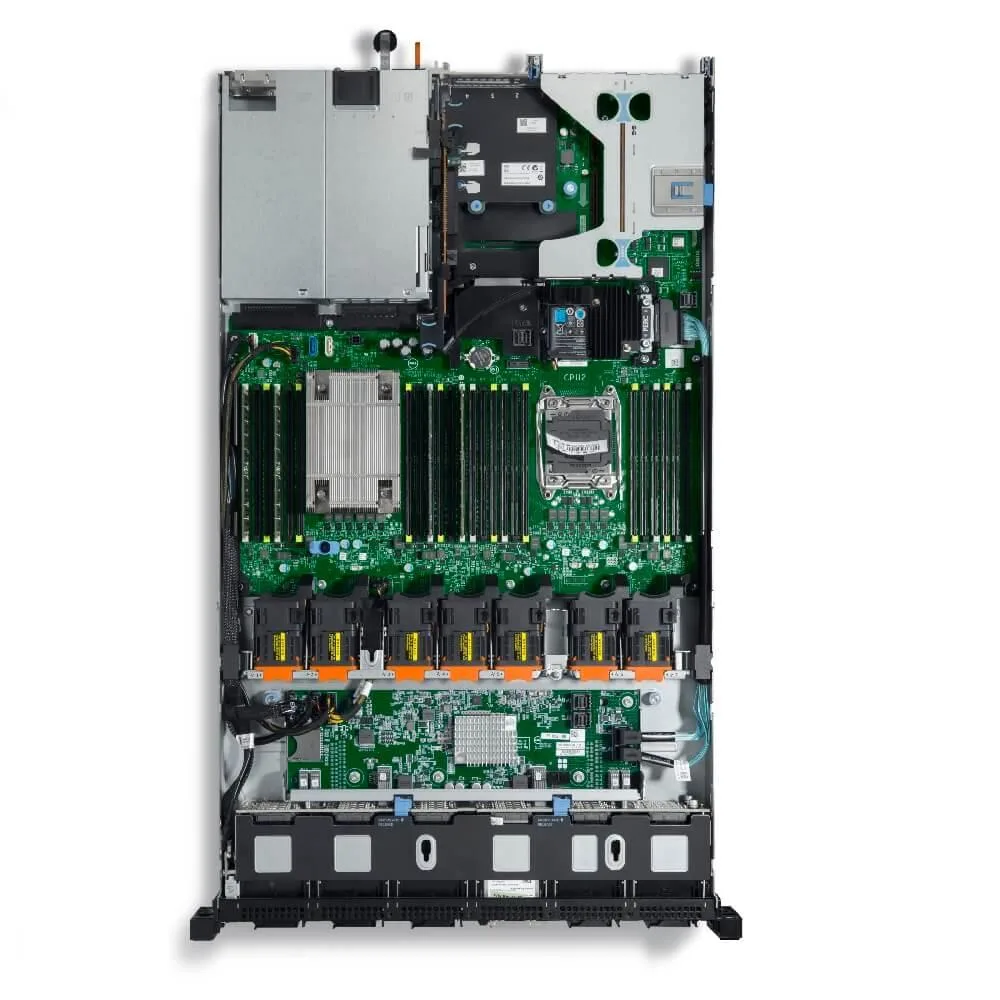

The Dell PowerEdge R630 is a 1U rack server designed for environments that need dense storage in a single rack unit. It ships with a single Intel Xeon E5-2603 V3 six-core processor running at 1.6 GHz and 24 GB of DDR4 memory across 24 DIMM slots. The system supports up to 10 hot-plug 2.5-inch SAS or SATA drives managed by a PERC H330 RAID controller offering RAID 0, 1, 5, 10, 50 and 60. It includes dual 750 W redundant power supplies and a four-port 1 GbE daughter card.

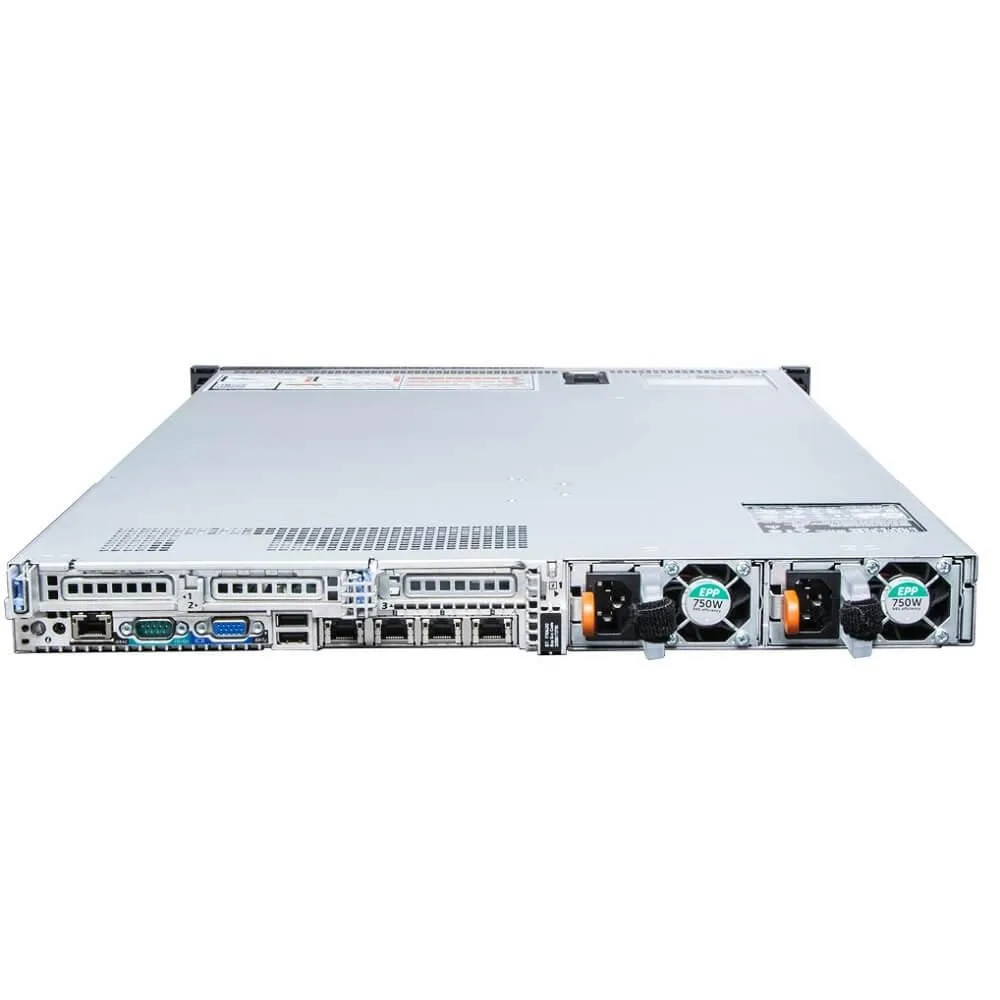

Dual 750 W redundant supplies and 1U airflow

Two hot-swap 750 W power supplies provide redundancy so the server remains running if one unit fails. The 1U chassis uses front-to-rear airflow to cool the processor, memory and drive bays within a compact 17.44-inch depth. The Matrox G200 graphics chip draws minimal power and is intended for basic console output only. No optical drive option exists on the 10-bay configuration, reducing internal heat sources.

iDRAC8 remote management and rail kit included

The integrated iDRAC8 with Lifecycle Controller enables out-of-band hardware monitoring, firmware updates and virtual console access without an operating system. A rail kit and bezel are supplied for immediate rack mounting. The server arrives without an operating system, drives or drive trays, so storage must be sourced separately. Up to three PCIe 3.0 slots plus a dedicated PERC slot are available for additional I/O cards.

Highlights

  • 10 hot-plug 2.5" drive bays for dense local storage
  • Single Xeon E5-2603 v3 six-core 1.6 GHz processor installed
  • 24 GB DDR4 memory across 24 DIMM slots
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750 W redundant hot-swap power supplies

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size24GB
Memory TypeDDR4
Max Memory Capacity24GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 2.5" drives into the 10-bay front panel and what step is often missed?

Slide each drive into a hot-plug bay until the latch clicks; the step often missed is seating the drive fully so the SAS or SATA connector engages the backplane.

Which component will need replacement first under continuous operation?

The 750 W redundant power supplies are the first field-replaceable units to wear out under sustained load.

What thermal limit appears first when the E5-2603 v3 runs at full load for extended periods?

The single 1.6 GHz processor reaches its thermal design power before the dual 750 W supplies or the H330 controller become bottlenecks.
