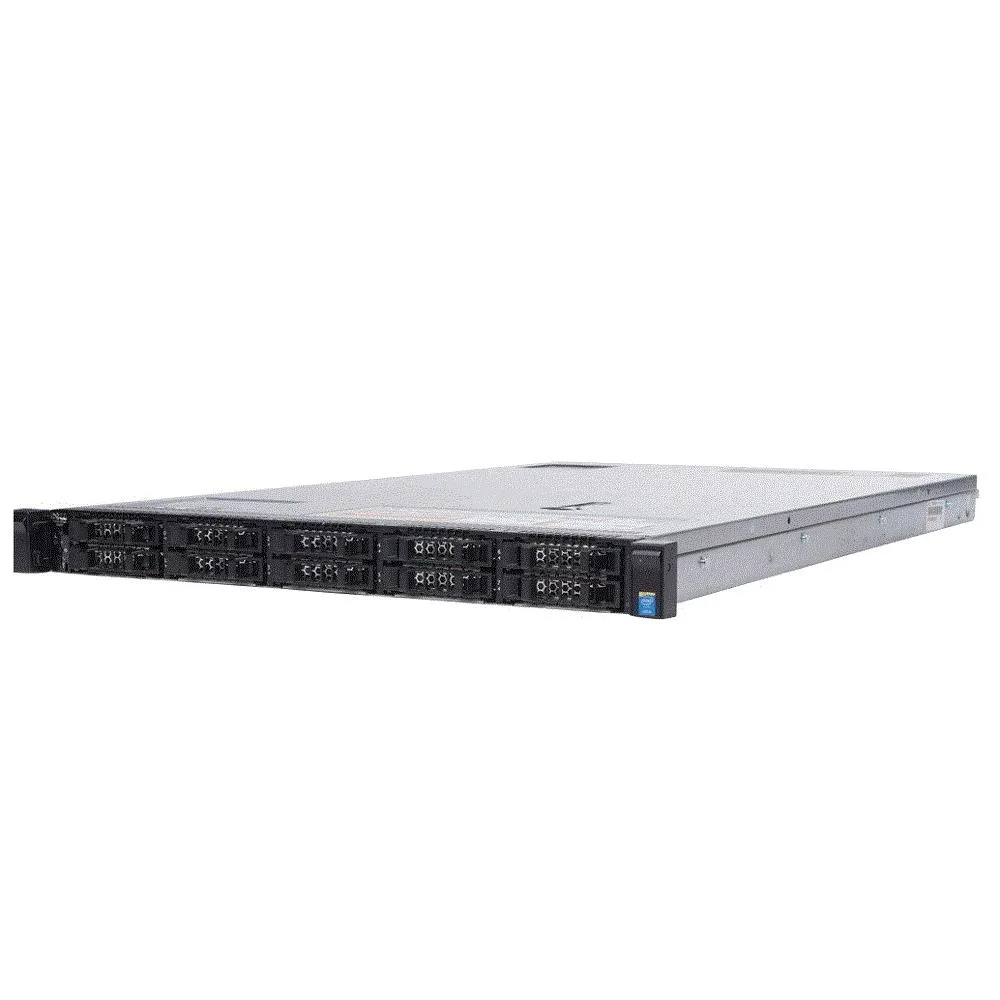

Silver 1U rack server with ten front drive bays and dual power supplies

DELL

DELL PowerEdge R630 10B Xeon E5-2609 V3 1.9GHz 16GB DDR4 H330 1U rack server

SKU CH-N8C1-AR6AJ

1U rack server with single Xeon E5-2609 V3 six-core 1.9GHz processor, 16GB DDR4, H330 RAID controller and ten 2.5-inch hot-plug bays

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD None

  • 1U rack form factor fits dense deployments
  • Single Xeon E5-2609 V3 six-core 1.9GHz processor installed
  • 16GB DDR4 memory with 24 DIMM slots for expansion
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant hot-swap power supplies included

Compact 1U rack server

The Dell PowerEdge R630 is a 1U rack server built around a single Intel Xeon E5-2609 V3 six-core processor running at 1.9GHz. It ships with 16GB of DDR4 memory across 24 DIMM slots and a Perc H330 RAID controller supporting levels 0, 1, 5, 10, 50 and 60. Dual 750W redundant hot-swap power supplies and iDRAC8 remote management come standard.

Suits dense virtualisation.

This configuration fits environments that need compute density in a 1U form factor with room for up to 10 hot-plug 2.5-inch SAS or SATA drives. Buyers who want more storage bays or a second processor installed should look at larger chassis options. The Matrox G200 graphics and single 1GbE daughter card limit GPU-accelerated or high-throughput networking tasks.

Included rails and cabling simplify rack mounting

A rail kit, bezel and power cable are bundled so the server can be racked immediately without extra parts. No operating system, hard drives or drive trays are supplied, so storage media and hypervisor licences must be sourced separately. Optional 10GbE NDC upgrades and vFlash media are not included in this package.

Highlights

  • 1U rack form factor fits dense deployments
  • Single Xeon E5-2609 V3 six-core 1.9GHz processor installed
  • 16GB DDR4 memory with 24 DIMM slots for expansion
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant hot-swap power supplies included

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power infrastructure is needed for the dual 750W redundant supplies?

Two separate PDU or UPS circuits capable of 750W each so both supplies can run independently.

Can the H330 controller use my existing 2.5" SAS or SATA drives?

Yes, the ten hot-plug bays accept 2.5" SAS or SATA drives and the H330 supports RAID 0, 1, 5, 10, 50, 60.

How do I verify the iDRAC8 remote management is reachable after first boot?

Connect the dedicated iDRAC port, note the DHCP address shown on the LCD panel, then open that IP in a browser to reach the login screen.
