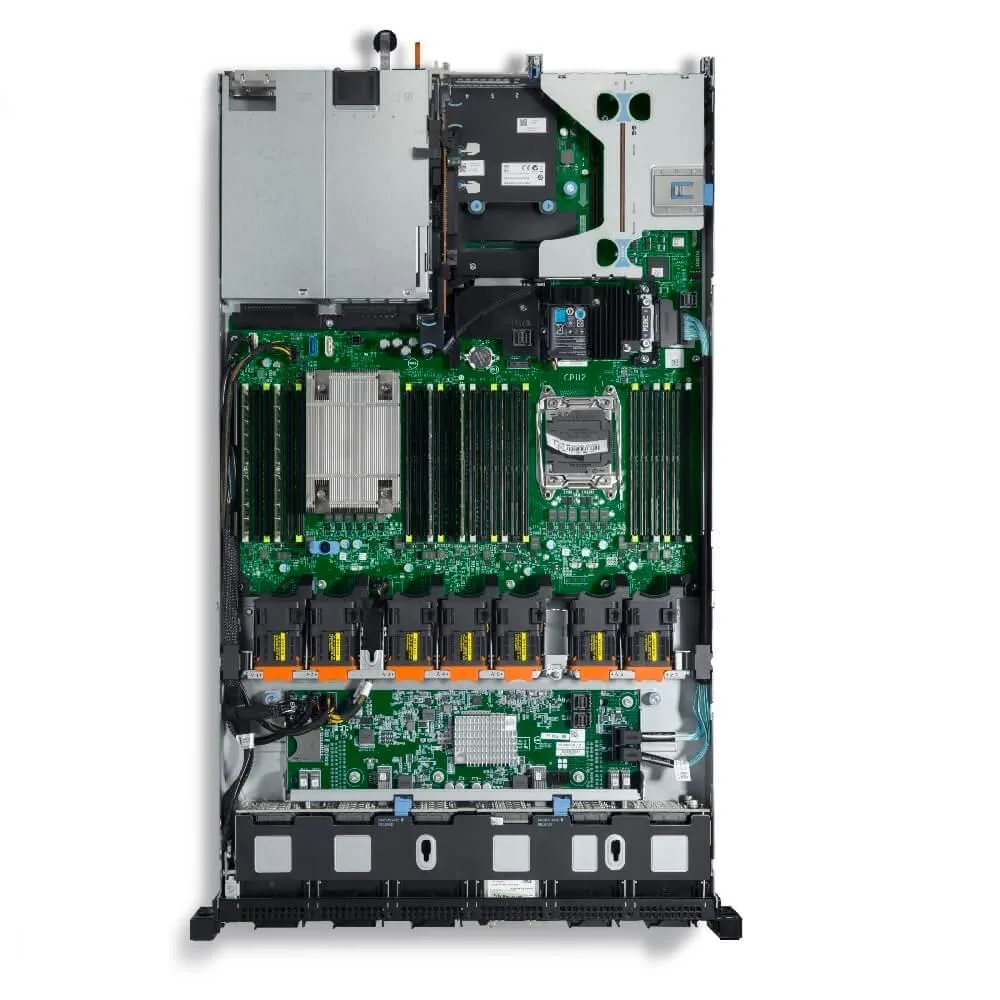

Silver 1U rack server with eight front drive bays and dual redundant power supplies

DELL

DELL PowerEdge R630 1U rack server 2× E5-2620 V3 2.4GHz 64GB DDR4 H330

SKU CH-JDAA-50NAA

A 1U rack server with dual Xeon E5-2620 V3 CPUs, 64GB DDR4, H330 RAID controller and redundant 750W power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 64GB

HDD None

  • Dual Xeon E5-2620 V3 CPUs deliver 12 cores at 2.4GHz
  • 64GB DDR4 memory installed across 24 DIMM slots
  • H330 controller supports RAID 0/1/5/10/50/60 for up to 8 hot-plug drives
  • Dual 750W redundant power supplies maintain uptime
  • iDRAC8 remote management with Lifecycle Controller enables lights-out administration

Dense 1U compute node

The PowerEdge R630 packs two Xeon E5-2620 V3 processors and 64GB of DDR4 into a single rack unit, giving small-to-medium businesses a compact platform for virtualisation, database workloads and general-purpose applications. Redundant 750W supplies and the H330 RAID controller add baseline resilience for production use.

Sustained multi-core throughput

Each six-core CPU runs at 2.4GHz with Hyper-Threading, providing 24 logical threads that maintain steady performance during extended compute jobs rather than relying on short turbo bursts. The 24 DIMM slots are already populated to the 64GB installed limit, so memory bandwidth scales predictably with the dual-processor layout.

Storage and expansion boundaries

Eight 2.5-inch hot-plug bays accept SAS or SATA drives up to 14TB each, while the H330 controller supports RAID 0, 1, 5, 10, 50 and 60 across those bays. Three PCIe 3.0 slots plus a dedicated PERC slot handle additional networking or acceleration cards, and the four-port 1GbE daughter card sets the baseline network ceiling.

Highlights

  • Dual Xeon E5-2620 V3 CPUs deliver 12 cores at 2.4GHz
  • 64GB DDR4 memory installed across 24 DIMM slots
  • H330 controller supports RAID 0/1/5/10/50/60 for up to 8 hot-plug drives
  • Dual 750W redundant power supplies maintain uptime
  • iDRAC8 remote management with Lifecycle Controller enables lights-out administration

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity64GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the R630 get when both Xeon E5-2620 V3 CPUs run at 2.4 GHz all day?

The server uses two 750 W redundant power supplies and standard 1U cooling; sustained load will raise fan speed and exhaust heat, so plan for rack airflow that handles the thermal output of dual six‑core processors.

Which drive trays and cables must I already own to populate the eight 2.5 inch hot‑plug bays?

The chassis accepts 2.5 inch SAS or SATA drives but ships without trays or cables; you need Dell‑compatible 2.5 inch hot‑plug carriers and the matching backplane connectors for each bay you fill.

Will my existing PCIe 3.0 add‑in cards fit the R630 slots alongside the H330 controller?

The system provides up to three PCIe 3.0 slots plus a dedicated PERC slot; the H330 occupies the PERC slot, leaving the three standard slots free for other PCIe 3.0 cards.
