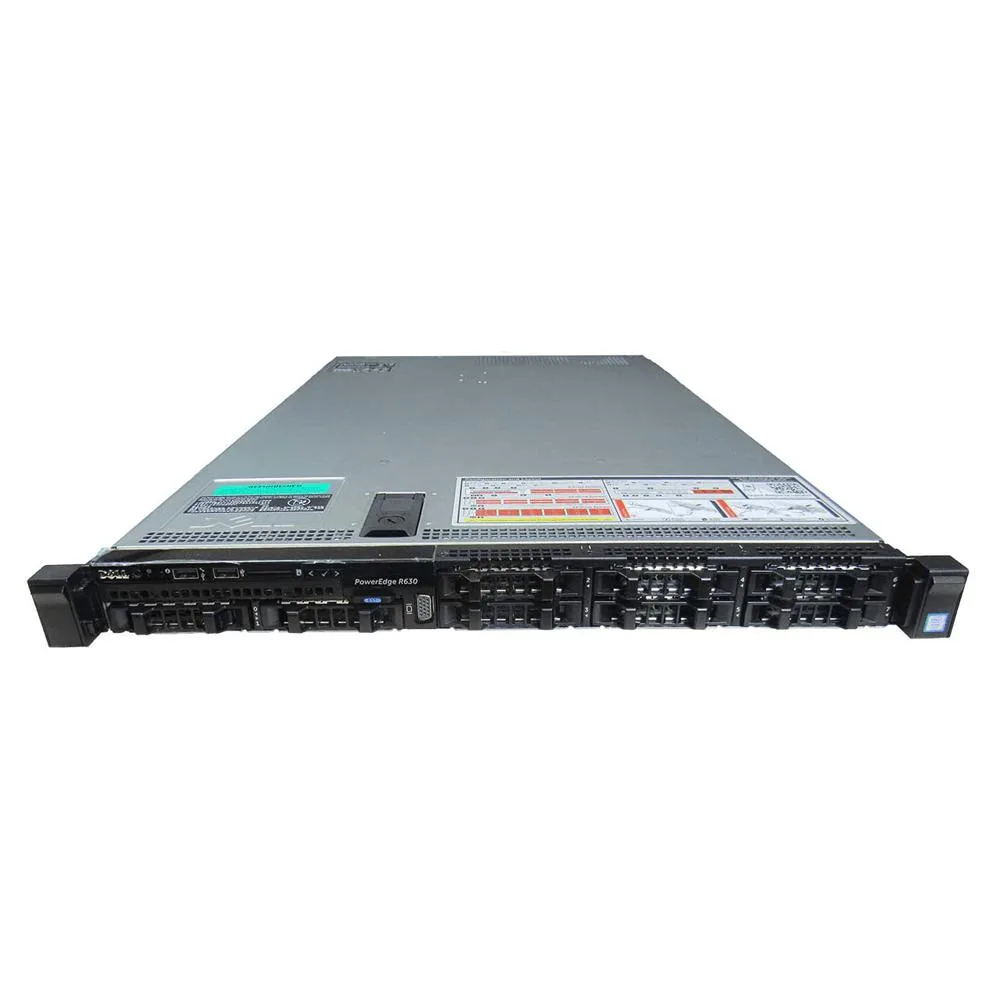

Silver 1U rack server front with eight 2.5-inch drive bays and Dell badge

DELL

DELL PowerEdge R630 1U rack server E5-2620 V3 2.4GHz 96GB DDR4 2x 300GB 15K SAS H730

SKU CH-AQSV-XECP9

1U rack server with a six-core 2.4 GHz Xeon, 96 GB DDR4, two 300 GB 15 K SAS drives and an H730 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 96GB

HDD 2 x 300GB 15K

  • 1U rack density saves data-centre space
  • Single Xeon E5-2620 V3 six-core 2.4GHz processor handles virtualised workloads
  • 96GB DDR4 memory across 24 DIMM slots supports large datasets
  • Dual 300GB 15K SAS drives deliver fast sequential access
  • H730 RAID controller with 1GB cache enables RAID 0/1/5/6/10/50/60
  • Dual 750W redundant power supplies maintain uptime

DELL PowerEdge R630 1U rack server

The DELL PowerEdge R630 is a 1U rack server built around a single Intel Xeon E5-2620 V3 six-core processor running at 2.4 GHz. It ships with 96 GB of DDR4 memory installed across 24 DIMM slots and includes two 300 GB 15K SAS drives managed by a Perc H730 RAID controller. Dual 750 W redundant power supplies and a four-port 1 GbE daughter card complete the baseline configuration.

Teams needing dense 1U compute with hardware RAID

This server suits teams that need a compact rack node for virtualization, database or general-purpose workloads where hardware RAID 0, 1, 5, 6, 10, 50 or 60 and hot-swap 2.5-inch SAS or SATA bays are required. Buyers who need more than two processors, more than eight drive bays, integrated 10 GbE networking or GPU-ready PCIe slots should evaluate other platforms.

Single-socket E5-2620 V3 limits total cores

The installed processor provides six physical cores with hyper-threading and caps the memory subsystem at the speed supported by this CPU. Adding a second Xeon is possible but not included, so the 96 GB DDR4 maximum and 24 DIMM slots are only fully usable with a dual-socket upgrade.

Highlights

  • 1U rack density saves data-centre space
  • Single Xeon E5-2620 V3 six-core 2.4GHz processor handles virtualised workloads
  • 96GB DDR4 memory across 24 DIMM slots supports large datasets
  • Dual 300GB 15K SAS drives deliver fast sequential access
  • H730 RAID controller with 1GB cache enables RAID 0/1/5/6/10/50/60
  • Dual 750W redundant power supplies maintain uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size96GB
Memory TypeDDR4
Max Memory Capacity96GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 2GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack and rails do I need to mount this 1U PowerEdge R630 server?

The server is a 1U rack-mount unit measuring 26.8 inches deep by 17.44 inches wide and requires a standard four-post rack with compatible sliding rails for installation.

Can I keep using my existing 12 Gbps SAS drives with the H730 controller in this R630?

Yes, the H730 12 Gbps RAID controller supports SAS and SATA drives, so your current 12 Gbps SAS drives will work in the 2.5-inch hot-plug bays.

How do I confirm the single E5-2620 V3 processor and 96 GB DDR4 are recognised after first power-on?

Check the iDRAC8 System Overview or press F2 during POST to enter System Setup; both will show one 6-core 2.4 GHz CPU and 96 GB across the 24 DIMM slots.
