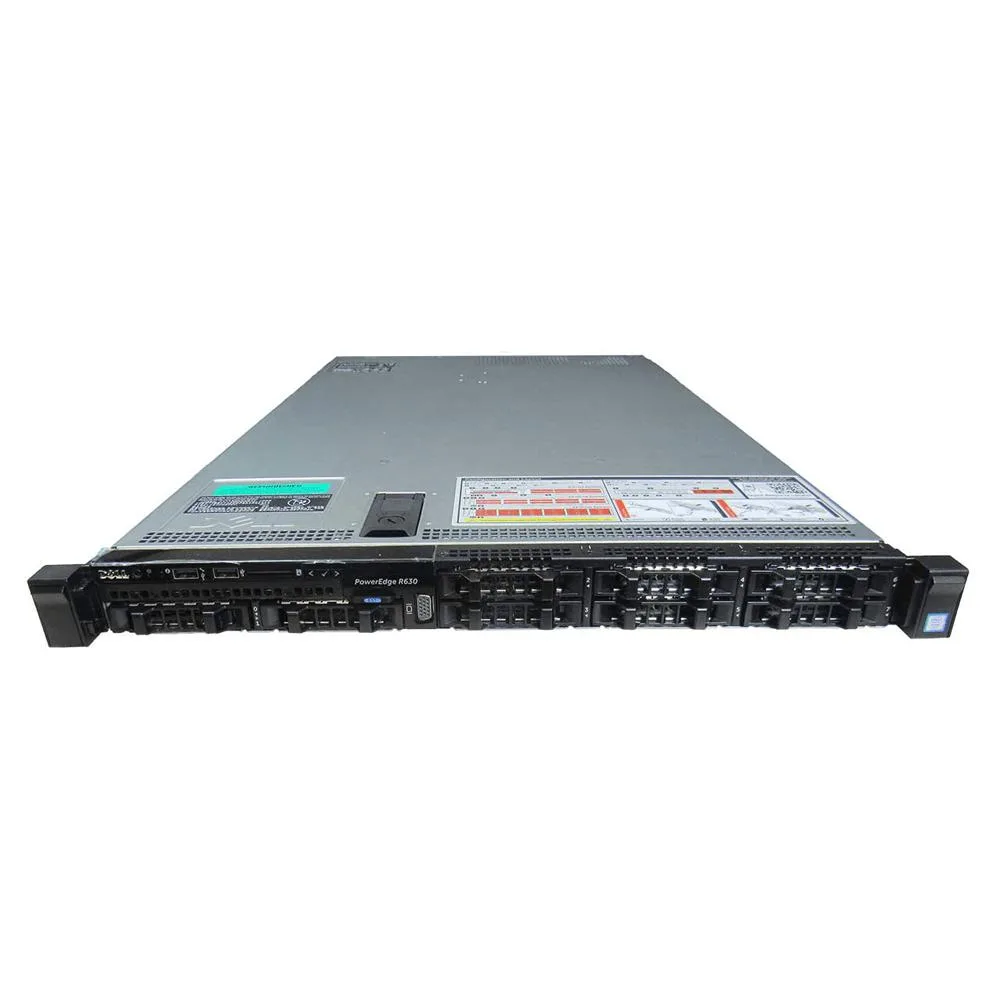

Silver 1U rack server with eight front drive bays and dual power supplies

DELL

DELL PowerEdge R630 1U rack server E5-2637 V3 3.5GHz 48GB 2x 1TB H730

SKU CH-13VH-J717N

A 1U rack server with a Xeon E5-2637 V3 3.5GHz processor, 48GB DDR4 memory, two 1TB SATA drives and a H730 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 48GB

HDD 2 x 1TB

  • Quad-core Xeon at 3.5 GHz for responsive compute
  • 48 GB DDR4 memory ready for virtualization workloads
  • Dual 1 TB enterprise SATA drives with hot-plug convenience
  • H730 RAID controller supports RAID 0/1/5/6/10/50/60
  • Dual 750 W redundant power supplies keep the server running

1U rack server with single Xeon E5-2637 V3

This Dell PowerEdge R630 is a 1U rack server fitted with one Intel Xeon E5-2637 V3 quad-core processor running at 3.5 GHz. It ships with 48 GB of DDR4 memory across 24 DIMM slots and two 1 TB 7.2K SATA drives managed by a PERC H730 RAID controller. Dual 750 W redundant power supplies support continuous operation in dense data-centre racks.

Suits dense virtualisation hosts needing hot-plug

The eight 2.5-inch hot-plug bays and H730 controller handle RAID 0, 1, 5, 6, 10, 50 and 60 for local redundancy. iDRAC8 with Lifecycle Controller provides out-of-band management for remote firmware updates and hardware monitoring. Organisations that require more than eight drive bays, 10 GbE networking as standard, or a second CPU installed from the factory should evaluate larger chassis options.

Single processor limits maximum memory to 48 GB

Although the platform supports up to 1536 GB across two CPUs, this unit ships with one E5-2637 V3 and 48 GB already populated, leaving no headroom for expansion without adding the second processor. Buyers planning larger memory footprints must budget for the additional CPU and matching DIMMs.

Highlights

  • Quad-core Xeon at 3.5 GHz for responsive compute
  • 48 GB DDR4 memory ready for virtualization workloads
  • Dual 1 TB enterprise SATA drives with hot-plug convenience
  • H730 RAID controller supports RAID 0/1/5/6/10/50/60
  • Dual 750 W redundant power supplies keep the server running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size48GB
Memory TypeDDR4
Max Memory Capacity48GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 2GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the dual 750W redundant power supply run during 24/7 operation?

The 750W redundant supplies are hot-swap rated; fan speed scales with inlet temperature and load, so sustained full-load operation will run the internal fans at higher RPM than idle.

What rack infrastructure must already be in place to mount this 1U server?

A standard four-post rack with 1U vertical clearance and square-hole or threaded rails is required; the chassis depth is 26.8 inches.

Will the H730 RAID controller recognise older 6Gbps SAS drives if I keep them?

Yes, the H730 1GB 12Gbps controller supports 6Gbps SAS and SATA drives and presents them at their native link speed.
