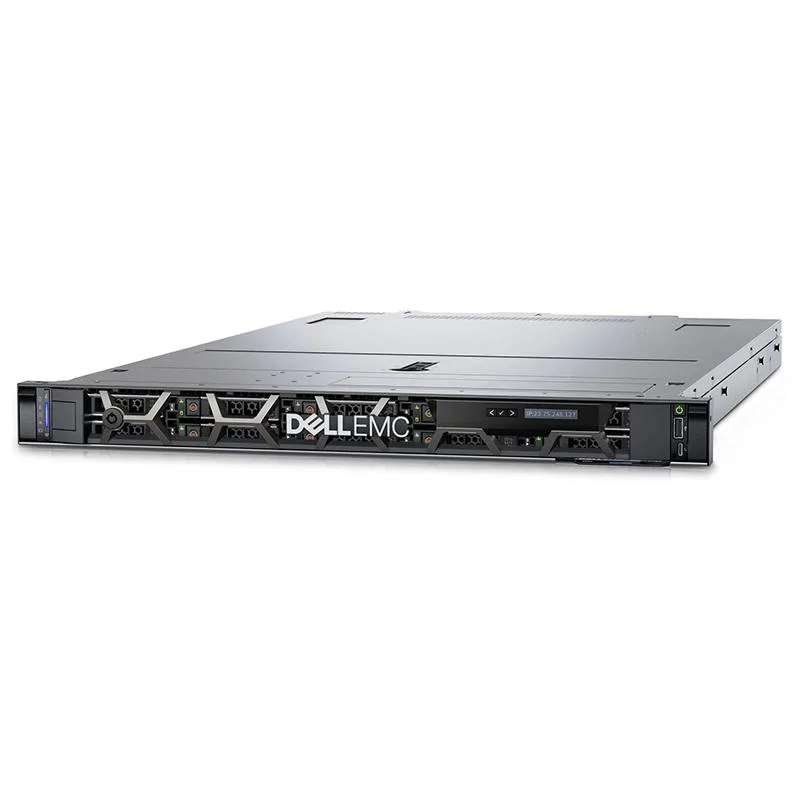

Silver 1U rack server with ten 2.5-inch drive bays and front bezel

DELL

DELL PowerEdge R650xs 1U rack server 2x Xeon Silver 4314 2.4GHz 16-core 512GB DDR4 10x 960GB SSD H745

SKU CH-CE9W-KQYFS

1U rack server with dual Xeon Silver 4314 CPUs, 512 GB DDR4 memory, ten 960 GB SATA SSDs and a PERC H745 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI Features10 x 960GB SATA SSD
  • CPU TypeIntel Xeon
  • CPU Speed16
  • Dual 16-core Xeon Silver 4314 CPUs at 2.4 GHz with 3.4 GHz Turbo deliver dense compute power
  • 512 GB DDR4 2666 MHz ECC memory across 16 slots enables rapid data access for virtualization
  • PERC H745 RAID controller with 4 GB NV cache supports RAID 0, 1, 5, 6, 10, 50, 60
  • Ten 960 GB SATA SSDs provide high-capacity flash storage in 2.5-inch bays
  • iDRAC9 Enterprise plus quad-port 1 GbE OCP 3.0 and dual 1400 W PSUs ensure resilient management and uptime

Compact 1U rack server

The Dell PowerEdge R650xs is a 1U rack server built for dense data-center deployments. It ships with two Intel Xeon Silver 4314 processors running at 2.4GHz with 16 cores each and 512GB of DDR4 2666MHz registered ECC memory across 16 DIMM slots. The platform targets virtualization, cloud infrastructure and high-performance computing workloads that demand high core counts in minimal rack space.

Front-access storage and networking

Ten 2.5-inch drive bays hold 960GB SATA SSDs behind the PERC H745 RAID controller with 4GB non-volatile cache and battery backup, supporting RAID levels 0, 1, 5, 6, 10, 50 and 60. A Broadcom 5720 quad-port 1GbE OCP 3.0 network card provides four Ethernet links in a single mezzanine slot. Dual 1400-watt platinum hot-swap power supplies and iDRAC9 Enterprise remote management keep the system serviceable without pulling it from the rack.

Sustained multi-threaded throughput

With 32 total cores and a 3.4GHz turbo frequency, the dual Xeon configuration maintains high throughput during extended virtualization or analytics runs. The 512GB DDR4 capacity and 1TB maximum allow large working sets to stay in memory, reducing swap pressure under continuous load. The PERC H745 battery-backed cache absorbs write bursts while the platinum power supplies deliver stable current during prolonged peak utilization.

Highlights

  • Dual 16-core Xeon Silver 4314 CPUs at 2.4 GHz with 3.4 GHz Turbo deliver dense compute power
  • 512 GB DDR4 2666 MHz ECC memory across 16 slots enables rapid data access for virtualization
  • PERC H745 RAID controller with 4 GB NV cache supports RAID 0, 1, 5, 6, 10, 50, 60
  • Ten 960 GB SATA SSDs provide high-capacity flash storage in 2.5-inch bays
  • iDRAC9 Enterprise plus quad-port 1 GbE OCP 3.0 and dual 1400 W PSUs ensure resilient management and uptime

Specifications

BrandDELL
SeriesPowerEdge R650xs
ModelR650xs
Part Number2.40 GHz
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
AI Features10 x 960GB SATA SSD
CPU TypeIntel Xeon
CPU Speed16
CPU SocketLGA 4189
Number of CPU Cores16-Core Processor
# of Processors InstalledSilver 4314
MAX Processors2
Chipset0
Installed Memory Size512GB
Memory TypeDDR4
Max Memory Capacity1TB
Storage ControllerDell Perc H745 Controller
HDD InterfaceSATA
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell EMC 15G Broadcom 5720 Quad Port 1GbE OCP 3.0 Network Card
LAN Ports4 x Ports
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features10 x 2.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

What is the maximum memory capacity the R650xs can hold?

The server supports up to 1TB of DDR4 memory across 16 DIMM slots running at 3200 MT/s.

How much power do the dual supplies draw under full load?

Two 1400 Watt platinum power supplies provide redundant hot-swap power for sustained operation.

Which operating systems does the PERC H745 RAID controller support?

The H745 controller manages RAID 0, 1, 5, 6, 10, 50 and 60 with 4GB NV cache and battery backup.
