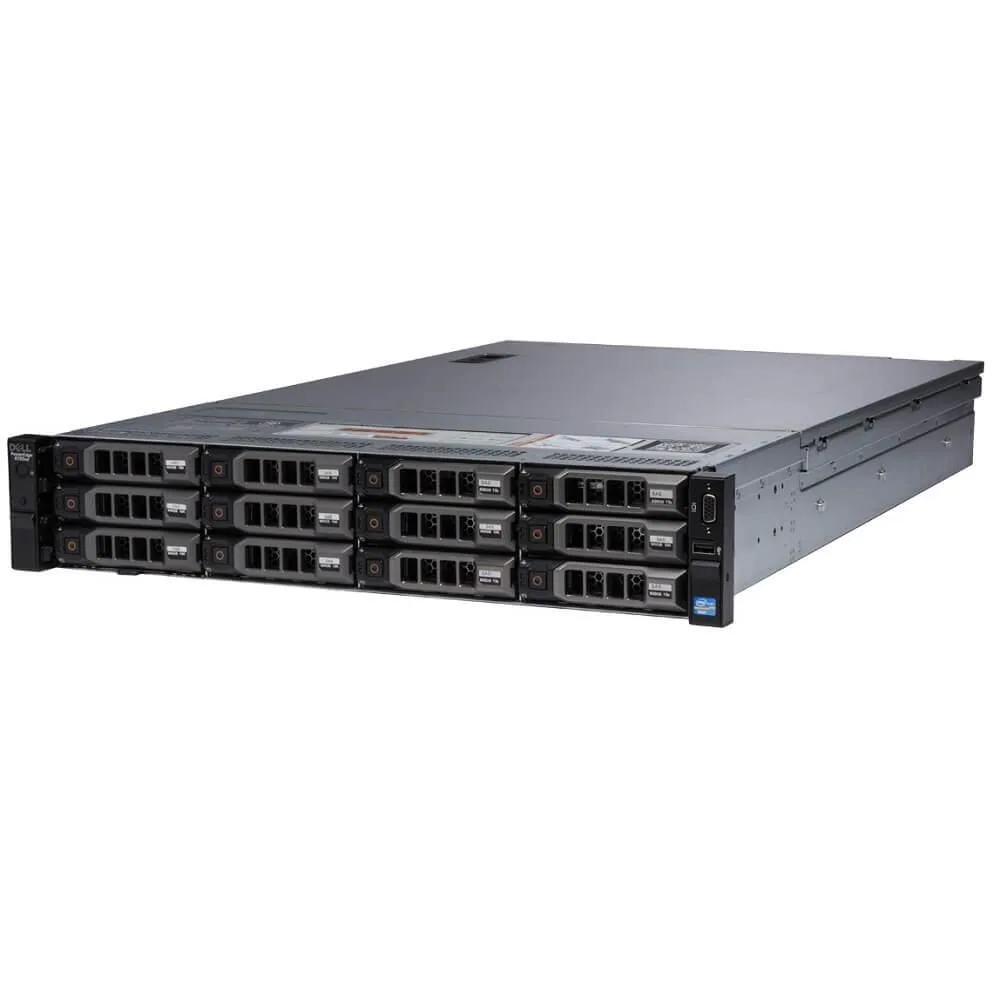

Silver 2U rack server with twelve front 3.5-inch drive bays

DELL

DELL PowerEdge R730XD 2U rack server 2x E5-2630 v3 2.4GHz 32GB DDR4 3x 600GB SAS H730

SKU CH-PG3Z-PH9XN

2U rack server with dual Xeon E5-2630 v3 CPUs, 32GB DDR4, three 600GB SAS drives and H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 32GB

Struck-through versions exist but are not stocked here.

HDD 3 x 600GB

Struck-through versions exist but are not stocked here.

  • Dual Xeon E5-2630 v3 CPUs deliver 16 cores for parallel workloads
  • 32 GB DDR4 memory across 24 DIMM slots supports large datasets
  • Three 600 GB 15K SAS drives provide fast hot-plug storage
  • PERC H730 1 GB RAID controller enables RAID 0/1/5/6/10/50/60
  • Dual 750 W redundant power supplies maintain uptime during failures

Dense 2U storage server

The Dell PowerEdge R730XD is a 2U rack server built for dense 3.5-inch storage capacity. It ships with dual Intel Xeon E5-2630 v3 processors, 32GB of DDR4 memory and three 600GB 15K SAS drives on a PERC H730 RAID controller with 1GB cache. Redundant 750W power supplies and a DVD-ROM complete the baseline configuration.

Fits storage-heavy workloads

This server suits buyers who need up to 12 hot-plug SAS or SATA bays and RAID levels 0, 1, 5, 6, 10, 50 or 60 in a compact 2U form factor. The 24 DIMM slots support DDR4 modules up to 128GB each, although the installed CPU generation limits the practical memory ceiling. Buyers who require more than two processor sockets or 10GbE networking as standard should evaluate other platforms.

12-bay 3.5-inch SAS/SATA chassis

The defining specification is the 12-bay 3.5-inch hot-plug backplane that accepts SAS and SATA drives. This bay count determines the maximum raw capacity of 52TB and the RAID topology options available through the H730 controller. Confirm that your workload fits within the dual-socket Xeon E5-2630 v3 platform and the 32GB starting memory before purchase.

Highlights

  • Dual Xeon E5-2630 v3 CPUs deliver 16 cores for parallel workloads
  • 32 GB DDR4 memory across 24 DIMM slots supports large datasets
  • Three 600 GB 15K SAS drives provide fast hot-plug storage
  • PERC H730 1 GB RAID controller enables RAID 0/1/5/6/10/50/60
  • Dual 750 W redundant power supplies maintain uptime during failures

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack space and rails do I need to mount this 2U server?

The chassis occupies 2U of vertical space in a standard rack and weighs 60 lbs; you will need a cabinet that accepts 2U devices and sliding rails rated for that weight.

Can I keep using my existing 3.5" SAS drives alongside the three installed 600GB 15K drives?

Yes, the 12-bay backplane accepts both SAS and SATA 3.5" hot-plug drives, so your current drives can share the enclosure with the factory-installed units.

How do I confirm the H730 controller sees all three 600GB drives in a healthy RAID set after first boot?

Open the H730 BIOS utility or iDRAC8 storage view; the physical disk list should show three 600GB SAS drives with an "Online" state and the virtual disk reporting the chosen RAID level without errors.
