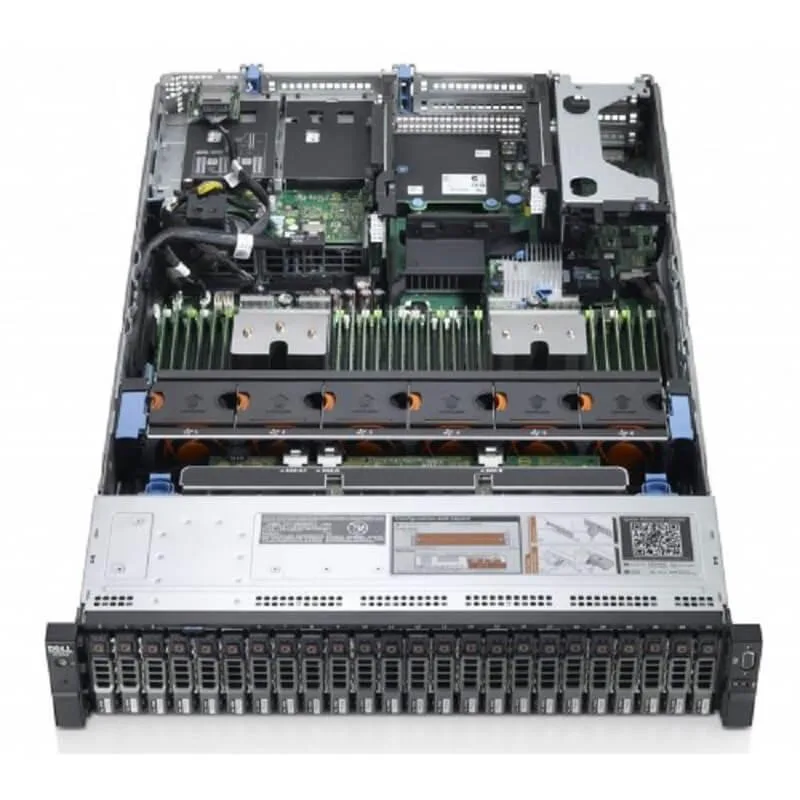

Silver 2U rack server chassis with twenty-four 2.5-inch drive bays at the front

DELL

DELL PowerEdge R730XD 2U rack server E5-2609 v3 1.9GHz 16GB 3x 900GB SAS H330

SKU CH-D3JW-SDQBC

2U rack server with single Xeon E5-2609 v3, 16GB DDR4, three 900GB 10K SAS drives and H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD 3 x 900GB

  • 24 hot-plug 2.5" bays for dense storage scaling
  • Single Xeon E5-2609 v3 six-core 1.9GHz processor installed
  • 16GB DDR4 memory with 24 DIMM slots for expansion
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant power supplies maintain uptime

24-bay 2U rack server

The Dell PowerEdge R730XD is a 2U rack-mount server designed for storage-dense workloads. It ships with a single Intel Xeon E5-2609v3 six-core processor running at 1.9GHz and 16GB of DDR4 memory. Three 900GB 10K SAS drives and a PERC H330 RAID controller are included. Dual 750W redundant power supplies provide resiliency.

Suited for capacity-first deployments

This configuration fits environments that need many hot-plug 2.5-inch drive bays in a 2U form factor, such as backup targets, archiving, or software-defined storage nodes. The installed memory is fixed at 16GB and the maximum supported capacity listed is 16GB, so workloads requiring larger RAM footprints should consider a different system. Buyers who need more than 24 drive bays or a second processor from day one should look elsewhere.

24 x 2.5-inch hot-plug drive bays

The chassis supports up to 24 hot-plug SAS or SATA drives, delivering a maximum raw capacity of 52TB with the installed controller. RAID levels 0, 1, 5, 10, 50 and 60 are available on the H330. This bay count and controller combination determines whether the server can meet the storage density and redundancy requirements of the intended workload.

Highlights

  • 24 hot-plug 2.5" bays for dense storage scaling
  • Single Xeon E5-2609 v3 six-core 1.9GHz processor installed
  • 16GB DDR4 memory with 24 DIMM slots for expansion
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant power supplies maintain uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I select the single E5-2609 v3 or add a second processor for this R730XD?

The system board supports up to two processors; the unit ships with one E5-2609 v3 six-core 1.9 GHz CPU and a second socket is available for expansion.

What does the 16 GB DDR4 installed memory mean for actual workloads?

16 GB DDR4 is populated across the 24 DIMM slots; the platform can scale to 1536 GB total using 4 GB, 8 GB, 16 GB, 32 GB, 64 GB or 128 GB modules up to 2400 MT/s, limited by the CPU memory controller.

How does the H330 12 Gbps RAID controller limit the three 900 GB 10K SAS drives?

The H330 provides 12 Gbps SAS connectivity and supports RAID 0, 1, 5, 10, 50 and 60; the installed 6 Gbps 10K drives will run at their native 6 Gbps link speed within the controller’s capability.
