DELL

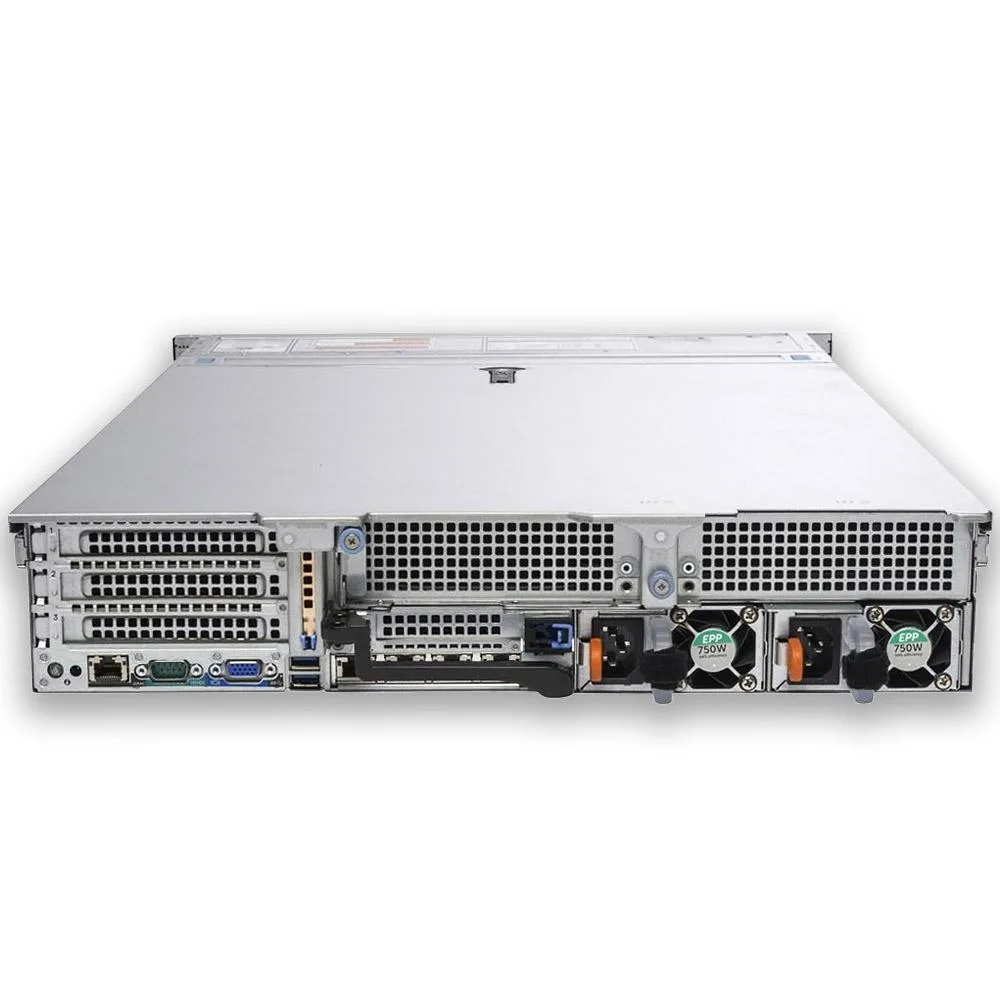

DELL PowerEdge R740 2U rack server 2x Gold 6132 14C 32GB 2x 300GB 10K SAS H730P
2U rack server with dual 14‑core Gold 6132 CPUs, 32 GB DDR4, two 300 GB 10K SAS drives and H730P RAID, plus iDRAC9 Enterprise remote management
- TypeRack
- Rack Height2U
- CPU TypeIntel
- Installed Memory Size32GB
- Hard Drive (Installed)2x 300GB 10K SAS
- Storage ControllerH730P
- Dual 14-core Gold 6132 CPUs at 2.6 GHz for high-thread workloads
- 32 GB DDR4 memory in two 16 GB modules running at 2666 MT/s
- H730P RAID controller managing two 300 GB 10K SAS drives
- Eight 2.5-inch drive bays with room for six more disks
- iDRAC9 Enterprise remote management plus dual 10 Gb and dual 1 Gb Ethernet
Dual Gold 6132 14-core server
The Dell EMC PowerEdge R740 is a 2U rack system built around two Intel Gold 6132 processors running at 2.6 GHz. Each CPU provides 14 cores and 19.25 MB cache. The chassis ships with 32 GB of DDR4 memory in two 16 GB modules and a PERC H730P RAID controller managing two 300 GB 10K SAS drives. Remote management is handled by iDRAC9 Enterprise. Eight 2.5-inch drive bays and up to eight PCIe Gen 3 slots provide internal expansion.
Virtualisation hosts and database nodes
This configuration suits workloads that benefit from high core counts and hardware RAID, such as virtualisation clusters, mid-size databases or application servers. The dual-socket design and redundant 1100 W power supplies support continuous operation. Buyers who need larger memory footprints, all-flash arrays or more than eight low-profile add-in cards should evaluate other platforms.
32 GB DDR4 in two slots
The system arrives with only 32 GB of DDR4 installed across two DIMM slots, leaving substantial headroom for memory expansion. If the target workload demands more RAM than this baseline, additional modules must be sourced separately.
Highlights
- Dual 14-core Gold 6132 CPUs at 2.6 GHz for high-thread workloads
- 32 GB DDR4 memory in two 16 GB modules running at 2666 MT/s
- H730P RAID controller managing two 300 GB 10K SAS drives
- Eight 2.5-inch drive bays with room for six more disks
- iDRAC9 Enterprise remote management plus dual 10 Gb and dual 1 Gb Ethernet
Specifications
| Brand | DELL |
|---|---|
| Model | R740 |
| Type | Rack |
| Rack Height | 2U |
| CPU Type | Intel |
| Installed Memory Size | 32GB |
| Hard Drive (Installed) | 2x 300GB 10K SAS |
| Storage Controller | H730P |
| Max HDD Capacity | 8x 2.5" Drive Bays |
| Remote Management | iDRAC9 Enterprise |
Questions about this item
How many 2.5 inch drive bays does the R740 chassis provide for storage expansion?
The chassis includes eight 2.5 inch drive bays, with two already occupied by the installed 300GB 10K SAS drives.
What is the rated power capacity of the redundant power supplies fitted in this server?
Two 1100W redundant power supplies are installed, providing full failover if one unit fails.
Which network ports are built into the NDC module on this system?
The Intel X550 NDC provides two 10Gb RJ45 ports and two 1Gb RJ45 Gigabit Ethernet ports.
