DELL
Dell PowerEdge R830 rack server 4x E5-4669v4 2.2GHz 22C 128GB 2x 960GB SATA SSD H730
Four-socket Intel server with four 22-core processors, 128GB DDR4, dual 960GB SATA SSDs and H730 RAID in a 2U chassis
- TypeRack
- Rack Height2U
- CPU TypeIntel
- Installed Memory Size128GB
- Hard Drive (Installed)2x 960GB SATA SSD
- Storage ControllerH730
- Four Intel E5-4669v4 processors provide 22 cores each for parallel workloads
- 128GB DDR4 memory across eight 16GB modules supports large datasets
- Dual 960GB SATA SSDs with H730 RAID controller protect critical data
- Seven PCIe slots enable diverse add-in cards for I/O expansion
- iDRAC8 Enterprise and quad-port 1Gb NIC simplify remote management

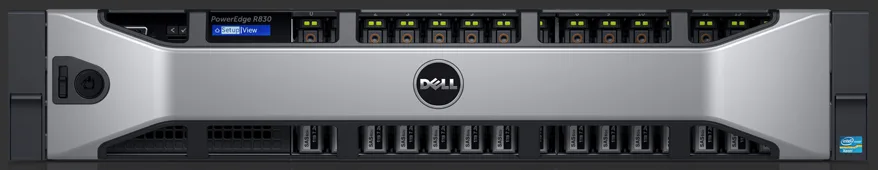

Four-socket 2U rack server
This Dell PowerEdge R830 is a 2U rack server built around four Intel E5-4669v4 processors running at 2.2GHz with 22 cores each and 55M cache. It ships with 128GB of DDR4 memory arranged as eight 16GB PC4-2400 modules and two 960GB SATA SSDs managed by an H730 RAID controller. Remote management is handled through iDRAC8 Enterprise and a Broadcom 5720 quad-port 1Gb network adapter provides connectivity.
Suited for dense compute workloads
The 2U form factor and four-socket design suit organisations consolidating multiple virtual machines or running memory-intensive databases in limited rack space. Seven PCIe slots allow additional network or storage controllers. Buyers who need more than eight 2.5-inch drive bays or who require an optical drive should look at a different chassis configuration.
128GB DDR4 memory capacity
The installed 128GB of DDR4 memory across eight DIMM slots determines how many virtual machines or how large a dataset can reside in RAM simultaneously. This capacity is fixed by the current module population and the processor memory-controller limits.
Highlights
- Four Intel E5-4669v4 processors provide 22 cores each for parallel workloads
- 128GB DDR4 memory across eight 16GB modules supports large datasets
- Dual 960GB SATA SSDs with H730 RAID controller protect critical data
- Seven PCIe slots enable diverse add-in cards for I/O expansion
- iDRAC8 Enterprise and quad-port 1Gb NIC simplify remote management
Specifications
| Brand | DELL |
|---|---|
| Model | R830 |
| Type | Rack |
| Rack Height | 2U |
| CPU Type | Intel |
| Installed Memory Size | 128GB |
| Hard Drive (Installed) | 2x 960GB SATA SSD |
| Storage Controller | H730 |
| Max HDD Capacity | 8x 2.5" Drive Bays |
| Remote Management | iDRAC8 Enterprise |
Questions about this item
What rack depth and clearance does the 2U PowerEdge R830 chassis need for the included rails?

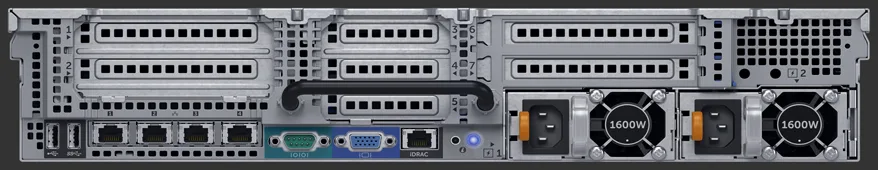

The included rails fit standard 4-post racks; allow enough usable depth so the 2U chassis clears rear cabling and the redundant 1600 W power supplies.
Which PCIe slot must the H730 RAID controller occupy during installation?
The H730 RAID controller installs in the dedicated x8 half-length full-height slot reserved for the RAID controller among the 7 PCIe slots.
How many 2.5-inch drive bays remain free for future SSD or HDD expansion after the two 960 GB SATA SSDs are fitted?
The chassis provides 8 bays total; with 2 occupied by the installed SSDs, 6 bays remain available for additional 2.5-inch drives.
