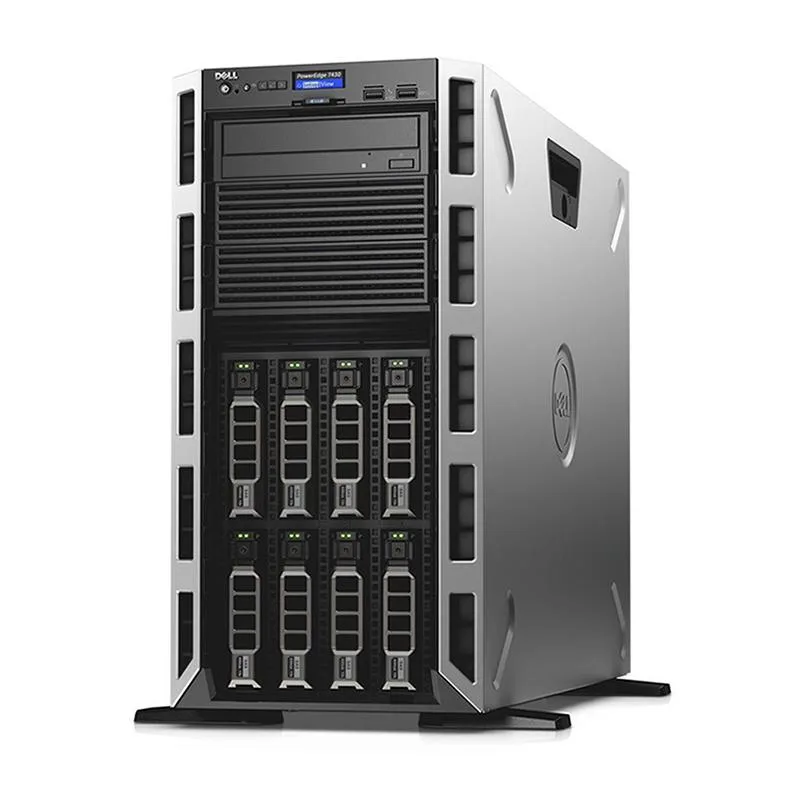

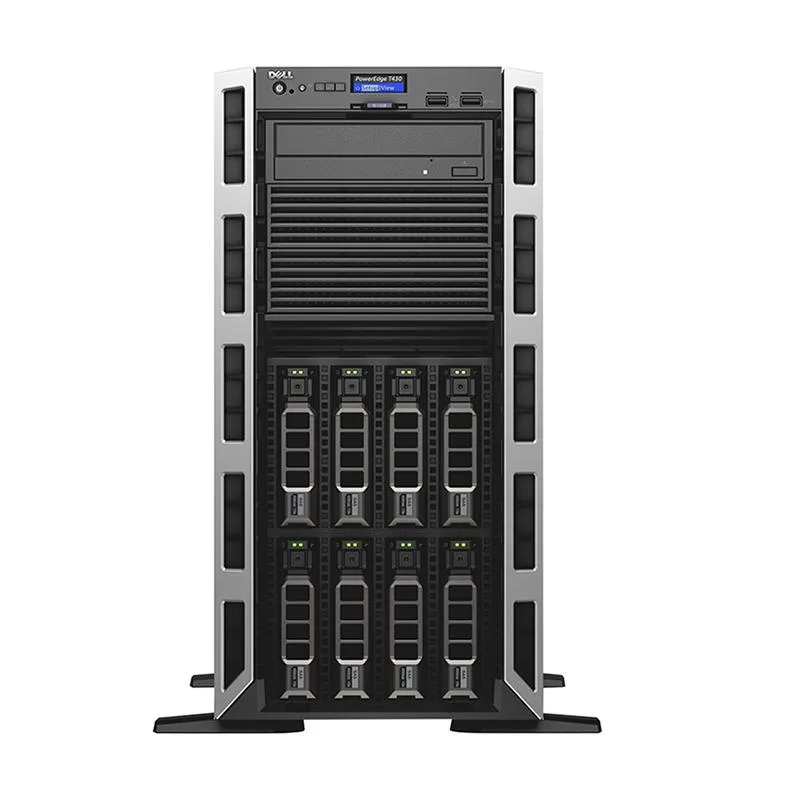

Dell PowerEdge T430 5U tower server silver front bezel eight drive bays

DELL

DELL PowerEdge T430 5U rack server 2x Xeon E5-2660 v4 2.0GHz 14-core 128GB DDR4 8x 4TB SATA H730 2x 750W

SKU CH-J3SR-F6W1M

5U rack server with dual 14-core Xeon processors at 2.0 GHz, 128 GB DDR4 ECC memory, eight 4 TB SATA drives on a PERC H730 RAID controller, dual 1 GbE ports, iDRAC 8 Express remote management.

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 128GB

HDD 8 x 4TB 7.2K SATA

  • Dual 14-core Xeon processors at 2.0 GHz base with 3.2 GHz turbo
  • 128 GB DDR4 registered ECC memory across 8 modules
  • PERC H730 controller supports RAID 0, 1, 5, 6, 10, 50, 60 with battery backup
  • Eight 4 TB 7.2 K SATA drives in hot-swap 3.5-inch bays
  • Redundant 750 W platinum power supplies with iDRAC 8 Express remote management

Dual Xeon E5-2660 v4 14-core server

The Dell PowerEdge T430 is a 5U rack-mount server built around two Intel Xeon E5-2660 v4 processors. Each CPU runs at 2.0 GHz with a 3.2 GHz turbo frequency and provides 14 cores for multi-threaded workloads. The system ships with 128 GB of DDR4 2400 MHz registered ECC memory across eight 16 GB modules. It targets small offices and remote sites that need a single, self-contained platform for collaboration, mail, file, print and web serving workloads.

8-bay 3.5-inch SATA storage with PERC H730

Eight 3.5-inch drive bays come populated with 4 TB 7.2 K SATA hard drives connected to a Dell PERC H730 controller with 1 GB cache. The controller supports RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode, freeing the host CPUs from parity calculations. Twelve DIMM slots in total allow expansion up to 384 GB when additional memory is required. Dual embedded 1 GbE ports from the Broadcom 5720 LOM and iDRAC 8 Express remote management are integrated on the motherboard.

Redundant 750 W platinum power supplies

Two hot-swap 750 W platinum-efficiency power supplies provide full redundancy without shutting down the server. The 5U chassis uses internal airflow to cool both processors, memory and the eight spinning drives under typical office loads. iDRAC 8 Express enables remote power cycling and sensor monitoring so administrators can respond to thermal events without physical access. A front bezel is included; plastic feet are not supplied.

Highlights

  • Dual 14-core Xeon processors at 2.0 GHz base with 3.2 GHz turbo
  • 128 GB DDR4 registered ECC memory across 8 modules
  • PERC H730 controller supports RAID 0, 1, 5, 6, 10, 50, 60 with battery backup
  • Eight 4 TB 7.2 K SATA drives in hot-swap 3.5-inch bays
  • Redundant 750 W platinum power supplies with iDRAC 8 Express remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 4TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much DDR4 memory can the T430 support before the 12 slots are full?

The system holds up to 384GB across 12 DDR4 slots, and 128GB is already installed in eight 16GB modules.

What noise and heat levels should be expected from the dual 750W platinum supplies under continuous load?

Dual 750W platinum units run efficiently and share the load, keeping fan speeds lower than single-supply designs during all-day operation.

Which rack hardware is needed to mount this 5U tower chassis in a standard cabinet?

The 5U form factor requires a shelf or tray rated for at least 5U of vertical space; rails are not included with the tower chassis.
