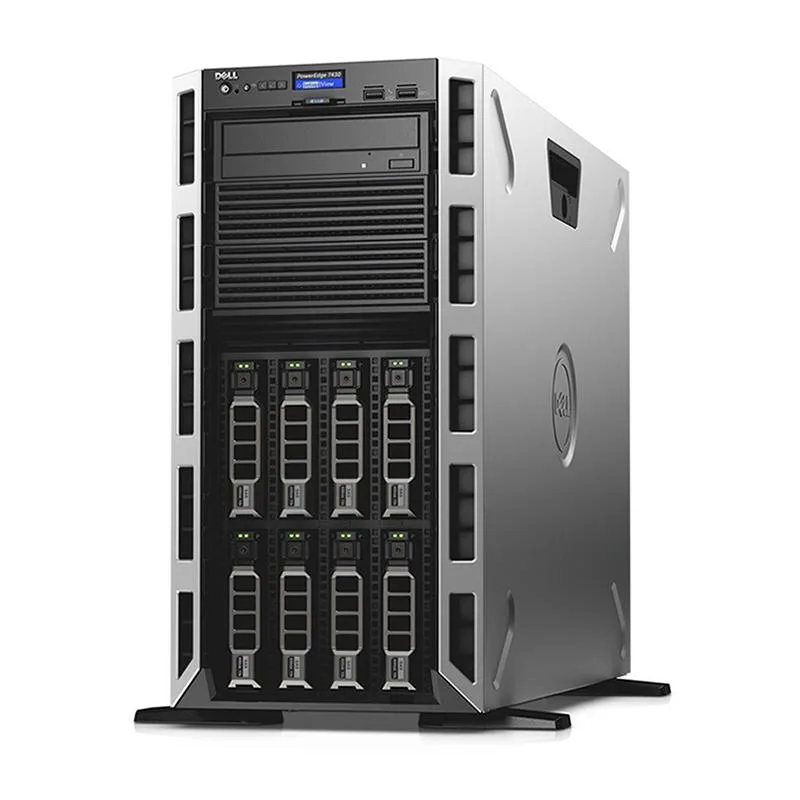

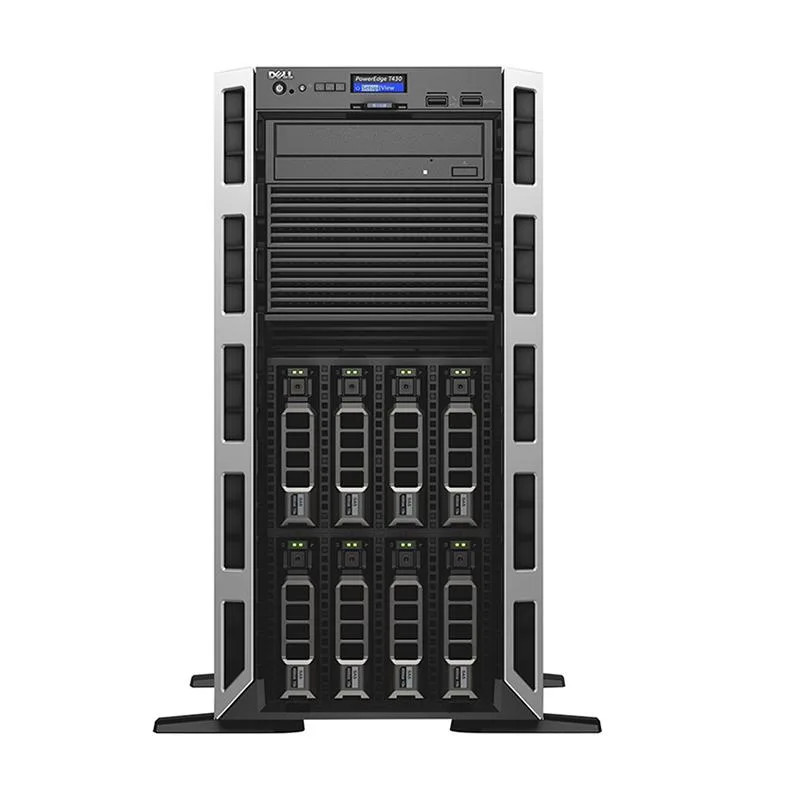

Dell PowerEdge T430 5U tower server with front bezel, eight 3.5-inch drive bays, redundant power supplies

DELL

DELL PowerEdge T430 5U rack server 2x Xeon E5-2660 v4 2.0GHz 14-core 256GB DDR4 8x 4TB SATA H730

SKU CH-Q6MV-RJMP6

A 5U tower server with dual 14-core Xeon processors, 256GB DDR4 memory and eight 4TB SATA drives on a H730 RAID controller

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 256GB

HDD 8 x 4TB 7.2K SATA

  • Dual 14-core Xeon processors at 2.0 GHz with 3.2 GHz turbo for demanding workloads
  • 256 GB DDR4 ECC memory across 8 slots supports large datasets and virtualisation
  • PERC H730 controller with 1 GB cache enables RAID 0, 1, 5, 6, 10, 50, 60
  • Eight 4 TB 7.2K SATA drives deliver 32 TB raw capacity for bulk storage
  • Dual 750 W platinum power supplies and iDRAC 8 Express provide redundancy and remote management

5U rack server with dual 14-core Xeons

This Dell PowerEdge T430 is a 5U rack-mount server system built around two Intel Xeon E5-2660 v4 processors, each running at 2.0 GHz with 14 cores. It ships with 256 GB of DDR4 registered ECC memory installed across eight 32 GB modules. The system includes a Dell PERC H730 storage controller with 1 GB cache and battery backup, supporting RAID levels 0, 1, 5, 6, 10, 50 and 60. Eight 4 TB 7.2K SATA hard drives are installed in the 3.5-inch drive bays.

Suits small-office and branch workloads

The configuration targets small offices and remote branch locations needing a single server for collaboration, mail, file, print and web serving duties. Dual 750 W platinum power supplies provide redundant hot-swap power. Buyers who need more than 384 GB of memory, additional processor sockets beyond the two installed, or drive bays beyond the eight 3.5-inch slots should look at larger platforms. The integrated Broadcom 5720 dual-port 1 GbE LOM and iDRAC 8 Express cover basic remote management and networking.

Dual 14-core Xeon E5-2660 v4 at 2.0 GHz

The defining specification is the pair of 14-core Intel Xeon E5-2660 v4 CPUs running at a base frequency of 2.0 GHz with a 3.2 GHz turbo. This delivers 28 total cores and 56 threads for multi-threaded server workloads. The LGA 2011-3 socket and Intel C610 chipset limit upgrades to the same processor generation. Memory runs at 2400 MHz DDR4 with a maximum capacity of 384 GB across 12 slots.

Highlights

  • Dual 14-core Xeon processors at 2.0 GHz with 3.2 GHz turbo for demanding workloads
  • 256 GB DDR4 ECC memory across 8 slots supports large datasets and virtualisation
  • PERC H730 controller with 1 GB cache enables RAID 0, 1, 5, 6, 10, 50, 60
  • Eight 4 TB 7.2K SATA drives deliver 32 TB raw capacity for bulk storage
  • Dual 750 W platinum power supplies and iDRAC 8 Express provide redundancy and remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 4TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack space and mounting depth does the 5U T430 chassis require?

The server occupies 5U of rack height and uses standard square-hole rails; plastic feet are not included so rack mounting is mandatory.

How are the two Xeon E5-2660 v4 CPUs and 256 GB DDR4 installed, and what step is often missed?

Both LGA 2011-3 sockets must be populated; install the eight 32 GB DDR4 registered ECC modules in the correct twelve-slot sequence or the system will not POST.

When will the PERC H730 battery-backed cache and the 7.2 K SATA drives need replacement?

The H730 1 GB cache battery typically lasts three to five years; the eight 4 TB 7.2 K SATA drives should be monitored via iDRAC8 and replaced on SMART warnings.
