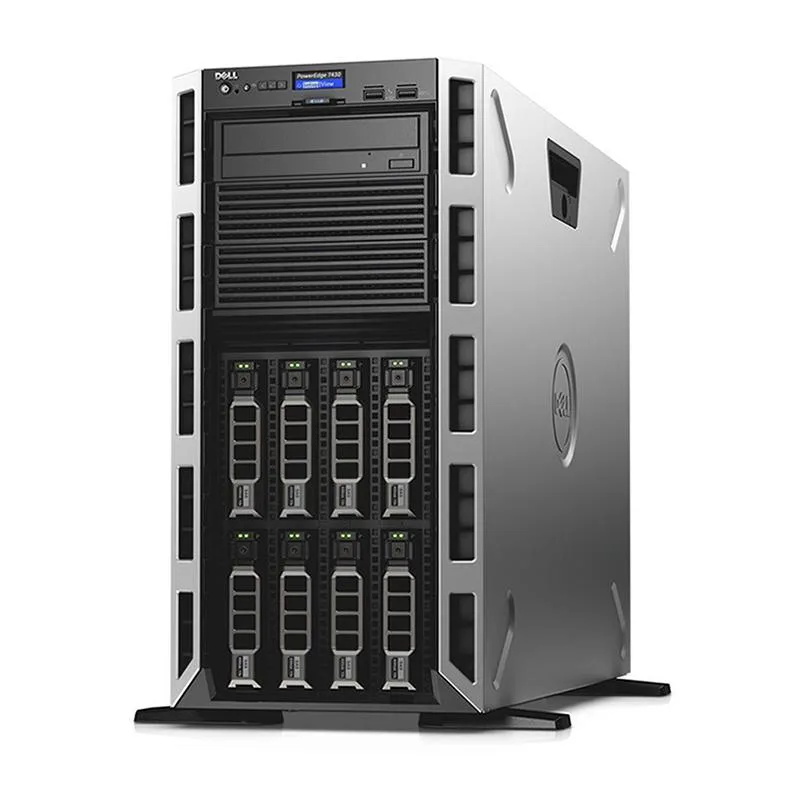

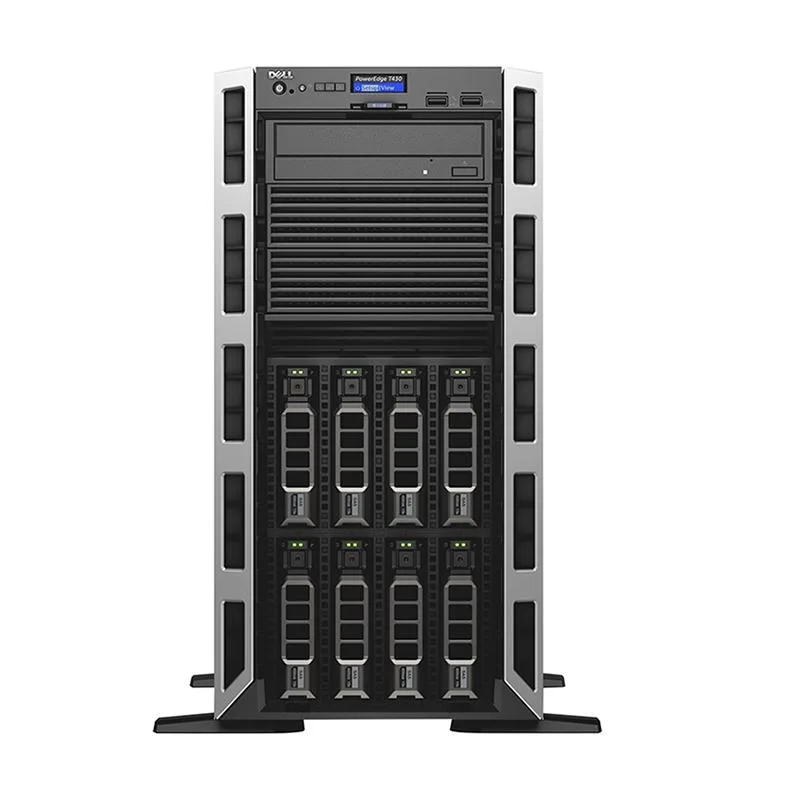

Silver 5U tower chassis with front bezel and eight 3.5-inch drive bays

DELL

DELL E5-2683 PowerEdge T430 5U rack server 2x 16-core 2.1GHz Xeon 32GB DDR4 8x 8TB SATA H730

SKU CH-S16W-SN8XJ MPN E5-2683

A 5U rack server with dual 16-core Xeon processors at 2.1 GHz, 32 GB DDR4, and eight 8 TB SATA drives on a PERC H730 controller

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 32GB

HDD 8 x 8TB 7.2K SATA

CPU Model E5-2683 V4

  • Dual 16-core Xeon 2.1 GHz processors handle heavy multi-thread workloads
  • 32 GB DDR4 2400 MHz ECC memory protects data integrity
  • PERC H730 1 GB controller supports RAID 0 1 5 6 10 50 60
  • Eight 8 TB 7.2 K SATA drives deliver high-capacity storage
  • Dual 750 W platinum hot-swap power supplies keep the system running

Dell PowerEdge T430 5U server for office workloads

The Dell PowerEdge T430 is a 5U rack server built for workgroup collaboration, mail, file, print and web serving in small or remote offices. It ships with two Intel Xeon E5-2683 v4 processors, each running at 2.1 GHz with 16 cores and a 3.0 GHz turbo frequency. The system includes 32 GB of DDR4 2400 MHz registered ECC memory across four modules. A PERC H730 controller with 1 GB cache manages the eight 3.5-inch drive bays.

Suited for single-server capacity

This server suits organisations that need a single high-capacity system with redundant 750 W power supplies and iDRAC 8 Express for remote administration. The eight installed 8 TB 7.2K SATA drives deliver a large storage pool managed by the H730 controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. Buyers who require more than 384 GB of memory or additional processor sockets beyond the two LGA 2011-3 sockets should look elsewhere.

PERC H730 controller with 1 GB cache and battery

The Dell PERC H730 1 GB mini controller provides 12 Gb/s SAS/SATA connectivity with battery-backed cache and supports RAID 0, 1, 5, 6, 10, 50, 60 and pass-through modes. This specification determines whether the server meets your storage performance and data-protection requirements.

Highlights

  • Dual 16-core Xeon 2.1 GHz processors handle heavy multi-thread workloads
  • 32 GB DDR4 2400 MHz ECC memory protects data integrity
  • PERC H730 1 GB controller supports RAID 0 1 5 6 10 50 60
  • Eight 8 TB 7.2 K SATA drives deliver high-capacity storage
  • Dual 750 W platinum hot-swap power supplies keep the system running

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 8TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum memory capacity supported by the PowerEdge T430?

The PowerEdge T430 supports up to 384GB of DDR4 memory across 12 slots, with 32GB installed as 4x 8GB registered ECC modules at 2400MHz.

How much power do the dual redundant supplies deliver and what is their efficiency rating?

Two hot-swap 750W platinum-efficiency power supplies provide redundant power for the 5U chassis under sustained load.

Which storage controller is installed and what RAID levels does it support?

The Dell PERC H730 1GB controller supports RAID 0, 1, 5, 6, 10, 50, 60 and pass-through for the eight 3.5-inch SATA drives.
