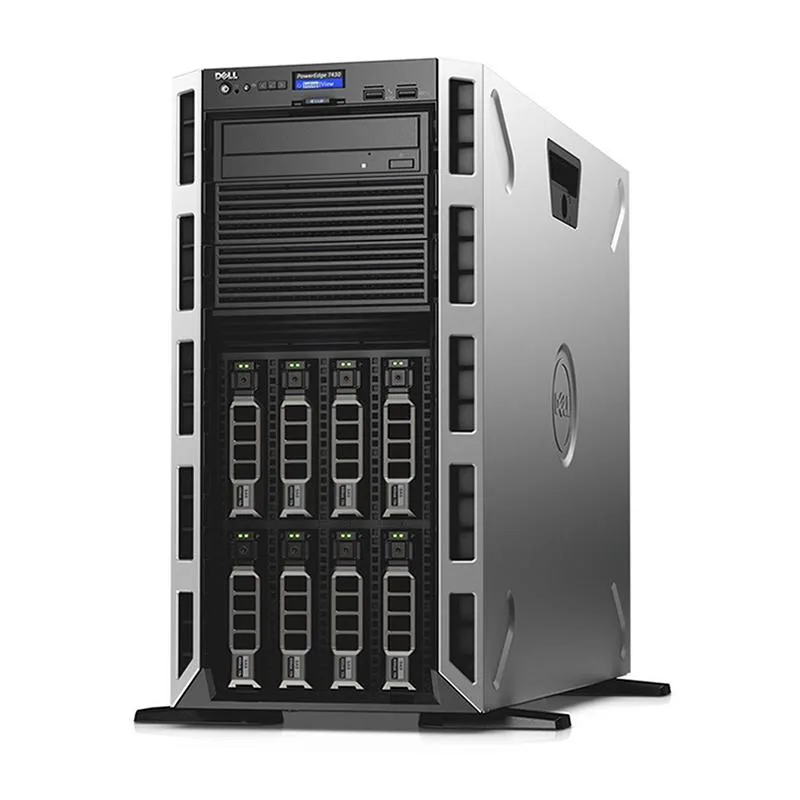

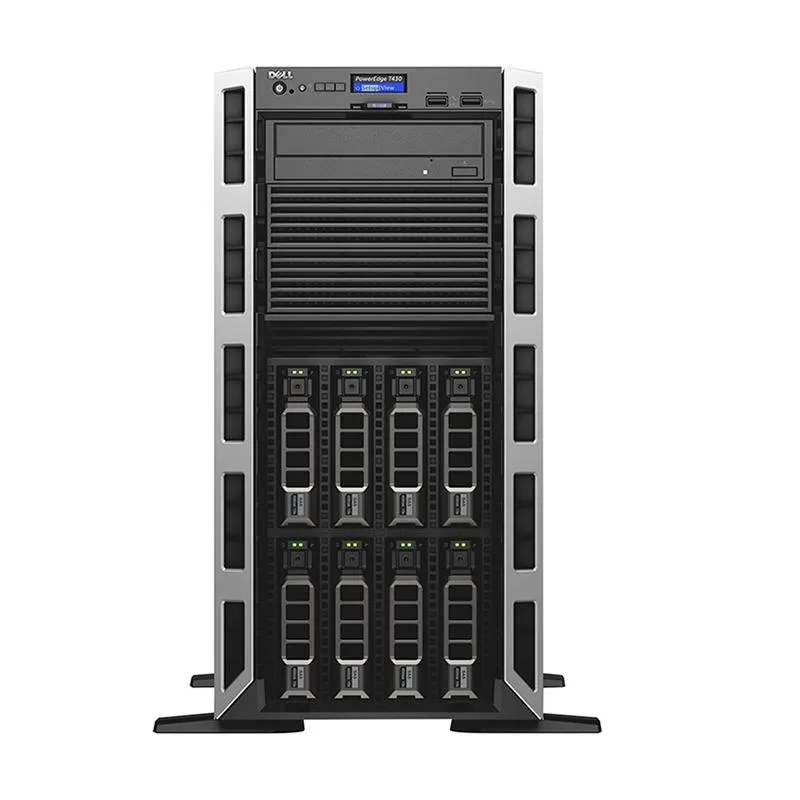

Tower server chassis with eight 3.5 inch drive bays and front bezel

DELL

DELL E5-2683 PowerEdge T430 5U rack server 2× Xeon 16-core 2.1 GHz 32GB DDR4 8× 4TB SATA H730

SKU CH-SP5T-BC8MV MPN E5-2683

5U tower server with dual 16-core Xeon CPUs at 2.1 GHz, 32 GB DDR4, eight 4 TB SATA drives on a PERC H730 controller, dual 750 W PSUs and iDRAC 8 Express remote management

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 32GB

HDD 8 x 4TB 7.2K SATA

CPU Model E5-2683 V4

  • Dual 16-core Xeon processors at 2.1 GHz deliver 32 threads for heavy workloads
  • 32 GB DDR4 registered ECC memory protects data integrity and supports expansion to 384 GB
  • PERC H730 controller with 1 GB cache enables RAID 0/1/5/6/10/50/60 and pass-through
  • Eight 4 TB 7.2 K SATA drives provide 32 TB raw capacity in 3.5-inch bays
  • Dual 750 W platinum power supplies and iDRAC 8 Express ensure uptime and remote management

Dell PowerEdge T430 5U Server

The Dell PowerEdge T430 is a 5U rack-mounted server system built for office workloads such as file and print serving, mail, messaging and web hosting. It ships with two Intel Xeon E5-2683 v4 processors, each running at 2.1 GHz with 16 cores, and 32 GB of DDR4 registered ECC memory. Eight 4 TB 7.2K SATA hard drives are installed and managed by a Dell PERC H730 1 GB RAID controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. Dual 750 W hot-swap power supplies provide redundancy.

Suited for small offices and remote branches

This configuration suits small offices and remote branch sites that need a single server for collaboration, productivity and general-purpose serving. It is not for buyers who require more than two processors, more than 384 GB of memory, or drive interfaces other than SATA or SAS. Workloads demanding 10 GbE networking or GPU acceleration are not addressed by this system.

Dual Xeon 16-core processors at 2.1 GHz

The two Intel Xeon E5-2683 v4 CPUs deliver 32 cores in total at a base frequency of 2.1 GHz with a 3.0 GHz turbo boost. This processor specification determines whether the server meets the compute requirements of the intended workload.

Highlights

  • Dual 16-core Xeon processors at 2.1 GHz deliver 32 threads for heavy workloads
  • 32 GB DDR4 registered ECC memory protects data integrity and supports expansion to 384 GB
  • PERC H730 controller with 1 GB cache enables RAID 0/1/5/6/10/50/60 and pass-through
  • Eight 4 TB 7.2 K SATA drives provide 32 TB raw capacity in 3.5-inch bays
  • Dual 750 W platinum power supplies and iDRAC 8 Express ensure uptime and remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 4TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 2.1 GHz base clock with 3.0 GHz turbo mean for everyday workloads on this dual-socket server?

Two Xeon E5-2683 v4 processors provide 32 total cores running at 2.1 GHz base and boosting to 3.0 GHz, giving strong multi-threaded throughput for virtualization, databases and file serving.

How does the PERC H730 controller and SATA interface limit the installed 4 TB drives?

The H730 supports 12 Gb/s SAS and 6 Gb/s SATA; the eight 7.2K SATA drives will run at SATA 6 Gb/s speeds with RAID 0, 1, 5, 6, 10, 50 or 60 available.

What physical space and mounting does the 5U T430 chassis require?

The 5U tower chassis needs five rack units of vertical space and includes a front bezel; plastic feet are not supplied.
