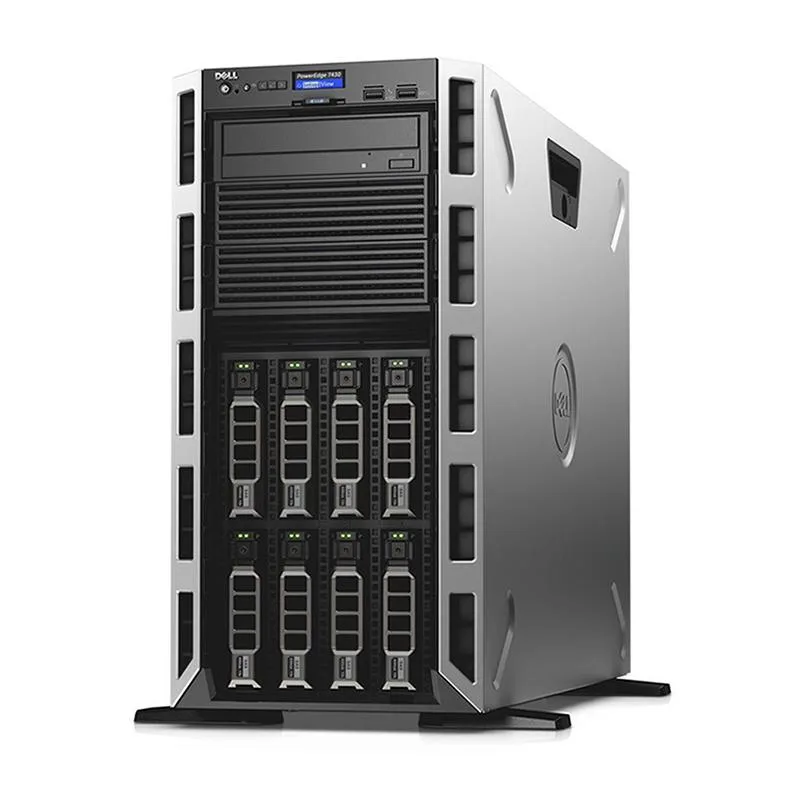

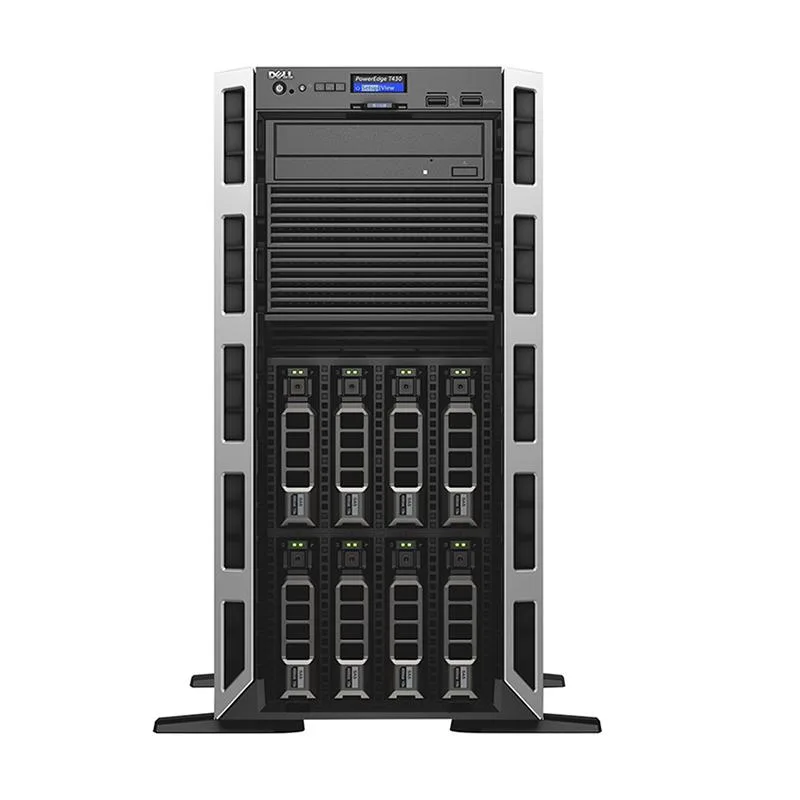

Silver 5U rack server with front bezel, eight 3.5-inch drive trays and dual power supplies

DELL

DELL E5-2683 PowerEdge T430 5U rack server 2× Xeon 2.1 GHz 16-core 32GB DDR4 H730 8× 3.5" trays 2× 750W PSU

SKU CH-9RHE-2MHPA MPN E5-2683

5U rack server with dual 16-core Xeon CPUs, 32GB DDR4 ECC memory, H730 RAID controller, eight 3.5" drive trays and redundant 750W power supplies

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 32GB

HDD None

CPU Model E5-2683 V4

  • Dual Xeon E5-2683 v4 16-core CPUs deliver 32 threads at 2.1 GHz base
  • 32 GB DDR4 ECC memory across four slots with twelve total slots for 384 GB max
  • PERC H730 1 GB controller supports RAID 0/1/5/6/10/50/60 for flexible data protection
  • Eight 3.5" SAS/SATA hot-swap trays provide high-capacity internal storage expansion
  • Dual 750 W platinum PSUs with hot-swap redundancy keep the 5U chassis running

Server purpose and audience

The Dell PowerEdge T430 is a 5U rack-mount server built for office workloads such as file serving, mail, collaboration and web hosting. It targets small offices and remote or branch locations that need single-server performance and capacity without a full data-centre footprint.

Bundled controller and management impact

The PERC H730 1 GB controller adds hardware RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through, letting the eight 3.5-inch SAS/SATA trays run redundant arrays without a separate card. iDRAC 8 Express provides remote console and lifecycle management so administrators can deploy, monitor and update the system without physical access.

Interface and expansion limits

The platform uses the Intel C610 chipset with LGA 2011-3 sockets supporting up to two Xeon processors and 384 GB across twelve DDR4 slots. Network connectivity is limited to the integrated dual-port 1 GbE Broadcom 5720 LOM, and storage connects only through SAS or SATA interfaces.

Highlights

  • Dual Xeon E5-2683 v4 16-core CPUs deliver 32 threads at 2.1 GHz base
  • 32 GB DDR4 ECC memory across four slots with twelve total slots for 384 GB max
  • PERC H730 1 GB controller supports RAID 0/1/5/6/10/50/60 for flexible data protection
  • Eight 3.5" SAS/SATA hot-swap trays provide high-capacity internal storage expansion
  • Dual 750 W platinum PSUs with hot-swap redundancy keep the 5U chassis running

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often will the PERC H730 1GB controller battery need replacement?

The PERC H730 1GB controller includes a battery-backed cache module. Battery life varies with workload and temperature; plan to test it annually and replace it when the iDRAC 8 Express reports a degraded state.

What thermal limit appears first when both Xeon E5-2683 v4 CPUs run at 3.0 GHz Turbo continuously?

With two 16-core processors at 2.1 GHz base and 3.0 GHz Turbo, the 5U chassis relies on the 750 W platinum power supplies and internal airflow; sustained Turbo typically hits the CPU package thermal ceiling before the power budget is exhausted.

How loud are the fans and what is the power draw when the server idles all day with 32GB DDR4 installed?

Idle acoustics are low for a 5U rack system; the dual 750 W platinum PSUs draw only the power needed for the C610 chipset, iDRAC 8 Express, Broadcom 5720 dual 1GbE LOM and four 8 GB DDR4 modules, keeping heat output modest.
