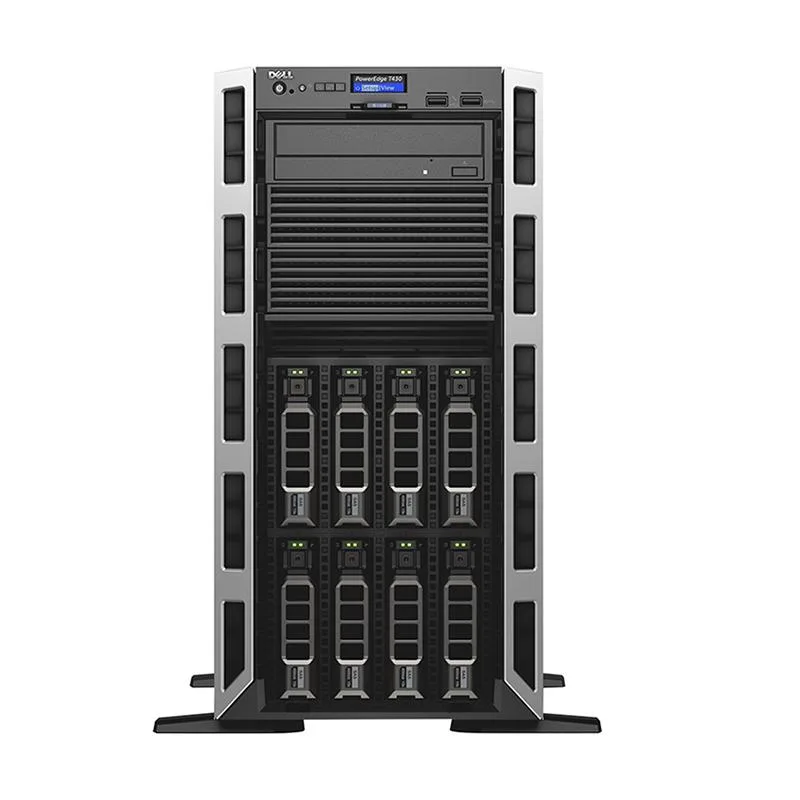

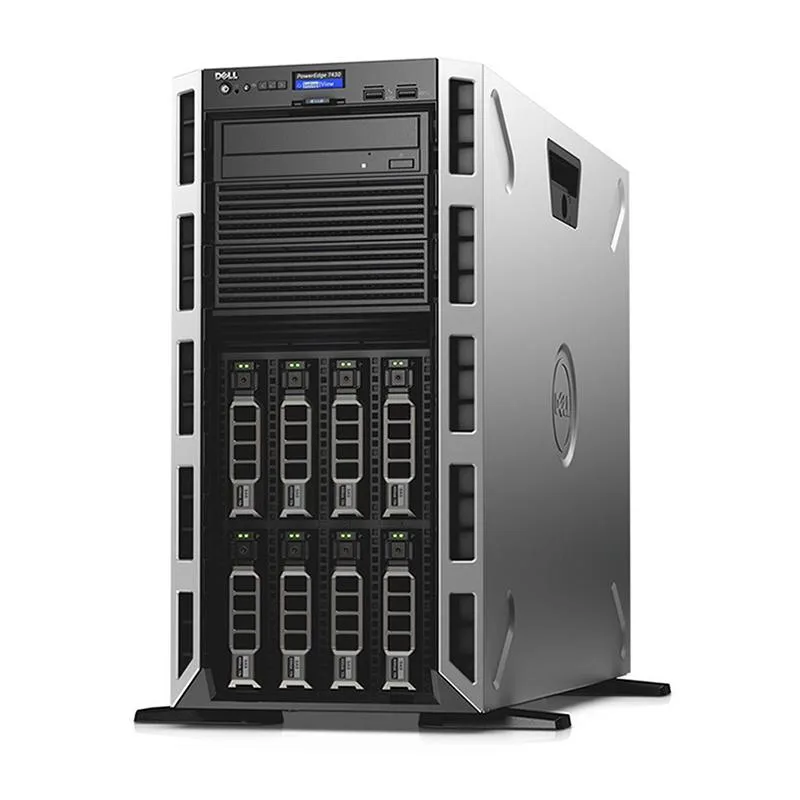

Tower chassis with silver bezel and eight 3.5-inch drive trays

DELL

DELL E5-2683 PowerEdge T430 5U rack server 2× Xeon 16-core 2.1 GHz 384GB DDR4 H730 8× 3.5" trays dual 750W PSU

SKU CH-WKPN-PY83B MPN E5-2683

A 5U rack server with dual 16-core Xeon processors at 2.1 GHz, 384 GB DDR4 memory, a PERC H730 RAID controller, eight 3.5-inch drive trays and redundant 750 W power supplies

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 384GB

HDD None

CPU Model E5-2683 V4

  • Dual 16-core Xeon CPUs deliver 32 threads at 2.1 GHz
  • 384 GB DDR4 ECC memory fills all 12 slots for maximum capacity
  • PERC H730 RAID controller supports RAID 0/1/5/6/10/50/60 with battery backup
  • Eight 3.5-inch drive trays accept SAS or SATA drives for flexible storage
  • Dual 750 W platinum power supplies and iDRAC8 Express enable redundant remote management

Dell PowerEdge T430 5U dual-socket server

The Dell PowerEdge T430 is a 5U rack server that supports up to two Intel Xeon processors and ships with two E5-2683 v4 16-core CPUs running at 2.1 GHz. It includes 384 GB of DDR4 registered ECC memory across twelve slots and a PERC H730 controller with 1 GB cache. The chassis provides eight 3.5-inch drive trays for SATA or SAS drives and dual 750 W hot-swap power supplies.

Installation notes and common pitfalls

The server arrives without hard drives, so you must supply compatible 3.5-inch SATA or SAS drives and install them in the trays. Memory is already populated to the 384 GB maximum, leaving no free DIMM slots for expansion. The PERC H730 supports RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through; configure the virtual disks before installing an operating system. Plastic mounting feet are not included, so plan for rack rails or a shelf.

Pre-order checklist

Verify that your rack can accommodate a 5U unit and that you have rails or a shelf, as the plastic feet are not supplied. Confirm the drives you intend to use are 3.5-inch SATA or SAS models, because the backplane and trays do not support other form factors. Ensure the dual 750 W power supplies match your facility’s power distribution and voltage. The system includes iDRAC 8 Express for remote management and a Broadcom 5720 dual-port 1 GbE LOM for network connectivity.

Highlights

  • Dual 16-core Xeon CPUs deliver 32 threads at 2.1 GHz
  • 384 GB DDR4 ECC memory fills all 12 slots for maximum capacity
  • PERC H730 RAID controller supports RAID 0/1/5/6/10/50/60 with battery backup
  • Eight 3.5-inch drive trays accept SAS or SATA drives for flexible storage
  • Dual 750 W platinum power supplies and iDRAC8 Express enable redundant remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size384GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the PERC H730 controller and both 750 W power supplies are healthy after the first boot?

Open iDRAC 8 Express during POST, confirm the storage controller reports Optimal with battery present and both power supplies show redundant status and green LEDs on the front panel.

Which drive trays and rails are included and what must I source separately for the 8-bay 3.5" chassis?

The unit ships with eight 3.5" SAS/SATA hot-swap trays and the front bezel; drives, rack rails and any cable-management arms are not included and must be purchased separately.

Should I choose the 256 GB (12 × 32 GB) DDR4 2400 MHz configuration or add modules to reach the 384 GB maximum?

The server already has 12 DIMM slots fully populated with 32 GB registered ECC modules for 384 GB total, matching the C610 chipset limit, so no further memory can be added.
