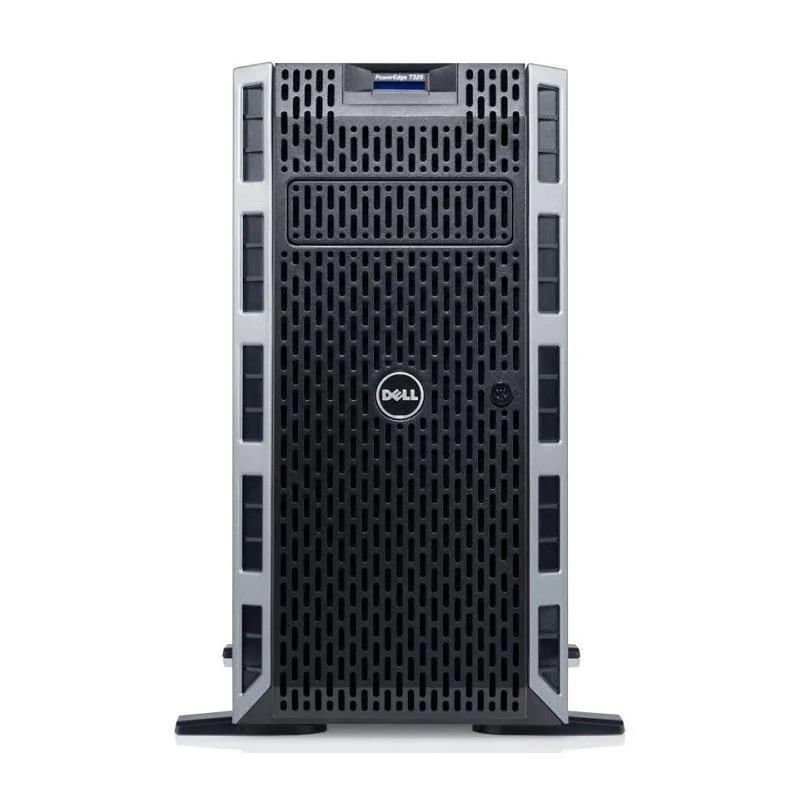

Tower server chassis with front bezel and eight 3.5-inch drive bays

DELL

DELL PowerEdge T430 8-Bay 3.5" Rack Server 2x Xeon E5-2620 v4 2.1GHz 16GB DDR4 H730 2x 750W PSU Bezel

SKU CH-BSHF-2SEED

Eight-bay 3.5" rack server with dual Xeon E5-2620 v4 processors, 16GB DDR4, H730 RAID controller, redundant 750W power supplies and iDRAC8 Express remote management

  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores8-Core Processor
  • # of Processors InstalledE5-2620 V4

Installed Memory Size 16GB

HDD None

  • Dual 8-core Xeon processors deliver multi-threaded performance at 2.1 GHz with 3.0 GHz turbo
  • 16 GB DDR4 ECC memory protects data integrity and scales to 384 GB across 12 slots
  • H730 controller with 1 GB cache enables RAID 0, 1, 5, 6, 10, 50, 60 for flexible storage
  • Eight 3.5-inch SAS/SATA drive trays provide high-capacity internal expansion
  • Dual 750 W platinum power supplies and iDRAC 8 Express ensure uptime and remote management

Tower Server for Small Offices

The Dell PowerEdge T430 is a tower server designed for small offices and remote branch locations that need a single system for collaboration, mail, file, print or web workloads. It ships with two Intel Xeon E5-2620 v4 processors, each offering eight cores at 2.1 GHz with a 3.0 GHz turbo frequency, and 16 GB of DDR4 2133 MHz registered ECC memory across two modules.

Redundant 750 W Platinum Power

Two hot-swap 750 W platinum-efficiency power supplies provide full redundancy so the server keeps running if one unit fails. The power supplies slide in from the front and can be replaced without tools or downtime. Integrated iDRAC 8 Express gives remote management access even when the operating system is offline.

Twelve DDR4 Slots up to 384 GB

Twelve DIMM slots support DDR4 registered ECC memory up to a total of 384 GB, letting you scale memory as workloads grow. The installed 16 GB uses only two slots, leaving ten free for expansion. Only DDR4 modules are compatible; other DDR generations will not fit.

Highlights

  • Dual 8-core Xeon processors deliver multi-threaded performance at 2.1 GHz with 3.0 GHz turbo
  • 16 GB DDR4 ECC memory protects data integrity and scales to 384 GB across 12 slots
  • H730 controller with 1 GB cache enables RAID 0, 1, 5, 6, 10, 50, 60 for flexible storage
  • Eight 3.5-inch SAS/SATA drive trays provide high-capacity internal expansion
  • Dual 750 W platinum power supplies and iDRAC 8 Express ensure uptime and remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores8-Core Processor
# of Processors InstalledE5-2620 V4
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8 MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports2 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the Xeon E5-2620 v4 processors into the LGA 2011-3 sockets, and what step is often missed?

Align the notches on the CPU with the socket keys, lower gently, and close the retention lever. The step often missed is applying thermal paste before seating the heatsink.

What maintenance will the PERC H730 1GB controller battery need, and when?

The controller battery backs the write cache. It typically lasts several years; replace it when iDRAC 8 Express reports a battery-learn cycle failure or degraded status.

What is the first limit reached under sustained load with two 750 W platinum power supplies?

The redundant pair shares the load. The first limit is thermal — if inlet air exceeds specification, the fans ramp to maximum and the system may throttle the 2.1 GHz cores to protect components.
