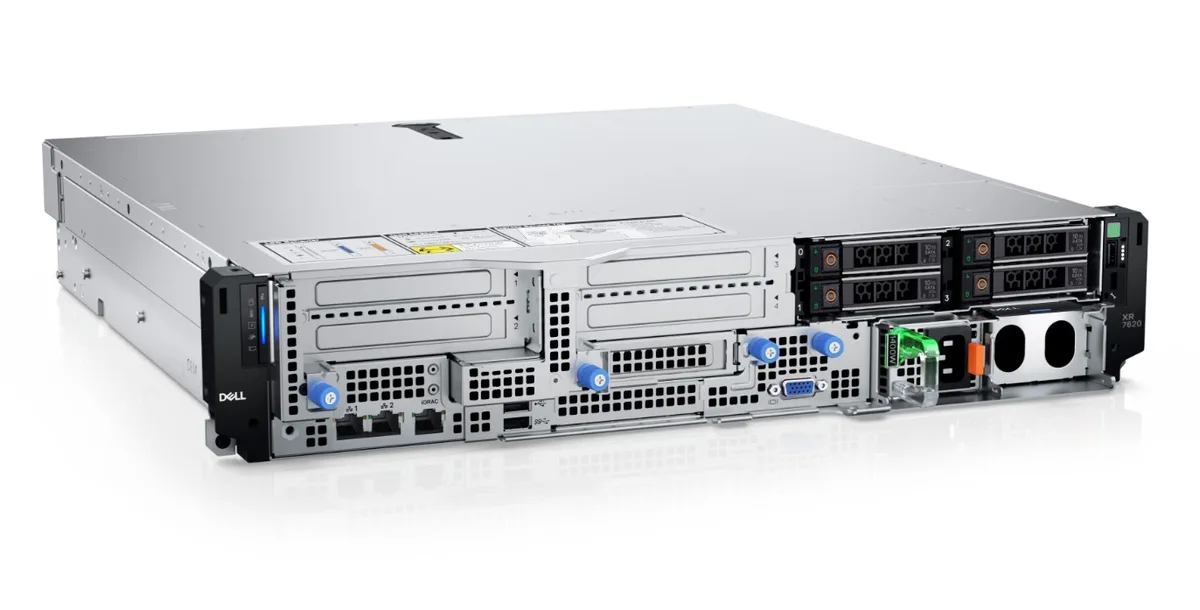

Silver 2U rack server chassis with front drive bays

DELL

DELL PowerEdge XR7620 2U rack server Xeon DDR5 16 slots 8 E3 NVMe 2x300W GPU

SKU CH-6B77-C1C0P MPN PowerEdge_XR7620

A 2U rack server for AI inferencing and digital manufacturing workloads with up to two Xeon processors, 16 DDR5 slots, eight E3 NVMe bays and dual 300W GPU support

  • WorkloadDigital Manufacturing, Machine Aggregation, AI Inferencing,
  • TypeRack
  • Rack Height2U
  • SecurityCryptographically signed firmware Data at Rest Encryption (S
  • CPU TypeIntel Xeon Scalable
  • # of Processors Installed0
  • Dual Xeon Scalable CPUs handle heavy workloads
  • 16 DDR5 slots at 5200 MT/s for large memory capacity
  • 8 E3 NVMe bays deliver high-speed storage
  • Supports 2 x 300W or 4 x 150W GPU accelerators
  • Silicon Root of Trust and TPM 2.0 secure the platform

Workload-optimised 2U server

The DELL PowerEdge XR7620 is a 2U rack server built for digital manufacturing, machine aggregation, AI inferencing, workload consolidation, field station operations and machine vision. It accepts up to two Intel Xeon Scalable processors and ships with no CPU or memory installed, letting you configure the platform for the target workload.

16 DDR5 slots and flexible GPU power

The chassis provides 16 registered ECC DDR5 DIMM slots running at up to 5200 MT/s with a maximum capacity of 2TB. Storage options include 8 x E3 NVMe SSDs or 4 x 2.5" SAS/SATA/NVMe drives. Accelerator support covers 2 x 300W DW or 4 x 150W SW cards, and security features include cryptographically signed firmware, Silicon Root of Trust and TPM 2.0.

Verify CPU, memory and GPU clearance

Confirm the specific Xeon Scalable models you plan to install and source registered ECC DDR5 RDIMMs, as no other memory type is supported. Ensure the chosen GPU form factor matches either the 300W DW or 150W SW power envelope and that your rack provides adequate cooling for the selected accelerator configuration.

Highlights

  • Dual Xeon Scalable CPUs handle heavy workloads
  • 16 DDR5 slots at 5200 MT/s for large memory capacity
  • 8 E3 NVMe bays deliver high-speed storage
  • Supports 2 x 300W or 4 x 150W GPU accelerators
  • Silicon Root of Trust and TPM 2.0 secure the platform

Specifications

BrandDELL
SeriesPowerEdge XR7620
WorkloadDigital Manufacturing, Machine Aggregation, AI Inferencing, Workload Consolidation, Field Station Operations, Machine Vision
TypeRack
Rack Height2U
SecurityCryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
CPU TypeIntel Xeon Scalable
# of Processors Installed0
MAX Processors2
Installed Memory SizeNo
Memory TypeDDR5
Max Memory Capacity2TB
Memory FeaturesSpeeds up to 5200 MT/s. Supports registered ECC DDR5 DIMMs only
Number of Memory Slots16
Hard Drive (Installed)None
HDD InterfaceSATA/SAS
SSD (Installed)No
GPU Type2 x 300W DW or 4 x 150W SW
Expansion Bays8 x E3 NVMe SSD or 4 x 2.5" SAS/SATA/NVMe SSD
Operating SystemNo
Dimensions3.41" x 19" x 19.53"
Weight46.64 lbs.
Shipping weight18.14 kg
Package size889 × 635 × 127 mm

Questions about this item

What NVMe interface do the eight E3 drive bays use, and what throughput does it cap at?

The eight E3 bays accept NVMe SSDs over PCIe lanes from the Xeon Scalable CPUs; practical throughput is limited by the drive and CPU generation installed.

What physical clearance and power budget does the chassis allow for GPU accelerators?

The 2U rack chassis supports either two 300W double-width cards or four 150W single-width cards, with dedicated power and cooling for each configuration.

How are the registered ECC DDR5 DIMMs installed across the sixteen slots, and which population rule is commonly missed?

DIMMs must be populated per CPU in matched channel sets; the common error is leaving a channel unbalanced, which reduces memory speed below 5200 MT/s.
