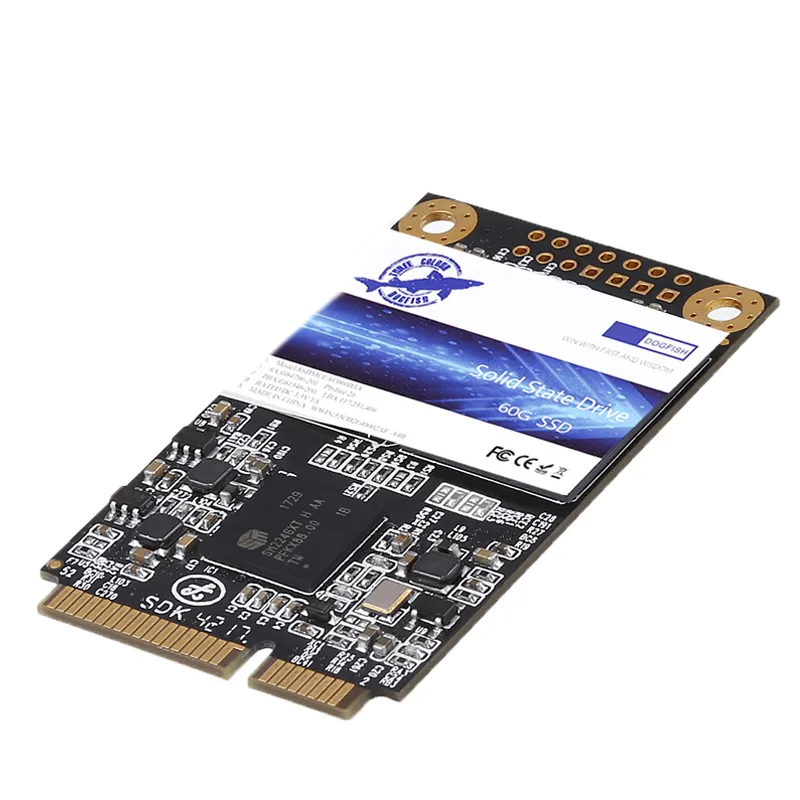

Small rectangular mSATA SSD, green circuit board with black chips, gold edge connector, 30 by 50 millimetres

Dogfish Technology

Dogfish Technology mSATA 2TB internal SSD

SKU CH-BXDJ-423S3

2TB mSATA internal SSD with SATA III interface and 3D NAND flash delivers up to 550 MB/s read and 400 MB/s write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity2TB
  • Memory Components3D NAND
  • InterfaceSATA III

Options 2TB

  • 2 TB capacity stores large game libraries and media files
  • SATA III interface delivers sequential reads up to 550 MB/s and writes up to 500 MB/s
  • 3D NAND flash with ECC and bad-block management protects data integrity

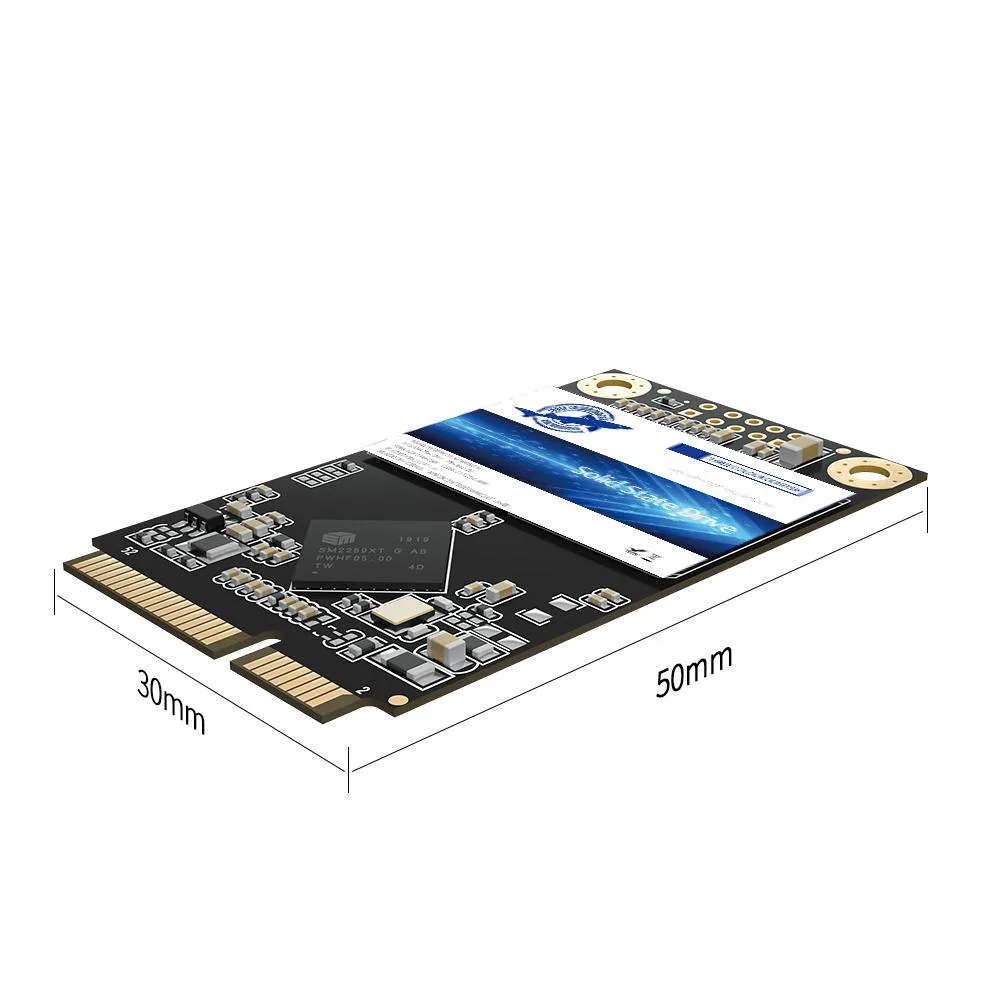

  • mSATA form factor measuring 30 mm by 50.9 mm fits compatible laptops and desktops
  • DevSleep ultra-low power state extends battery life in portable systems

2TB mSATA SATA III SSD

This Dogfish internal solid state drive uses the mSATA form factor with a SATA III 6 Gb/s interface and 3D NAND TLC memory. It is built for consumer desktop and laptop systems that have an mSATA slot and need 2 TB of storage capacity.

SATA III 6 Gb/s interface limits

The SATA III connection caps maximum sequential throughput at 6 Gb/s, so real-world speeds cannot exceed the bus ceiling of roughly 550 MB/s. Any system limited to SATA II will reduce the drive to half that bandwidth.

3D NAND TLC with SMI controller

The drive combines 3D NAND TLC flash with an SMI controller to deliver up to 550 MB/s read and 400 MB/s write while supporting TRIM, NCQ and DevSleep for power efficiency. This specification determines whether the drive matches the performance and endurance needs of the target workload.

Highlights

  • 2 TB capacity stores large game libraries and media files
  • SATA III interface delivers sequential reads up to 550 MB/s and writes up to 500 MB/s
  • 3D NAND flash with ECC and bad-block management protects data integrity
  • mSATA form factor measuring 30 mm by 50.9 mm fits compatible laptops and desktops
  • DevSleep ultra-low power state extends battery life in portable systems

Specifications

BrandTHREE COLOUR DOGFISH
Seriesmsata 2TB
ModelmSATA 2TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity2TB
Memory Components3D NAND
InterfaceSATA III
ControllerSMI
Max Sequential ReadUp to 500 MBps
Max Sequential WriteUp to 500 MBps
MTBF1,000,000 hours
Operating Temperature0°C ~ +75°C
Storage Temperature-45°C ~ +85°C
Operating Humidity0% ~ 95%
Height30mm
Width50mm
Depth1mm
Weight0.05g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 2TB mSATA version or another capacity?

This model is only offered in 2TB. If you need a different capacity you would have to select a different product line.

What do the 500 MBps read and write speeds mean once the drive is installed?

They are the maximum sequential transfer rates the controller can sustain over the SATA III link; real-world speeds will vary with the host system and workload.

How does the SATA III 6 Gb/s interface limit performance in practice?

The interface caps sequential throughput at roughly 550 MBps, so the drive cannot exceed that ceiling even if the NAND or controller could go faster.
