Eaton
Eaton 5S1000LCD 1000VA 600W 120V UPS 10 NEMA 5-15R
Line-interactive UPS delivers 1000 VA and 600 W with 10 NEMA 5-15R outlets, LCD status display, USB management and surge protection for network lines
- International Version120V
- Input Voltage Range93 - 138V
- Input Frequency46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system)
- Input ConnectionNEMA 5-15P
- VA Rating1000 VA
- Watts600 Watts
VA 1000 VA
- 700 VA
- 1000 VA
- 1500 VA
Struck-through versions exist but are not stocked here.
- Protects 10 devices with 10 NEMA 5-15R outlets
- Delivers 600 W to keep systems running during outages
- LCD screen shows real-time power status at a glance
- Provides 14 minutes runtime at half load for safe shutdown
- USB port enables management software for automated control

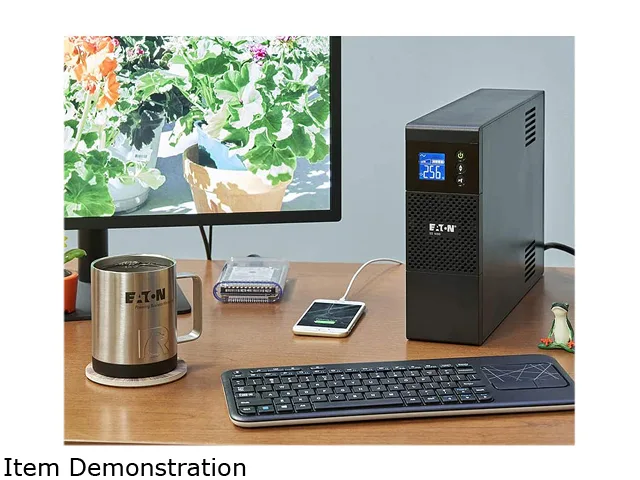

Desktop UPS for home and office
The Eaton 5S1000LCD is a line-interactive battery backup rated at 1000 VA and 600 W. It provides 10 NEMA 5-15R outlets for desktop PCs, networking gear and peripherals. A built-in LCD panel shows real-time power status and battery health. USB connectivity enables automated shutdown through included management software.
600 watt output capacity
The unit delivers a maximum of 600 watts to connected equipment. Loads exceeding this limit will overload the inverter and may cause immediate shutdown. Verify the combined power draw of every device you intend to protect before purchase. The 1000 VA rating reflects apparent power and does not increase the real-power ceiling.
Three minutes at full load
At 600 watts the sealed lead-acid battery sustains output for approximately 3 minutes. At half load the runtime extends to 14 minutes, allowing time for a controlled shutdown. The tower chassis operates between 0 and 35 °C with convection cooling and no rack-mount provision. Surge protection covers both AC line and network connections.
Highlights
- Protects 10 devices with 10 NEMA 5-15R outlets
- Delivers 600 W to keep systems running during outages
- LCD screen shows real-time power status at a glance
- Provides 14 minutes runtime at half load for safe shutdown
- USB port enables management software for automated control
Specifications
| Brand | EATON |
|---|---|
| Model | 5S1000LCD |
| International Version | 120V |
| Input Voltage Range | 93 - 138V |
| Input Frequency | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) |
| Input Connection | NEMA 5-15P |
| VA Rating | 1000 VA |
| Watts | 600 Watts |
| Output Voltage | 100/120/127V |
| Outlets | 10 |
| Outlet Type | 10 x NEMA 5-15R |
| Battery Type | Sealed Lead Acid |
| Battery Run Time | Run Time at Full Load: 3 mins Run Time at Half Load: 14 mins |
| Interface Port | USB |
| Management Software | YES |
| Approvals | FCC Part 15, UL 497A, CSA Std. C22.2 No. 107.1-01, ICES-003, VCCI, UL 1778 |
| Rackmountable | Not rack-mountable |
| Surge Protection | Yes. Line & network line |
| Temperature | 0° to 35°C (32° to 95°F) |
| Humidity | 0-93% non-condensing |
| Dimensions | 9.80" x 3.40" x 15.00" |
| Weight | 21.70 lbs. |
| Package Contents | UPS USB cable User manual Important safety instructions |
| Shipping weight | 11.34 kg |
| Package size | 495 × 330 × 165 mm |
Questions about this item
How long will the 600 W rating keep my equipment running during an outage?
At the full 600 W load the internal battery provides about 3 minutes of run time; at half load it extends to roughly 14 minutes.
What does the USB port let me do with the management software?
The USB connection enables the included software to monitor power status, trigger graceful shutdowns and adjust UPS settings from the host computer.
Will the 9.80" x 3.40" x 15.00" tower fit on my desk or shelf?
The unit is a compact tower measuring 9.80 inches wide, 3.40 inches deep and 15.00 inches high, weighing 21.70 lbs, and is not rack-mountable.
