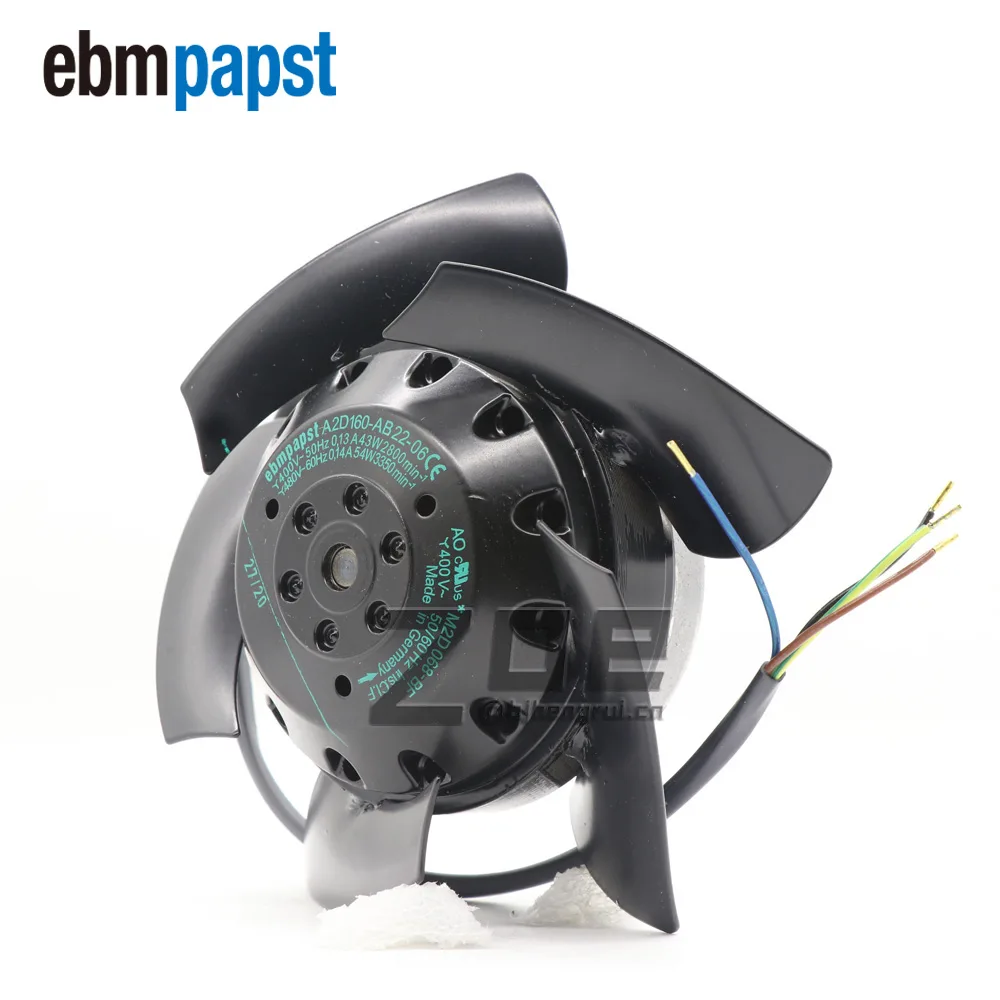

Black metal industrial axial fan with five straight painted blades, 160 mm diameter, lateral cable exit

Ebm-Papst

Ebm-Papst A2D160-AB22-06 400V/480V 2800/3350min-1 43/54W industrial cooling fan

SKU CH-52SK-3N16F MPN A2D160-AB22-06

A three-phase AC axial fan with steel blades delivers 2800 rpm at 400 V or 3350 rpm at 480 V for industrial cooling

  • Motor TypeM2D068-BF
  • Voltage400VAC/480VAC
  • Hz50Hz/60Hz
  • Amps0.13A/0.14A
  • Materialmetal
  • Runs on 400 VAC or 480 VAC three-phase power
  • Delivers 2800 rpm at 50 Hz and 3350 rpm at 60 Hz
  • Consumes 43 W at 50 Hz and 54 W at 60 Hz
  • Operates from -25 °C to 90 °C ambient temperature
  • IP44 protection with ball bearing motor for durability

Industrial AC axial fan for 400/480 VAC systems

This Ebm-Papst A2D160-AB22-06 is a three-phase industrial cooling fan built for 400 VAC at 50 Hz and 480 VAC at 60 Hz. It suits OEMs and maintenance teams who need a direct-drive axial impeller for enclosure ventilation, heat-exchanger airflow or machine cooling where mains-powered AC is specified.

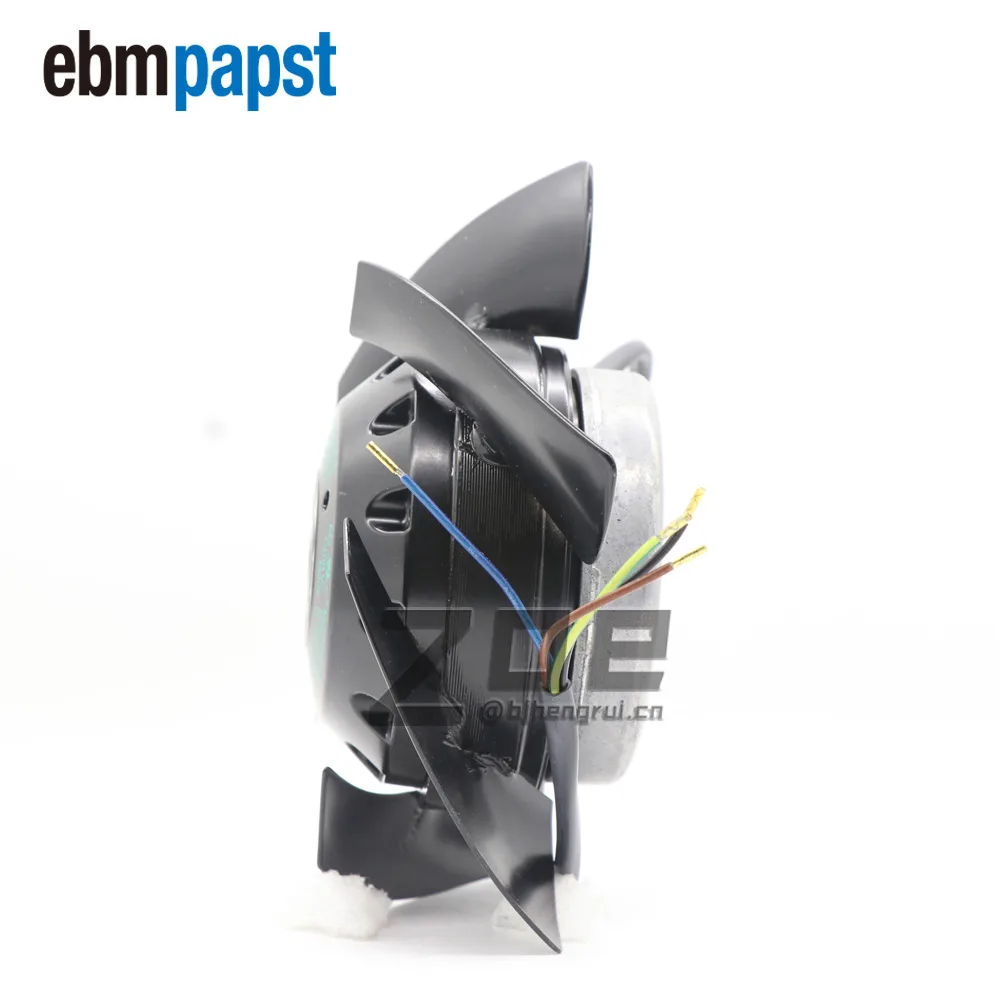

Metal housing with IP44 protection and side cable

The frame and five steel blades are painted black; the rotor runs on ball bearings rated for ambient temperatures from -25 °C to 90 °C. IP44 ingress protection applies when the unit is mounted horizontally or with the rotor on the bottom, and condensation drainage holes on the rotor side prevent water build-up. A lateral cable gland simplifies wiring in tight cabinets.

Verify three-phase supply.

Confirm your installation provides 400 VAC Y-wired at 50 Hz or 480 VAC Y-wired at 60 Hz with protective earth for Class I safety. The motor has no factory-fitted thermal protector, so external overload protection per EN 60335-1 must be added. Ensure the 160 mm diameter and 1.1 kg weight fit the cut-out and that horizontal or rotor-down mounting is possible.

Highlights

  • Runs on 400 VAC or 480 VAC three-phase power
  • Delivers 2800 rpm at 50 Hz and 3350 rpm at 60 Hz
  • Consumes 43 W at 50 Hz and 54 W at 60 Hz
  • Operates from -25 °C to 90 °C ambient temperature
  • IP44 protection with ball bearing motor for durability

Specifications

Brandebmpapst
ModelA2D160-AB22-06
Motor TypeM2D068-BF
Voltage400VAC/480VAC
Hz50Hz/60Hz
Amps0.13A/0.14A
Materialmetal

Questions about this item

What voltage and frequency ranges does the 3-phase motor support?

The motor runs on 400 VAC at 50 Hz or 480 VAC at 60 Hz, drawing 0.13 A and 43 W at 50 Hz and 0.14 A and 54 W at 60 Hz.

What are the physical dimensions and mounting orientation for the 160 mm frame?

The fan weighs 1.1 kg with a 160 mm diameter and motor size 68; it mounts with the shaft horizontal or rotor on bottom, rotor on top only on request.

How is the fan wired and which step is often missed during installation?

It has a lateral cable for Y-connection and requires the customer to connect the protective earth to meet protection class I — a step installers sometimes forget.
