EN-Labs
EN-Labs TF3D416G3200HC16FDC01 M.2 to U.2 NVMe adapter expansion card
- SSD ADAPTER
- No
$21.99
0.00028214BTC
In stock
EN-Labs
EN-Labs 0.6 U.2 to M.2 NVMe adapter with 1.64FT SFF-8639 to SFF-8643 cable
Converts M.2 M-Key NVMe SSD to SFF-8643 Mini SAS with included 1.64FT SFF-8639 cable for 2.5 U.2 drives, PCIe 4.0 compatible up to 64GT/s
- TypeSSD ADAPTER
- External USB PortsNo
Model 0.6 M
- 1 M
- 0.6 M
- Connect M.2 M-Key NVMe SSD to SFF-8643 Mini SAS interface
- Link 2.5" U.2 SSD to M.2 slot using 1.64FT SFF-8639 to SFF-8643 cable
- PCIe 4.0 compatible, backward compatible with PCIe 3.0 for 64GT/s transfer speed
- Fits M.2 2260 and 2280 form factors for flexible installation
- Works driver-free with modern OS and supports Intel 750 Series U.2 SSD
U.2 to M.2 NVMe adapter
This EN-Labs adapter converts an M.2 M-Key NVMe SSD connection to a SFF-8643 Mini SAS interface. It enables the use of 2.5" U.2 SSDs with an M.2 slot via the included SFF-8639 to SFF-8643 cable. The unit supports M.2 2260 and 2280 form factors. No drivers are required on current operating systems.
Compatibility check
Verify that your motherboard provides an M.2 M-Key slot wired for PCIe NVMe signalling. Confirm the drive you intend to use is a 2.5" U.2 NVMe device such as the Intel 750 Series, P3600 or P3700. Ensure a SATA power connector is available for the cable's power interface. The link operates at PCIe 4.0 or 3.0 speeds.
Build and daily use

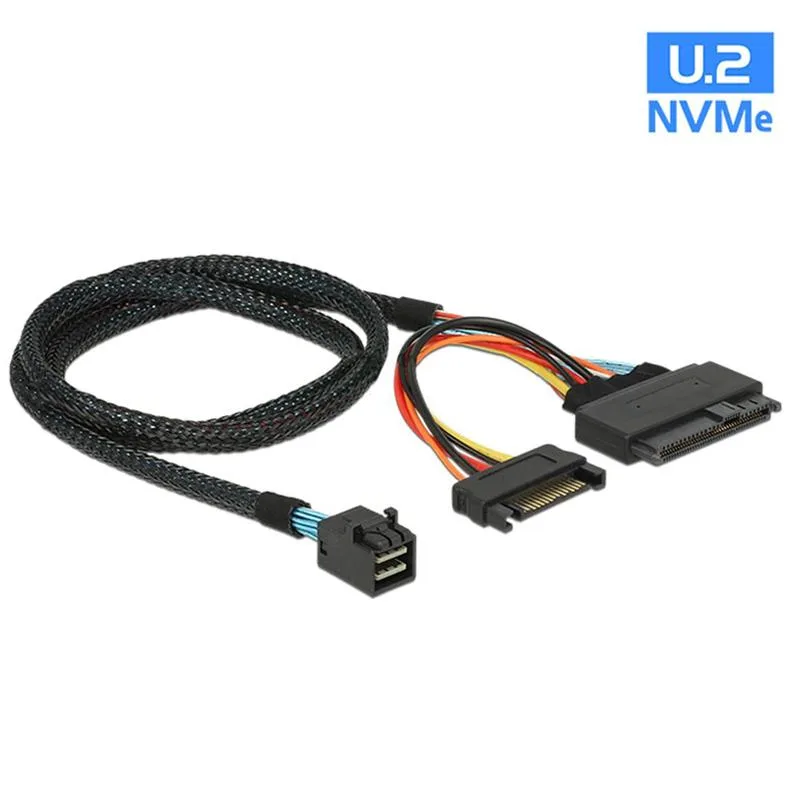

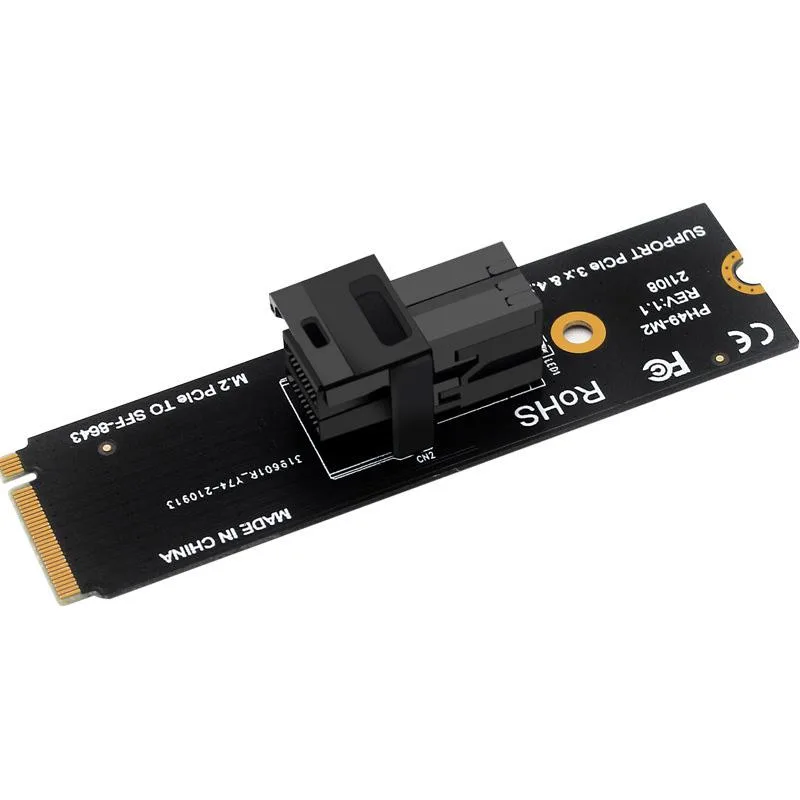

The adapter board plugs directly into the M.2 slot while the 1.64FT Mini SAS cable bridges to the U.2 drive. A SATA power plug on the cable supplies the drive, so routing must reach both the M.2 socket and a power header. The SFF-8639 and SFF-8643 connectors lock securely for reliable data transfer up to 64GT/s.
Highlights
- Connect M.2 M-Key NVMe SSD to SFF-8643 Mini SAS interface
- Link 2.5" U.2 SSD to M.2 slot using 1.64FT SFF-8639 to SFF-8643 cable
- PCIe 4.0 compatible, backward compatible with PCIe 3.0 for 64GT/s transfer speed
- Fits M.2 2260 and 2280 form factors for flexible installation
- Works driver-free with modern OS and supports Intel 750 Series U.2 SSD
Specifications
| Type | SSD ADAPTER |
|---|---|
| External USB Ports | No |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Does the box include the SFF-8639 to SFF-8643 cable or must I buy it separately?
The 1.64FT SFF-8639 to SFF-8643 Mini SAS cable is included in the package along with the M.2 NVMe M-Key to SFF-8643 adapter.
Which M.2 slot lengths does the 0.6 adapter support for installation?
The adapter supports M.2 2260 and 2280 slot installation for compatible NVMe SSDs.
What does the 64GT/s transfer speed mean when the adapter is installed in a PCIe 3.0 system?
The adapter is backwards compatible with PCIe 3.0, so the link will operate at the 3.0 rate while retaining full NVMe functionality.
