Black aluminium enclosure converting M.2 SATA SSD to 2.5 inch SATA drive

EN-Labs

EN-Labs M.2 NGFF SATA to 2.5" SATA Adapter Enclosure 7mm B/B+M Key 2230 2242 2260 2280

SKU CH-RZMN-TNY9J

Converts a SATA-bus M.2 NGFF SSD (B or B+M key, 2230 to 2280) into a 2.5-inch SATA drive with a 7 mm aluminium enclosure

  • ColorBlack
  • MaterialAluminum
  • External InterfaceSATA
  • HDD Count SupportedNo
  • Number of Bay1
  • SpecificationsInterfation:M.2 NGFF(SATA-Bus) to 2.5" SATA. Enclosure case

Size M.2 SATA

  • Converts M.2 NGFF SATA SSDs to 2.5" SATA form factor
  • Aluminium enclosure fits 7mm drive bays for laptops or desktops
  • Supports B-key and B+M key modules sized 2230 2242 2260 2280
  • Plug-and-play operation requires no drivers or software installation
  • Not compatible with PCIe NVMe or PCIe AHCI M-key SSDs

Converts M.2 SATA SSDs to 2.5" SATA

This aluminium enclosure adapts a B-Key or B+M Key M.2 NGFF SATA SSD into a standard 2.5-inch SATA form factor. It accepts drive lengths of 2230, 2242, 2260 and 2280 millimetres. The 7mm case thickness fits typical laptop and desktop drive bays. It is not compatible with PCIe NVMe or PCIe AHCI M-Key SSDs.

Passive thermal design with no added power draw

The adapter contains no active cooling and draws no extra power beyond the drive itself. Aluminium construction helps dissipate heat from the SSD during normal operation. Silent performance is maintained because there are no fans or moving parts. The SATA interface speed and drive properties remain unchanged by the conversion.

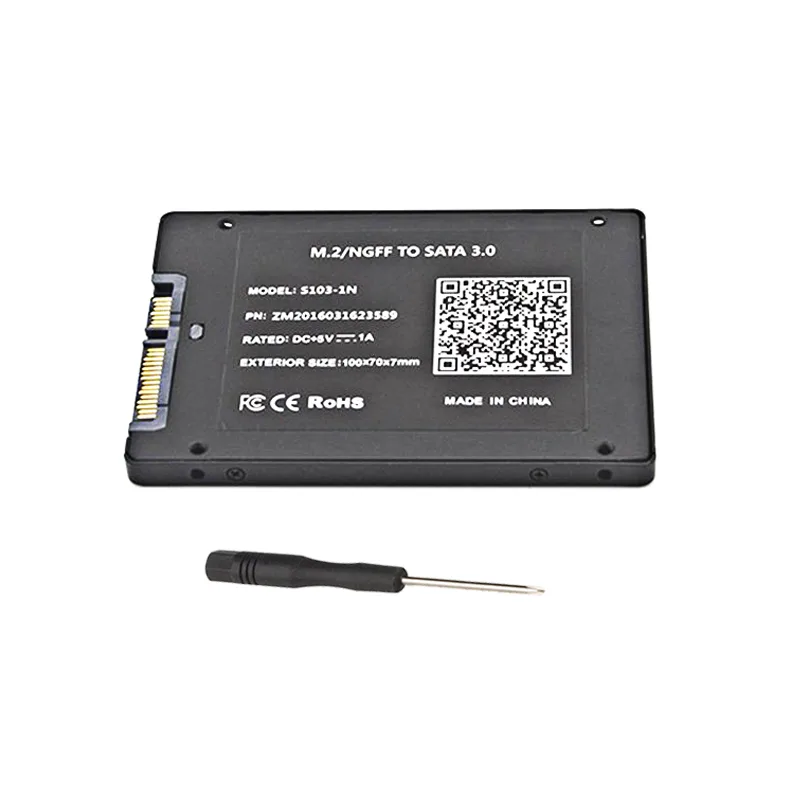

Includes screwdriver and mounting screws

A small screwdriver and the necessary screws are bundled for securing the M.2 drive inside the enclosure. No software drivers are required; the adapter is transparent to the operating system and works on plug-and-play basis. The package contains the converter card already fitted inside the 7mm aluminium case.

Highlights

  • Converts M.2 NGFF SATA SSDs to 2.5" SATA form factor
  • Aluminium enclosure fits 7mm drive bays for laptops or desktops
  • Supports B-key and B+M key modules sized 2230 2242 2260 2280
  • Plug-and-play operation requires no drivers or software installation
  • Not compatible with PCIe NVMe or PCIe AHCI M-key SSDs

Specifications

BrandEn-Labs
Model1 Bay
ColorBlack
MaterialAluminum
External InterfaceSATA
HDD Count SupportedNo
Number of Bay1
SpecificationsInterfation:M.2 NGFF(SATA-Bus) to 2.5" SATA. Enclosure case thickness: 7mm. Support: 2.5in HDD Hard Drive Bay.
FeaturesOnly fit for SATA-bus NGFF M.2 SSD with Key B/B+M,Can't fit for PCIe NVMe / PCIe AHCI NGFF M.2 SSD with Key M, Pls check your M.2 SSD type before place order. Features: Socket 2 B-key M.2 NGFF SATA SSD to 2.5in SATA Adapter. The speed and other properties is not changed,only form conversion interface. Support all size the 22*30 mm/22*42 mm/22*60 mm/22*80 mm of M.2 NGFF SATA SSD. Plug and play, no extra driver is needed, Transparent to the operating system and does not require any software drivers.
Package Contents1 x M.2 NGFF(Socket 2 SATA Channel)SSD to 2.5inch SATA Converter Adapter Card with Enclosure. 1x Screw Driver. Screws.
SizeM.2 SATA

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install a 2280 M.2 SATA SSD into the 7 mm enclosure and which step is most often missed?

Slide the SSD into the B-key socket at a slight angle, press it flat, then secure it with the supplied screw before closing the 7 mm aluminium case; the step most often missed is fastening that retention screw, which leaves the drive loose.

What maintenance or replacement will the enclosure need over time?

The aluminium case and SATA connector are passive parts with no moving components, so no scheduled maintenance is required; only the tiny retention screw might need replacement if lost during a drive swap.

What is the first limit I will hit when using a SATA M.2 SSD in this adapter under sustained workloads?

The bottleneck is the SATA 6 Gbps interface itself, so sustained throughput cannot exceed the drive's own SATA speed rating regardless of workload duration.
