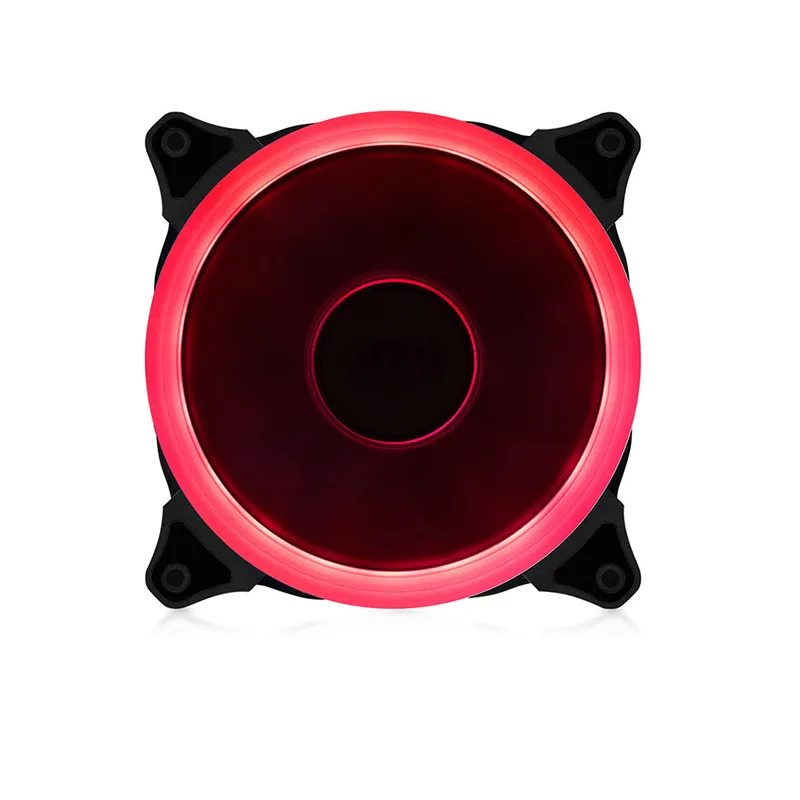

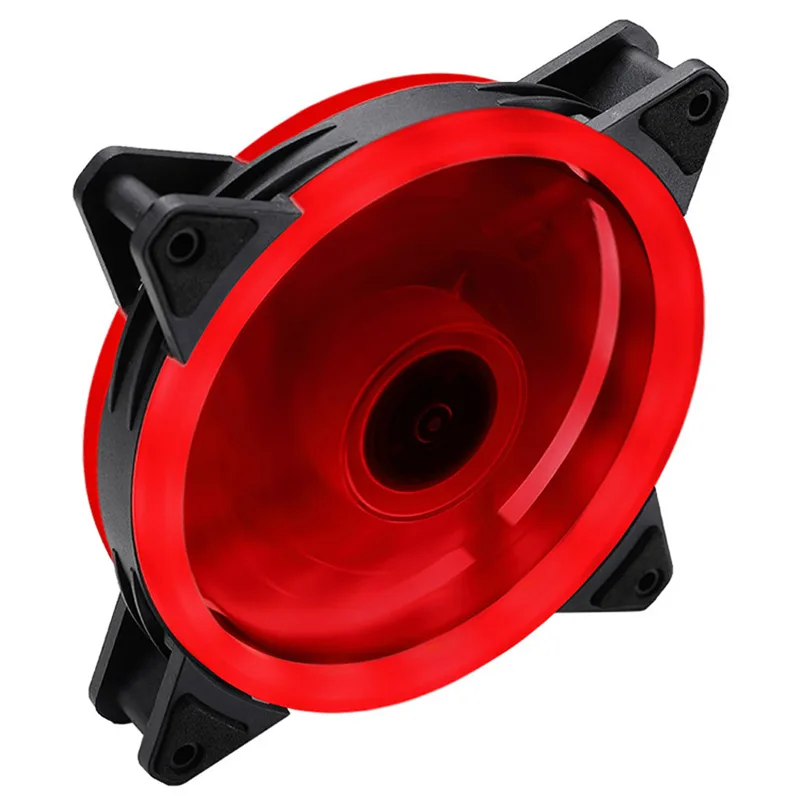

Black 120mm square frame fan with red LED ring and eleven blades

EN-Labs

EN-Labs SR12025RD 120mm Red LED Case Fan

SKU CH-5TVM-EN624

A 120 mm sleeve-bearing case fan with red LED light-loop design, 1200 RPM speed, 53.02 CFM airflow and 16 dBA noise level, supplied with anti-vibration pads and dual 3-pin plus 4-pin power connectors

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeSleeve
  • RPM1200RPM+/- 10%
  • Air Flow50-55 CFM
  • Noise Level15 - 20 dBA

LED Red

  • Ultra-quiet 16 dB operation keeps your build silent
  • 02 CFM airflow moves heat away from components
  • Red Solar Eclipse light loop adds distinctive case illumination
  • Dual 3-pin and 4-pin Molex connectors fit most motherboards
  • Anti-vibration rubber pads and 11 vanes reduce resonance

120mm Red LED Case Fan

The EN-Labs SR12025RD is a 120mm case fan designed for standard chassis cooling. It uses a sleeve bearing and includes a red LED light loop for visual effect. The fan suits builders adding airflow to air-cooled or liquid-cooled systems.

Thermals Noise and Power Draw

At 1200 RPM the fan delivers 53.02 CFM airflow with 1.073 mm/H2O static pressure. Noise sits at 16 dBA while power draw is 3.6 W from a 12 V 0.18 A supply. Both 3-pin and Molex 4-pin connectors are included for flexible motherboard or PSU connection.

Upgrade Path and Fit

This unit replaces older 120mm fans that lack LED lighting or run louder than 20 dBA. The jump is worthwhile when a builder wants a quiet red accent fan with anti-vibration pads included. It is not suited for high-static-pressure radiator stacks needing above 2 mm/H2O or for systems requiring PWM speed control.

Highlights

  • Ultra-quiet 16 dB operation keeps your build silent
  • 02 CFM airflow moves heat away from components
  • Red Solar Eclipse light loop adds distinctive case illumination
  • Dual 3-pin and 4-pin Molex connectors fit most motherboards
  • Anti-vibration rubber pads and 11 vanes reduce resonance

Specifications

BrandEn-Labs
ModelSR12025RD
TypeCase Fan
CompatibilityCase
Bearing TypeSleeve
RPM1200RPM+/- 10%
Air Flow50-55 CFM
Noise Level15 - 20 dBA
Power Connectorcase fan TX3 3pin and molex 4pin
ColorBlack
LEDRed
FeaturesFeature Solar Eclipse Serial 12CM 3pin case fan Solar Eclipse light loop design, create a very amazing effect Combination of high efficiency heat dissipation and mute,11pcs fan vanes,There is cut back processing on both external and internal of the fan frame to make a large amount of air and improve the heat transfer, 12CM STANDARD SIZE-Compatible with all types of chassis,Suitable for water cooling,Cold discharge light effect, CPU radiator, side through version of MOD light efficiency of fan position in cabinet,Different angles and light show different visual effects. Case fan power
Package Contentscase fan and screws

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the EN-Labs SR12025RD fan and connect its power cables?

Mount the 120x120x25mm fan using the included screws and anti-vibration rubber pads, then plug either the TX3 3-pin or Molex 4-pin connector into a 12V header — do not use both at once.

What maintenance will the sleeve bearing need and when should I expect to replace the fan?

The sleeve bearing is rated for 30000 hours; it cannot be relubricated, so plan to replace the fan once noise rises or speed drops noticeably.

At what point does the 1.073 mm/H2O static pressure limit airflow in a restrictive radiator or filter?

The 1.073 mm/H2O pressure ceiling appears first under sustained load, reducing the 53.02 CFM maximum airflow when pushing air through dense fins or dust filters.
