Green circuit board with four blue USB-A ports on a metal bracket

ESTONE

ESTONE PCIE24USBA 4-Port USB 3.0 PCIe x1 Expansion Card

SKU CH-FFC5-R57XE

Adds four USB 3.0 ports via a PCIe x1 slot with up to 5.0 Gbps shared bandwidth and per-port 2 A power delivery for high-draw devices

  • TypePCI to USB Card
  • External USB Ports4-port USB 3.0
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add four USB 3.0 ports through a PCIe x1 slot
  • Up to 5.0 Gbps total transfer speed for files and media
  • Each port delivers up to 2 A for high-power devices
  • Powered directly from the PCIe 12 V rail with no extra cable
  • Supports Windows 7/8/10/11 and Mac OS 10.8.2 and above

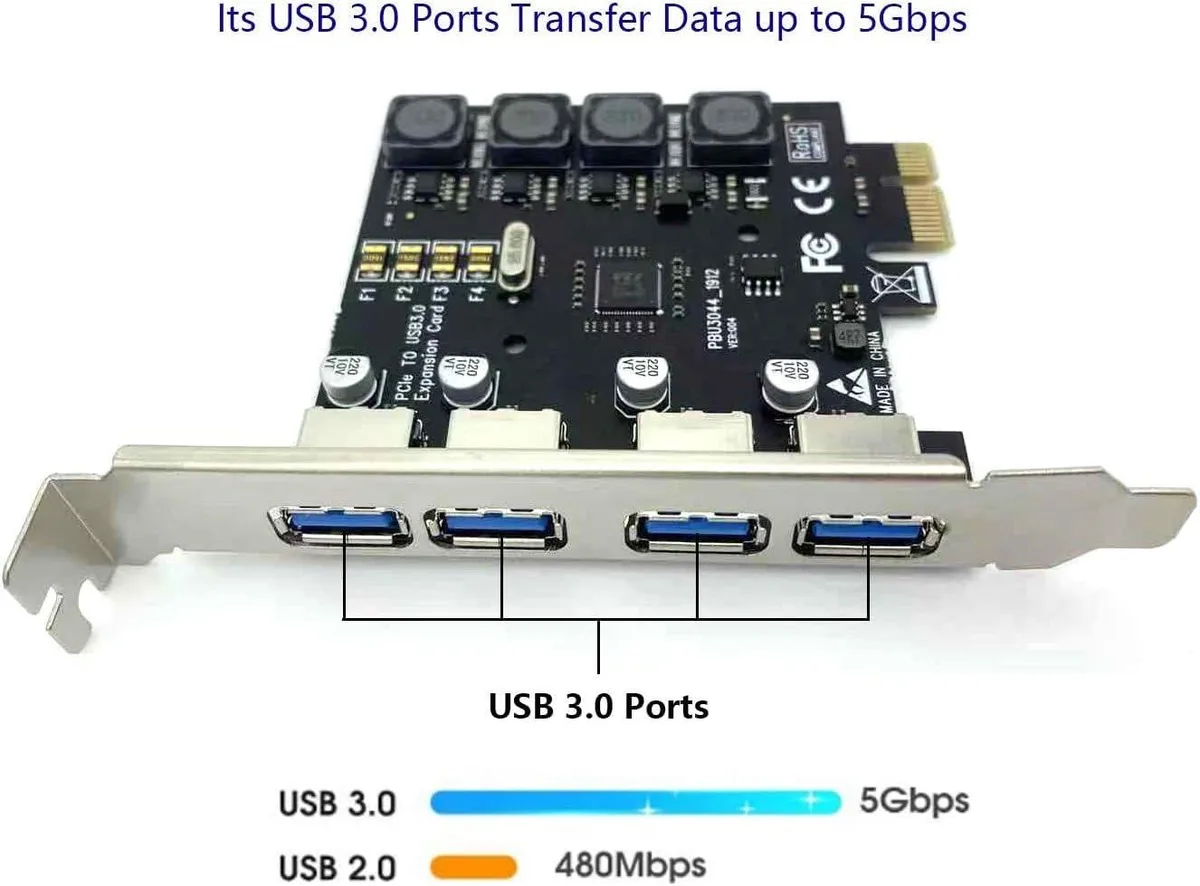

Four USB 3.0 ports on a PCIe x1 card

This ESTONE PCIE24USBA expansion card adds four USB-A 3.0 ports to a desktop PC through a single PCI Express x1 slot. It draws power from the 12 V PCIe bus so no extra power cable is required. Each port can deliver up to 2 A, giving 8 A total for high-draw peripherals such as industrial cameras, VR systems or NVME enclosures. The card uses a NEC chipset and shares the x1 lane bandwidth across all four ports.

Suited for Windows desktops needing more USB

The card works with Windows 7, 8, 8.1, 10 and 11 on 32-bit and 64-bit editions, plus Windows Server 2012 through 2019. Windows XP and Vista require the driver from the included mini-CD. Mac OS and Linux are not supported, so buyers who need those platforms should look at something else. It fits any PCIe x1, x4, x8 or x16 slot and ships with a standard 12 cm bracket for ATX cases.

Bandwidth and power scale with the slot generation

In a PCIe 3.0 x1 slot the four ports share 8 Gbps of total bandwidth; in a PCIe 2.0 x1 slot they share 4 Gbps. Under sustained multi-device transfers the aggregate throughput will not exceed the lane limit, so performance is capped by the host slot rather than the individual 5 Gbps USB 3.0 PHY. The onboard self-powered design maintains stable voltage regulation across all ports during continuous heavy loads without requiring an external power connector.

Highlights

  • Add four USB 3.0 ports through a PCIe x1 slot
  • Up to 5.0 Gbps total transfer speed for files and media
  • Each port delivers up to 2 A for high-power devices
  • Powered directly from the PCIe 12 V rail with no extra cable
  • Supports Windows 7/8/10/11 and Mac OS 10.8.2 and above

Specifications

BrandESTONE
SeriesPCIE24USBA
ModelPCIE24USBA
TypePCI to USB Card
External USB Ports4-port USB 3.0
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications4 Ports PCI-E to USB 3.0 HUB PCI Express Expansion Card Adapter 5Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 5Gbps.
Supports USB 3.0 specification type A connector X 4 ports.,Backward compatible with USB 1.1/USB 2.0.
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0
Operating Systems: Windows7/8/10(32/64bit)
FeaturesAdding 4 USB 3.0 ports on your desktop computer by PCI Express(1X) slot.The super fast USB 3.0 ports adopting advanced NEC chipset will provide 5Gbps max data(total) transfer speed for video,audio,photos or files.

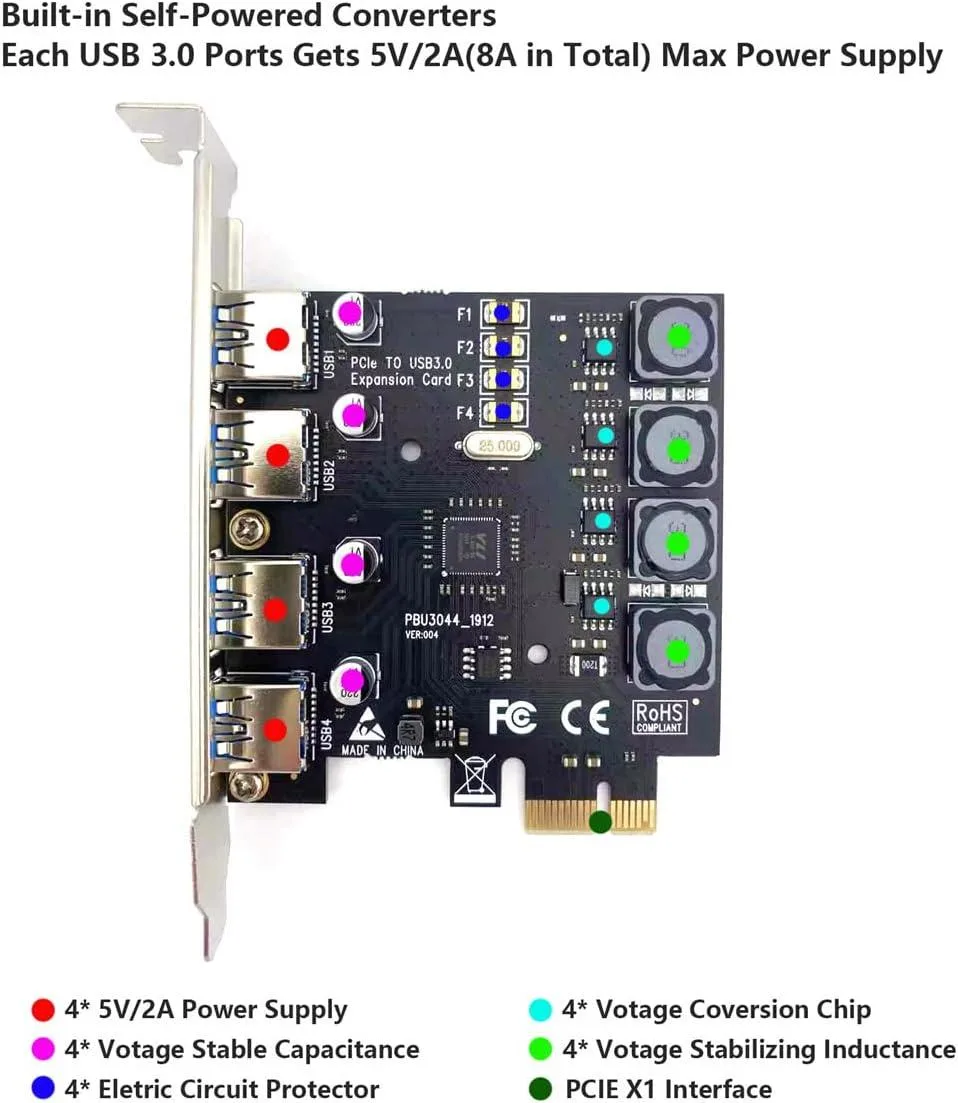

Doesn't require additional power,each port owns individual 2A power supply (8A in total) to meet high power-consuming data device's demand, easy to install 2 port PCIE port.
4X added power module provide 4 ampere current ensure adequate power supply for USB device.2X electric circuit protector and voltage stable capacitance protect data and device safety than ever.
NOT supp
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Questions about this item

Do I need a free PCI Express x1 slot on my motherboard to install this ESTONE PCIE24USBA card?

Yes, the card fits a PCI Express x1 slot and also works in x4, x8 or x16 slots.

Will my existing USB 2.0 peripherals still operate when plugged into the four USB 3.0 ports on this card?

The ports follow the USB 3.0 standard and accept USB 2.0 devices, which will run at their normal speed.

After fitting the card, how can I confirm each of the four ports is delivering the 5 Gbps link?

In Windows Device Manager the controller should appear as a USB 3.0 host and connected devices will show a SuperSpeed connection.
