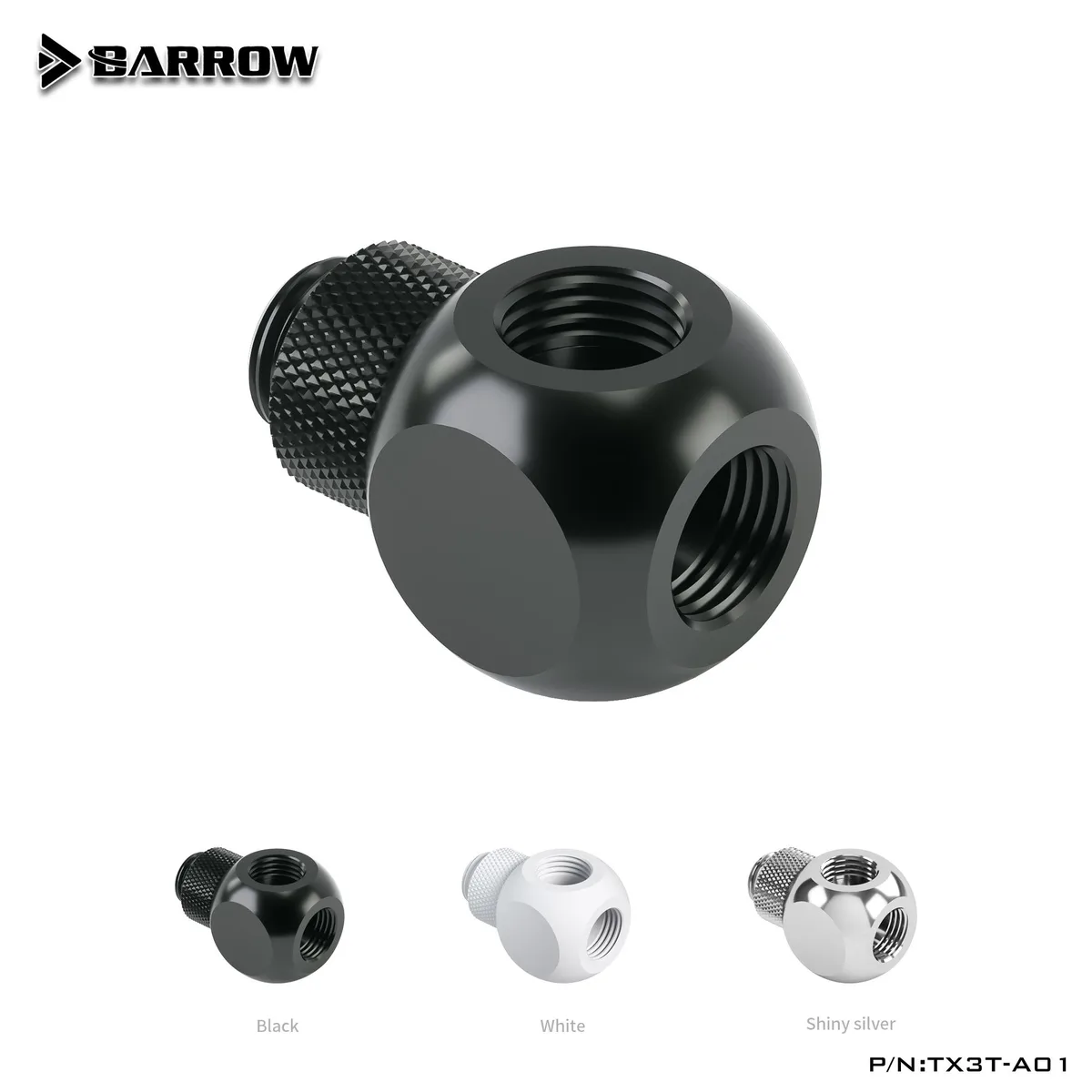

Silver cubic 3-way rotary fitting, 24mm head, G1/4 threads

FormulaMod

FormulaMod G1/4" 3-Way Rotary Fitting Silver 24mm

SKU CH-CR5V-52392

A G1/4" brass rotary fitting with a 24 mm cubic head that rotates 360° and redirects flow up to 180° for flexible loop routing

  • TypeFittings
  • Colorsliver
  • 360-degree head rotation enables flexible tube routing
  • 180-degree water path change simplifies complex loop layouts
  • Multi-direction rotary seat adapts to tight spaces
  • High-throughput brass body maintains strong flow rates
  • 24 mm cubic head fits standard G1/4" ports

Multi-Way Rotary Fitting

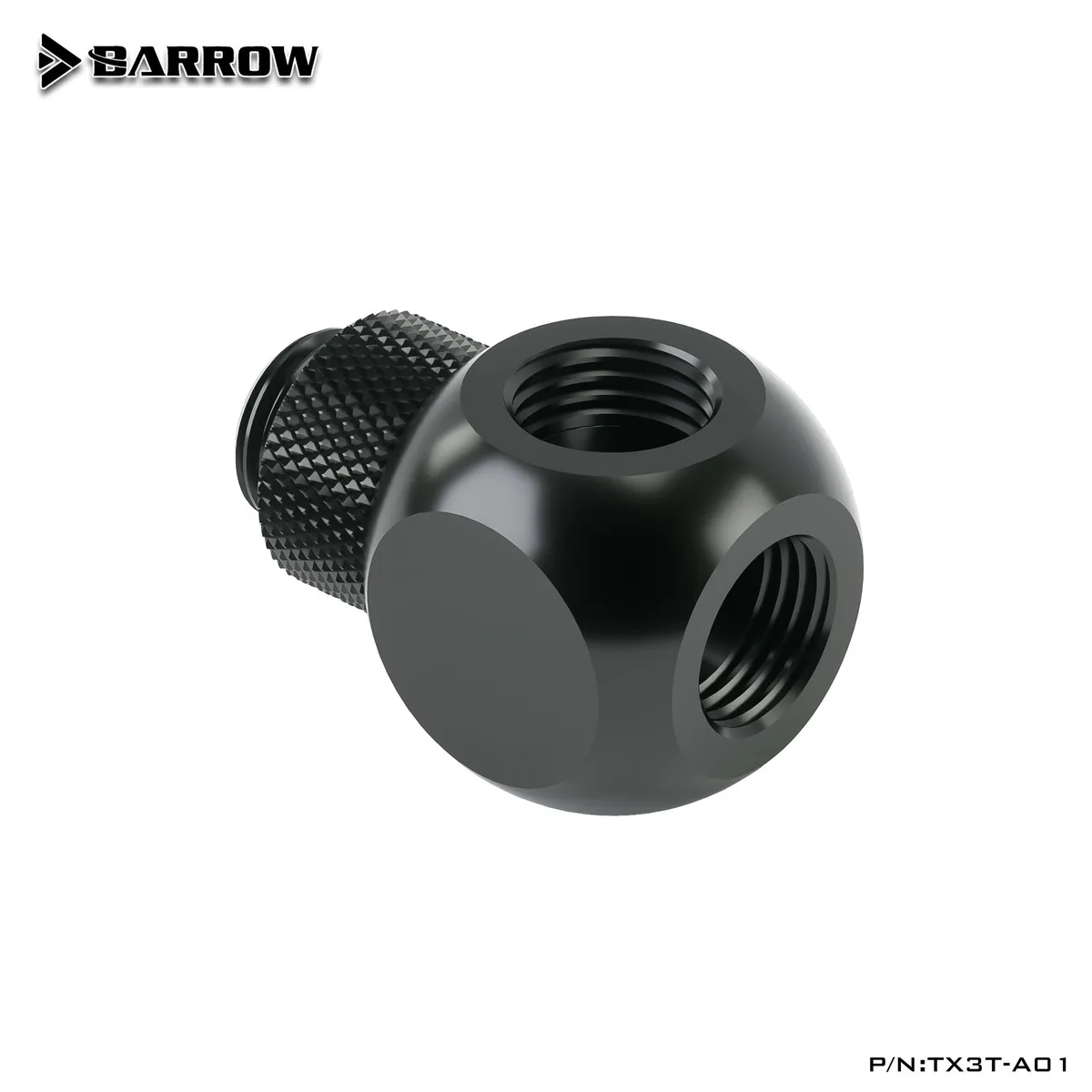

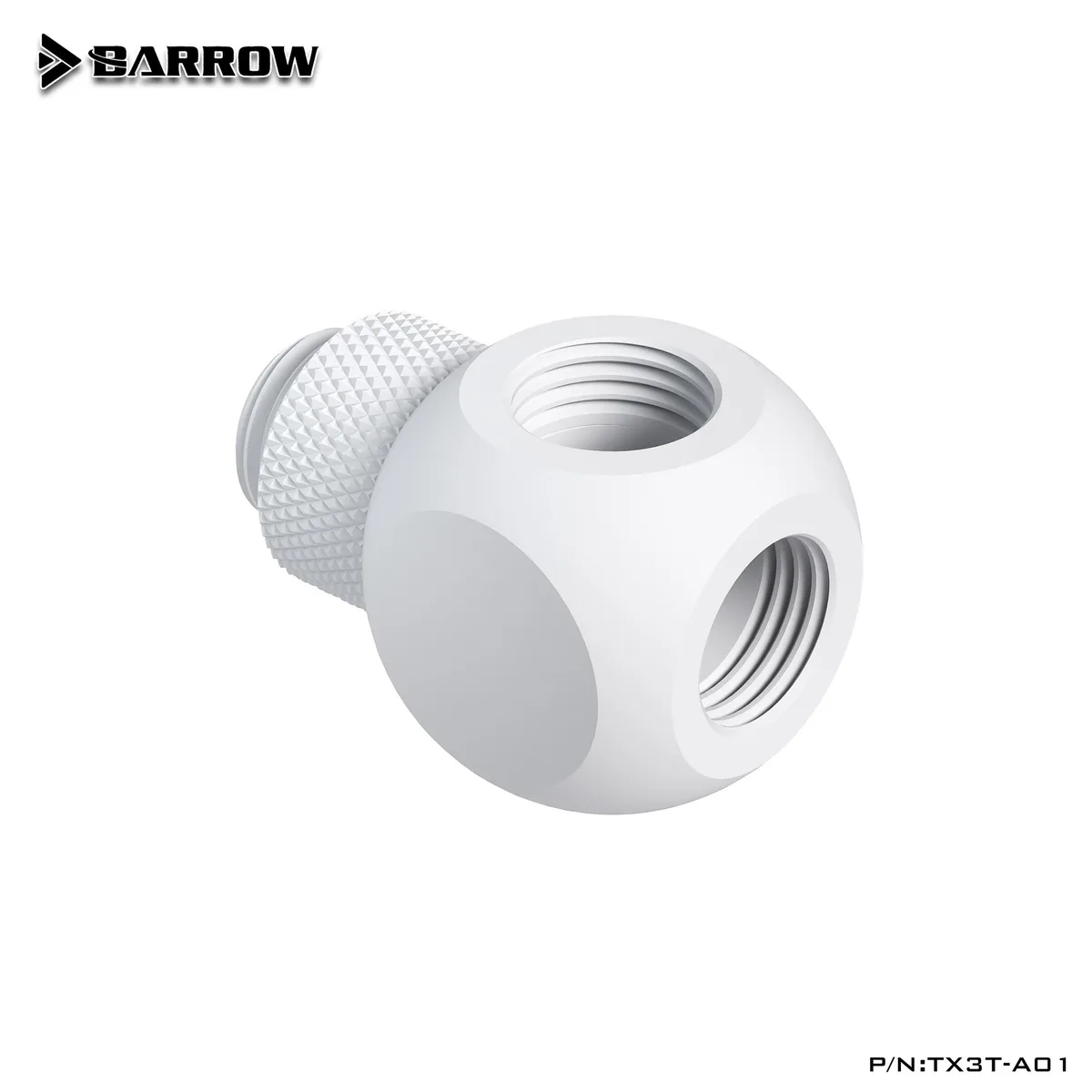

The FormulaMod G1/4" 3-Way Rotary Fitting is a brass water-cooling adaptor with a cubic 24x24x24 mm head. It provides three G1/4" threaded ports and a knurled 9 mm section for tool grip. The head rotates 360 degrees and each threaded hole allows up to 180 degrees of angular change, enabling complex routing in custom loops.

Builders Needing Multi-Axis Routing

This fitting suits builders who must split flow across three directions or navigate tight spaces where rigid tubing cannot bend. The unrestricted 360-degree head rotation and 180-degree port articulation solve alignment problems that standard couplings cannot. Buyers who only need a straight pass-through or a single-angle connection should choose a simpler fitting.

Three-Port Cubic Geometry

The defining specification is the cubic head with three G1/4" female threads arranged at mutual right angles. Combined with full 360-degree head rotation and 180-degree port swing, this geometry decides whether the part fits your loop topology. Verify your layout requires a three-way junction before purchasing.

Highlights

  • 360-degree head rotation enables flexible tube routing
  • 180-degree water path change simplifies complex loop layouts
  • Multi-direction rotary seat adapts to tight spaces
  • High-throughput brass body maintains strong flow rates
  • 24 mm cubic head fits standard G1/4" ports

Specifications

TypeFittings
Colorsliver

Questions about this item

What thread size and head clearance does this rotary fitting require?

The fitting uses a G1/4" thread and its cubic head measures 24x24x24 mm, so allow at least that much space around the port for the 360-degree rotating head.

How do I install the extender without stripping the brass threads?

Hand-tighten the G1/4" thread until the built-in ring seats, then give a very light quarter-turn with a wrench; the knurled portion is only 9 mm long so excess torque strips the soft brass.

When should I replace the internal sealing ring?

Inspect the built-in ring whenever you break the loop for maintenance; replace it if the rubber looks flattened, cracked or no longer springs back, otherwise the 360-degree rotary joint may leak.
