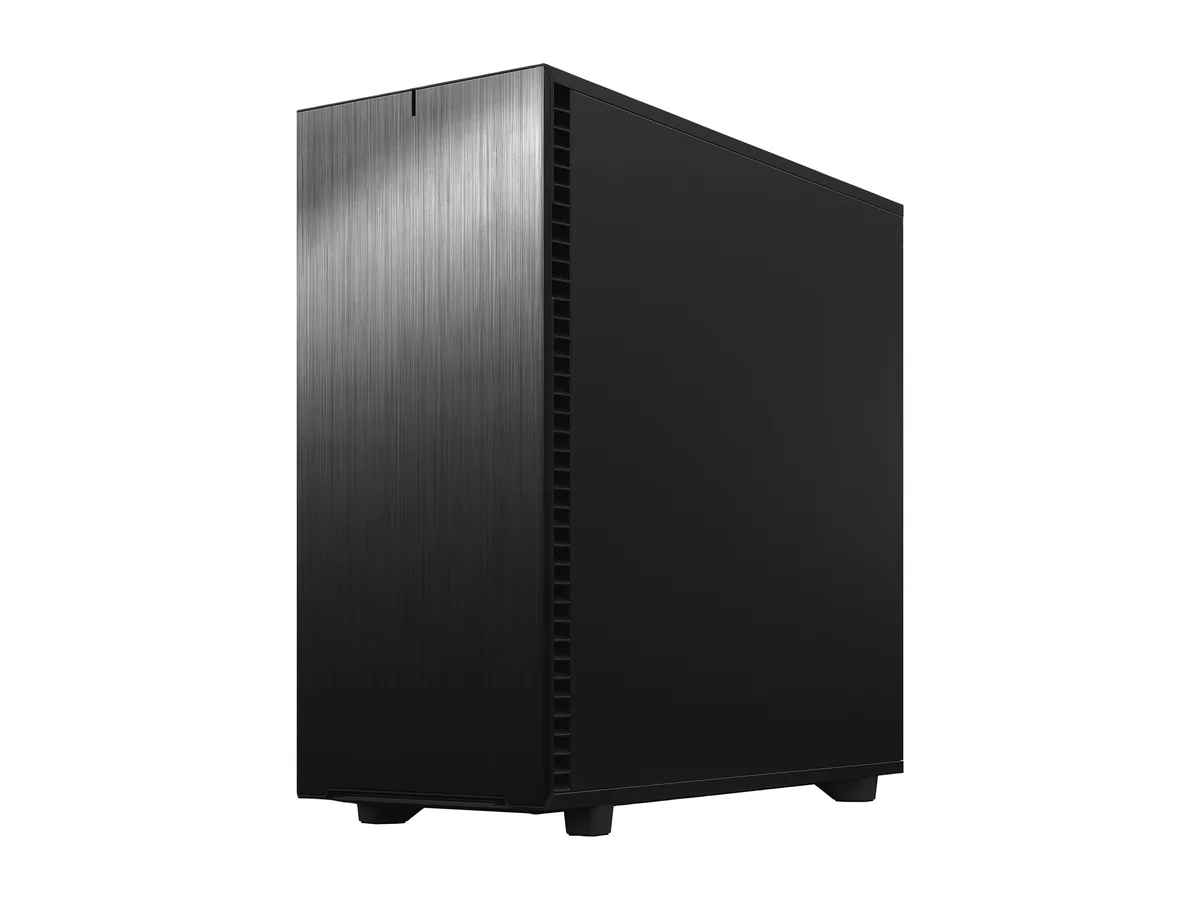

Large black full-tower case with brushed aluminum front panel, solid steel side panels and no window

Fractal Design

Fractal Design Define 7 XL FD-C-DEF7X-01 PC case

SKU CH-QP94-HRTF4 MPN FD-C-DEF7X-01

Full-tower ATX case with dual-layout interior supporting E-ATX boards, up to 18 HDDs, 5 SSDs and 480 mm radiators, plus sound-damping panels and three 140 mm fans included

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power SupplyATX
  • Power Supply MountedBottom

Options Steel Panel

  • Dual-layout interior fits motherboards up to E-ATX and SSI-EEB
  • 18 HDD and 5 SSD mounts available in default Storage Layout
  • Radiator support up to 480 mm front or top for custom water cooling
  • Industrial high-density sound damping reduces operating noise
  • Top panel swaps between solid steel and filtered ventilation for airflow control

Full tower case for large builds

The Fractal Design Define 7 XL FD-C-DEF7X-01 is a steel ATX full tower in black without a side window. It accepts motherboards from mITX up to EE-ATX and SSI-EEB. Three Dynamic X2 GP-14 140 mm fans are pre-installed, two at the front and one at the rear.

Check motherboard form factor and PSU mounting

Verify that your board fits within the supported E-ATX, ATX, mATX, mITX, EE-ATX, SSI-CEB or SSI-EEB standards. The power supply mounts at the bottom in standard ATX format and is not included. Confirm your cooler clearance and radiator plans against the 480 mm maximum radiator length.

Sound-damped steel with modular top panel

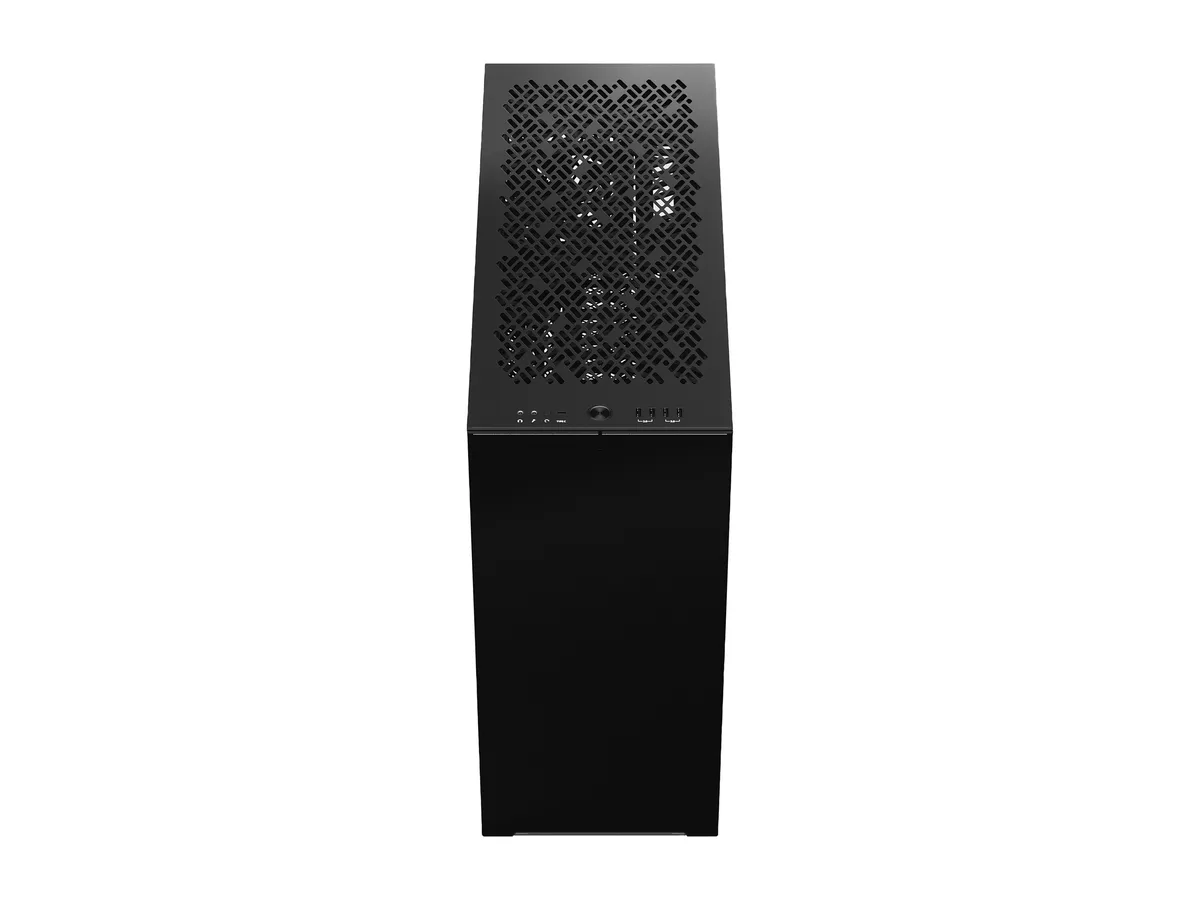

High-density damping material lines the panels for quiet operation. The front uses aluminum with dual-handed hinges and magnetic latching. The top panel swaps between solid steel and a filtered version that adds four fan positions. Dust filters cover the top, two front positions, the bottom and the PSU intake.

Highlights

  • Dual-layout interior fits motherboards up to E-ATX and SSI-EEB
  • 18 HDD and 5 SSD mounts available in default Storage Layout
  • Radiator support up to 480 mm front or top for custom water cooling
  • Industrial high-density sound damping reduces operating noise
  • Top panel swaps between solid steel and filtered ventilation for airflow control

Specifications

BrandFractal Design
SeriesDefine 7 XL
ModelFD-C-DEF7X-01
TypeATX Full Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power SupplyATX
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Side Panelwithout Side Window
LEDNo
Dust FiltersTop panel
2 x Front
Bottom + PSU
External 5.25" Drive Bays2
Internal 3.5" Drive Bays6 + 2 included, 18 positions total
Internal 2.5" Drive Bays2 included, 5 positions total
Expansion Slots9 + 3 vertical
Front Ports1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, 2 x USB 2.0, 2 x Audio
Fan OptionsFront: 4 x 120mm or 3 x 140mm fan (2 x Dynamic X2 GP-14 included)
Top: 4 x 120mm or 3 x 140mm fan
Rear: 1 x 120mm / 140mm fan (1 x Dynamic X2 GP-14 included)
Bottom: 2 x 120mm / 140mm fan
Pre-installed FansFront - 2 x 140mm / Rear - 1 x 140mm
Radiator OptionsFront: Up to 480mm / 420mm
Top: Up to 480mm / 420mm
Rear: 120mm
Bottom: Up to 240mm / 280mm
Max GPU Length549 mm
Max CPU Cooler Height185 mm
Max PSU Length250 mm (both HDD cages installed)
Dimensions23.78" x 9.45" x 22.28"
Weight36.44 lbs.
FeaturesSpacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
Two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
Silence-optimized construction with industrial sound-damped front, top, and side panels
Top panel effortlessly swaps
Package ContentDefine 7 XL
Accessory box
User manual
Ventilated top panel
ODD bracket
ODD bay cover
2 x HDD/SSD trays (for a total of 6)
Shipping weight19.89 kg
Package size699 × 645 × 352 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the Define 7 XL and what must I buy separately?

The case includes two 140 mm front fans, one 140 mm rear fan, six HDD/SSD trays, two SSD brackets and two multi-brackets. A power supply is not included and must be purchased separately.

Which storage layout should I choose for maximum capacity?

The default Storage Layout supports up to 18 HDDs and 5 SSDs using the included trays and brackets, while the Open Layout frees space for radiators up to 480 mm.

What does the 480 mm radiator support mean for my build?

You can install a 480 mm radiator in the front or top when using the Open Layout, allowing high-capacity custom water cooling for CPU and multiple GPUs.
