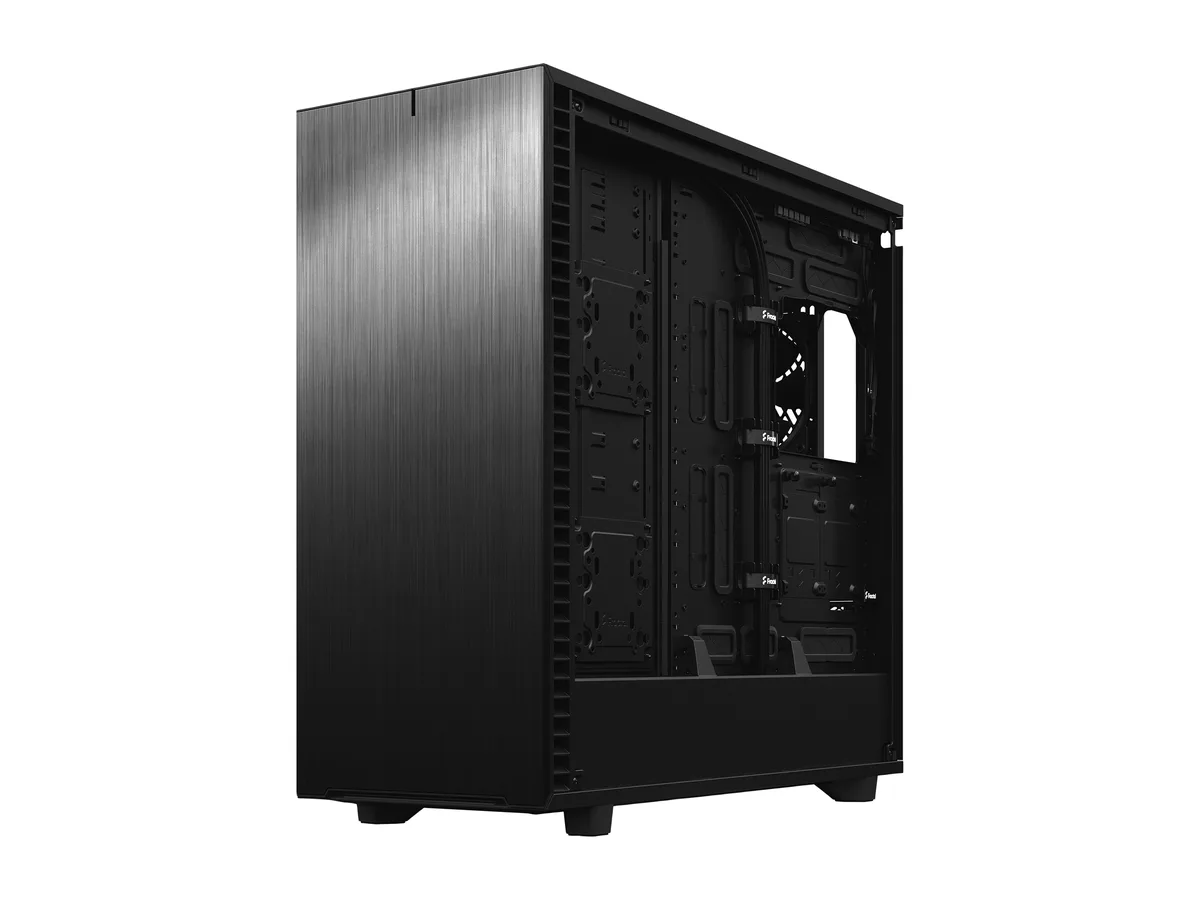

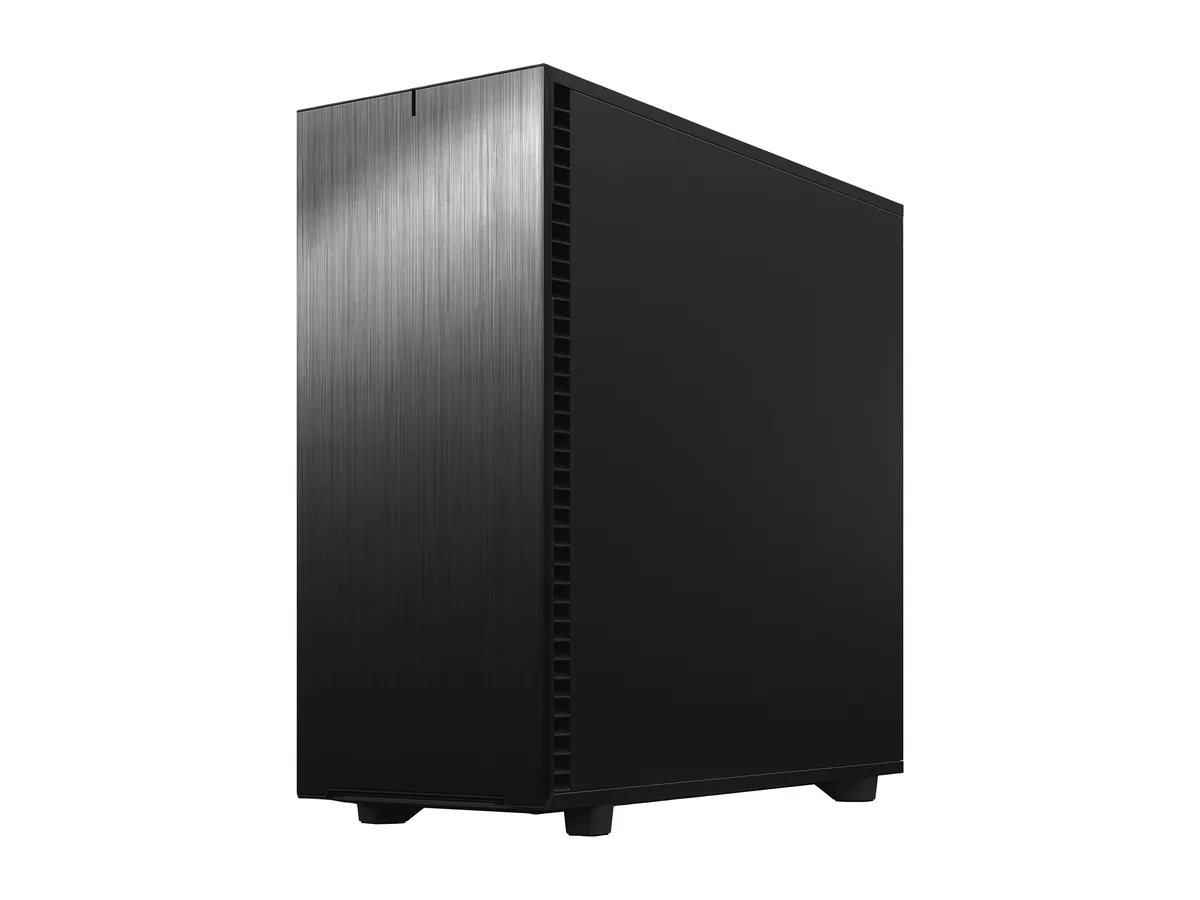

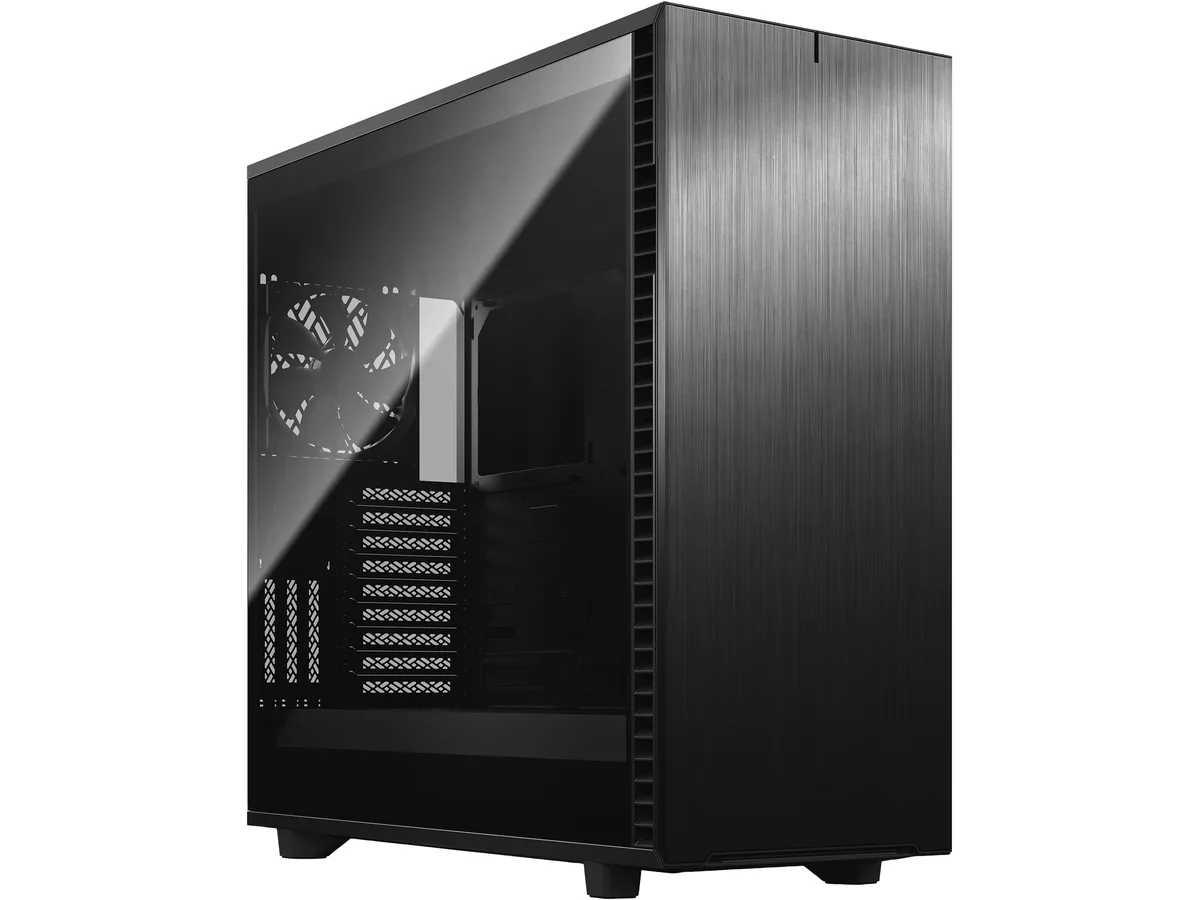

Large black full-tower case with brushed aluminium front panel, dark tinted tempered glass side window and three included 140 mm fans

Fractal Design

Fractal Design Define 7 XL FD-C-DEF7X-03 PC case

SKU CH-Y2CD-43MC9 MPN FD-C-DEF7X-03

Full-tower case holding E-ATX and SSI-EEB boards with space for eighteen 3.5-inch drives, five 2.5-inch mounts and radiators up to 480 mm

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power SupplyATX
  • Power Supply MountedBottom

Options Dark Tint Tempered Glass

  • Dual-layout interior fits E-ATX and SSI-EEB motherboards easily
  • Up to 18 HDDs and 5 SSDs supported in default storage layout
  • Radiators up to 480 mm front or top for water-cooling
  • Industrial high-density sound damping keeps operation whisper silent

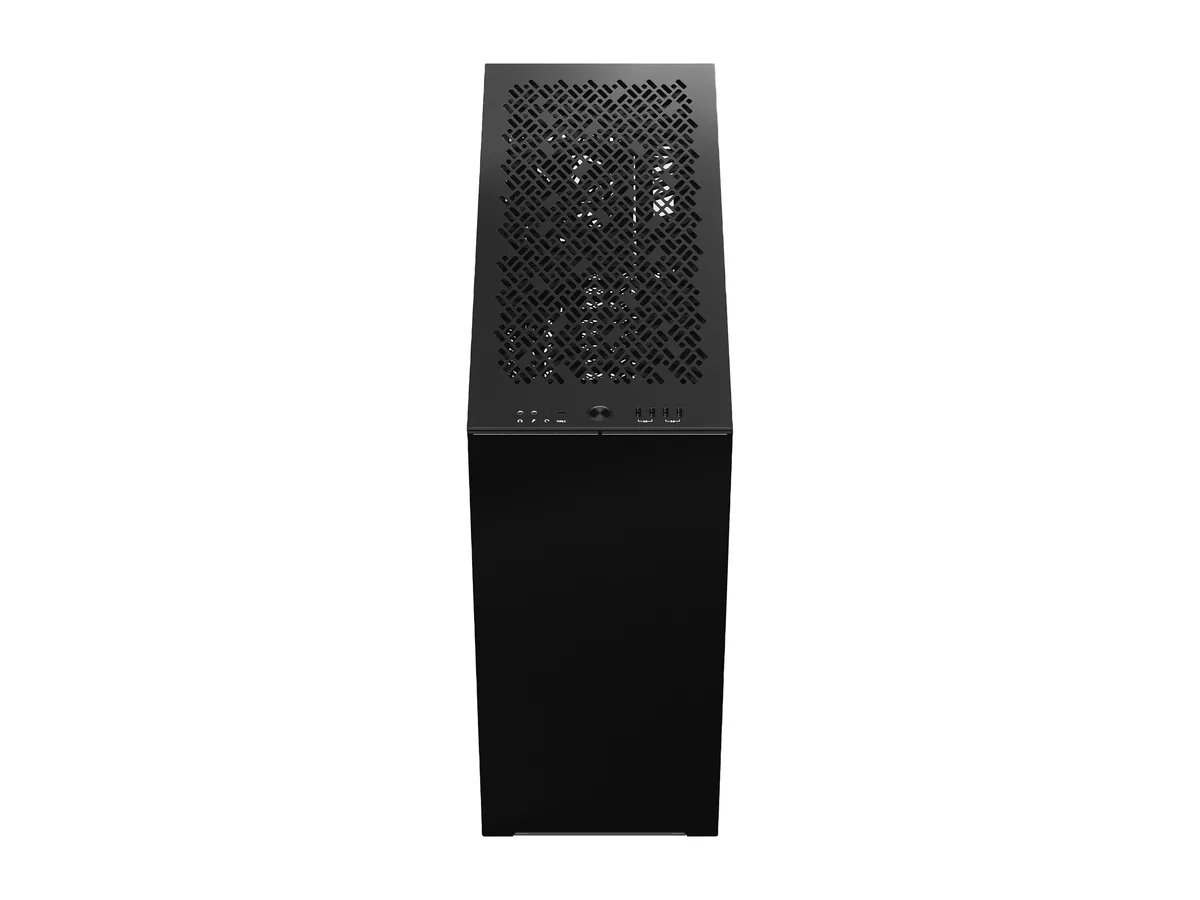

  • Removable top panel swaps to filtered ventilation with four fan positions

Full-tower case for large builds

The Define 7 XL is a full-tower chassis built for E-ATX, SSI-EEB and other oversized motherboards. Its dual-layout interior lets you choose between maximum storage or maximum water-cooling space. Aluminium front panels with magnetic latches and a three-side opening give easy access during assembly. Industrial sound-damping material lines the steel structure for quiet operation.

Upgrade from cramped mid-tower cases

Move to this chassis when your current case cannot fit an EE-ATX board, a 480 mm radiator or more than a handful of drives. The Open Layout removes the top panel entirely and supports radiators up to 480 mm at the front or top. Nine 140 mm or eleven 120 mm fan positions provide the airflow headroom that smaller enclosures lack.

Eighteen 3.5-inch drives and five 2.5-inch mounts

In the default Storage Layout the case holds 18 3.5-inch drives and five 2.5-inch drives using the included trays and brackets. Two 5.25-inch external bays remain for optical media or accessories. A ventilated top panel can be swapped in to add four filtered fan positions when storage density is lower.

Highlights

  • Dual-layout interior fits E-ATX and SSI-EEB motherboards easily
  • Up to 18 HDDs and 5 SSDs supported in default storage layout
  • Radiators up to 480 mm front or top for water-cooling
  • Industrial high-density sound damping keeps operation whisper silent
  • Removable top panel swaps to filtered ventilation with four fan positions

Specifications

BrandFractal Design
SeriesDefine 7 XL
ModelFD-C-DEF7X-03
TypeATX Full Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power SupplyATX
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Side PanelDark Tinted Tempered Glass
LEDNo
Dust FiltersTop panel
2 x Front
Bottom + PSU
External 5.25" Drive Bays2
Internal 3.5" Drive Bays6 + 2 included, 18 positions total
Internal 2.5" Drive Bays2 included, 5 positions total
Expansion Slots9 + 3 vertical
Front Ports1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, 2 x USB 2.0, 2 x Audio
Fan OptionsFront: 4 x 120mm or 3 x 140mm fan (2 x Dynamic X2 GP-14 included)
Top: 4 x 120mm or 3 x 140mm fan
Rear: 1 x 120mm / 140mm fan (1 x Dynamic X2 GP-14 included)
Bottom: 2 x 120mm / 140mm fan
Pre-installed FansFront - 2 x 140mm / Rear - 1 x 140mm
Radiator OptionsFront: Up to 480mm / 420mm
Top: Up to 480mm / 420mm
Rear: 120mm
Bottom: Up to 240mm / 280mm
Max GPU Length549 mm
Max CPU Cooler Height185 mm
Max PSU Length250 mm (both HDD cages installed)
Dimensions23.78" x 9.45" x 22.28"
Weight36.68 lbs.
FeaturesSpacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
Two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
Silence-optimized construction with industrial sound-damped front, top, and side panels
Top panel effortlessly swaps
Package ContentDefine 7 XL
Accessory box
User manual
Ventilated top panel
ODD bracket
ODD bay cover
2 x HDD/SSD trays (for a total of 6)
Shipping weight19.87 kg
Package size699 × 648 × 356 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will an SSI-EEB motherboard fit in this case?

The case supports SSI-EEB and SSI-CEB boards alongside E-ATX, ATX, mATX and mITX form factors.

How many 3.5-inch drives can I install in the default storage layout?

Six trays and two multi-brackets are included, giving eight ready positions and eighteen total in the storage layout.

What front-panel USB ports are provided?

One USB 3.2 Gen 2x2 Type-C, two USB 3.0 and two USB 2.0 ports are available on the front panel.
