Black mid-tower ATX case with angular mesh front and tinted tempered glass side panel

Fractal Design

Fractal Design FD-C-MES2A-03 Meshify 2 Black ATX Mid Tower PC Case

SKU CH-TEY9-GW4KP MPN FD-C-MES2A-03

Mid-tower case with hinged mesh front, tempered glass side panel and three pre-installed 140 mm fans for high airflow builds

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX

Options Meshify 2 (Black) / Light Tint TG Window

  • E-ATX boards up to 285 mm wide fit without compromise
  • Hinged mesh front with removable nylon filter simplifies dust cleaning
  • Three pre-installed 140 mm Dynamic X2 fans deliver strong airflow out of the box
  • Radiator support up to 420 mm top and 360 mm front enables high-capacity liquid cooling
  • Up to 11 HDDs and 4 SSDs can be installed for massive storage arrays

Meshify 2 ATX mid-tower

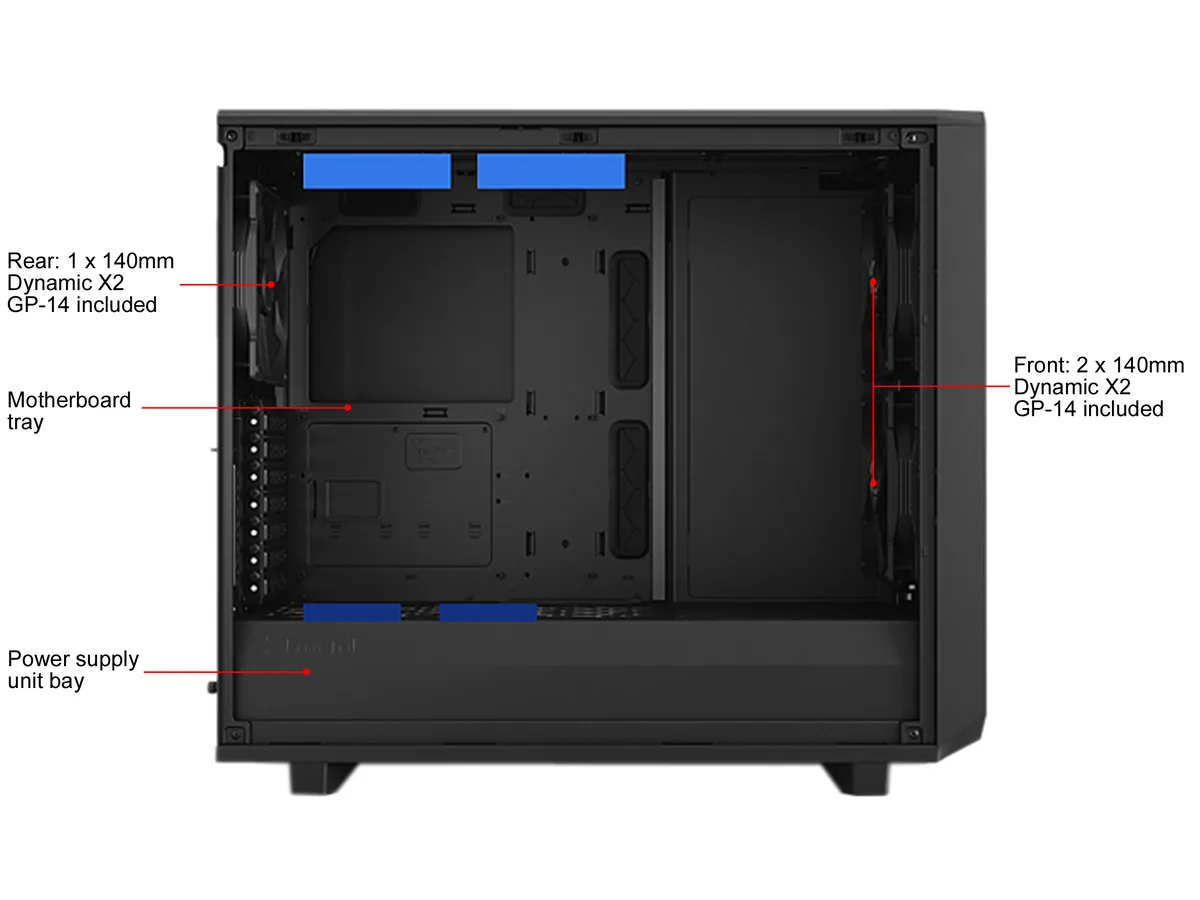

The Fractal Design Meshify 2 is a steel ATX mid-tower case finished in black with a light-tinted tempered-glass side window. It accepts ATX, E-ATX up to 285 mm wide, micro-ATX and mini-ITX motherboards. Three pre-installed Dynamic X2 GP-14 140 mm fans (two front, one rear) and a Nexus+ 2 fan hub are included. The case ships without a power supply.

Hinged mesh front and removable top

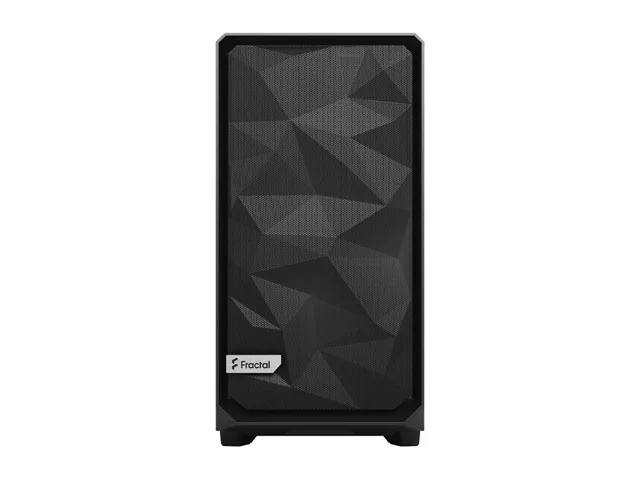

An angular, bolt-free mesh front panel swings open on hinges and carries a removable nylon dust filter for quick cleaning. The top panel lifts off entirely, exposing the interior on three sides for easy component access. Dust filters also cover the front, top and full-length bottom intakes. Front I/O provides three USB ports, one of which is USB 3.2 Gen 2x2 Type-C.

Dual-layout interior for storage or radiators

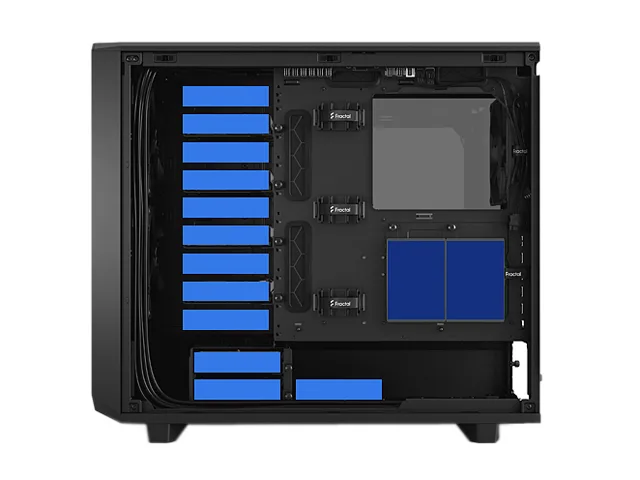

The default open layout fits radiators up to 360 mm at the front, 420 mm at the top and 280 mm at the bottom. Switching to the storage layout adds drive trays for up to 14 3.5-inch drives and four 2.5-inch positions (six trays, two brackets and one multibracket included). Maximum graphics-card length is 491 mm (467 mm with front fans) and maximum CPU-cooler height is 185 mm.

Highlights

  • E-ATX boards up to 285 mm wide fit without compromise
  • Hinged mesh front with removable nylon filter simplifies dust cleaning
  • Three pre-installed 140 mm Dynamic X2 fans deliver strong airflow out of the box
  • Radiator support up to 420 mm top and 360 mm front enables high-capacity liquid cooling
  • Up to 11 HDDs and 4 SSDs can be installed for massive storage arrays

Specifications

BrandFractal Design
SeriesMeshify 2
ModelFD-C-MES2A-03
TypeATX Mid Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Side PanelLight Tinted Tempered Glass Window
Dust FiltersTop Panel
Front
Bottom, Full Length
Internal 3.5" Drive Bays6 included, 14 positions total + 1 Multibracket
Internal 2.5" Drive Bays2 included, 4 positions total
Expansion Slots7 + 2
Front Ports3 front USB ports including one USB 3.2 Gen 2x2 Type-C
Fan OptionsFront: 3 x 120/140 mm fan (2 x 140mm Dynamic X2 GP-14 included)
Top: 3 x 120/140 mm fan
Rear: 1 x 120/140 mm fan (1 x 140mm Dynamic X2 GP-14 included)
Bottom: 2 x 120/140 mm fan
Pre-installed FansFront - 2 x 140mm / Rear - 1 x 140mm
Radiator OptionsFront: Up to 360/280 mm
Top: Up to 360/420 mm
Rear: 120 mm
Bottom: Up to 240/280 mm
Max GPU Length491 mm (467 mm w/ front fan)
Max CPU Cooler Height185 mm
Max PSU Length250 mm (with HDD cage installed)
Dimensions21.38" x 12.60" x 18.66"
Weight23.15 lbs.
FeaturesIconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
Includes 6 HDD/SSD trays, 2 SSD brackets, and 1 universal Multibracket for mounting up to 9 drives
Expandable to 11 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 18 drives in Storage Layout
New chassis design
Package ContentMeshify 2 Case
User manual
Large accessory box with HDD trays
Small accessory box
Shipping weight13.20 kg
Package size634 × 542 × 324 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What bandwidth does the front USB 3.2 Gen 2x2 Type-C port support?

The front I/O includes a USB 3.2 Gen 2x2 Type-C port rated for 20 Gbps, plus two additional USB 3.0 Type-A ports.

What clearance does the case allow for a CPU cooler and a graphics card?

Maximum CPU cooler height is 185 mm; maximum GPU length is 491 mm, reduced to 467 mm when front fans are installed.

How do the pre-installed fans connect to the Nexus+ 2 hub?

Three 140 mm Dynamic X2 fans are pre-installed and plug into the hub's PWM and 3-pin headers; the hub draws power from a motherboard fan header.
