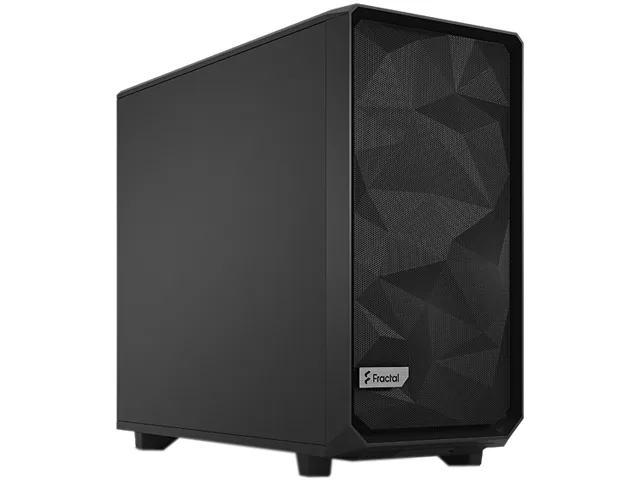

Black steel mid-tower with angular mesh front, hinged panel and three included 140 mm fans

Fractal Design

Fractal Design Meshify 2 FD-C-MES2A-01 Black ATX Mid Tower PC Case

SKU CH-EH5B-N2NDG MPN FD-C-MES2A-01

An ATX mid-tower case with steel construction, hinged mesh front panel, and three pre-installed 140 mm fans supporting E-ATX boards up to 285 mm wide

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX

Options Meshify 2 (Black) / Steel Panel

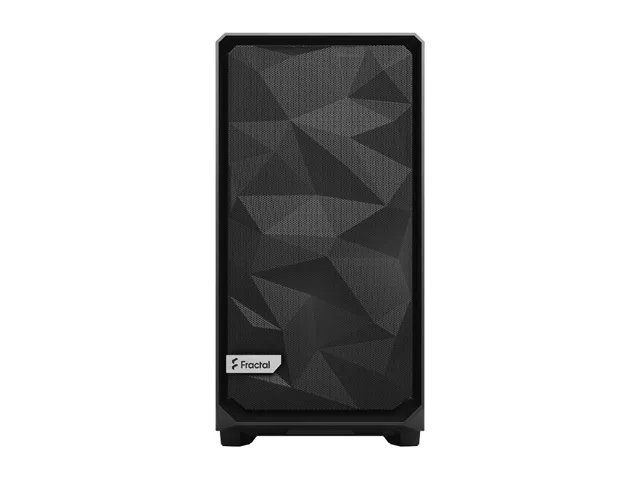

  • Angular mesh front filters air while keeping the look bold
  • Hinged front panel with removable nylon filter simplifies cleaning
  • Dual-layout interior fits E-ATX boards up to 285 mm wide
  • Supports radiators up to 420 mm top and 280 mm bottom
  • Three 140 mm Dynamic X2 fans included for immediate airflow

Meshify 2 case for high-airflow builds

The Fractal Design Meshify 2 is an ATX mid-tower case built around an angular mesh front panel that pulls cool air through a removable nylon filter. It supports motherboards up to 285 mm wide, including E-ATX, and ships without a power supply. The hinged front bezel and fully removable top panel give wide-open access to the interior for assembly and maintenance.

Three pre-installed 140 mm fans

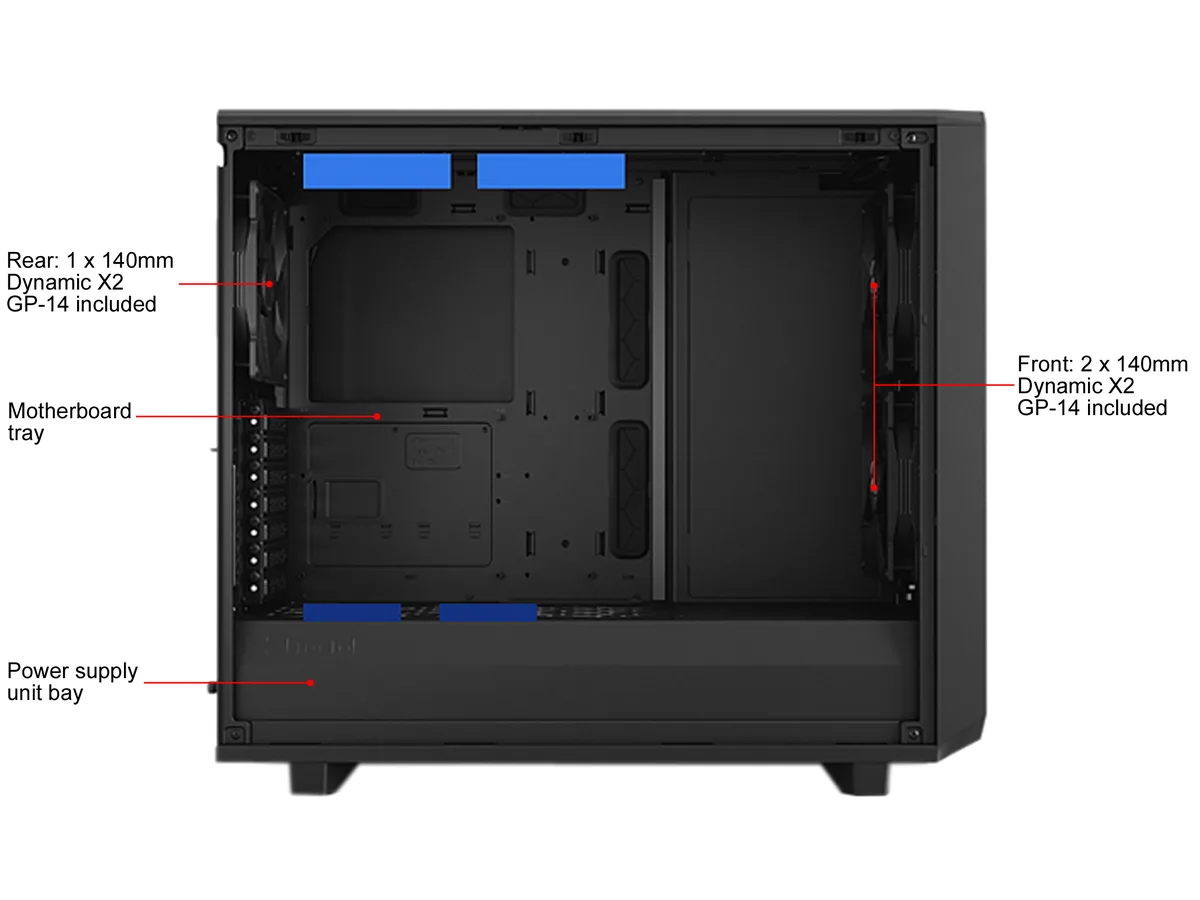

Two 140 mm Dynamic X2 GP-14 fans are fitted at the front and one at the rear, providing balanced intake and exhaust out of the box. Additional mounts accept up to three 120 or 140 mm fans at the front, three at the top, two at the bottom and one at the rear. Radiator support reaches 360 mm at the front, 420 mm at the top and 280 mm at the bottom for liquid-cooling headroom.

Steel chassis with dual-layout storage flexibility

The steel structure uses a movable internal wall to switch between an open layout for large radiators and a storage layout that holds up to 11 hard drives alongside four SSD mounts. Front I/O includes three USB ports with one USB 3.2 Gen 2x2 Type-C connector. Maximum graphics card length is 491 mm, reduced to 467 mm with front fans installed, and CPU cooler clearance is 185 mm.

Highlights

  • Angular mesh front filters air while keeping the look bold
  • Hinged front panel with removable nylon filter simplifies cleaning
  • Dual-layout interior fits E-ATX boards up to 285 mm wide
  • Supports radiators up to 420 mm top and 280 mm bottom
  • Three 140 mm Dynamic X2 fans included for immediate airflow

Specifications

BrandFractal Design
SeriesMeshify 2
ModelFD-C-MES2A-01
TypeATX Mid Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Side Panelwithout Side Window
Dust FiltersTop Panel
Front
Bottom, Full Length
Internal 3.5" Drive Bays6 included, 14 positions total + 1 Multibracket
Internal 2.5" Drive Bays2 included, 4 positions total
Expansion Slots7 + 2
Front Ports3 front USB ports including one USB 3.2 Gen 2x2 Type-C

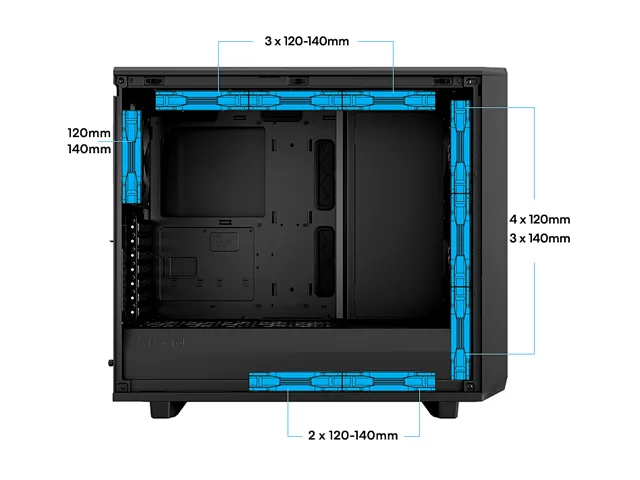

Fan OptionsFront: 3 x 120/140 mm fan (2 x 140mm Dynamic X2 GP-14 included)
Top: 3 x 120/140 mm fan
Rear: 1 x 120/140 mm fan (1 x 140mm Dynamic X2 GP-14 included)
Bottom: 2 x 120/140 mm fan
Pre-installed FansFront - 2 x 140mm / Rear - 1 x 140mm
Radiator OptionsFront: Up to 360/280 mm
Top: Up to 360/420 mm
Rear: 120 mm
Bottom: Up to 240/280 mm
Max GPU Length491 mm (467 mm w/ front fan)
Max CPU Cooler Height185 mm
Max PSU Length250 mm (with HDD cage installed)
Dimensions21.38" x 12.60" x 18.66"
Weight22.27 lbs.
FeaturesIconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
Includes 6 HDD/SSD trays, 2 SSD brackets, and 1 universal Multibracket for mounting up to 9 drives
Expandable to 11 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 18 drives in Storage Layout
New chassis design
Package ContentMeshify 2 Case
User manual
Large accessory box with HDD trays
Small accessory box
Shipping weight13.15 kg
Package size635 × 533 × 279 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will an E-ATX board 285 mm wide fit without hitting the side panel?

Yes, the dual-layout interior is designed for E-ATX motherboards up to 285 mm wide.

Can I run a 360 mm radiator in front and a 420 mm radiator on top at the same time?

Yes, the default Open Layout supports up to 360 mm at the front and 420 mm on top simultaneously.

How many 3.5-inch drives can I install if I keep the front fans?

Six trays are included and the case has 14 total positions plus a multibracket for additional drives.
