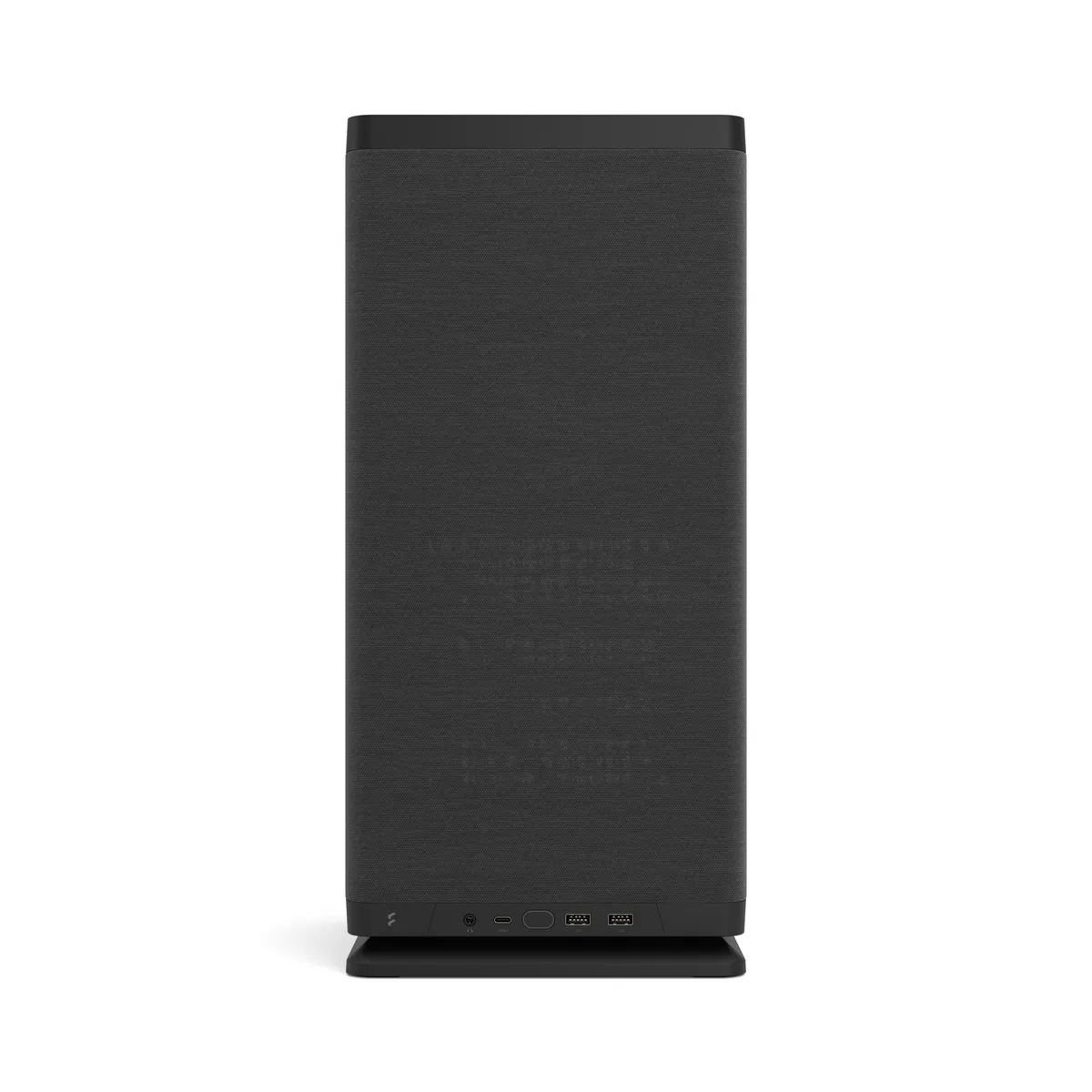

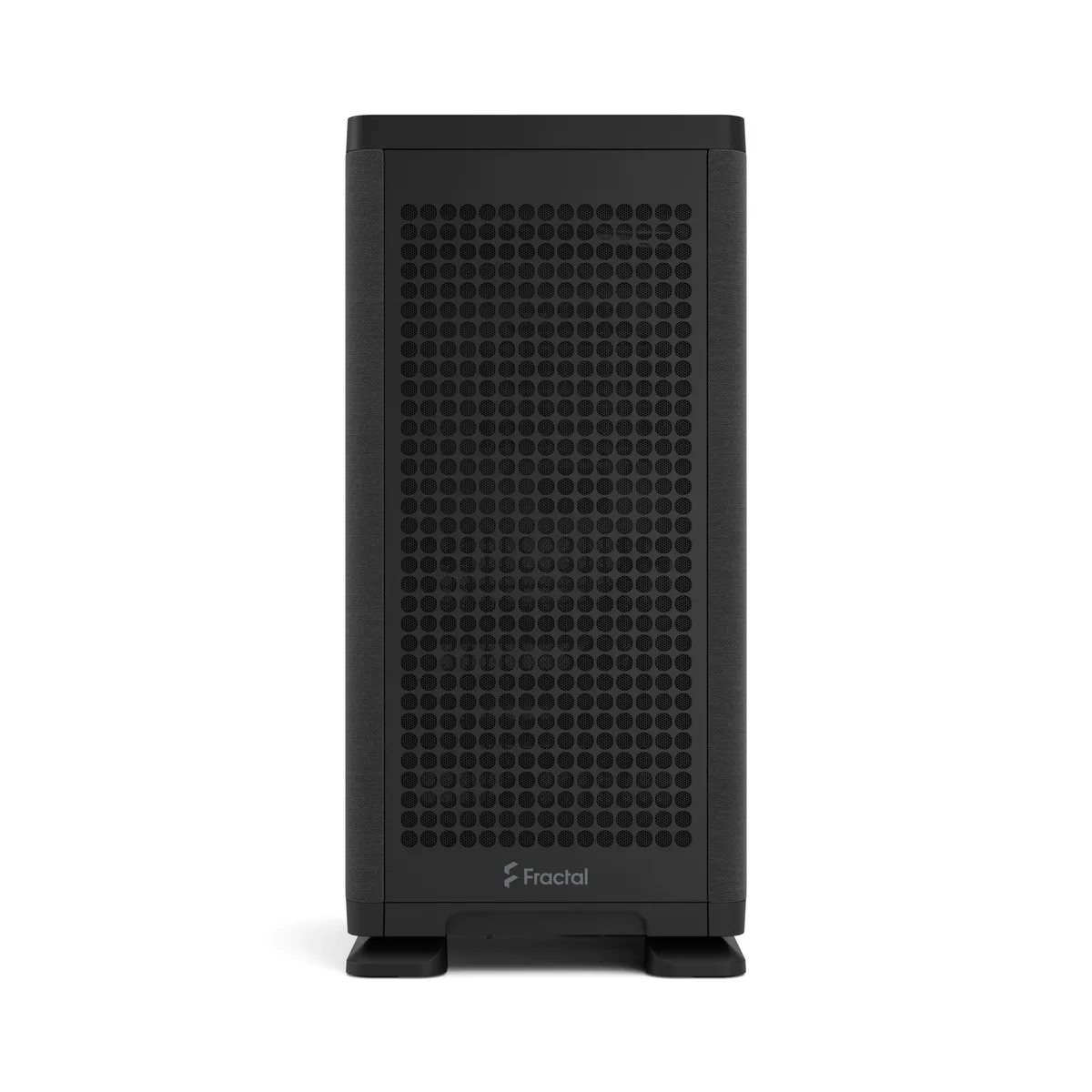

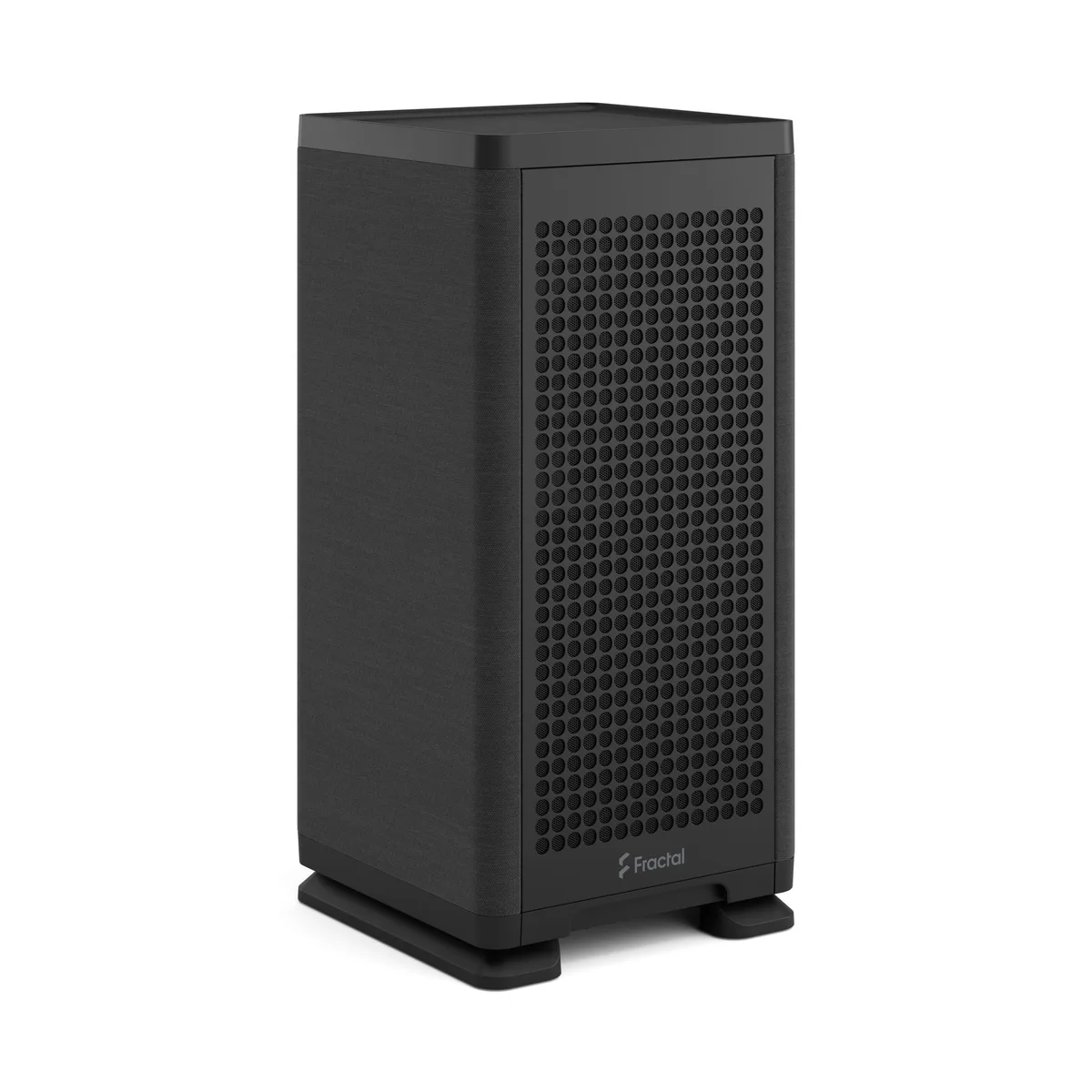

Black Mini-ITX pillar case with sliding textile wrap and top 180 mm fan

Fractal Design

Fractal Design FD-C-MOD1N-02 Mood Black Mini-ITX PC case

SKU CH-JT0B-JRMYF MPN FD-C-MOD1N-02

A compact 20 L Mini-ITX chassis with a sliding textile wrap, included 180 mm top fan, PCIe 4.0 riser, and room for a 325 mm GPU plus 280 mm radiator

  • TypeSmall Form Factor
  • ColorBlack
  • Case MaterialSteel, Plastic, Cloth
  • With Power SupplyNo
  • Power Supply MountedTop
  • Motherboard CompatibilityMini ITX

Options Black

  • Compact 20 L pillar design saves desk space
  • Sliding textile enclosure gives quick hardware access
  • Pre-installed 180 mm fan delivers strong airflow out of the box
  • Supports 280 mm side radiator for liquid cooling
  • Fits 325 mm GPU and includes PCIe 4.0 riser cable

Compact pillar case for Mini-ITX builds

The Fractal Design Mood Black is a 20 L Small Form Factor enclosure that accepts a Mini ITX motherboard, a graphics card up to 325 mm long and a CPU cooler no taller than 110 mm. A 180 mm Dynamic X2 PWM fan comes pre-installed at the top and a PCIe 4.0 riser cable is included for vertical GPU mounting. The sliding textile wrap gives quick access to the interior while keeping a clean exterior.

Verify power supply length

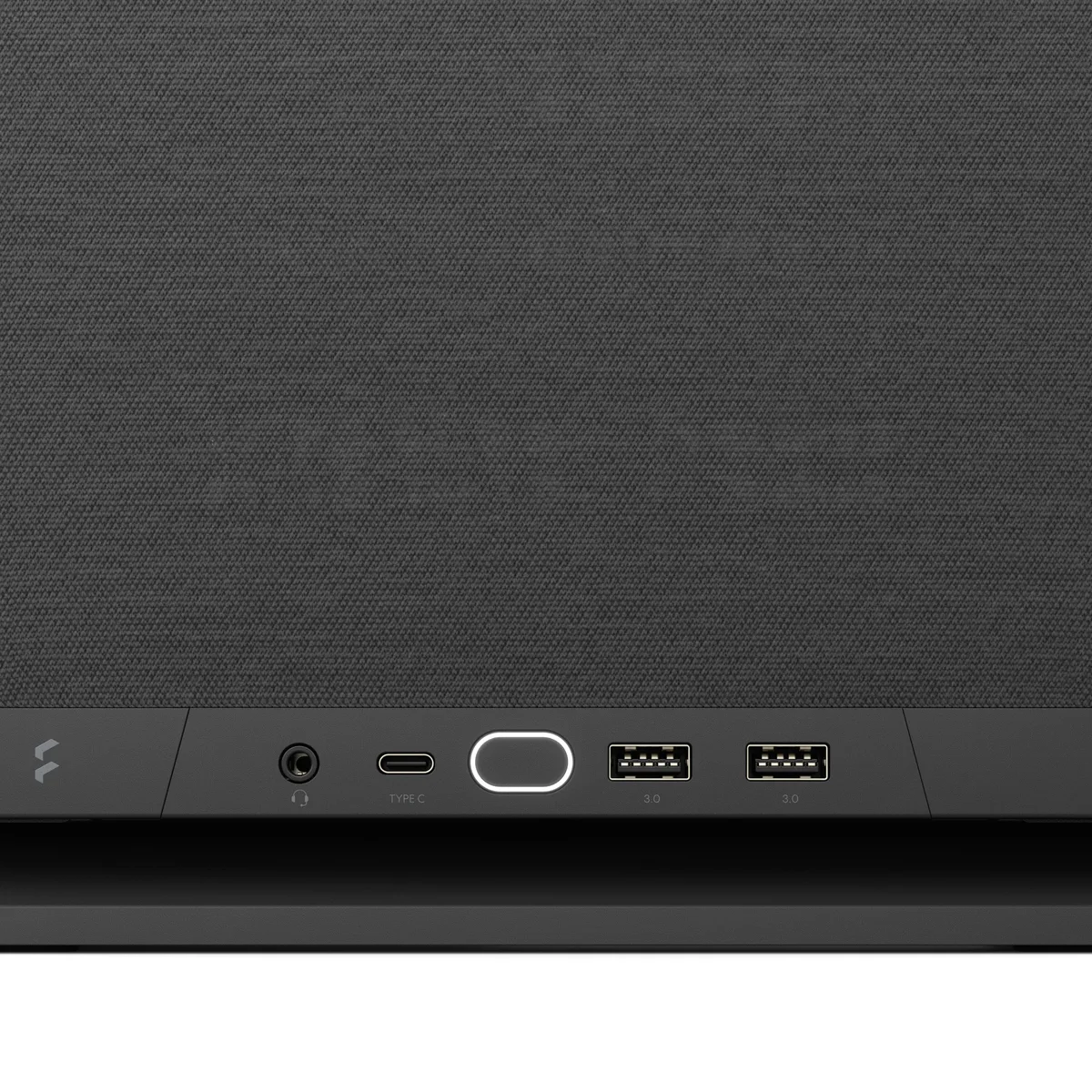

The case takes an ATX power supply up to 130 mm long mounted at the top, so confirm your unit fits that limit. Only one 3.5" drive and two 2.5" drives can be installed; if you populate the 3.5" bay you cannot fit a side radiator. Front I/O provides one USB 3.2 Gen 2x2 Type-C port, two USB 3.0 Type-A ports and an audio jack, so check your motherboard headers match.

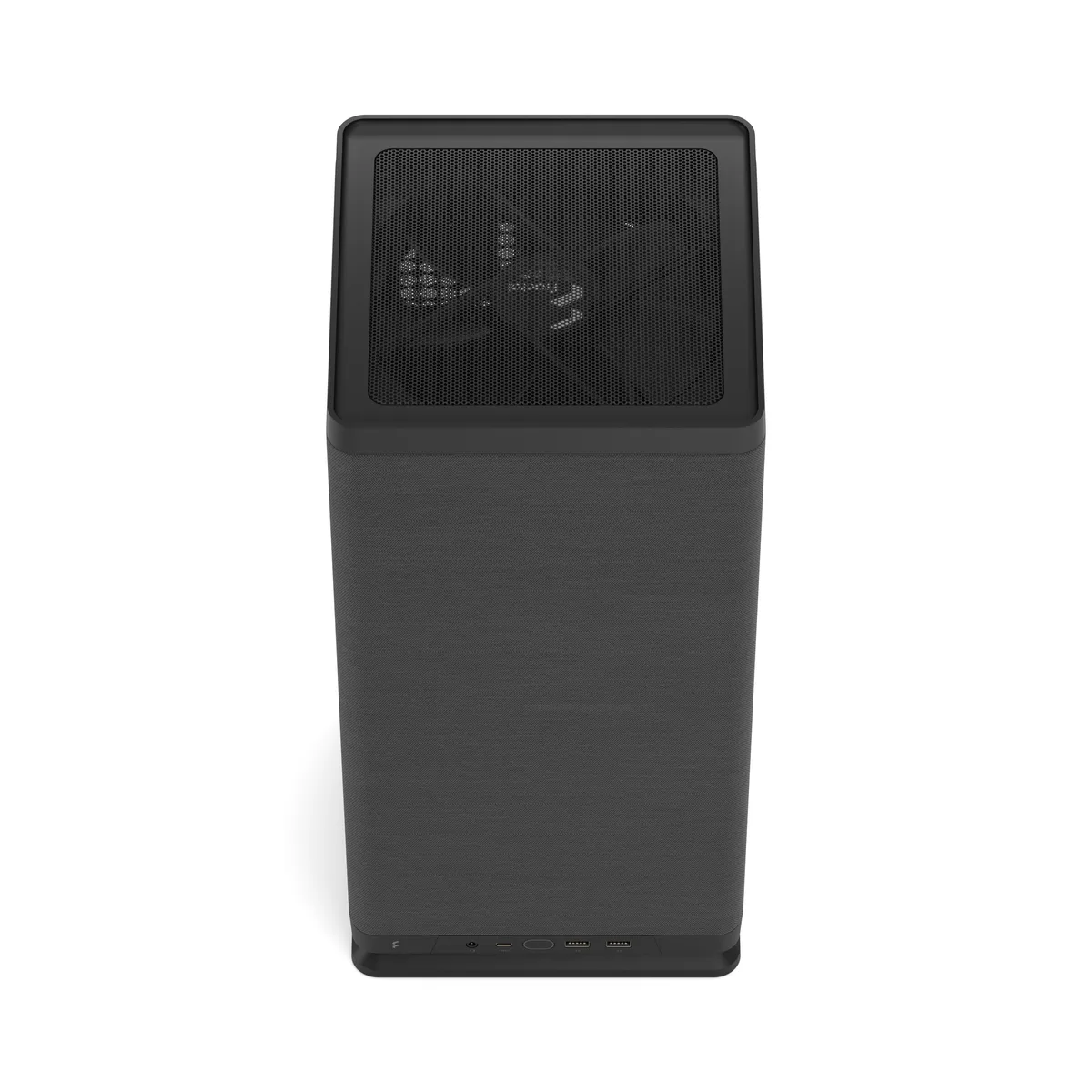

Large top fan and side radiator support handle

The included 180 mm fan moves air through the pillar chassis continuously, while the side panel accepts a 240 mm or 280 mm radiator for liquid-cooled CPUs and GPUs. With the 3.5" drive removed, a 280 mm radiator fits alongside two 140 mm or 120 mm side fans. A rear magnetic dust filter keeps intake surfaces clean during long sessions.

Highlights

  • Compact 20 L pillar design saves desk space
  • Sliding textile enclosure gives quick hardware access
  • Pre-installed 180 mm fan delivers strong airflow out of the box
  • Supports 280 mm side radiator for liquid cooling
  • Fits 325 mm GPU and includes PCIe 4.0 riser cable

Specifications

BrandFractal Design
SeriesMood
ModelFD-C-MOD1N-02
TypeSmall Form Factor
ColorBlack
Case MaterialSteel, Plastic, Cloth
With Power SupplyNo
Power Supply MountedTop
Motherboard CompatibilityMini ITX
Side Panelwithout Side Window
LEDNo
Dust FiltersRear magnetic filter mesh
Internal 3.5" Drive Bays1 (included)
Internal 2.5" Drive Bays2 (included)
Expansion Slots2
Front Ports1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0 Type-A, 1 x Audio
Fan OptionsTotal fan mounts: 3, 1x 180 mm, 2x 140/120 mm
Top: 1x 180 mm (1x Dynamic X2 180 mm PWM included)
Side: 2x 140 mm or 2x 120 mm
Pre-installed FansTop - 1 x 180mm
Radiator OptionsSide: 280 mm or 240 mm (no 3.5" drive)
Max GPU Length325 mm
Max CPU Cooler Height110 mm
Max PSU Length130 mm
Dimensions8.35" x 8.35" x 17.83"
Weight10.14 lbs.
Features• Install your choice of high-performing GPU up to 325 mm in length, in a space-saving pillar 20 L case
• Enjoy a sleek breathable subtly textured double layered fabric exterior with a perforated back and top mesh panel for targeted ventilation.
• Find your build’s ideal cooling balance with an included 180mm fan in a chimney cooling configuration with options for an additional two 140mm fans.
• Flexible cooling options allow for up to a 280mm Aio or a 110mm Tower cooler.
• Front-facing I/O featuring two USB 3.0 5Gbps type A ports, one USB Type-C 20Gbps (3.2 gen 2x2) and one combo ja
Package ContentMood Case
Accessory box
Manual
Shipping weight6.12 kg
Package size559 × 305 × 305 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a full-length graphics card fit in this 20L pillar case?

The case accepts GPUs up to 325 mm long, covering most dual- and triple-fan models on the market.

Can I run a 280 mm liquid cooler without giving up the 3.5" drive bay?

A 280 mm radiator fits in the side mount only when the 3.5" drive is removed; keep the drive and you are limited to 240 mm.

What power supply length is supported with the top-mounted PSU bracket?

The PSU cavity accommodates units up to 130 mm long, typical for SFX and short ATX designs.
