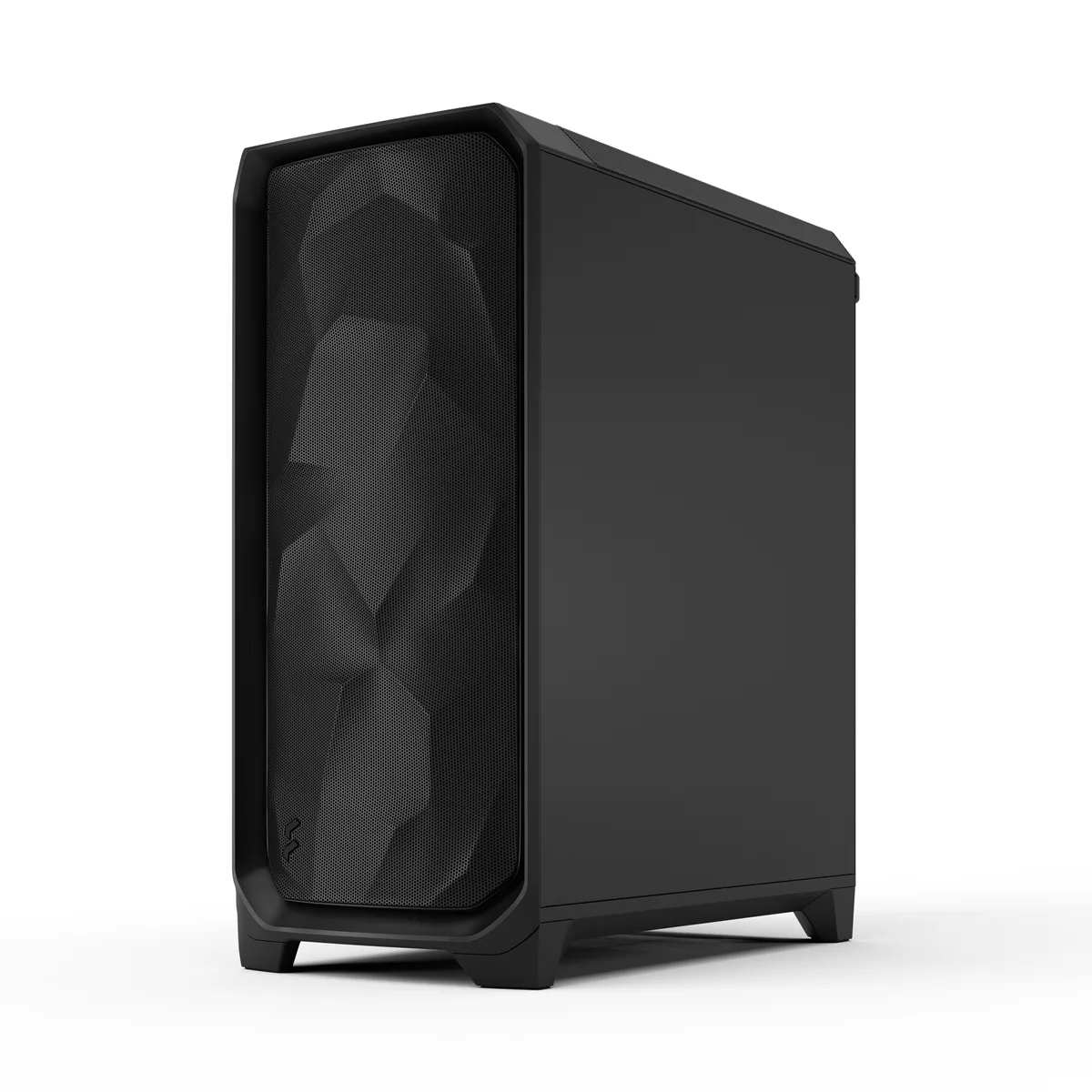

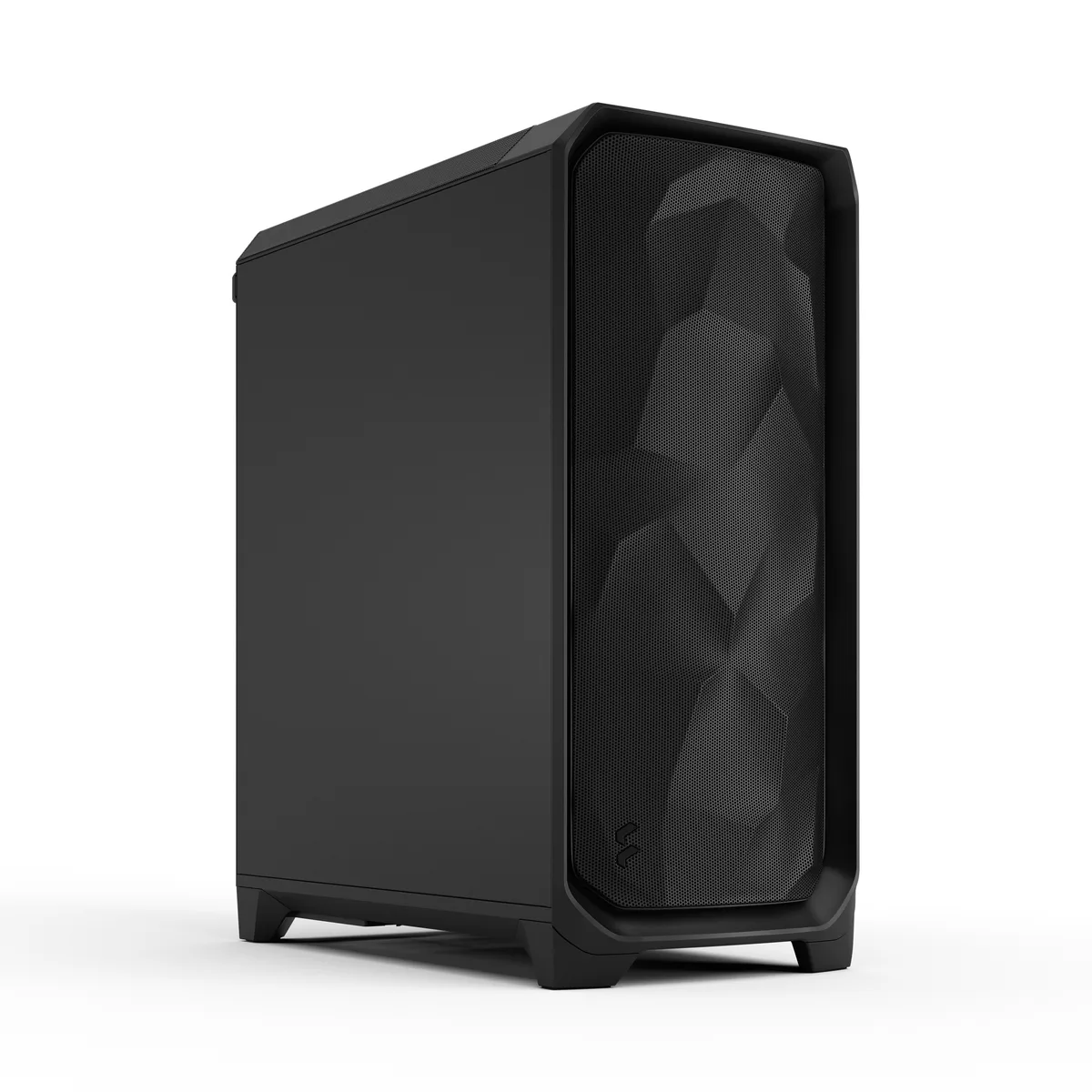

Black mid-tower steel case with rockface mesh front panel and solid side panel, three 140mm fans visible behind the mesh

Fractal Design

Fractal Design Meshify 3 FD-C-MES3A-01 PC case

SKU CH-ZH0B-EHDJR MPN FD-C-MES3A-01

ATX mid-tower with three pre-installed 140 mm fans, a 20 Gbps USB-C front port and room for a 349 mm graphics card

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Micro ATX / ATX / E-ATX / Micro AT

Options Meshify 3 - Solid (Black)

  • Mesh front panel and three pre-installed 140 mm fans deliver high airflow cooling
  • Supports graphics cards up to 349 mm long for high-end GPU builds
  • Top I/O includes 20 Gbps USB-C plus two USB 3.0 ports and audio jack
  • Tool-less removable brackets and panels simplify radiator installation and system assembly
  • E-ATX motherboard support with seven expansion slots fits a wide range of builds

Meshify 3 airflow focus

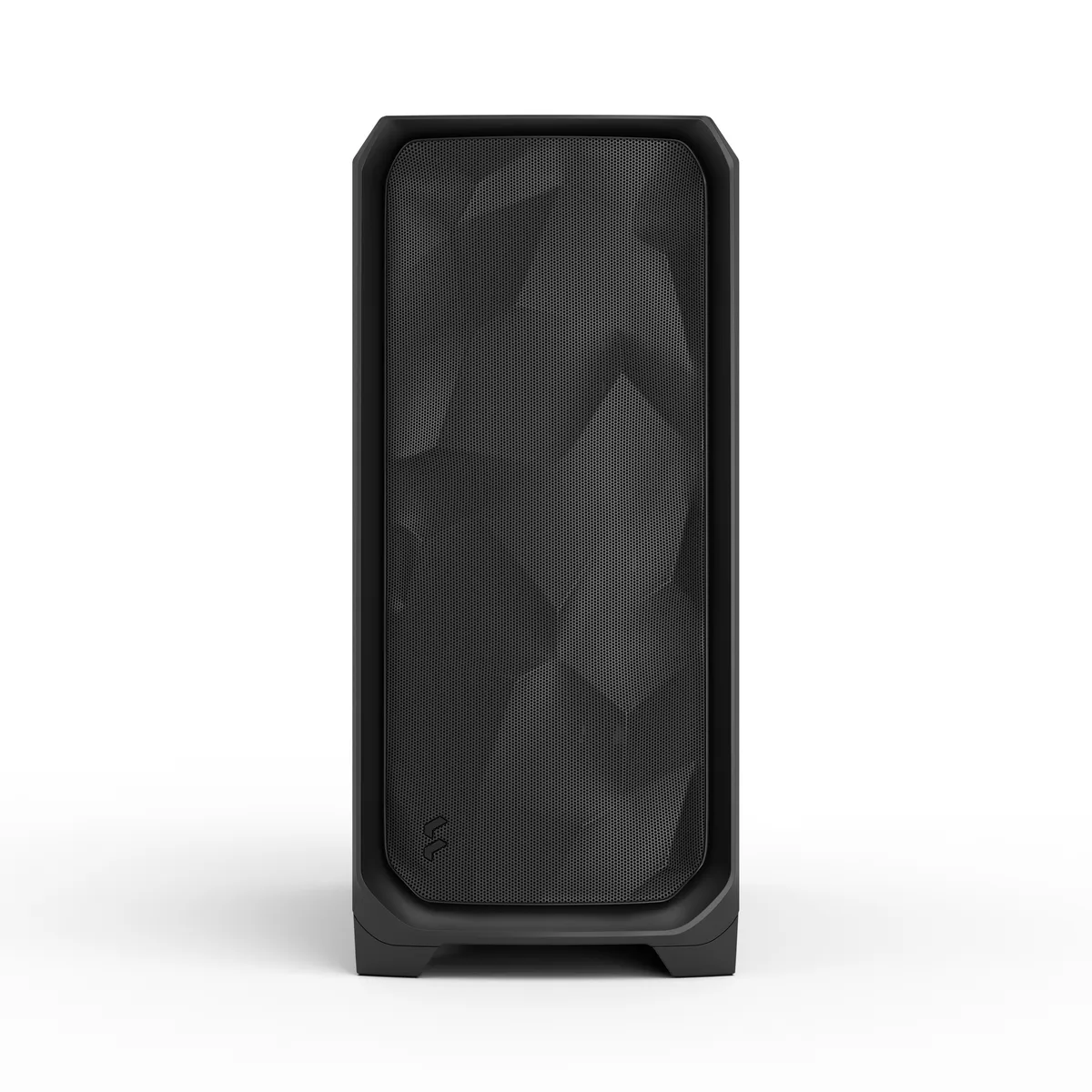

The Meshify 3 is an ATX mid-tower chassis built for high-airflow cooling. It supports ATX, E-ATX, Micro-ATX and Mini-ITX motherboards and fits graphics cards up to 349 mm long. The front panel uses a rockface-inspired mesh pattern to feed three pre-installed 140 mm Momentum fans. A solid steel side panel closes the interior without a window.

Sustained load cooling behaviour

Three 140 mm Momentum PWM fans with LCP blades and true fluid-dynamic bearings push air straight through the front mesh and an internal air guide toward the GPU. The top and rear mounts accept additional 120 mm or 140 mm fans to maintain positive pressure during long render or compute sessions. Removable radiator brackets simplify loop maintenance without disturbing the airflow path.

Interface and expansion limits

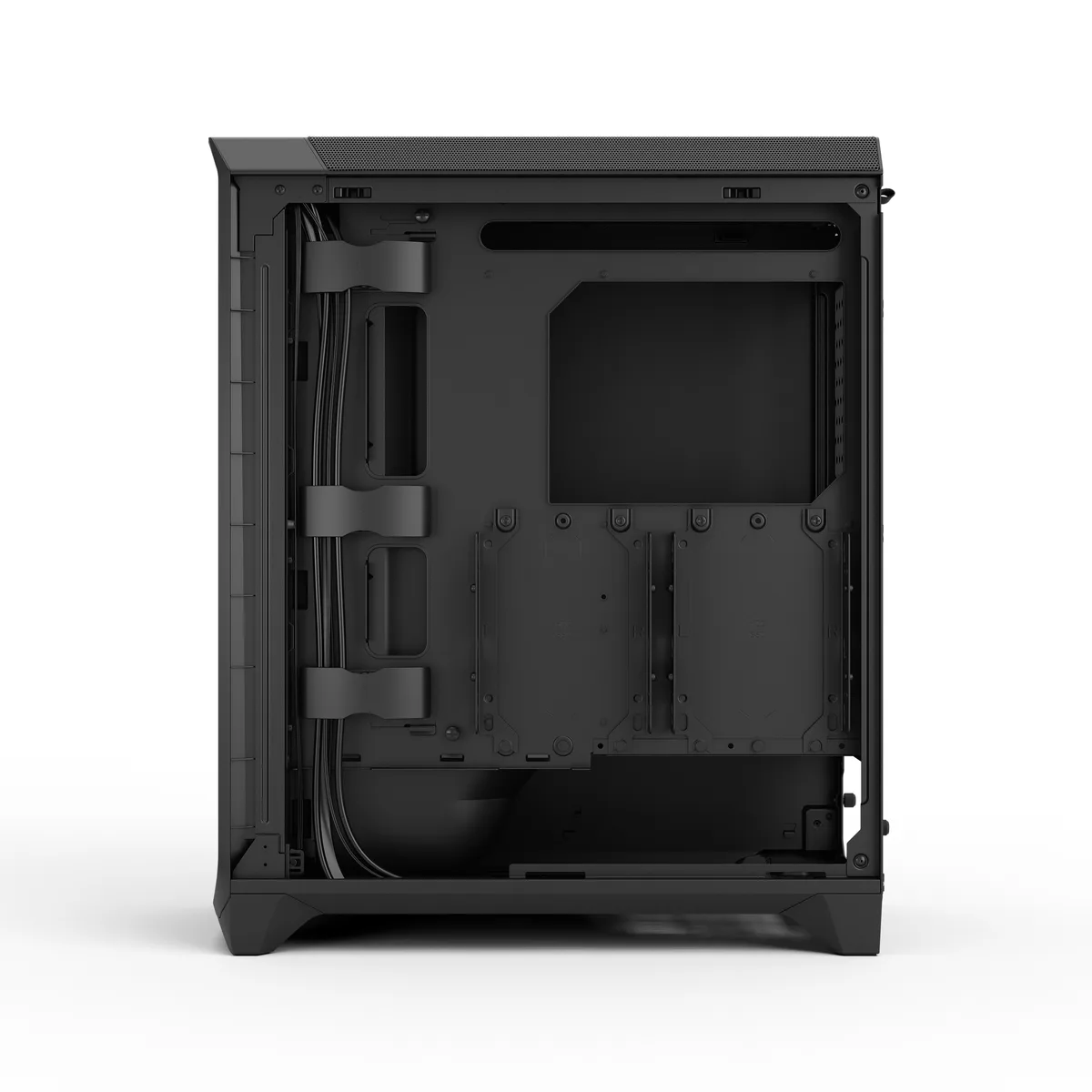

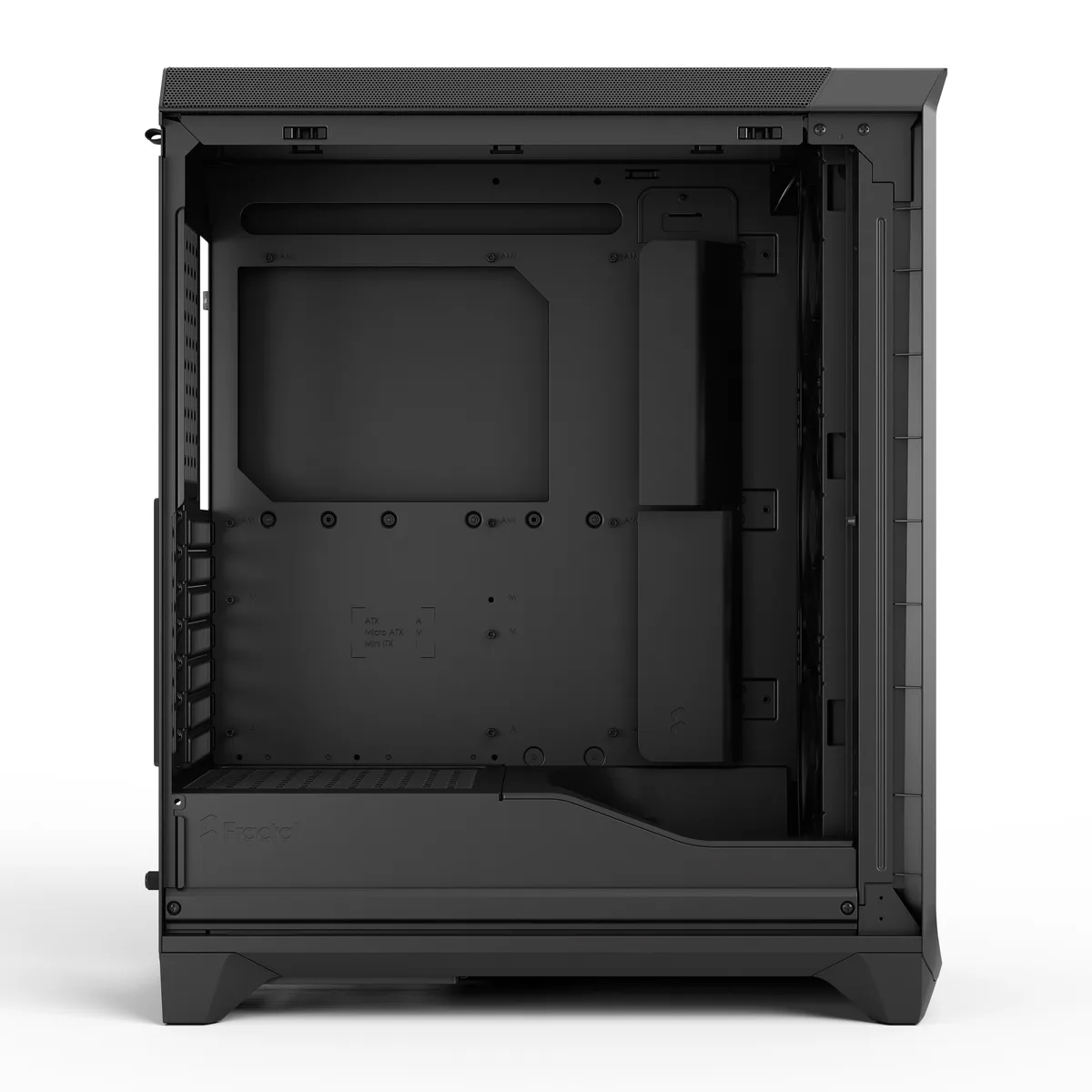

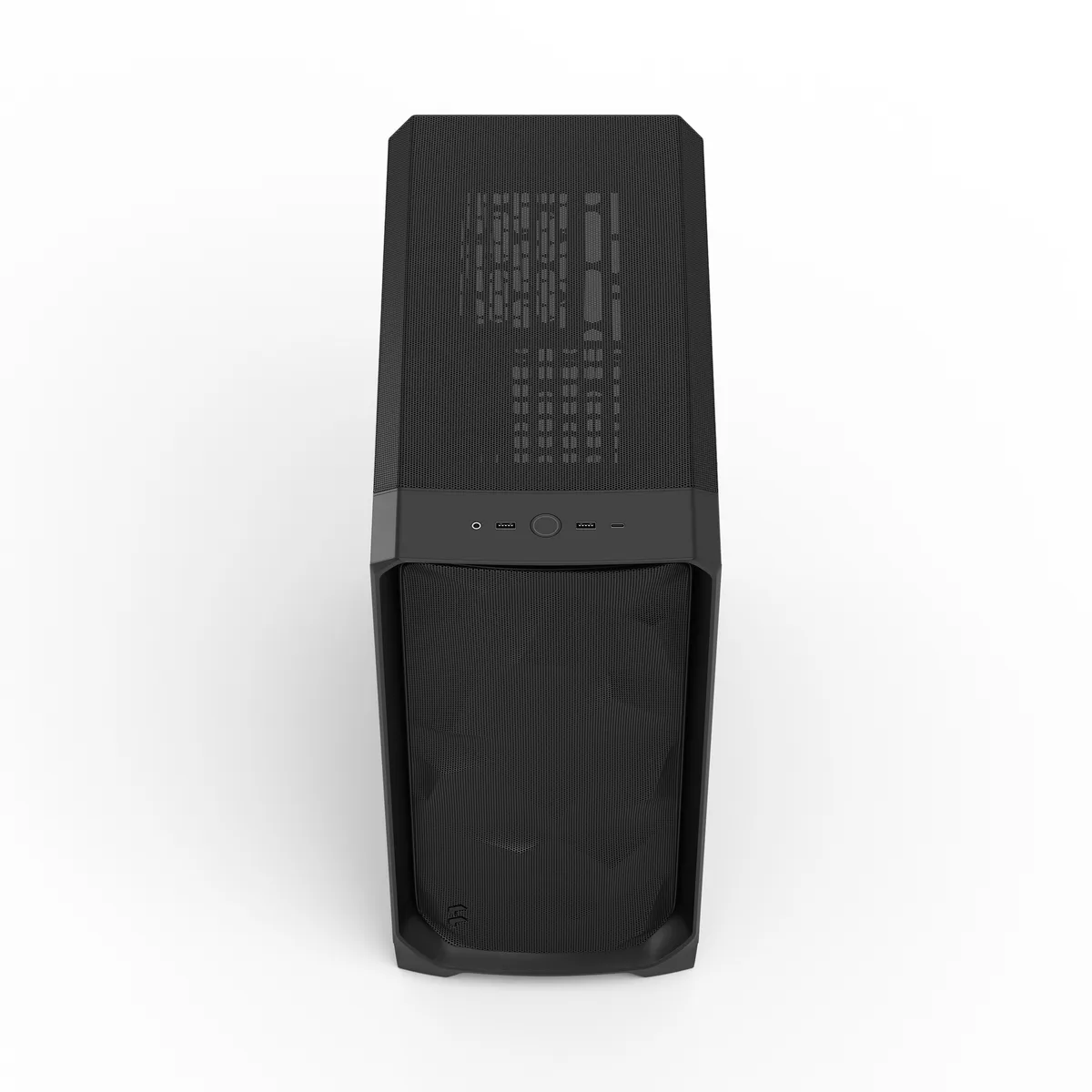

The top I/O provides one USB Type-C port rated at 20 Gbps, two USB 3.0 Type-A ports and a combined audio jack. Seven expansion slots accommodate full-length add-in cards. Storage options include two 3.5-inch bays behind the motherboard tray that can also hold four 2.5-inch drives, plus two dedicated 2.5-inch mounts on the case floor.

Highlights

  • Mesh front panel and three pre-installed 140 mm fans deliver high airflow cooling
  • Supports graphics cards up to 349 mm long for high-end GPU builds
  • Top I/O includes 20 Gbps USB-C plus two USB 3.0 ports and audio jack
  • Tool-less removable brackets and panels simplify radiator installation and system assembly
  • E-ATX motherboard support with seven expansion slots fits a wide range of builds

Specifications

BrandFractal Design
SeriesMeshify 3
ModelFD-C-MES3A-01
Part NumberFD-C-MES3A-01
TypeATX Mid Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / E-ATX / Micro ATX / Micro ATX / ATX / E-ATX / Micro ATX / ATX / Mini ITX / E-ATX / Mini ITX
Side Panelwithout Side Window
Dust FiltersBottom
External 5.25" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays2 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3 x 120/140 mm (3 x Momentum 14 PWM included)
Top: 2 x 120/140 mm
Rear: 1 x 120 mm
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 240mm / Top - Up to 280mm
140mm Fans3
Max GPU LengthMax GPU Length: 349 mm
Max GPU Height: 176 mm (slot 7, including cables)
Max CPU Cooler Height173 mm
Max PSU Length180 mm
Dimensions17.05" x 9.02" x 19.96"
Weight19.18 lbs.
Package ContentMeshify 3 case
User manual
Accessory box
Shipping weight10.43 kg
Package size597 × 533 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud do the three included 140 mm Momentum 14 PWM fans get when the system runs all day?

The three pre-installed 140 mm Momentum 14 PWM fans use fluid-dynamic bearings and LCP blades; speed is controlled by the motherboard so noise scales with load and curve settings.

Which power supply do I need to supply myself because the case ships without one?

The chassis has a bottom-mounted ATX PSU bay; you must provide a standard ATX power supply and cables to power the motherboard, GPU and drives.

Will my existing E-ATX motherboard and 349 mm graphics card fit together in this case?

The interior supports E-ATX boards and clears graphics cards up to 349 mm long with 176 mm height at slot 7, so both components fit simultaneously.
