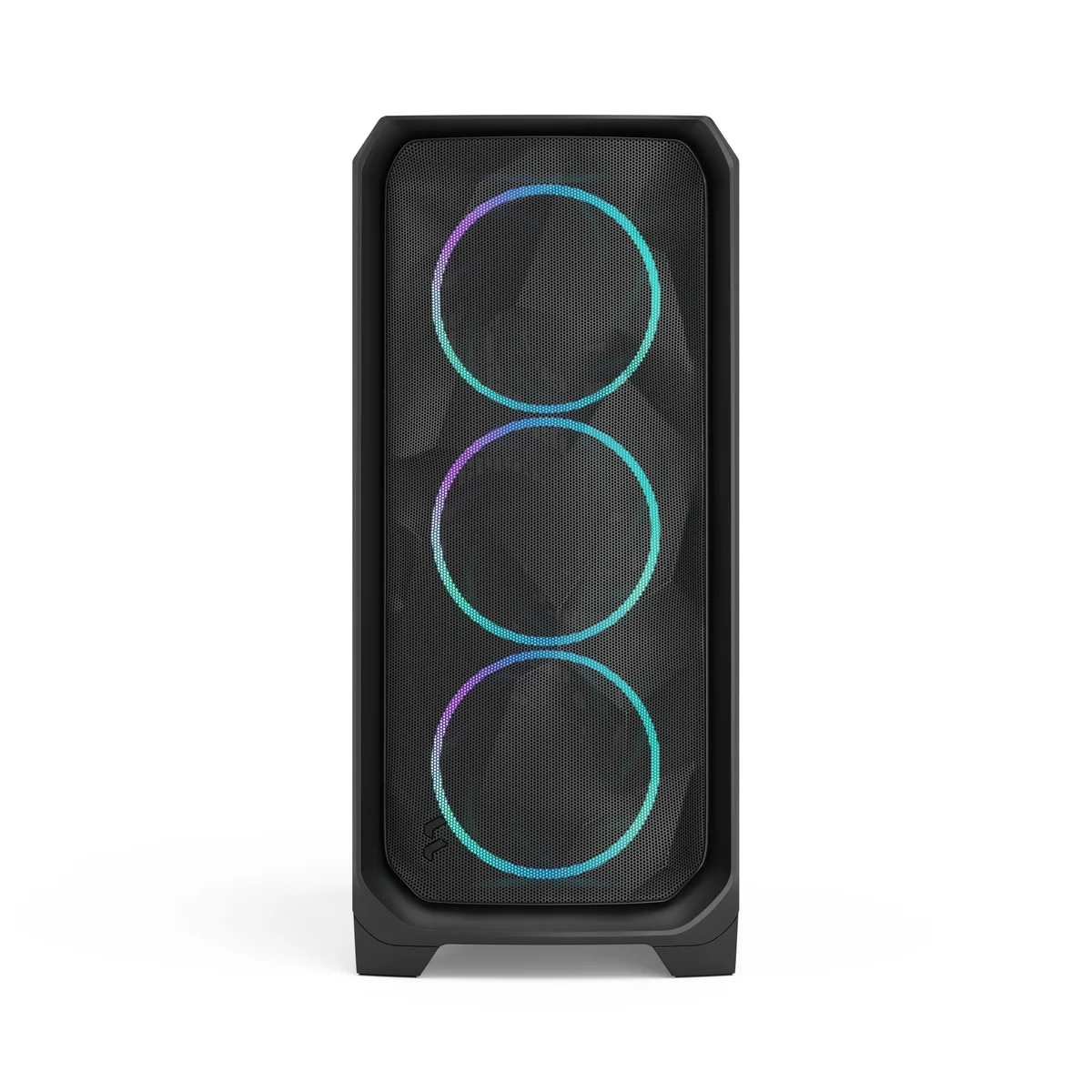

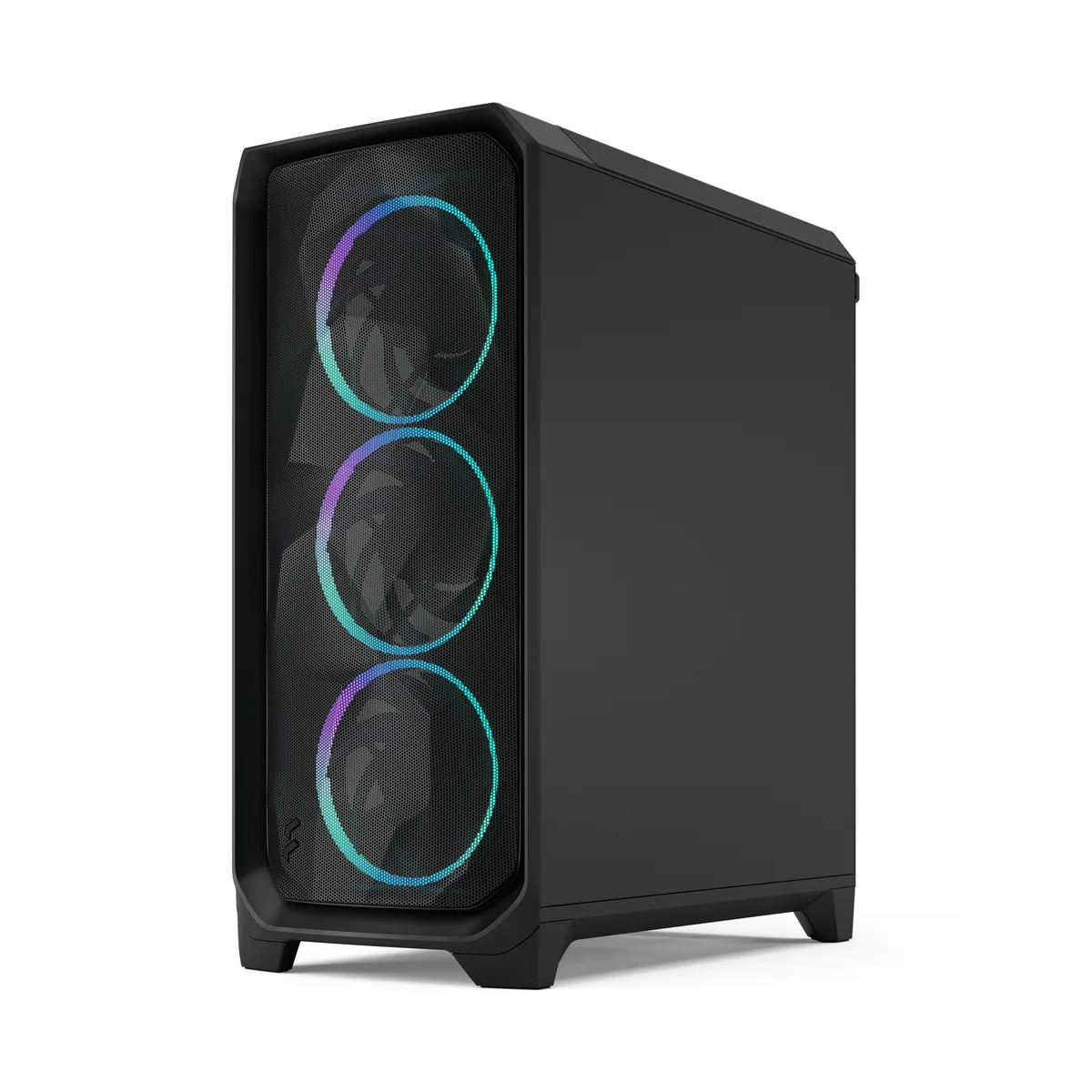

Black mid-tower case with rockface mesh front, light-tinted glass side panel, three 140 mm ARGB fans visible

Fractal Design

Fractal Design Meshify 3 RGB FD-C-MES3A-06 PC Case

SKU CH-8M06-TTNBB MPN FD-C-MES3A-06

Mid-tower ATX case with mesh front, light-tinted glass side panel and three pre-installed 140 mm ARGB fans, supporting E-ATX boards, 349 mm GPU and 360 mm front radiator

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Micro ATX / ATX / E-ATX / Micro AT

Options Meshify 3 RGB - TG Light Tint (Black)

  • High airflow from three 140 mm RGB fans included
  • GPU clearance up to 349 mm with E-ATX motherboard support
  • Front radiator space up to 360 mm plus top 280 mm
  • Tool-less panels and cable aligners simplify the build
  • 20 Gbps USB-C plus two USB 3.0 and audio on top I/O

Mid-tower case for ATX and E-ATX builds

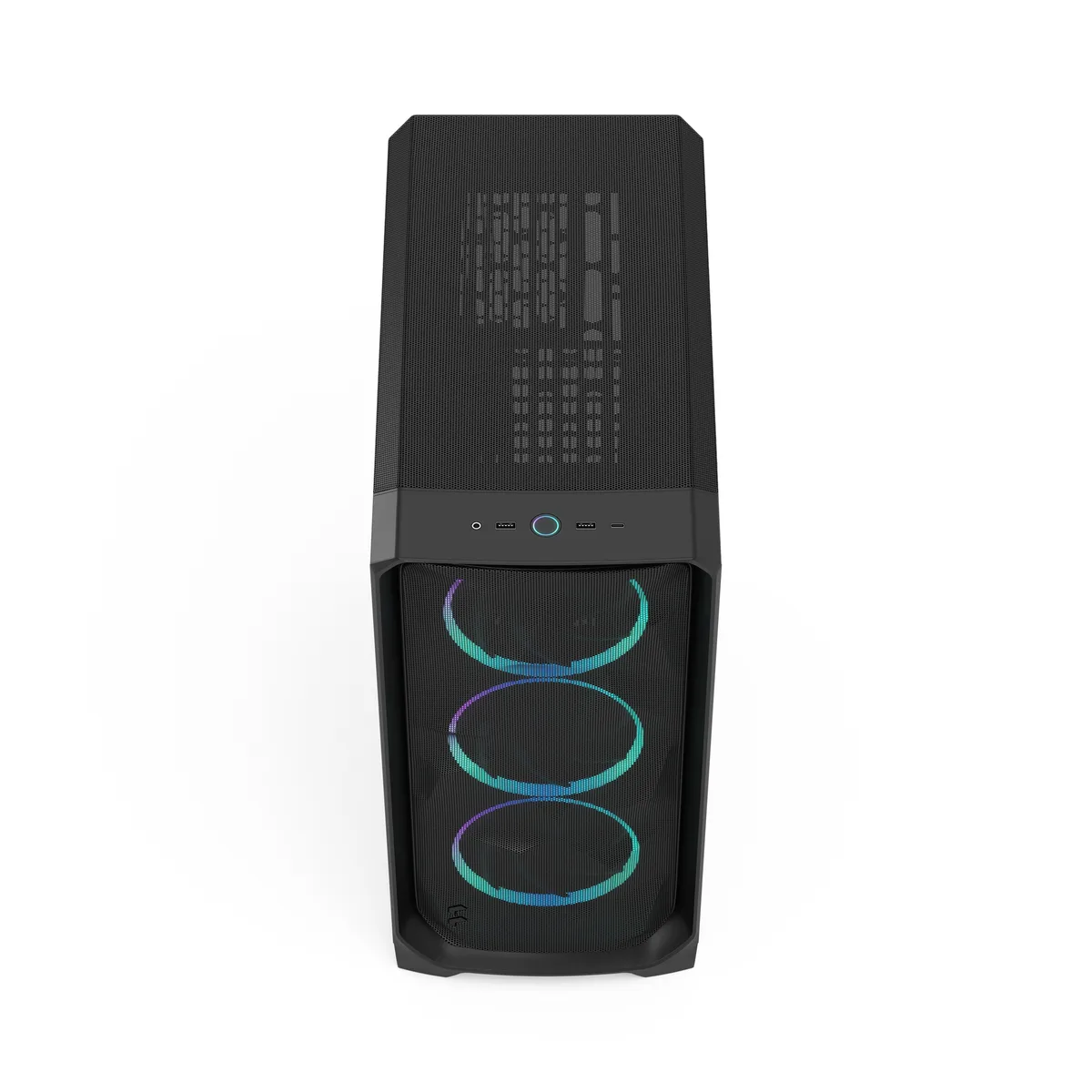

The Meshify 3 RGB is a steel ATX mid-tower that accepts ATX, E-ATX, Micro-ATX and Mini-ITX motherboards. It ships with three 140 mm Momentum 14 RGB PWM fans pre-installed at the front and a light-tinted tempered-glass side panel. The front I/O provides a 20 Gbps USB-C port, two USB 3.0 ports and a combo audio jack.

Suits airflow-focused builders.

The open mesh front and included fans favour high-airflow cooling for powerful GPUs up to 349 mm long and 176 mm tall. Radiator support covers 360 mm at the front, 280 mm at the top and 120 mm at the rear. Builders who need external 5.25-inch bays or a completely solid front panel should look elsewhere.

Three Momentum 14 fans

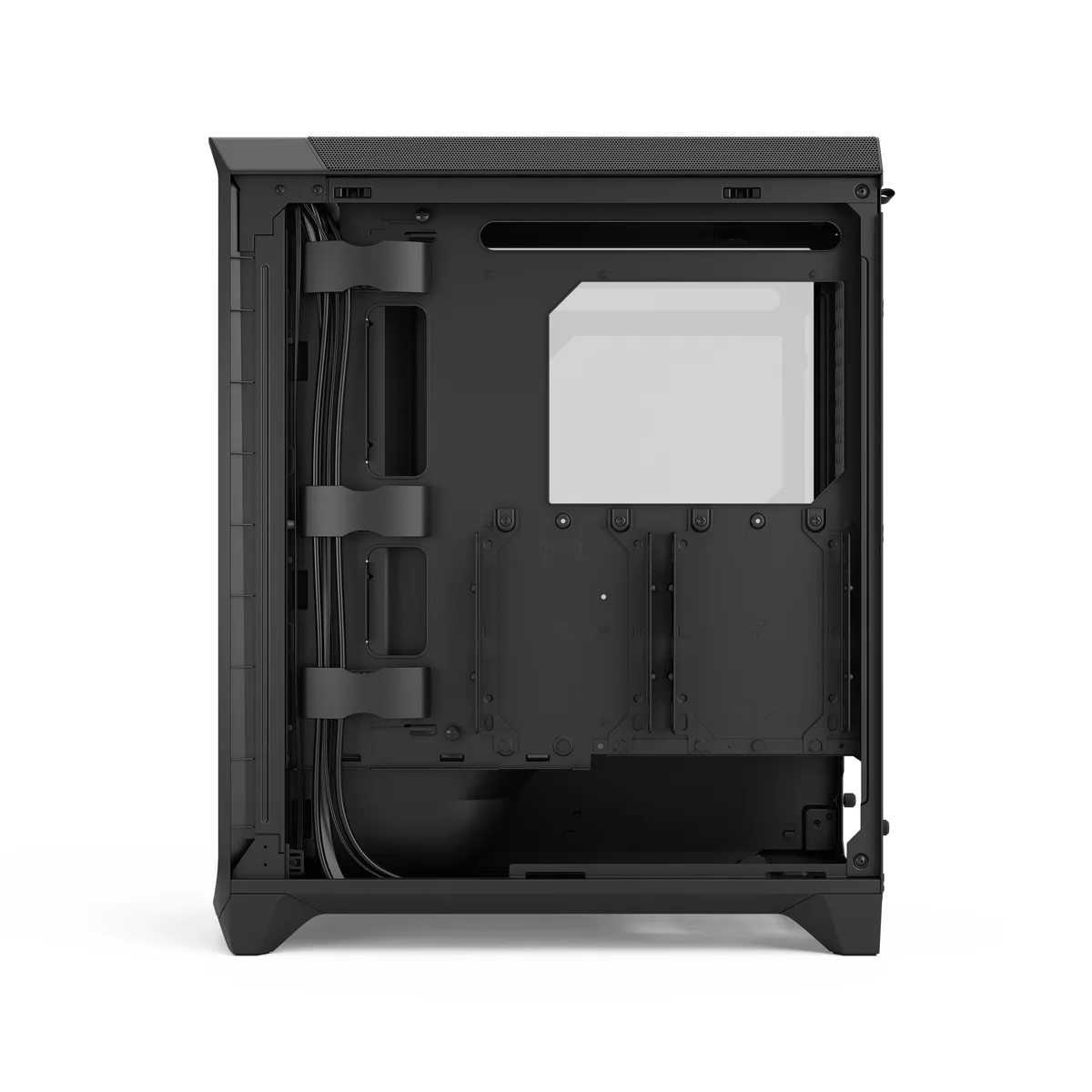

The bundled 140 mm fans use LCP blades and fluid-dynamic bearings for strong static pressure with ARGB lighting. Removable top and front brackets allow radiator installation without tools, while a cable cover and new cable aligners keep routing tidy behind the motherboard tray. Two dedicated 2.5-inch mounts on the floor and space for two 3.5-inch or four 2.5-inch drives behind the tray complete the storage layout.

Highlights

  • High airflow from three 140 mm RGB fans included
  • GPU clearance up to 349 mm with E-ATX motherboard support
  • Front radiator space up to 360 mm plus top 280 mm
  • Tool-less panels and cable aligners simplify the build
  • 20 Gbps USB-C plus two USB 3.0 and audio on top I/O

Specifications

BrandFractal Design
SeriesMeshify 3 RGB
ModelFD-C-MES3A-06
Part NumberFD-C-MES3A-06
TypeATX Mid Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / E-ATX / Micro ATX / Micro ATX / ATX / E-ATX / Micro ATX / ATX / Mini ITX / E-ATX / Mini ITX
Side PanelLight Tinted TG Side Panel
LEDARGB
Dust FiltersBottom
External 5.25" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays2 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3 x 120/140 mm (3 x Momentum 14 RGB PWM included)
Top: 2 x 120/140 mm
Rear: 1 x 120 mm
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 240mm / Top - Up to 280mm
140mm Fans3
Max GPU LengthMax GPU Length: 349 mm
Max GPU Height: 176 mm (slot 7, including cables)
Max CPU Cooler Height173 mm
Max PSU Length180 mm
Dimensions17.05" x 9.02" x 19.96"
Weight19.40 lbs.
Package ContentMeshify 3 case
User manual
Accessory box
Shipping weight10.61 kg
Package size597 × 541 × 343 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my motherboard need a 20Gbps USB-C header for the front Type-C port to work?

The front panel includes a 20Gbps USB Type-C port that requires a matching motherboard header for full speed; it will still function at reduced speed on slower headers.

Will the three pre-installed 140mm Momentum 14 RGB PWM fans fit if I keep my existing 120mm top radiator?

The top supports 2 x 120/140 mm fans and radiators up to 280 mm, so a 120mm radiator leaves room for the front 140mm fans without conflict.

How can I verify the ARGB lighting is functioning after building in this case?

Connect the integrated ARGB controller to a 5V addressable header or the supplied remote, then check that all three front 140mm fans and any added strips illuminate and respond to software control.
