Graphite aluminium Mini-ITX case with solid walnut panel, 10.4 L volume

Fractal Design

Fractal Design Terra FD-C-TER1N-01 Graphite Mini-ITX PC case

SKU CH-8YWQ-0HJJ0 MPN FD-C-TER1N-01

A 10.4 L Mini-ITX chassis with a movable interior wall, PCIe 4.0 riser and space for 322 mm GPUs

  • TypeSmall Form Factor
  • ColorGraphite
  • Case MaterialAluminum / Steel
  • With Power SupplyNo
  • Power SupplySFX/SFX-L
  • Power Supply MountedRear

Options Graphite

  • Space-saving 10.4 L volume fits compact builds
  • Solid walnut panel adds natural warmth to the exterior
  • Movable interior wall gives 30 mm of layout flexibility
  • PCIe 4.0 riser cable included for full GPU bandwidth
  • Two 2.5" drive bays provide dedicated SSD storage

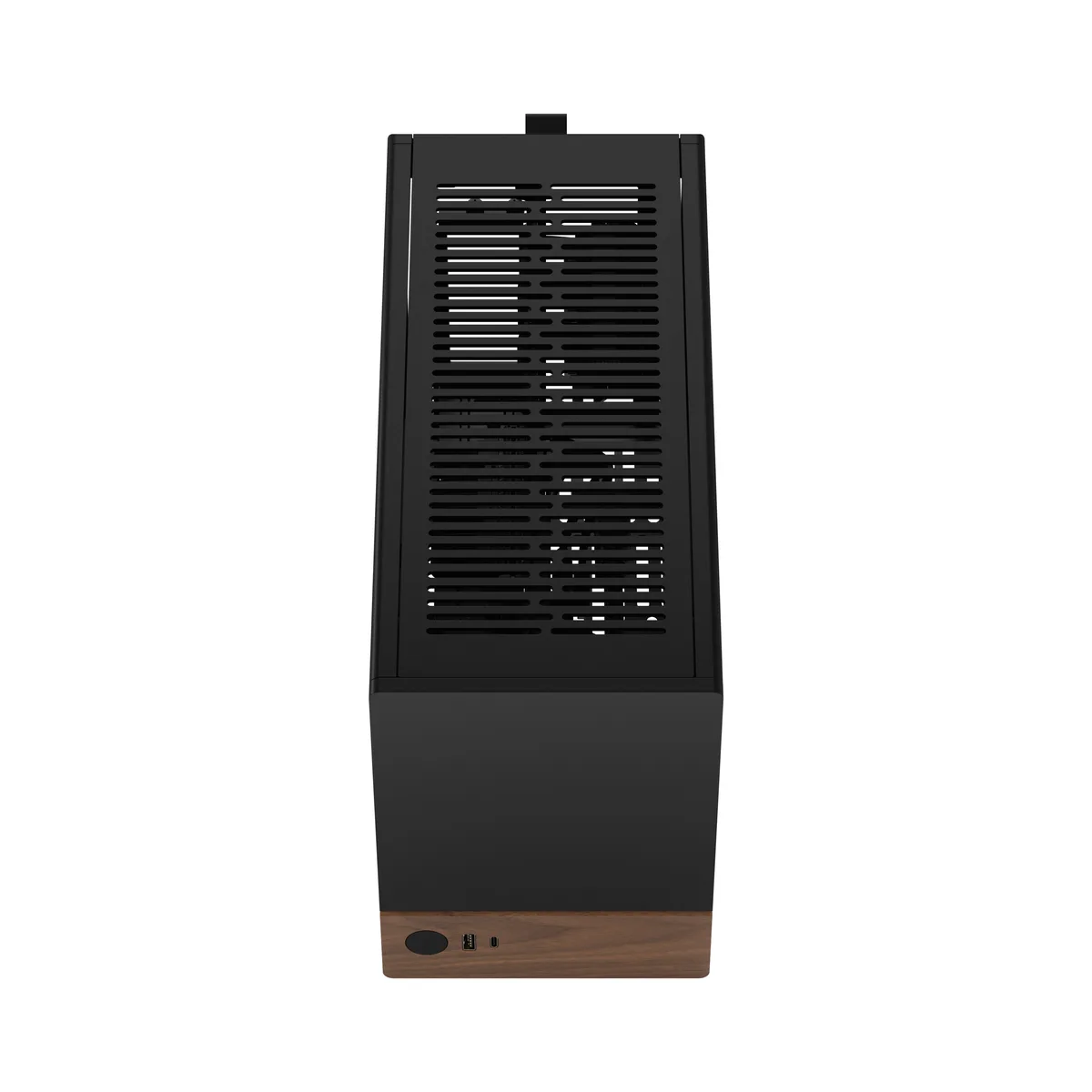

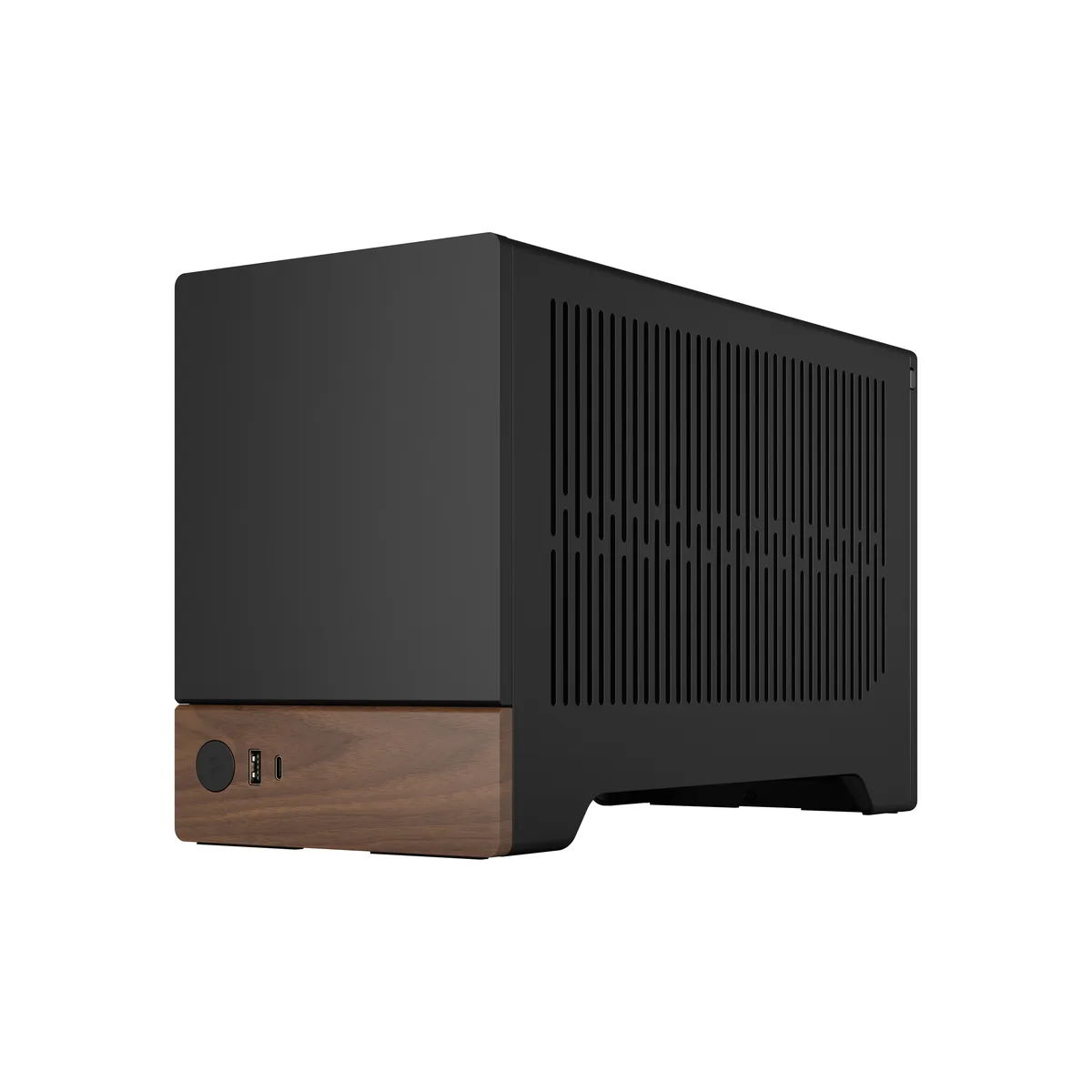

10.4 L Mini-ITX Case for Compact Builds

The Terra FD-C-TER1N-01 is a 10.4 litre small form factor chassis built from anodized aluminium and steel with a solid walnut accent panel. It accepts Mini-ITX motherboards and SFX or SFX-L power supplies mounted at the rear. The case ships without a side window and includes two internal 2.5 inch drive bays. Removable hinged side panels give straightforward access to the interior.

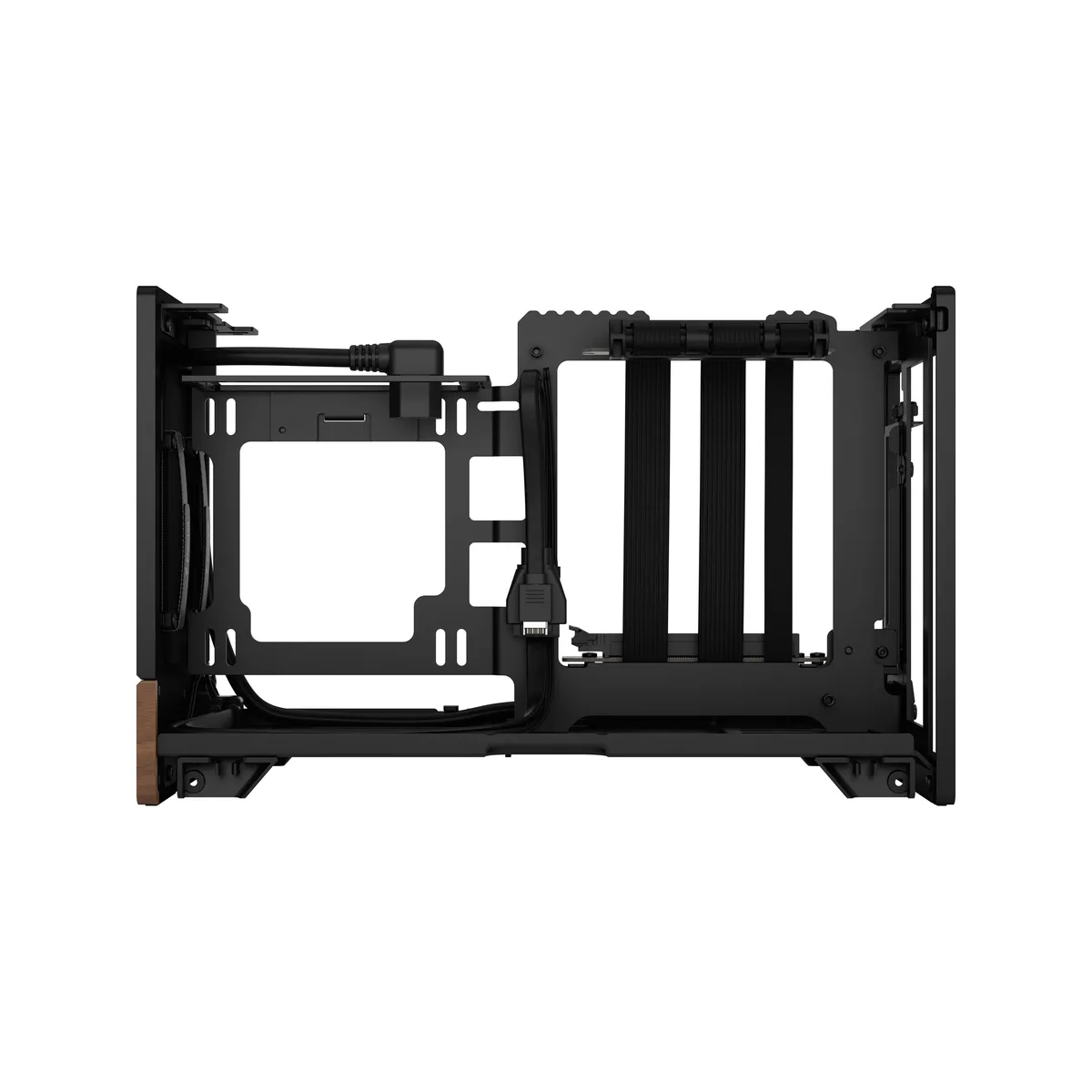

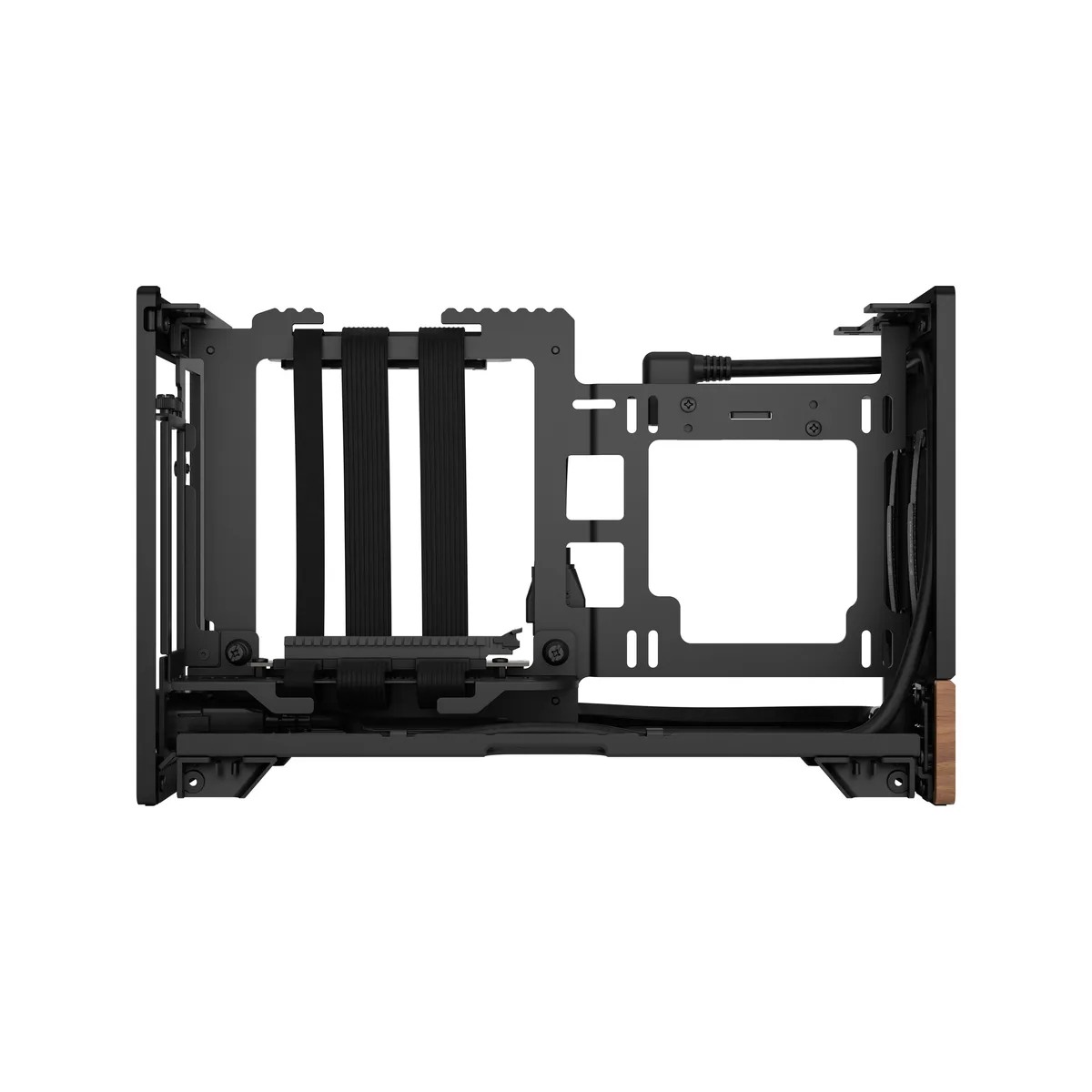

Movable Interior Wall Adds 30 mm Flexibility

A sliding internal wall provides 30 millimetres of adjustable space between the graphics card and the motherboard tray. In the maximum GPU configuration this allows cards up to 322 millimetres long, 131 to 145 millimetres tall and 62 to 72 millimetres thick. In the maximum CPU configuration the wall shifts to permit CPU coolers up to 77 millimetres tall, while GPU cooler clearance drops to 48 millimetres. A PCIe 4.0 riser cable is included for the three expansion slots.

Single 120 mm Mount and Side Radiator Support

Cooling relies on a single 120 millimetre fan mount at the bottom of the case; no fans are pre-installed. A 120 millimetre radiator can be fitted to the side bracket provided the radiator is no wider than 121 millimetres, the graphics card is 200 millimetres or shorter, and the 2.5 inch drive bays are not used. The SFX power supply length is limited to 130 millimetres.

Highlights

  • Space-saving 10.4 L volume fits compact builds
  • Solid walnut panel adds natural warmth to the exterior
  • Movable interior wall gives 30 mm of layout flexibility
  • PCIe 4.0 riser cable included for full GPU bandwidth
  • Two 2.5" drive bays provide dedicated SSD storage

Specifications

BrandFractal Design
SeriesTerra
ModelFD-C-TER1N-01
TypeSmall Form Factor
ColorGraphite
Case MaterialAluminum / Steel
With Power SupplyNo
Power SupplySFX/SFX-L
Power Supply MountedRear
Motherboard CompatibilityMini ITX
Side Panelwithout Side Window
Internal 2.5" Drive Bays2 (included)
Expansion Slots3 in Max GPU Config, 2 in Max CPU Config
Front Ports1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.0 Type-A,
Fan OptionsTotal fan mounts: 1x 120 mm
Bottom: 1x 120 mm
Pre-installed FansNo Fan Installed
Radiator OptionsSide: 120 mm (Max 121 mm wide w/ GPU up to 200 mm long and no 2.5" drives)
Max GPU Length322 mm
Max GPU Height: 131 - 145 mm depending on thickness
Max GPU Thickness: 62 - 72 mm depending on height (Max GPU config)
Max CPU Cooler Height77 mm in Max CPU config, 48 mm in Max GPU config
Max PSU Length130 mm
Dimensions13.50" x 6.02" x 8.58"
Weight6.83 lbs.
Features• Install your choice of high-performing GPU up to 322 mm in length, in a space-saving 10.4 L case
• Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
• Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
• Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, slidable central wall
• Front-facing I/O featuring an aluminum power button and two USB ports including one USB Type-C 20Gbps
• Get a head start on your build with the included PCIe 4.0 Riser cable
• Store up to two
Package ContentTerra Case
Accessory box
Manual
Shipping weight4.00 kg
Package size394 × 292 × 215 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much GPU length does the 10.4 L Terra case actually allow?

The Terra accepts graphics cards up to 322 mm long in its maximum GPU configuration.

What bandwidth does the front USB Type-C port support?

The front USB 3.2 Gen 2x2 Type-C port delivers up to 20 Gbit/s bandwidth.

How much clearance does the movable interior wall add for the CPU cooler?

Sliding the interior wall provides an extra 30 mm, raising the CPU cooler limit from 48 mm to 77 mm.
