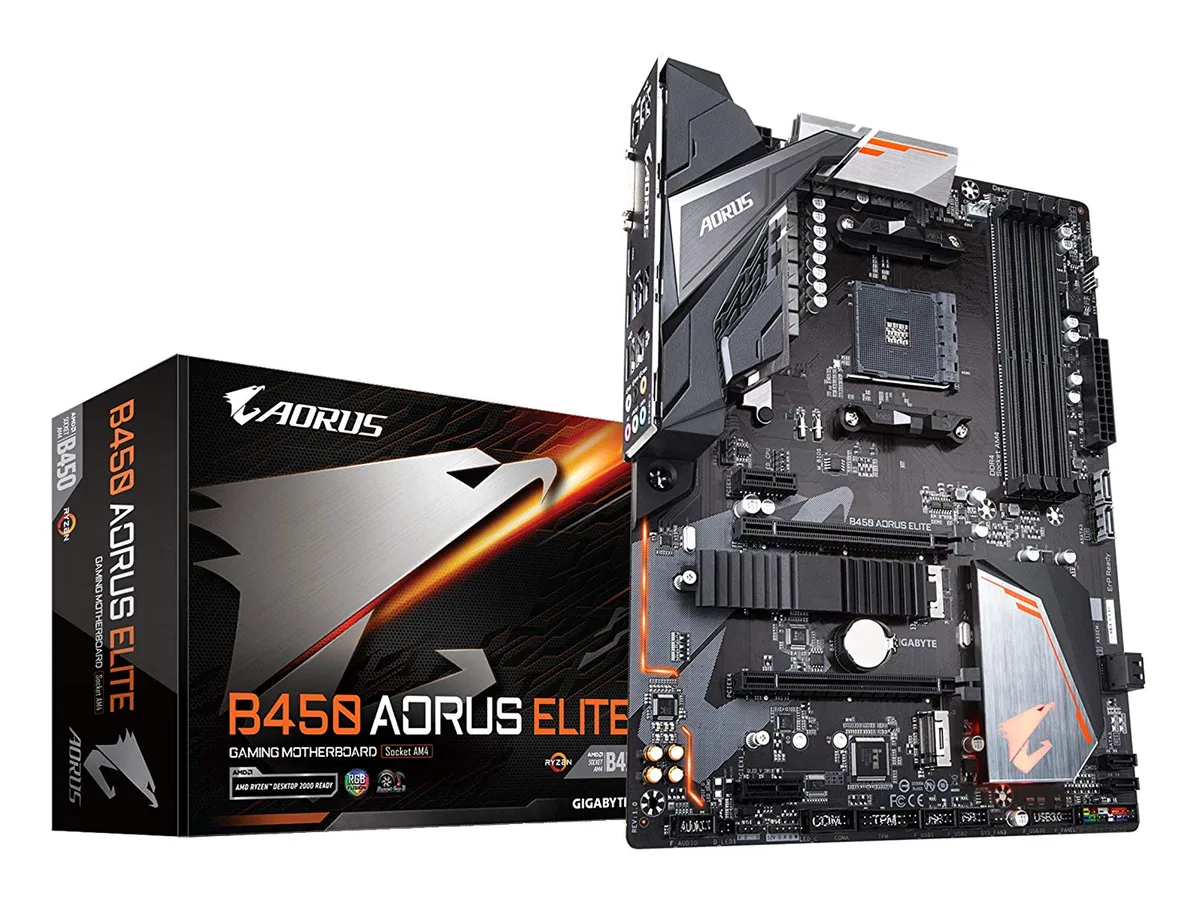

Black ATX motherboard with silver heatsinks and RGB lighting zones

GIGABYTE

GIGABYTE B450 AORUS ELITE AMD motherboard

SKU CH-P09F-223MW

ATX motherboard for AMD Ryzen AM4 CPUs with four DDR4 slots up to 64 GB, one PCIe 3.0 x16, two M.2 sockets, six SATA 6 Gb/s ports, HDMI and DVI-D video outputs.

  • CPU Socket TypeAM4
  • CPU TypeAM4 Socket:AMD Ryzen 2nd Generation processorsAMD Ryzen with
  • ChipsetAMD B450
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
  • Maximum Memory Supported64GB
  • Supports Ryzen 1st and 2nd Generation CPUs on AM4 socket
  • Four DDR4 slots accept up to 64 GB at 3200 MHz overclocked
  • Single PCIe 3.0 x16 slot plus one x4 and two x1 slots for expansion
  • Six SATA 6 Gb/s ports and two M.2 sockets for mixed storage
  • Realtek ALC892 audio with 7.1-channel output and Gigabit LAN

Socket AM4 platform

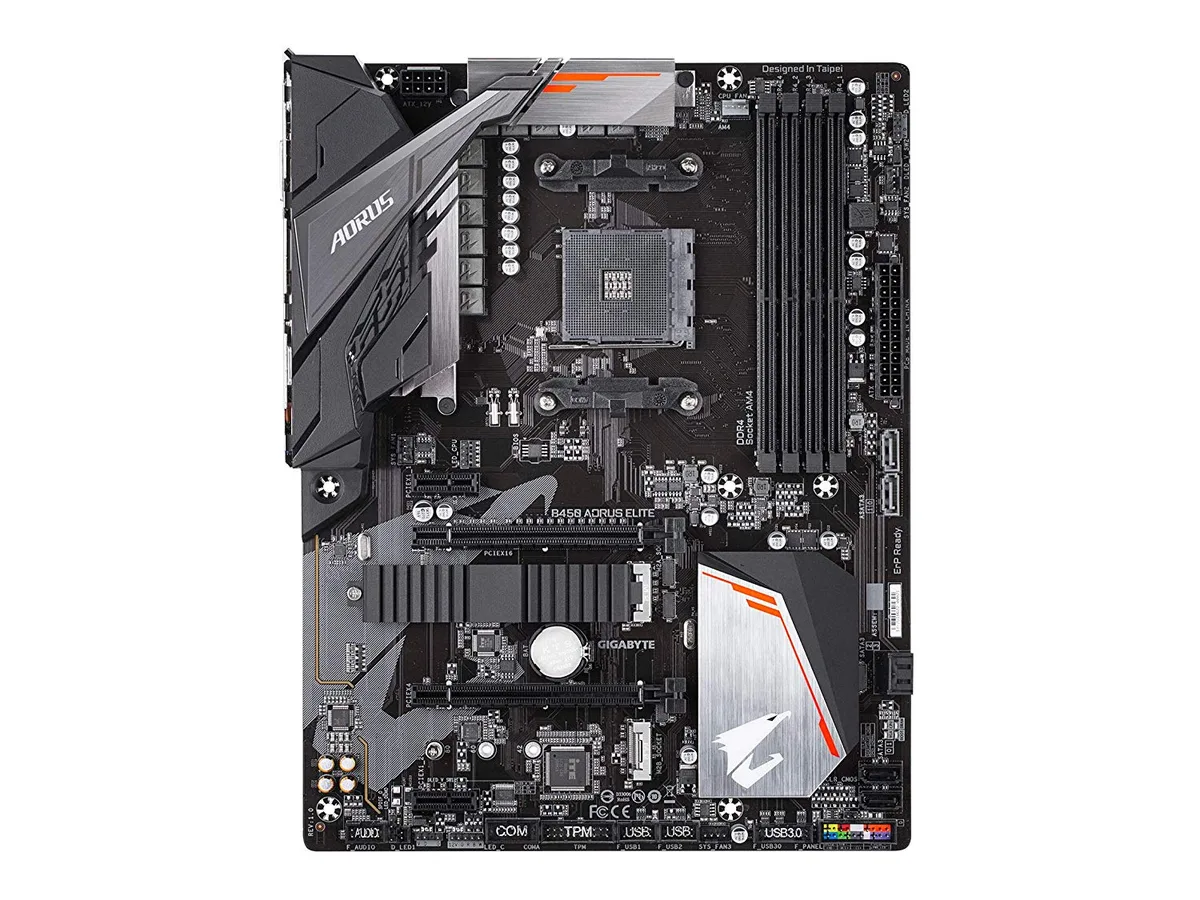

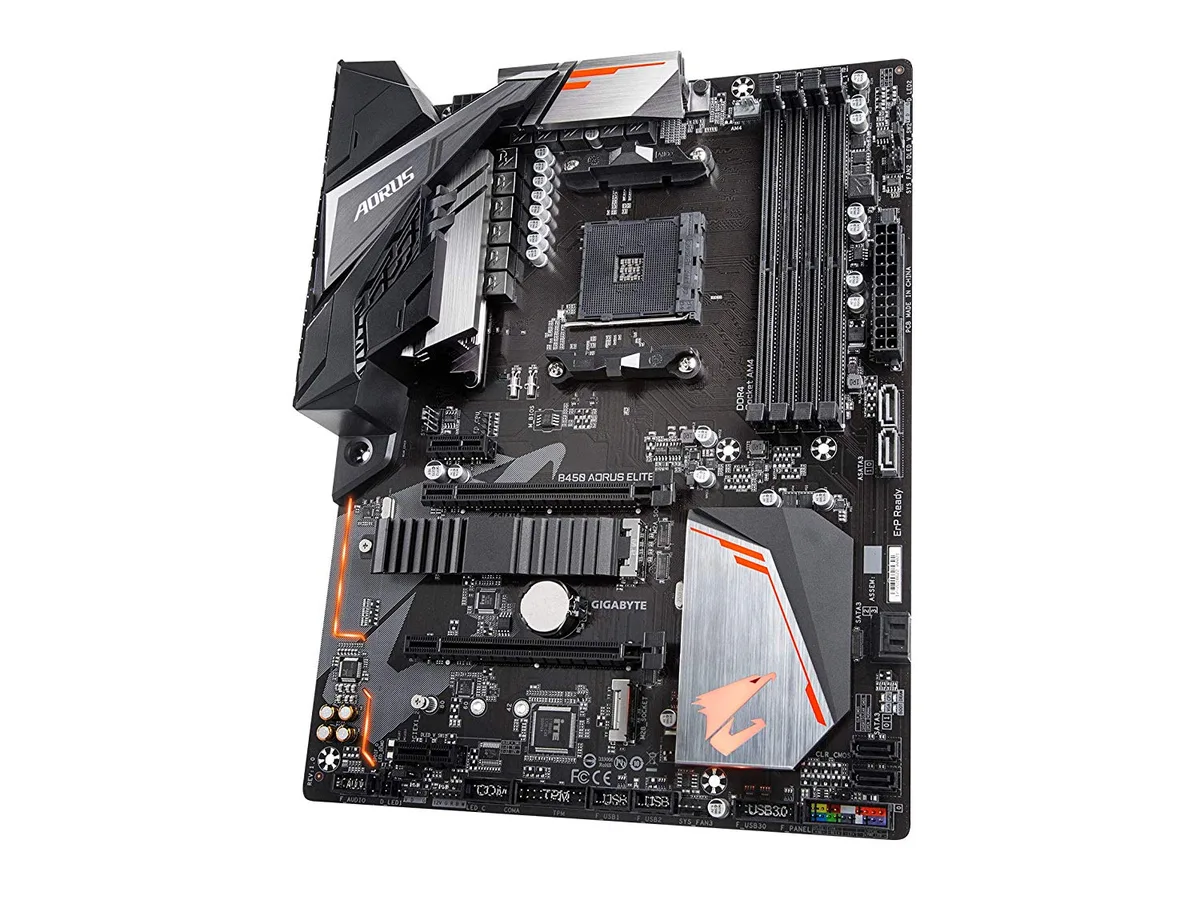

The GIGABYTE B450 AORUS ELITE is an ATX motherboard built around the AMD B450 chipset for Socket AM4 processors. It supports Ryzen 1st and 2nd Generation CPUs as well as Ryzen with Radeon Vega Graphics processors. Four DDR4 slots accept up to 64 GB of dual-channel memory at speeds up to 3200 O.C. The board provides a single PCI Express 3.0 x16 slot, one PCI Express 2.0 x16 slot running at x4, and two PCI Express 2.0 x1 slots for expansion.

M.2 Thermal Guard and StoreMI

A metal M.2 Thermal Guard covers the primary M.2 socket to dissipate heat from high-speed SSDs and reduce throttling. AMD StoreMI technology combines a fast drive with a larger HDD to accelerate boot times and application loading without manual data management. Smart Fan 5 headers and hybrid fan pins allow temperature-based fan curves for quieter operation. RGB Fusion software controls onboard LEDs and connected strips for synchronized lighting effects.

Verify CPU generation and cooler clearance

Confirm your Ryzen processor is a 1st or 2nd Generation part; newer generations are not supported by this chipset. The primary M.2 socket accepts 2242, 2260, 2280 and 22110 form factors with both SATA and PCIe 3.0 x4 or x2 drives, while the secondary socket supports 2242, 2260 and 2280 PCIe 3.0 x2 only. Six SATA 6Gb/s ports support RAID 0, 1 and 10. Display output requires a CPU with integrated graphics and uses the rear HDMI or DVI-D ports.

Highlights

  • Supports Ryzen 1st and 2nd Generation CPUs on AM4 socket
  • Four DDR4 slots accept up to 64 GB at 3200 MHz overclocked
  • Single PCIe 3.0 x16 slot plus one x4 and two x1 slots for expansion
  • Six SATA 6 Gb/s ports and two M.2 sockets for mixed storage
  • Realtek ALC892 audio with 7.1-channel output and Gigabit LAN

Specifications

BrandGIGABYTE
ModelB450 AORUS ELITE
CPU Socket TypeAM4
CPU TypeAM4 Socket:AMD Ryzen 2nd Generation processorsAMD Ryzen with Radeon Vega Graphics processorsAMD Ryzen 1st Generation processors
ChipsetAMD B450
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)** For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express 2.0 x161 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty.
PCI Express x12 x PCI Express x1 slots(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support) (M2B_SOCKET)
SATA RAID0/1/10
Onboard Video ChipsetIntegrated Graphics Processor:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz** Support for HDMI 2.0 version and HDCP 2.2.*Maximum shared memory of 16GB* Actual support may vary by CPU.
Audio ChipsetRealtek ALC892
Audio Channels2/4/5.1/7.1-channelSupport for S/PDIF Out
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.14 x USB 3.1 Gen 1 ports
USB 1.1/2.04 x USB 2.0
Audio Ports6 Ports
Onboard USB1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip extension cable header1 x RGB (RGBW) LED strip header2 x digital LED strip headers2 x digital LED strip power select jumpers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only)1 x serial port header1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.3"
Power Pin1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.BIOS:1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each appli

Questions about this item

Will the M.2 Thermal Guard need replacement or maintenance over time?

The M.2 Thermal Guard is a passive metal heatsink with no moving parts, so it does not require scheduled replacement or maintenance under normal operation.

What limits the PCIEX4 slot when the PCIEX1_2 slot is also populated?

The PCIEX4 slot shares bandwidth with PCIEX1_2 and drops to x2 mode when that slot is occupied, capping expansion throughput first.

How loud or hot does the VRM area get during all-day loads?

Smart Fan 5 controls hybrid headers to ramp VRM and chipset fans only when temperatures rise, keeping acoustics low during sustained workloads.
