Black ATX motherboard with silver heatsinks and grey PCB

GIGABYTE

GIGABYTE B550AORUS ELITE AXV2 AMD motherboard

SKU CH-RMRN-T3RM2 MPN B550AORUS ELITE AXV2

ATX board for AMD AM4 CPUs with PCIe 4.0, dual M.2, 2.5 GbE LAN, Wi-Fi 6 and 12+2 phase power

  • CPU Socket TypeAM4
  • CPU TypeAMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen
  • ChipsetAMD B550
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.)/ 4
  • Maximum Memory Supported128GB

Option B550 AORUS ELITE AX V2

Struck-through versions exist but are not stocked here.

  • Supports AMD Ryzen 5000 and 3rd Gen CPUs with BIOS update
  • 12+2 phase digital twin power design with 50A DrMOS for stable delivery
  • Dual PCIe 4.0 M.2 slots with thermal guards for fast storage
  • Intel Wi-Fi 6 802.11ax and 2.5 GbE LAN for high-speed networking
  • Front USB 3.2 Gen 2 Type-C header for quick peripheral access

Ryzen 5000-Ready B550 ATX Board

This ATX motherboard uses the AMD B550 chipset and AM4 socket. It supports Ryzen 5000 series CPUs after a BIOS update, plus 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics. Four DDR4 slots accept up to 128 GB in dual-channel mode. PCIe 4.0 x16 from the CPU and two M.2 slots with thermal guards target builders who want current-gen storage and GPU bandwidth.

Verify BIOS, Memory and Cooler Clearance

Check the vendor CPU-support list for the exact BIOS revision required by your chosen Ryzen 5000 processor. Confirm your DDR4 kit appears on the qualified vendor list for speeds up to 4733 MHz O.C. Ensure your CPU cooler fits the 12+2 phase 50 A DrMOS VRM heatsink layout and does not overhang the first DIMM slot or the primary M.2 heatsink.

Dual M.2, 2.5 GbE LAN, Wi-Fi 6, Front USB-C

The primary M.2 connects via CPU PCIe 4.0 x4 and the second via chipset PCIe 3.0 x4, both with thermal guards. A 2.5 GbE port and Intel Wi-Fi 6 802.11ax handle networking. Front-panel USB 3.2 Gen 2 Type-C, four SATA 6 Gb/s, Realtek ALC1200 audio, DisplayPort 1.4 and HDMI outputs complete the I/O.

Highlights

  • Supports AMD Ryzen 5000 and 3rd Gen CPUs with BIOS update
  • 12+2 phase digital twin power design with 50A DrMOS for stable delivery
  • Dual PCIe 4.0 M.2 slots with thermal guards for fast storage
  • Intel Wi-Fi 6 802.11ax and 2.5 GbE LAN for high-speed networking
  • Front USB 3.2 Gen 2 Type-C header for quick peripheral access

Specifications

BrandGIGABYTE
ModelB550 AORUS ELITE AX V2
CPU Socket TypeAM4
CPU TypeAMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.
ChipsetAMD B550
Number of Memory Slots4x288pin (DDR4)
Memory Standard3rd Gen AMD Ryzen Processors:
Support for DDR4 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
PCI Express 4.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
- 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x161 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
PCI Express x161 x PCI Express x16
PCI Express x11 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
PCI Slots2 x PCI Slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
SATA RAID0/1/10
Onboard Video ChipsetIntegrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16GB
Audio ChipsetRealtek ALC1200
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetRealtek 2.5GbE LAN chip
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Support for 11ax 160 MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBLUETOOTH 5

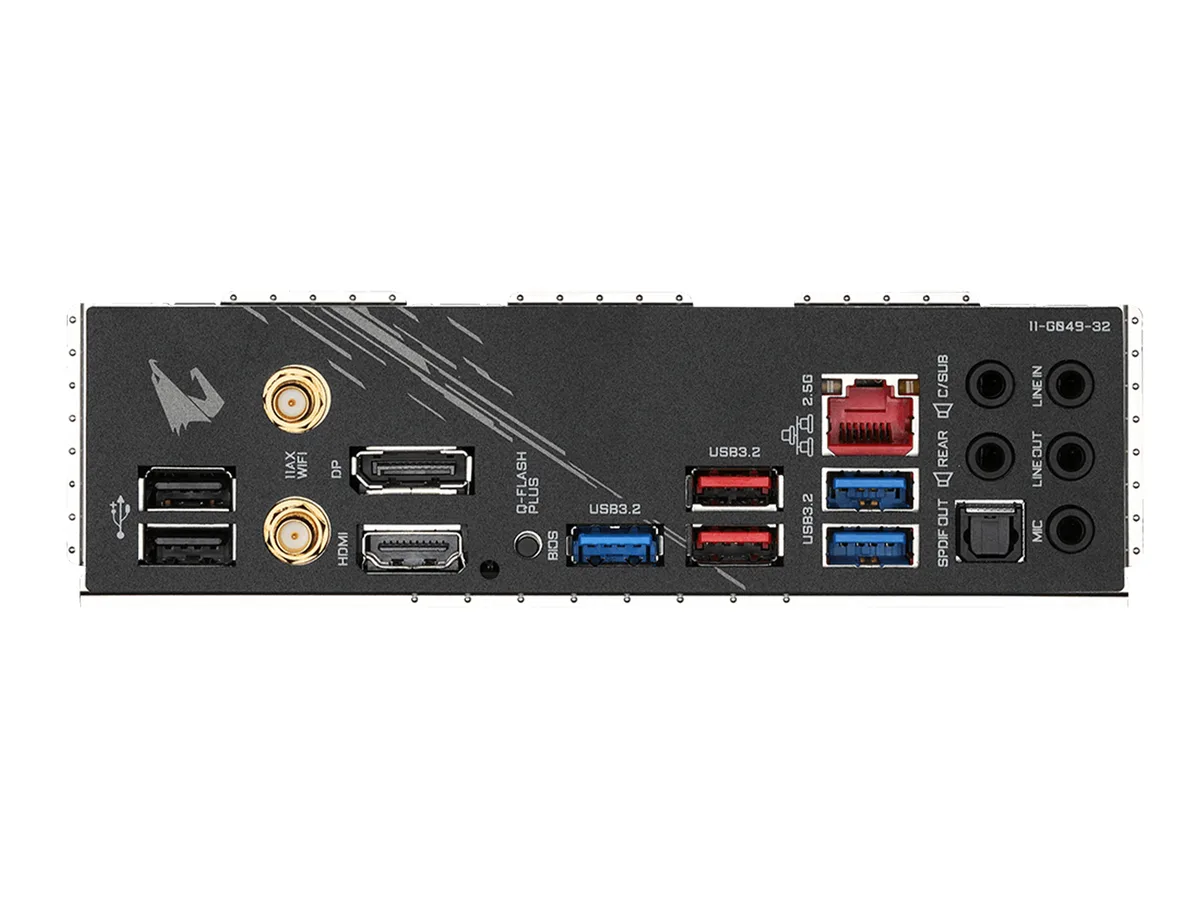

Back I/O Ports1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
USB 3.06 x USB 3.0
Onboard USB1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Supported
FeaturesI/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard s
Shipping weight1.68 kg
Package size337 × 273 × 83 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a Ryzen 5000 CPU work out of the box or do I need to flash the BIOS first?

The board requires a BIOS update for Ryzen 5000 series processors. If you do not have an older AM4 CPU to perform the update, use the Q-Flash Plus feature with a USB drive and the latest file from the manufacturer website.

Which M.2 slot gives PCIe 4.0 speeds for my NVMe drive?

The top M.2 connector (M2A_CPU) is wired to the CPU and supports PCIe 4.0 x4 with 3rd Gen Ryzen or Ryzen 5000 chips. The second slot runs at PCIe 3.0 x4 from the chipset.

Can I run four sticks of DDR4 at 3600 MHz on this board?

The memory QVL lists validated kits up to DDR4 4400 (OC) on 3rd Gen Ryzen. Four DIMMs at 3600 MHz is a common stable configuration, but final compatibility depends on the CPU memory controller and the specific kit.
