Green rectangular Micro ATX motherboard with silver CPU socket, four black RAM slots, black PCIe slots and blue rear I/O panel

GIGABYTE

GIGABYTE B560M DS3H V3 Intel motherboard

SKU CH-648Y-1XJBW

Micro-ATX board for 10th- and 11th-gen Intel CPUs with four DDR4 slots up to 128 GB and HDMI output

  • CPU TypeIntel Core 11th Gen (LGA 1200)
  • Supports 11th Gen Intel Core i9, i7 and i5 processors via LGA 1200 socket
  • Runs 10th Gen Intel Core i9, i7, i5, i3, Pentium and Celeron CPUs on the same board
  • Four DDR4 DIMM slots accept up to 128 GB total system memory
  • Dual-channel DDR4 architecture with XMP support reaches 3200 MT/s with 11th Gen CPUs
  • Intel H470 Express chipset provides platform features for mainstream desktop builds

Micro ATX board for 10th and 11th Gen Intel CPUs

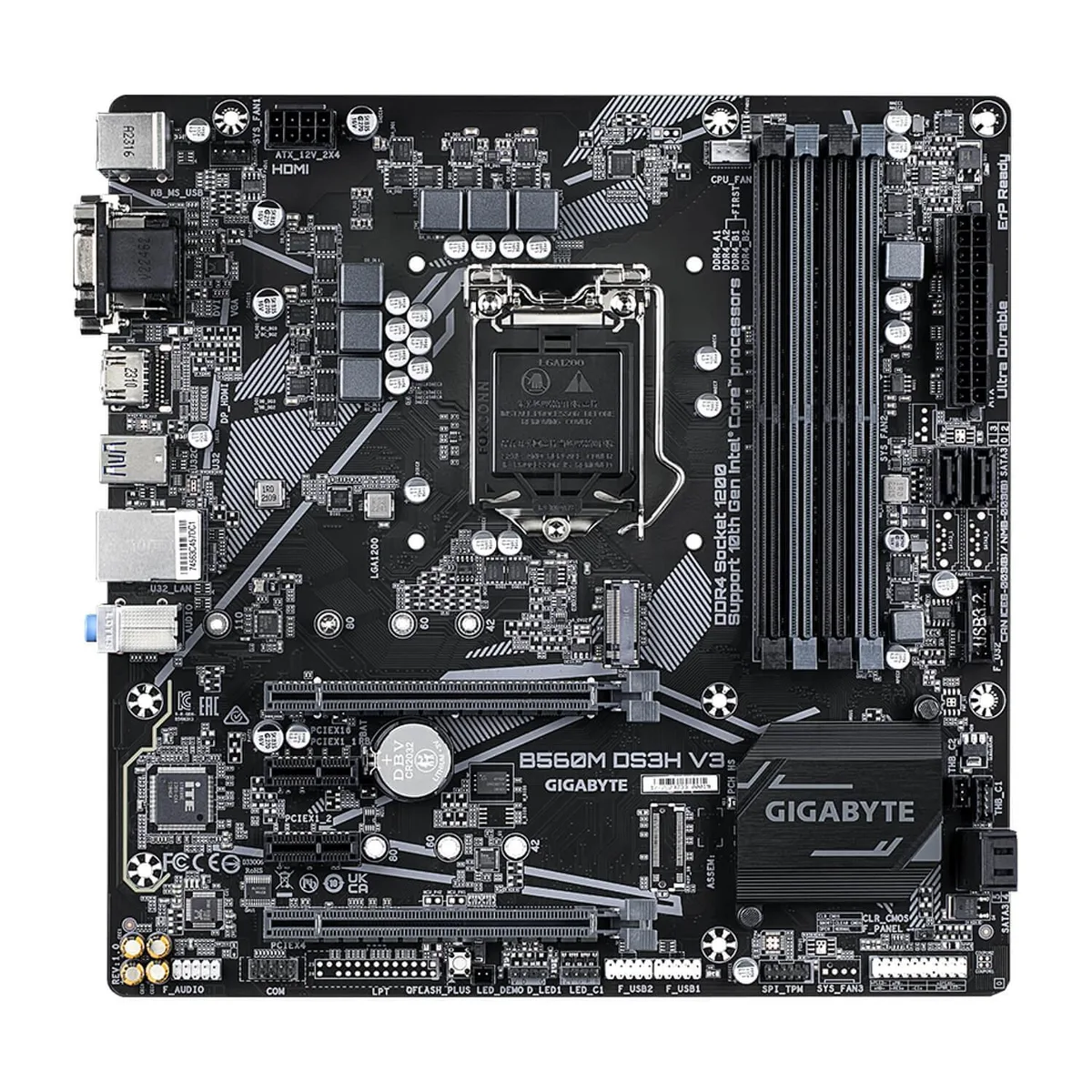

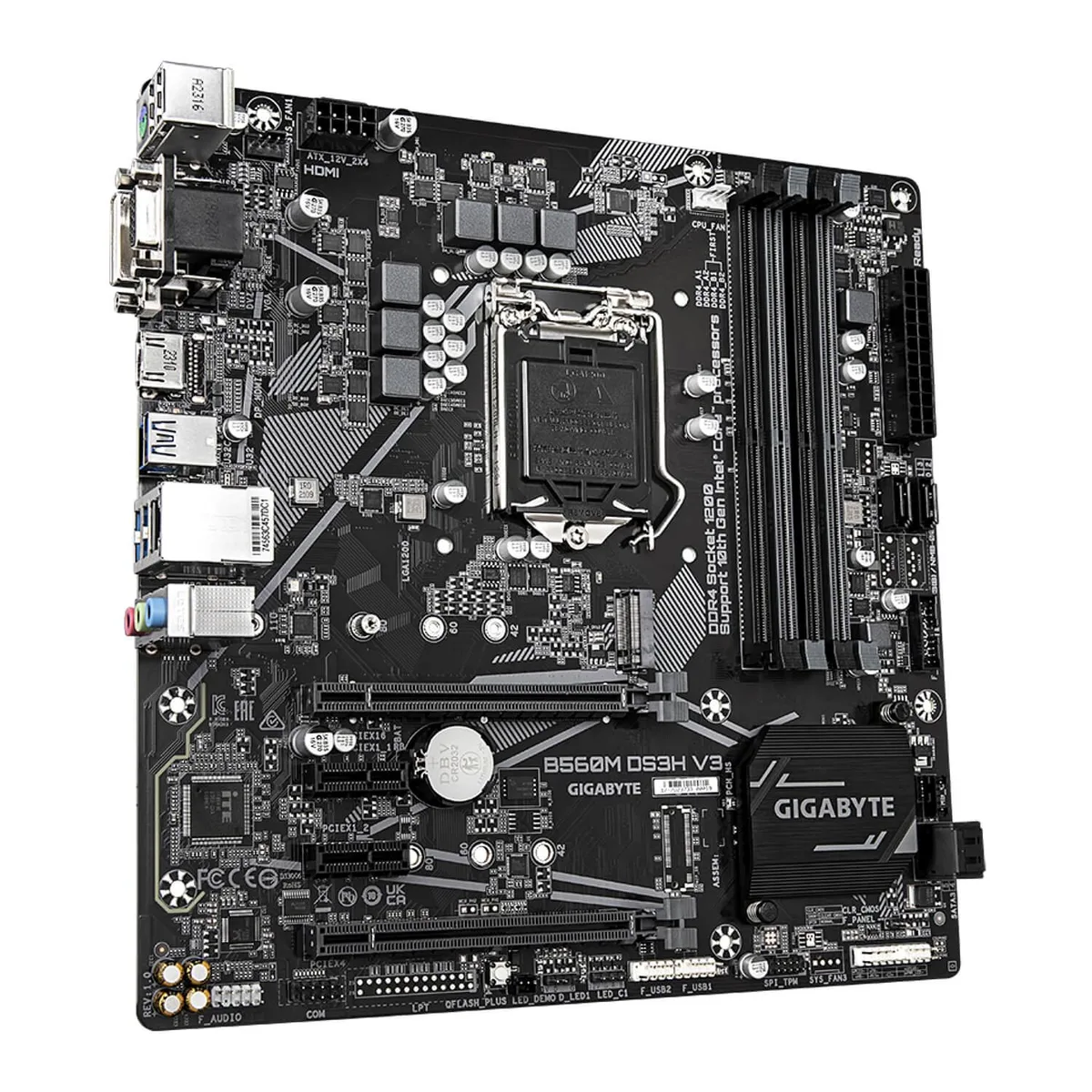

The GIGABYTE B560M DS3H V3 uses the Intel H470 Express Chipset and an LGA 1200 socket to support 10th and 11th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors. It fits Micro ATX cases and provides four DDR4 DIMM slots for system memory.

Memory layout frees expansion space

Four DDR4 slots accept up to 128 GB total capacity with a 32 GB per DIMM limit and run in dual-channel mode. Supported speeds range from 2133 MT/s to 3200 MT/s depending on the installed processor generation. ECC un-buffered modules operate in non-ECC mode and XMP profiles are supported.

HDMI output enables integrated graphics use

An onboard HDMI port lets builders use the processor's integrated graphics without a discrete card, freeing the PCIe x16 slot for other add-in cards. The H470 chipset provides the platform I/O for storage and peripherals.

Highlights

  • Supports 11th Gen Intel Core i9, i7 and i5 processors via LGA 1200 socket
  • Runs 10th Gen Intel Core i9, i7, i5, i3, Pentium and Celeron CPUs on the same board
  • Four DDR4 DIMM slots accept up to 128 GB total system memory
  • Dual-channel DDR4 architecture with XMP support reaches 3200 MT/s with 11th Gen CPUs
  • Intel H470 Express chipset provides platform features for mainstream desktop builds

Specifications

CPU TypeIntel Core 11th Gen (LGA 1200)

Questions about this item

What is the maximum memory speed supported with an 11th Gen Intel Core i5 processor?

The board supports DDR4 up to 3200 MT/s when paired with an 11th Generation Intel Core i5 processor, and up to 2666 MT/s with a 10th Generation Core i5.

How loud does the chipset fan get under continuous load?

The Intel H470 Express Chipset on this board is passively cooled with a heatsink, so there is no chipset fan to generate noise during all-day operation.

Which processor socket and memory type must I already have for this motherboard to work?

You need an LGA 1200 processor and DDR4 memory modules; the board provides four DDR4 DIMM slots supporting up to 128 GB total capacity.
